Пальмовое дерево прессовый агрегат для удаления древесной стружки/с сушильным барабаном древесных опилок 1 01-1 9

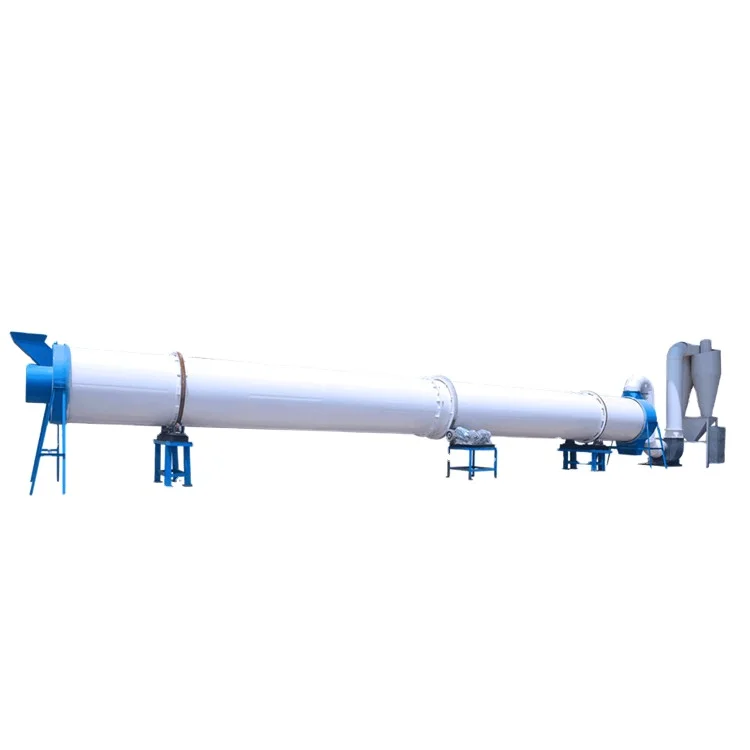

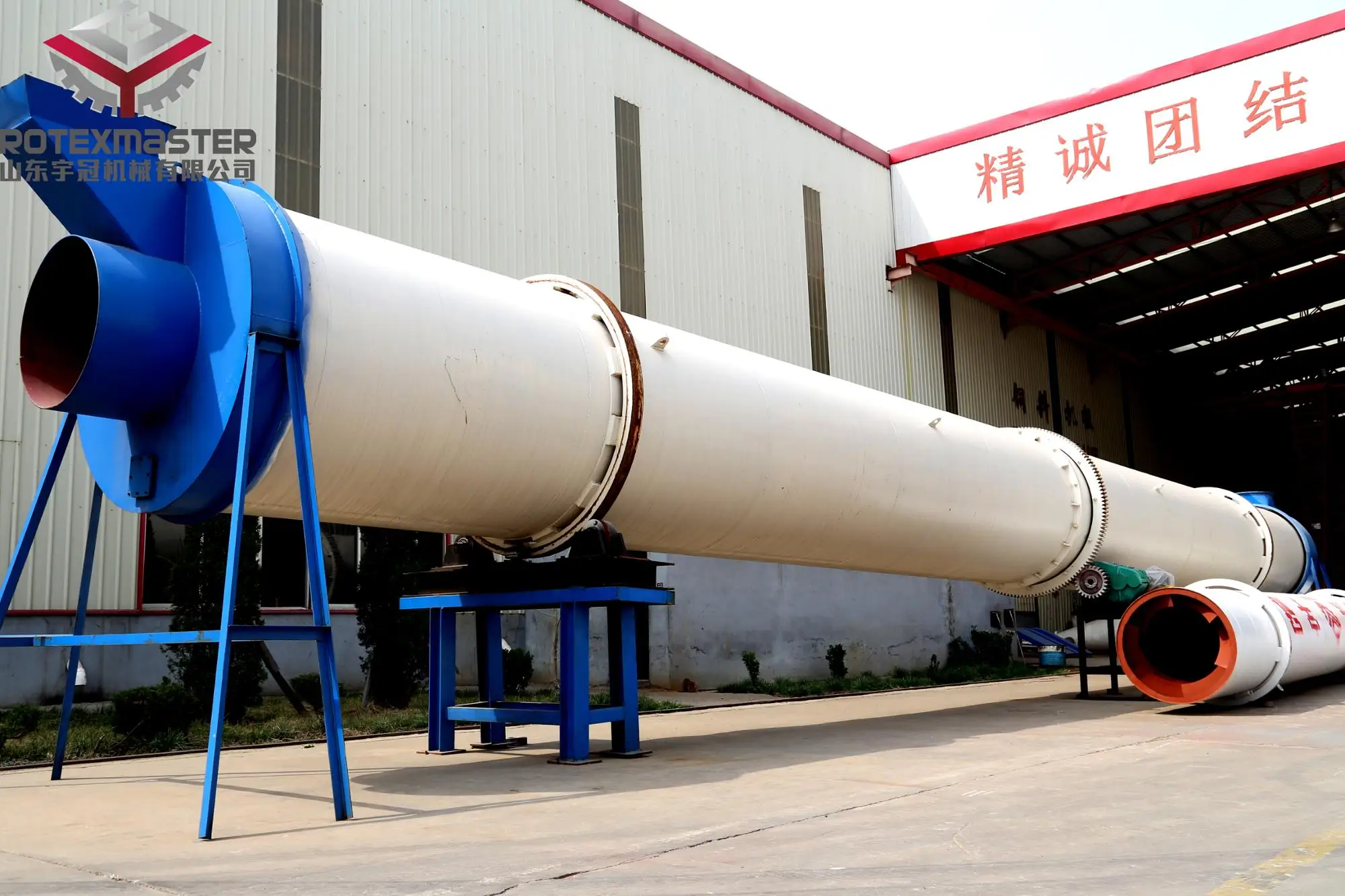

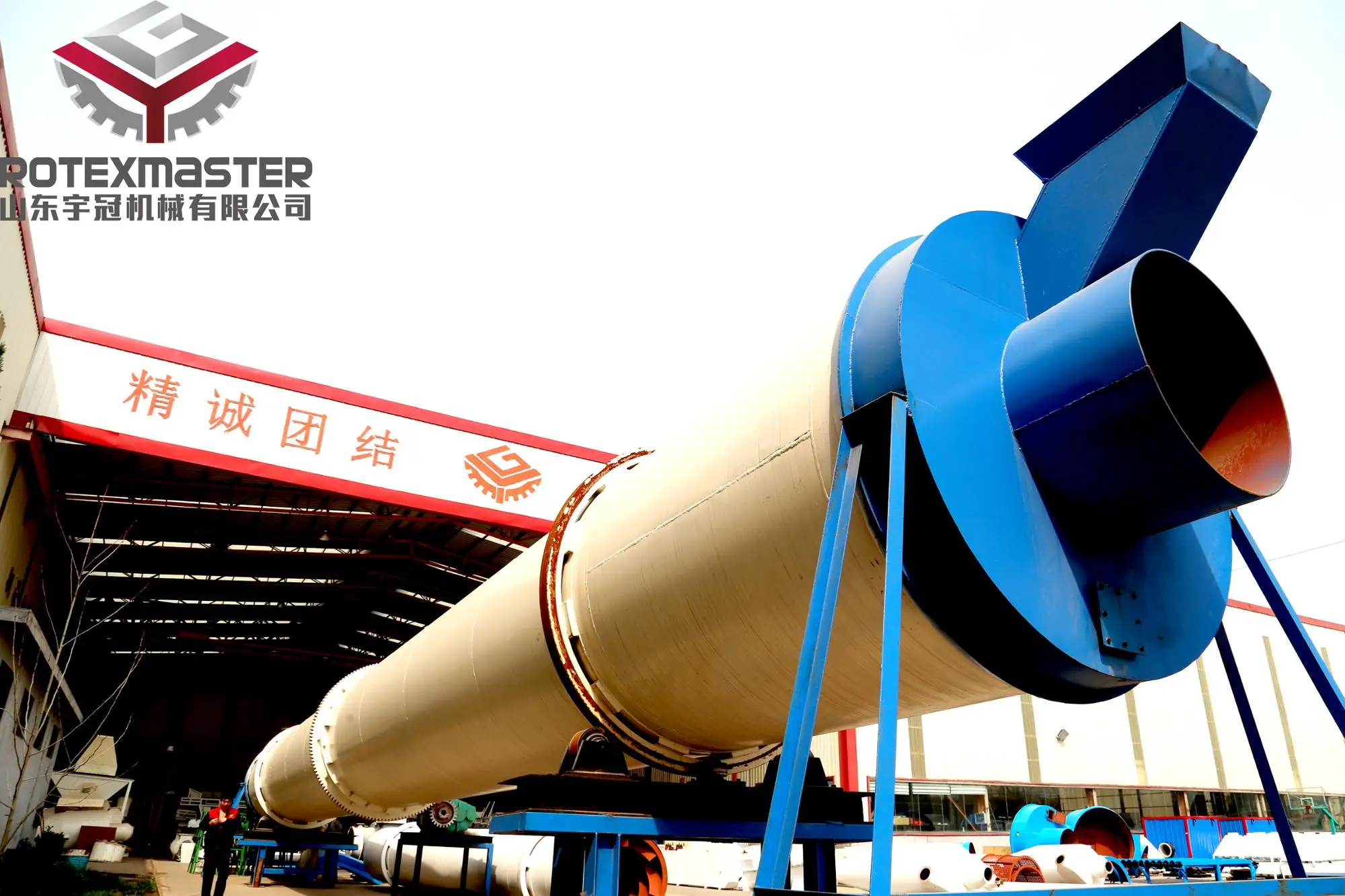

The rotary dryer is mainly composed of a cylinder body, a roller ring, a base retaining roller and a tail dust removing device. The hot air and the material are contacted in the cylinder body, and the material is designed to make the matrial and the hot air fully contact to achieve the drying effect. The raw material of dryer include wood chips, sawdust, efb fiber, forest waste and so on.

Features Of Rotary Dryer

	The structure design is resonable, which is conduciv to maintenance.
	The design of the lifting plate in the cylinder is Multi-angle, so that the matrial forms a curtain in the cylinder.
	The rotary drum dryer's price has two units reducer,the bearing is Harbin bearing,highest configuration,most brand part,long service life.
	The rotary drum dryer's price wall thickness 20mm depends on the different model dryer,the dryer total weight 10t-30t,that make sure the dryer work stable,firmly enough.

Parameter Of Rotary Dryer

Model Power(kw) Evaporation(t/h) Thickness(mm) YGHG1.2*12m 5.5+15+2.2+1.5 0.3-0.6   10 YGHG1.5*12m  11+18.5+3+2.2 0.47-0.91  12  YGHG1.8*18m 18.5+37+3+2.2  1.01-1.9   12 YGHG2.0*18m 18.5+55+5.5+2.2  1.25-2.3  14 YGHG2.2*24m 22+90+5.5+2.2  2.02-3.36  14 YGHG2.5*24m 22+90+5.5+3  2.61-4.16  14  YGHG3.0*24m 30+132+5.5+3  3.76-5.6  16

Company Short Introduce:

Rotex Master are doing biomass fuel machinery, fodder farming machinery, drying equipment, cooler, dust removal equipment and other machinery products, the main products: Wood Pellet Machine, Feed Pellet Machine, Drum Wood Chipper and Hammer Mill,Rotary Dryer, Cooling Equipment, Conveyors Equipment and other auxiliary equipment.

We are so welcome you to visit Rotex Master---In my heart, IT IS A GREAT COMPANY, I LOVE MY COMPANY! QUALITY IS OUR CULTURE!

Certifications

Biomass industrial standard is made by Rotex Master!

Services are embodied in action not words

1. Pre-service: 24 hours on line service, 4 teams with 30 persons with more than 4 years biomass pellet industry exprerience.

2. One independent technical development department, 20 professional engineers. All of them fraduated from Chinese High Universities, like Tsinghua University, China university of Petroleum; and some old engineers has more than 20 years biomass pellet industry experience.

3. Boss together with professional engineers go to visit all over the world customers in person, more than 20 times per year. Give the best service for our customers.
