Характеристики
Product Description
Model | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | |||
Power supply | 220V/50HZ | ||||||
Shell material | Spray-paint Anti-corrosion | ||||||
Liner material | 304 Stainless Steel | ||||||
Temp.range | RT+10~200°C | ||||||
Temp.analysis | 0.1°C | ||||||
Working temp. | +5~40°C | ||||||
Inout power | 800W | 1400W | 2000W | 2400W | |||
Chamber capacity | 25L | 55L | 90L | 215L | |||
Inner dimension | 300*280*300mm | 410*400*340mm | 450*450*450mm | 560*600*640mm | |||
Shelves | 1 | 2 | 2 | 3 | |||
Time range | 1~9999 min | ||||||
Optional Configuration | Explosion-proof | ||||||

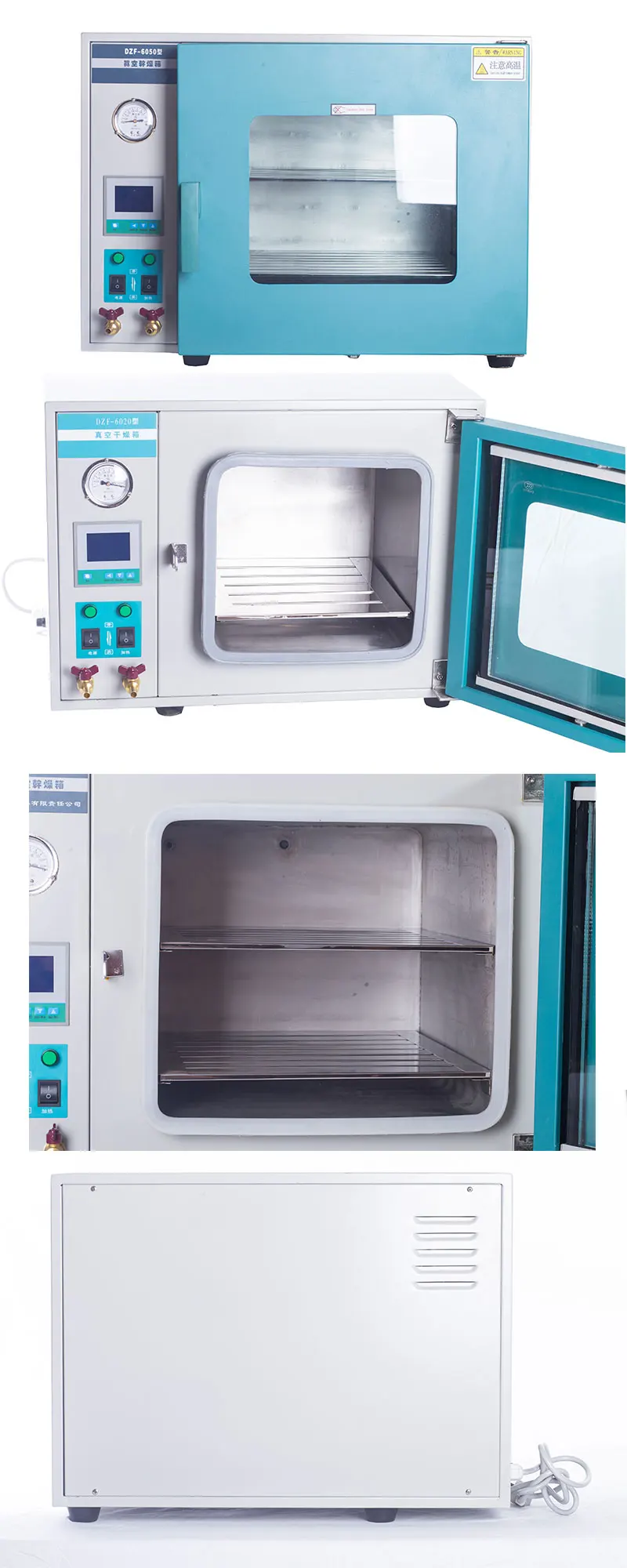

Details Images
Vacuum drying oven is designed for drying of material which is heat-sensitive、easy to decompose and oxidized, it also can rush into inert gas to the internal, especially of some compound material can also be quickly drying.
Vacuum drying oven is widely applied in research and application fields such as biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, environmental protection and so on, for drying, baking powder and all kinds of glass containers disinfection and sterilization. Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects processing fast and efficient drying treatment.
Vacuum drying oven is widely applied in research and application fields such as biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, environmental protection and so on, for drying, baking powder and all kinds of glass containers disinfection and sterilization. Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects processing fast and efficient drying treatment.
Working principle
The built-in microcomputer processor make use of electric signal which is generated by feedback value on-off to control the heating element, through PID self-tuning(manual adjustment is available), amended parameter will automatic locking and the correct signal constants the temperature within setting range, after the temperature buffer is stable, temperature difference is lower than ±1℃ under normal pressure and vacuum pressure. Front panel’s “vacuum meter” displays the vacuum degree of working room. Special purpose bleeder valve can pump air and do vacuum drying. Other switches and control device are also set in the front panel, which has the advantages of easy to operate, light weight, save electricity and high thermal efficiency, especially suitable for the drying process of a few sample.
The built-in microcomputer processor make use of electric signal which is generated by feedback value on-off to control the heating element, through PID self-tuning(manual adjustment is available), amended parameter will automatic locking and the correct signal constants the temperature within setting range, after the temperature buffer is stable, temperature difference is lower than ±1℃ under normal pressure and vacuum pressure. Front panel’s “vacuum meter” displays the vacuum degree of working room. Special purpose bleeder valve can pump air and do vacuum drying. Other switches and control device are also set in the front panel, which has the advantages of easy to operate, light weight, save electricity and high thermal efficiency, especially suitable for the drying process of a few sample.
Product Usage
1) The shell is made of high quality cold-rolled steel plate,surface electrostatic spraying.
2) Inner chamber is made of stainless steel or galvanized steel plate.
3) Intelligent digital display temperature controller,with the functions of timing,overtemperature alarm
instruction,temperature deviation correction,control temperature self-tuning.
4) Large double layer toughened glass window is convenient to observe the changes of contents in the box.
5) New type synthetic silicone seal,beautiful shape,can run high temperature for long period of time.
2) Inner chamber is made of stainless steel or galvanized steel plate.
3) Intelligent digital display temperature controller,with the functions of timing,overtemperature alarm
instruction,temperature deviation correction,control temperature self-tuning.
4) Large double layer toughened glass window is convenient to observe the changes of contents in the box.
5) New type synthetic silicone seal,beautiful shape,can run high temperature for long period of time.
Related Products
Packing&Shipping
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
Company Introduction
Zhengzhou Jili instrument equipment Co., Ltd.
Versatile combinations with glassware and extensive accessories offer the right configuration for every application. Perfectly matched peripherals top off the rotary evaporators – complete systems, all from one source. During a personal consultation, we address your individual requirements from best configuration to process optimization by our application specialists – upon request also on site.
Versatile combinations with glassware and extensive accessories offer the right configuration for every application. Perfectly matched peripherals top off the rotary evaporators – complete systems, all from one source. During a personal consultation, we address your individual requirements from best configuration to process optimization by our application specialists – upon request also on site.
FAQ
1. How many shelves does your oven can hold?
Different models hold different number shelves like 1, 2, 3 shelves. That will be according to the models.
2. What is your max temperature?
Max 250ºC, 200ºCis normal.
3. What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft), 91L(3.2 cu ft), 215L(9cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4. Can you make 110V versions?
Yes, we can make it.
5. How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6. Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
Different models hold different number shelves like 1, 2, 3 shelves. That will be according to the models.
2. What is your max temperature?
Max 250ºC, 200ºCis normal.
3. What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft), 91L(3.2 cu ft), 215L(9cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4. Can you make 110V versions?
Yes, we can make it.
5. How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6. Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
