Башенные и ветровые турбины для кранов 110-500 кВ светодиодный предупреждающий фонарь на солнечных батареях самолета с красным миганием 20-60 футов/мин работающий
- Категория: Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.79 $* |
| Aug-16-2025 | 0.61 $* | 0.97 $* |
| Jul-16-2025 | 0.17 $* | 0.12 $* |
| Jun-16-2025 | 0.63 $* | 0.71 $* |
| May-16-2025 | 0.13 $* | 0.31 $* |
| Apr-16-2025 | 0.49 $* | 0.95 $* |
| Mar-16-2025 | 0.61 $* | 0.34 $* |
| Feb-16-2025 | 0.80 $* | 0.35 $* |
| Jan-16-2025 | 0.15 $* | 0.41 $* |
Характеристики
Product Description

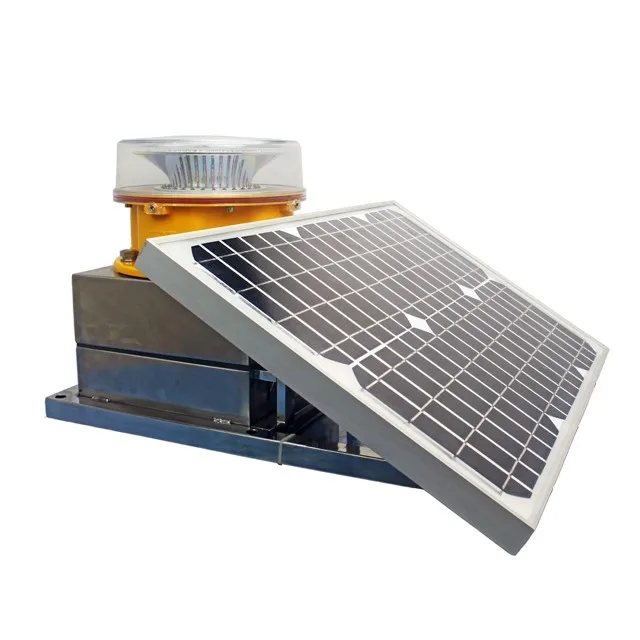

Solar Medium intensity L864 2000cd obstruction light for 110-500KV electrical tower use item CK-15T
Project case
Actually,most of this kind of solar medium intensity aircraft warning light CK-15T are used in the airport,electrical transimission line,high-rise buildings,telecom towers, wind power plant and so on.
Application
* Suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys,
high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
* Environmental conditions for use:
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
Detailed Images
Product detail drawing
Technical Characteristic
* Product features: Solar panel type,low power consumption, easy to install, high brightness, small size.* Application: Suitable for installation on fixed buildings, structures, such as electric power towers, communication towers,chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn the aircraft effect.
* Type: Solar mediumintensity aviation obstacle light
* The composition of the model and its representative meaning: CK-15T where “CK” stands for the brand “Chenke(brand name)” and “15” stands for medium-light series aviation obstacle lights.”T” refers to Solar panel.
* Environmental conditions:
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray; irradiation: exposed to solar radiation.
* Working conditions: input voltage: DC12V/DC24V/DC48V
* Impact on the environment and energy: none
Introduction of product advantages
Precautions
* All connections must be wired in strict accordance with the wiring diagram, otherwise the lamps may be damaged. Please check the logo and instructions carefully.
* The power supply of this model controller is DC12V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V,otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.
* The power supply of this model controller is DC12V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V,otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.
Product Presentation
Product introduction:
Product Name | Solar medium intensity L864 aircraft warning light type B CK-15T |
Material | Alluminum Alloy+PC cover+Solar panel |
Voltage | DC12V/DC24V/DC48V |
Power consumption | 10W |
Dimension | 525mm×528mm×368mm |
Lamp Source | LED |
Emmiting Color | Red |
Flashing Frequency | Red flashing, Flashing frequency:20-60 fpm |
Beam Angle | 360° horizontal beam angle≥10°vertical beam spread |
Light Intensity | 2000 cd |
Life Span | 100,000 Hours |
Ingress Protection | IP65 |
Net. Weight | 17 kg |
Wind Load | 240Km/h |
Size introduction and size picture
Size and Net Weight
Size: 525mm×528mm×368mm
Net Weight: 17 kg
Certificate
Related Products
Company Introduction
Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan. Where is known as Yulu Mountain, a part among Nanyue Hengshan Mountain and Yuelu Academy with a thousand years history. CDT is a hi-tech company that focus on R&D, production and sale all kinds of aviation obstruction light and green light for airport navigation.CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms cooperation with enterprises as ZTE,State Grid Corporation of China, China Southern Power Grid, CAH, CWAG and Hunan Airport Management Group etc.
As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 50 countries in Southeast Asia, Middle East, America, Africa and Oceania.CDT take innovation and factualism, honesty and trustworthiness as our operation principle, and promise to offer the most competitive price, thoughtful services and excellent products.Now, we are dedicating to making CDT a century enterprise in aviation obstruction lights field. To become a healthier, safer and more environment friendly hi-tech company, CDT are here to serve airports throughout the world.
As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 50 countries in Southeast Asia, Middle East, America, Africa and Oceania.CDT take innovation and factualism, honesty and trustworthiness as our operation principle, and promise to offer the most competitive price, thoughtful services and excellent products.Now, we are dedicating to making CDT a century enterprise in aviation obstruction lights field. To become a healthier, safer and more environment friendly hi-tech company, CDT are here to serve airports throughout the world.
Packing&Shipping
FAQ
Comments about our products and service
Why Choose us?
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.
Why Choose us?
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.
What's the other certificates?
Contact Us
HUNAN CHENDONG TECH CO., LTD
Address:#4, XinCheng Science and Technology Park, West of Yuelu road to Wanglong road, Yuelu district,Changsha city, Hunan
province, China
Tel: +86-0731-85563265 +86-0731-85563165
Fax:+86-0731-85563365
E-mail:vinna@chendongtech.com
Address:#4, XinCheng Science and Technology Park, West of Yuelu road to Wanglong road, Yuelu district,Changsha city, Hunan
province, China
Tel: +86-0731-85563265 +86-0731-85563165
Fax:+86-0731-85563365
E-mail:vinna@chendongtech.com
