400 кВт obc 3 в 1 PDU Блок для электрического

Категория: On Board Chargers >>>
Поставщик: Shijiazhuang,Dilong,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.9 $*	0.18 $*
Aug-16-2025	0.35 $*	0.49 $*
Jul-16-2025	0.94 $*	0.28 $*
Jun-16-2025	0.39 $*	0.81 $*
May-16-2025	0.74 $*	0.0 $*
Apr-16-2025	0.10 $*	0.12 $*
Mar-16-2025	0.68 $*	0.67 $*
Feb-16-2025	0.1 $*	0.4 $*
Jan-16-2025	0.22 $*	0.91 $*

Характеристики

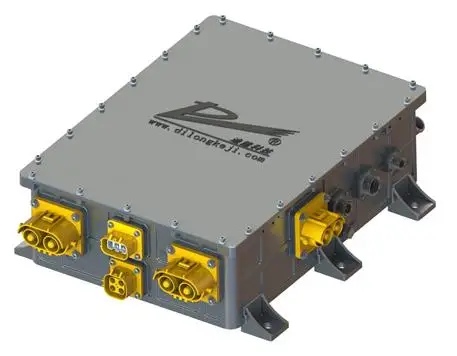

3 in 1 power distribution unit electric vehicle 300-550VDC

Introduction

CDU8KM64-400CA-14RCA is a liquid-cooled, specifically designed for pure electric vehicles, can freely combine AC-DC, DC-DC and high-voltage distribution unit ‘3-in-1’, conversion switching power converter.

Product Description

DA6K6M15-400CA OBC(On-board battery charger) Specification
Mains Input	Rated Voltage		Vac	220
	Voltage Range		Vac	85~264 (85~175V, the power dropped to 3kW)
	FREQ RANGE		HZ	47~63
	Efficiency(MAX)		%	≥94
	Power Factor			≥0.99@220Vac, rated power
	Current		A	≤32A@220Vac
Mains output	Rated output voltage		Vdc	400
	Constant voltage output range		Vdc	300~550
	Maximum current		A	18 (Constant power output characteristics)
	Maximum power		W	6600
	Output voltage accuracy		V	≤±1%Vo input 175Vac-264Vac,output 10%-100% load
	Line regulation		%	≤±0.2%Vo input 175Vac-264Vac,output 100% load
	Load regulation		%	≤±0.5%Vo input 220Vac,output 10%-100% load
	Ripple and noise		mV	≤±4%Vo 20M oscilloscope,Twisted-pair cable test.
DC Auxiliary supply	Rated output voltage		Vdc	12
	Rated output power		W	24
DE1K5S12-400S14RCA DC-DC Converter Specification
Power input
Input voltage range		Min:300Vdc			TYP:400Vdc	MAX: 550Vdc
Input current (full load)		4.8A			3A	2.2A
Power output
Rated output voltage@range		14V±1%
Rated output current@rated power		86A / 1200W
Peak output power		100A±3A / 1400W
Stabilized voltage accuracy		≤±1%Vo, Input 300~550Vdc, output 10A~86A load(output rated voltage)
Line regulation		<±1%Vo, Input 300~550Vdc, output 86A load
Load regulation		<±1%Vo, Input 400Vdc, output 10A-86A load(output rated voltage)
