Высококачественные круглые медные катушки d30 мм с помощью катушечной обмотки для индуктора беспроводного зарядного
- Категория: Passive Components >>>
- Поставщик: Kingstar,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.0 $* | 0.89 $* |
| Aug-19-2025 | 0.90 $* | 0.86 $* |
| Jul-19-2025 | 0.53 $* | 0.89 $* |
| Jun-19-2025 | 0.40 $* | 0.60 $* |
| May-19-2025 | 0.64 $* | 0.94 $* |
| Apr-19-2025 | 0.41 $* | 0.11 $* |
| Mar-19-2025 | 0.74 $* | 0.92 $* |
| Feb-19-2025 | 0.96 $* | 0.6 $* |
| Jan-19-2025 | 0.97 $* | 0.16 $* |
Характеристики
Product Description

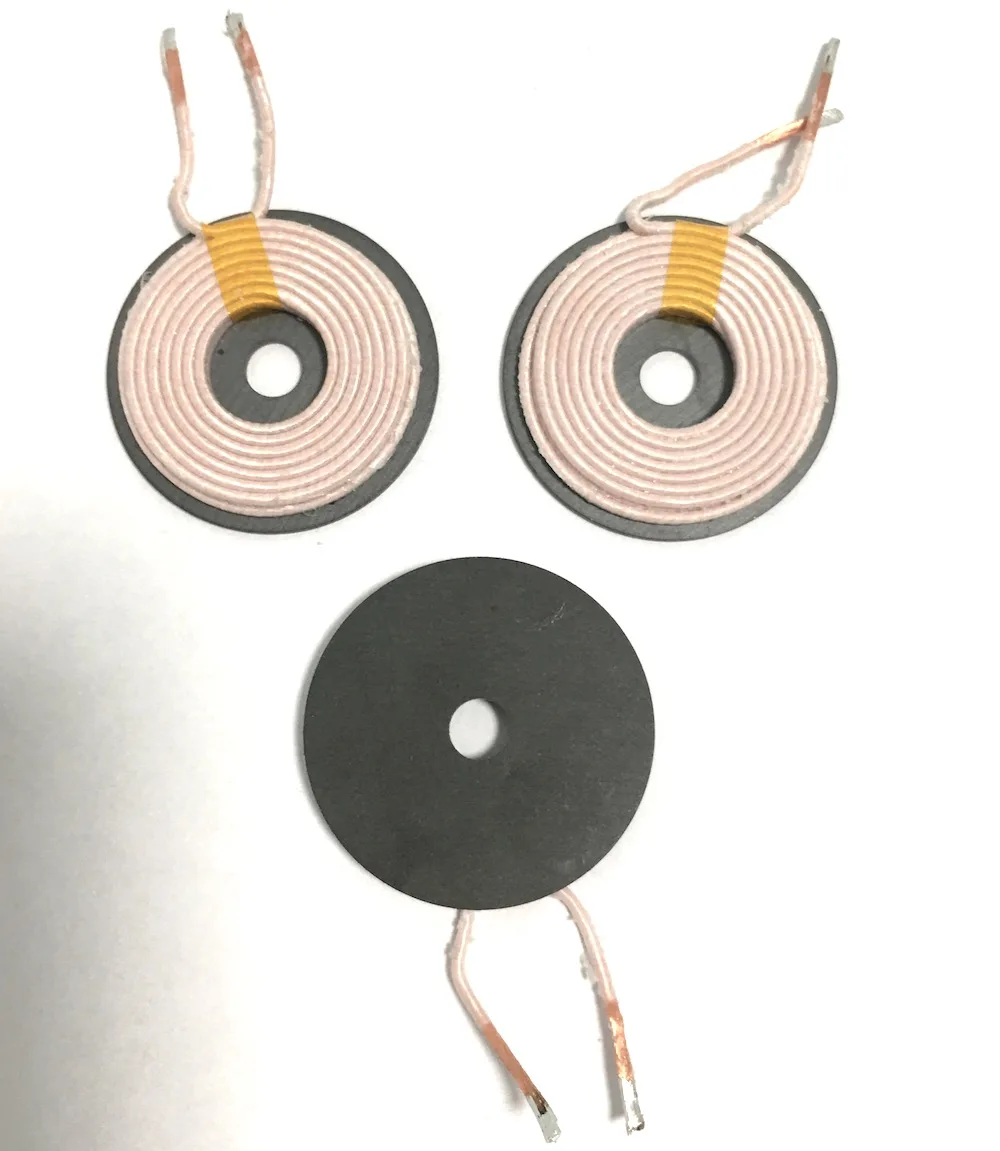

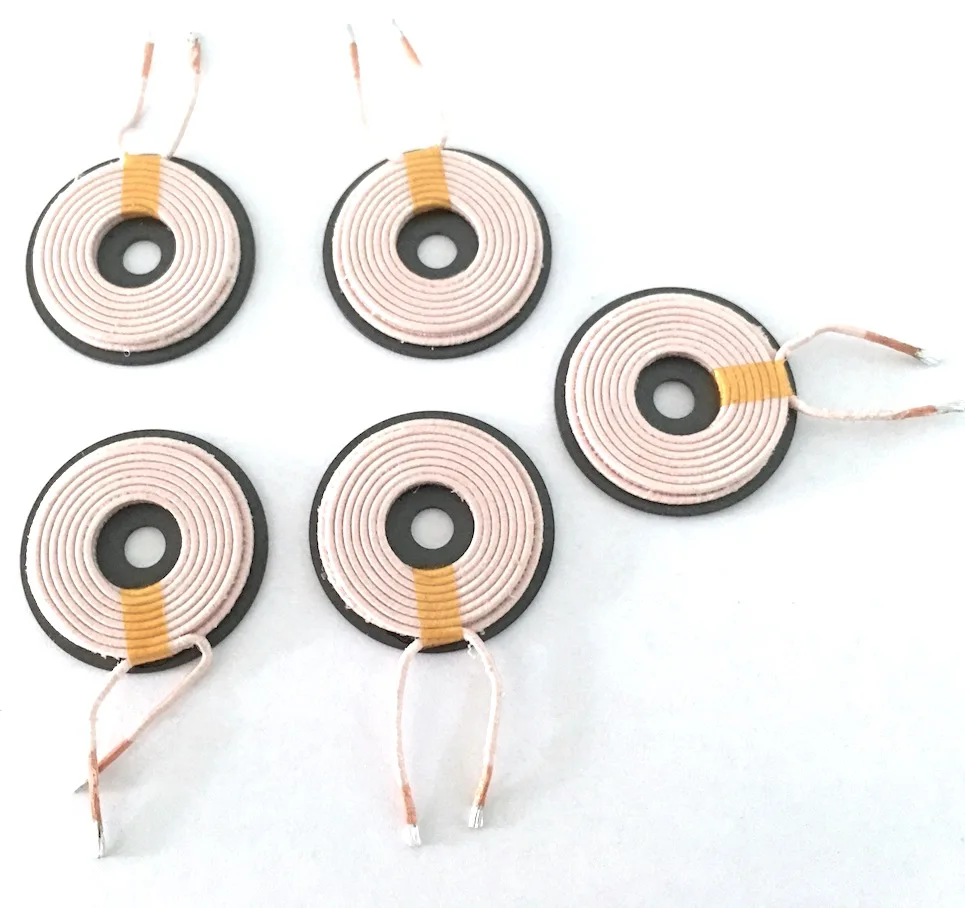

Qi Wireless Charger Coil PCB with Ferrite Shielding Inductor 30*5*1mm Round Magnetic Ferrite
Round Coil with MnZn Round Ferrite for wireless charging in different shapes and sizes, customization is welcome.
Model | Qi Square TX-End Coil with Ferrite Sheet |
Coil Type | 15 Turns, Two layer |
Wire Material | USTC Wire/0.08*90P |
Inductance | 6.0UH+/-10% |
DC Resistance | 50mΩ Max |
Q Value | >70 |

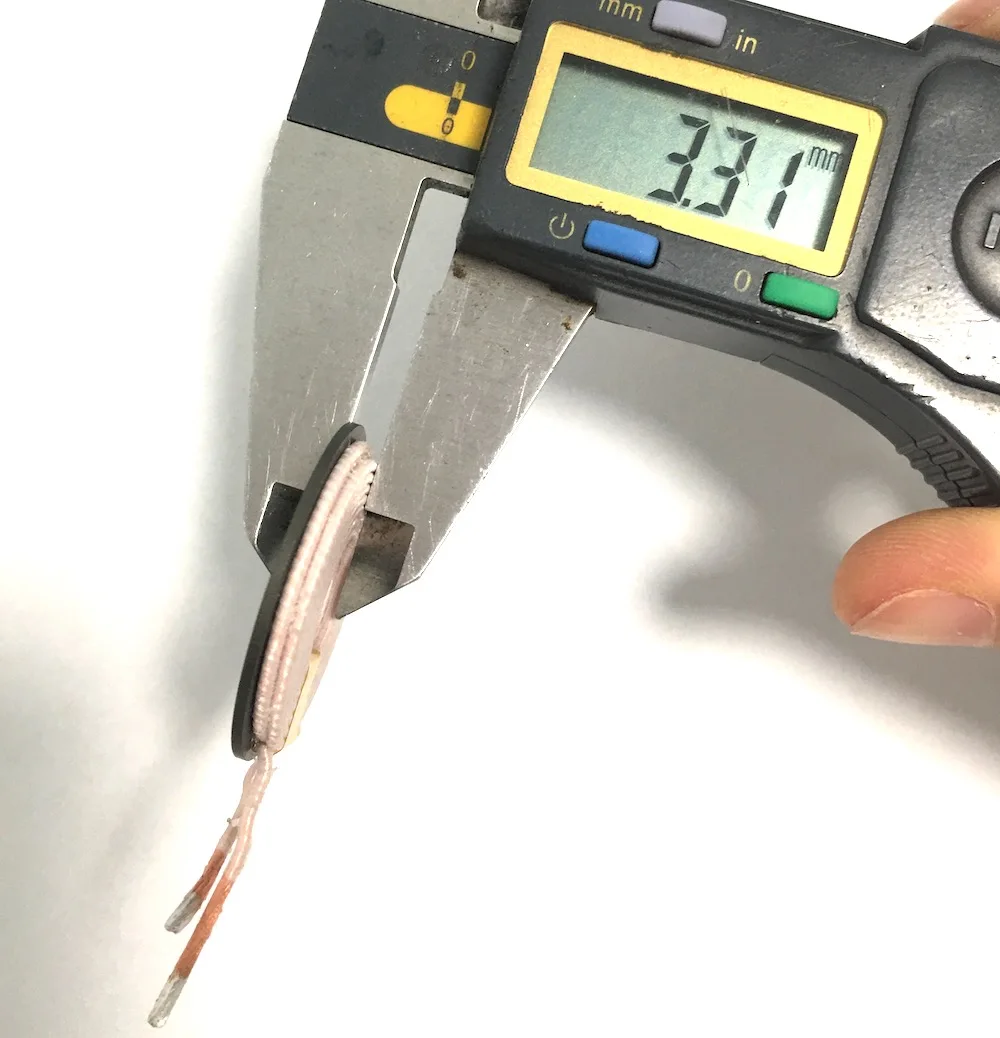

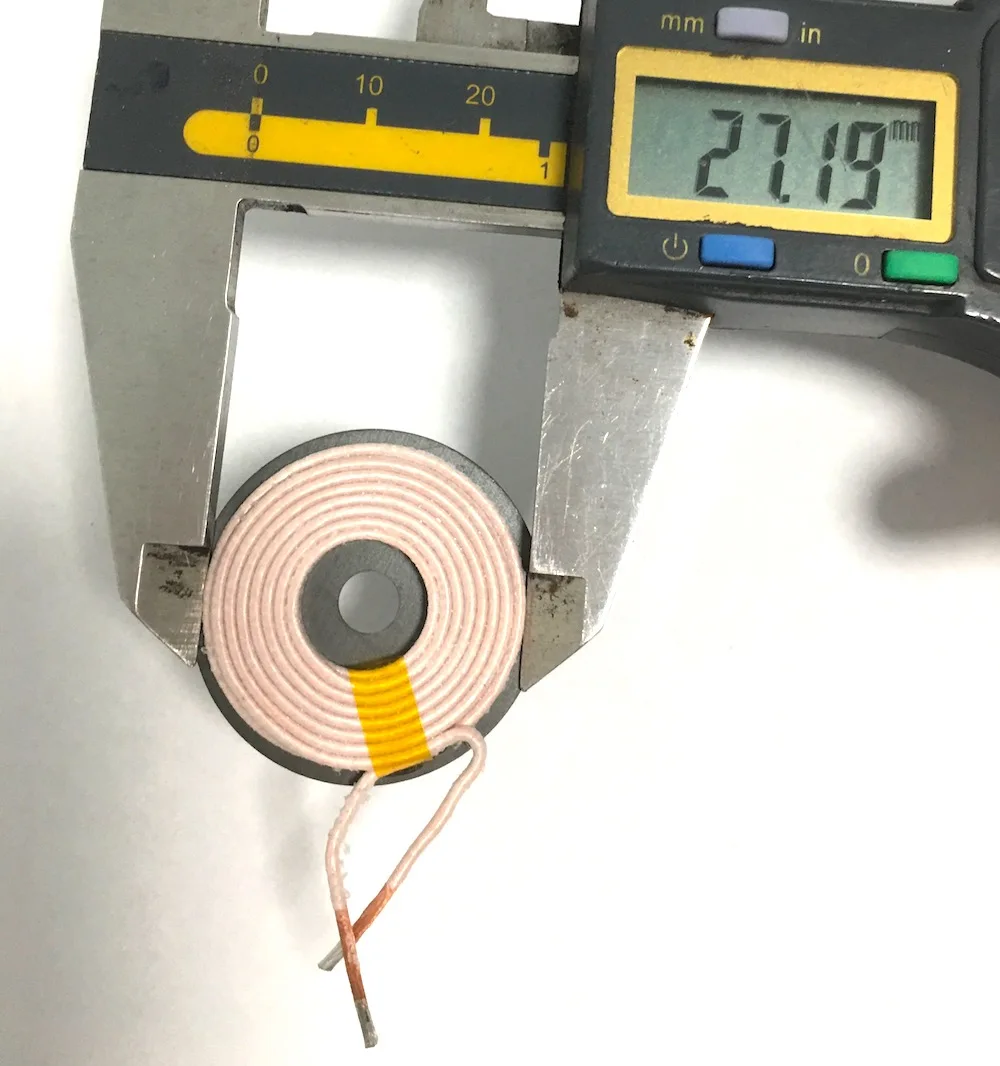

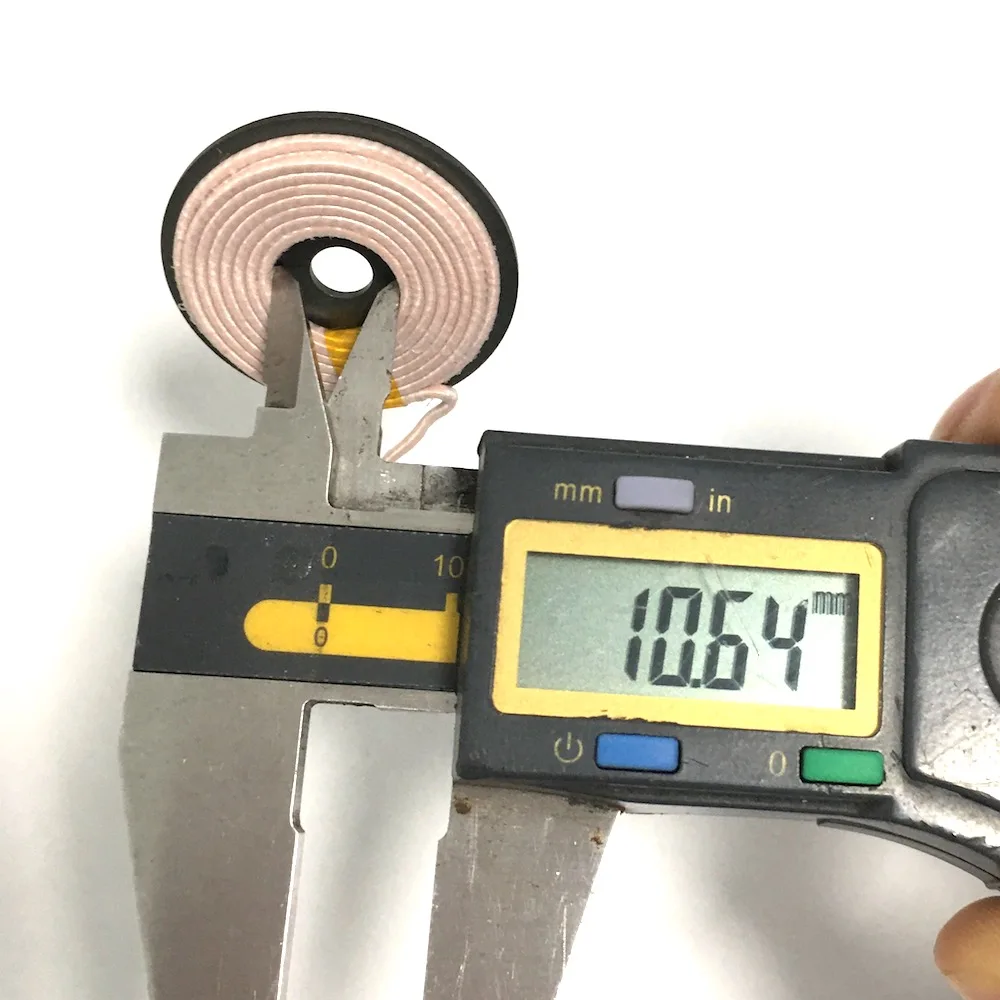

Coil Dimension | R10*27*1.3mm |

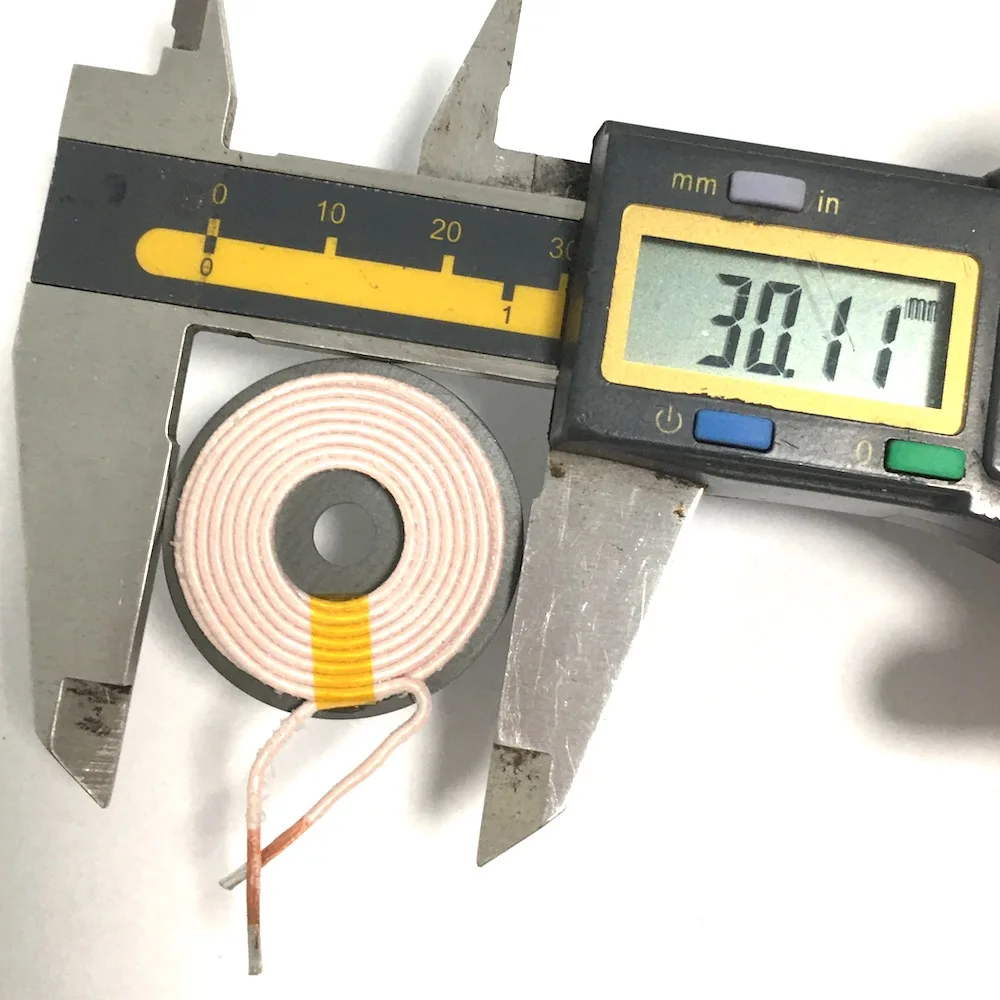

Shielding Dimension | KR30*5*1.0mm |
Test Condition | 100KHZ/1V |
Notes | Customized lead length accepted |
Lead Time | Samples within 3 days, bulk order to be negotiated (normally 5-10days) |
Certification | SGS Certified, ROHS & Halogen Compliant, Lead-Free |
KingStar Electronics has been in the wireless charging field for many years, supplying ferrite sheets, coils, and modules around the world, especially to Korea, for Samsung Electronics, which include the TX end ferrite used in Samsung S6, S7, S8, Note 5, S10, as well as its smart watches, such as Solis TX ferrite, Gear Pulse TX ferrite.
Apart from Qi-standards wireless charging products, we are also focusing on R&D of high-power wireless charging for electric bicycles and electric cars, with the e-bike wireless charging products to be put into market in middle of 2020 and mature e-car WC products to be ready within 3 years. Our goal is to make power usage is as simple at WiFi.
Most magnetic ferrite used in WC is MnZn ferrite, while for IoT and other high frequency application, we supply customers with NiZn ferrite.
Wireless Charging Ferrite Sheet & Coil Application
222
Nowadays, wireless charging can be seen at many areas of our life. We are confident that in the near future, wireless charging will be as common & simple as WiFi, and our goal is make that era come true earlier.
With over a decade of specialized and dedicated work in the wireless charging field, we are proud of our strong R&D ability and quality products with good customer satisfaction. We would also provide you with the best products and solutions.
Coil Production Process Flow
Testing Equipments
Packing & Shipping
Given its fragile property, all ferrite sheets and coil modules are properly packed in PE foam boxes, with outer being the carton boxes. While for bulk cargo, they will be packed and protected on a pallet. Cargos can be delivered to you fast and safely by express or by air, or by sea for bulk orders.
