Фрезерный станок с ЧПУ 1325 деревообрабатывающее оборудование фрезерный для резьбы по
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Anben,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4522.21 $* | 4748.8 $* |
| Aug-16-2025 | 4484.98 $* | 4708.41 $* |
| Jul-16-2025 | 3762.17 $* | 3950.80 $* |
| Jun-16-2025 | 4408.61 $* | 4628.41 $* |
| May-16-2025 | 3838.69 $* | 4030.56 $* |
| Apr-16-2025 | 4332.97 $* | 4549.42 $* |
| Mar-16-2025 | 4294.13 $* | 4509.33 $* |
| Feb-16-2025 | 4256.38 $* | 4469.82 $* |
| Jan-16-2025 | 4218.24 $* | 4429.28 $* |
Характеристики
Product Description

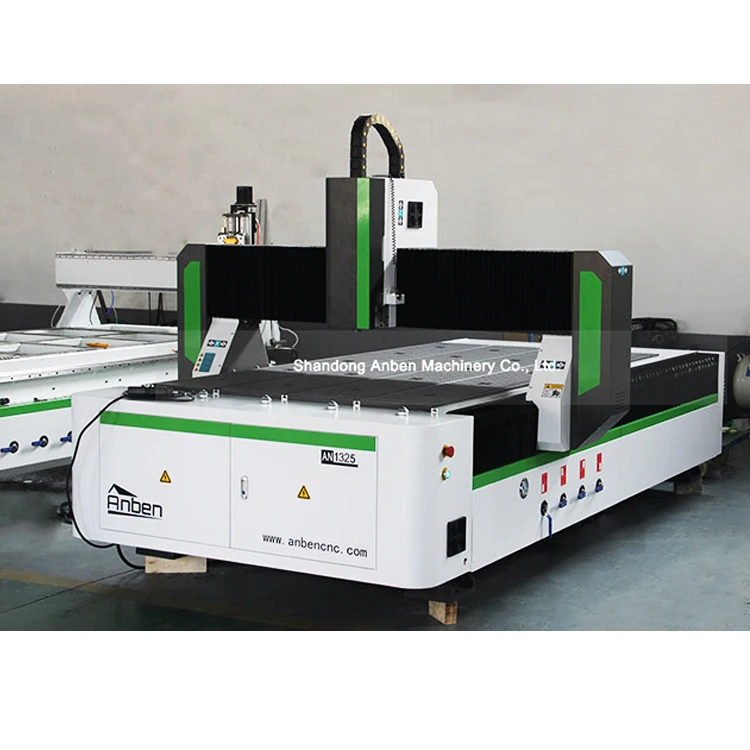

CNC Router 1325 Woodworking Machinery CNC Router Wood Carving Machinee
New design external appearance with high rigidity and fine performance. Auto loading wheels help loading more easily.
China Water cooling spindle 24000rpm & Italy HSD air cooling spindle 18000rpm for option.

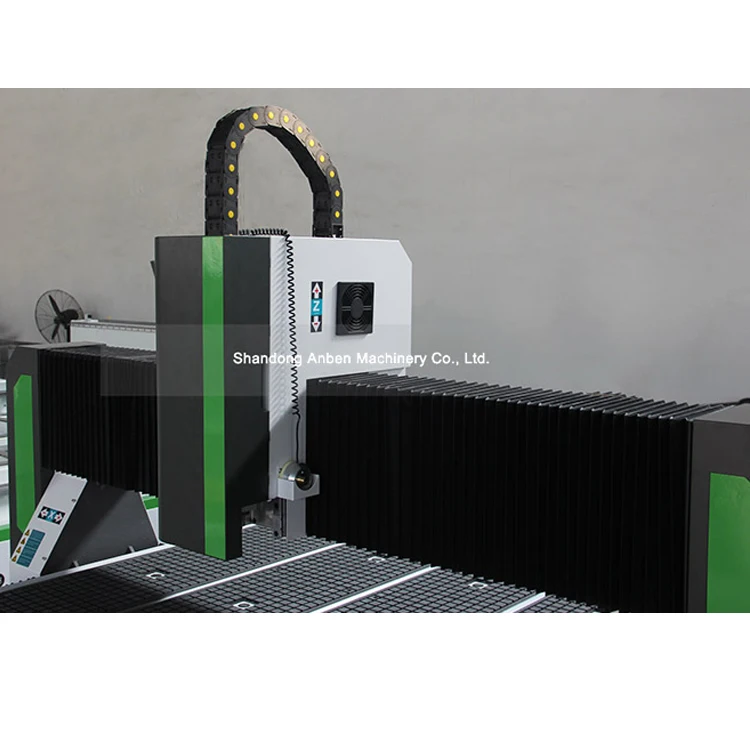

Dust-proof at X axis to protect the helical rack & gear, linear guide and sliding block.
Spindle protection, protecting the operator
product details
Specification
CNC Router 1325 Woodworking Machinery CNC Router Wood Carving Machine | ||||
Model | AN1325 | AN1530 | AN2030 | AN-Customize |
Working area(X*Y*Z) | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm | Customize |
Table Surface | T-slot Table / Vacuum & T-slot Table | |||
Frame | Heavy-duty Industrial class square tube strong structure | |||
X, Y Structure | Rack and Pinion Drive, Taiwan PMI linear guide rails | |||
Z Structure | Taiwan TBI Ball Screw | |||
Spindle Power | 3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC | |||
VFD Power | 3.7KW / 5.5KW / 7.5KW / 11KW | |||
Operating System | DSP control system / Nc Studio control system | |||
Drive Motors | Leadshine drive and FL118 stepper motors | |||
Max. Rapid Travel Rate | 33000mm/min | |||
Max. Working Speed | 23000mm/min | |||
Cutting accuracy | ±0.03/1000mm | |||
Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) | |||
Command Language | G Code | |||
Software Compatibility | Artcam / Power mill / Type 3 / Ucancam | |||
Application
Application of cnc router machine:
1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
Packaging & Shipping
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 12 working days after payment.
Our Services
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
