RJMG109xx7101xR 1x1 порт 10/100 базового типа с фильтром и светодиодной опцией RJ 45
- Категория: Прочие разъемы >>>
- Поставщик: Yueqing,Zhusun,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.92 $* | 0.75 $* |
| Aug-17-2025 | 0.46 $* | 0.73 $* |
| Jul-17-2025 | 0.56 $* | 0.23 $* |
| Jun-17-2025 | 0.60 $* | 0.77 $* |
| May-17-2025 | 0.47 $* | 0.56 $* |
| Apr-17-2025 | 0.9 $* | 0.72 $* |
| Mar-17-2025 | 0.27 $* | 0.52 $* |
| Feb-17-2025 | 0.57 $* | 0.86 $* |
| Jan-17-2025 | 0.16 $* | 0.48 $* |
Характеристики
In ZhuSun Purchase Connector:
Reduced Cost 30%;Reduced Delivery 50%.

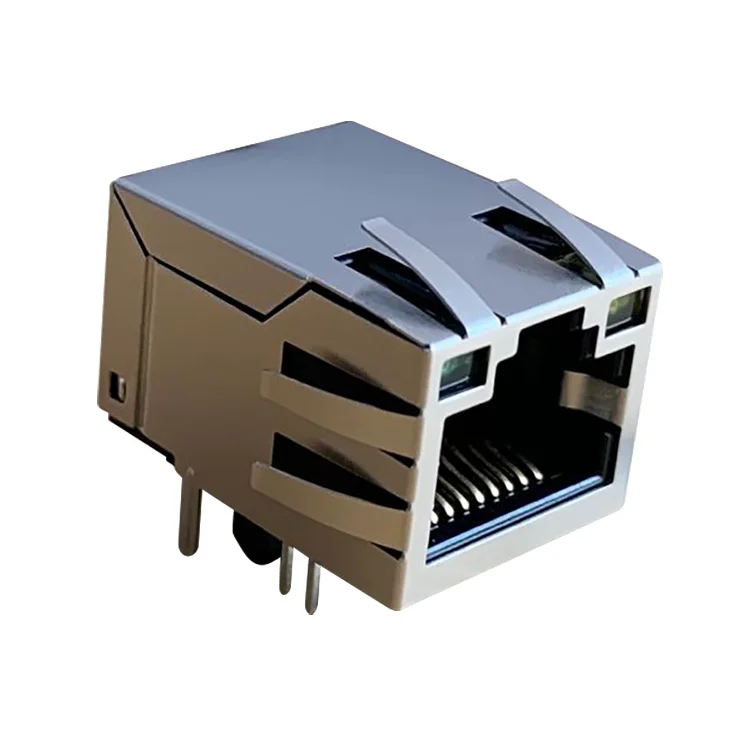

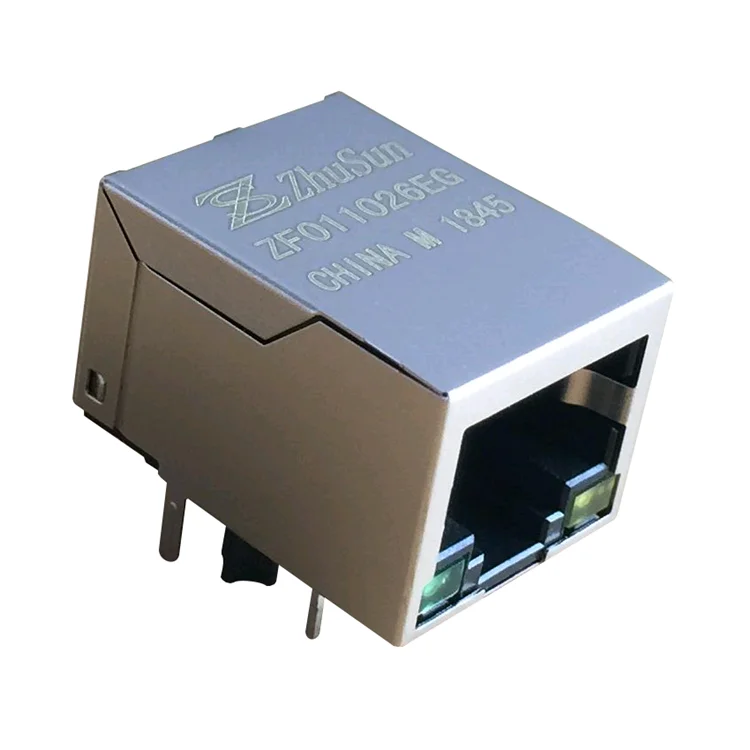

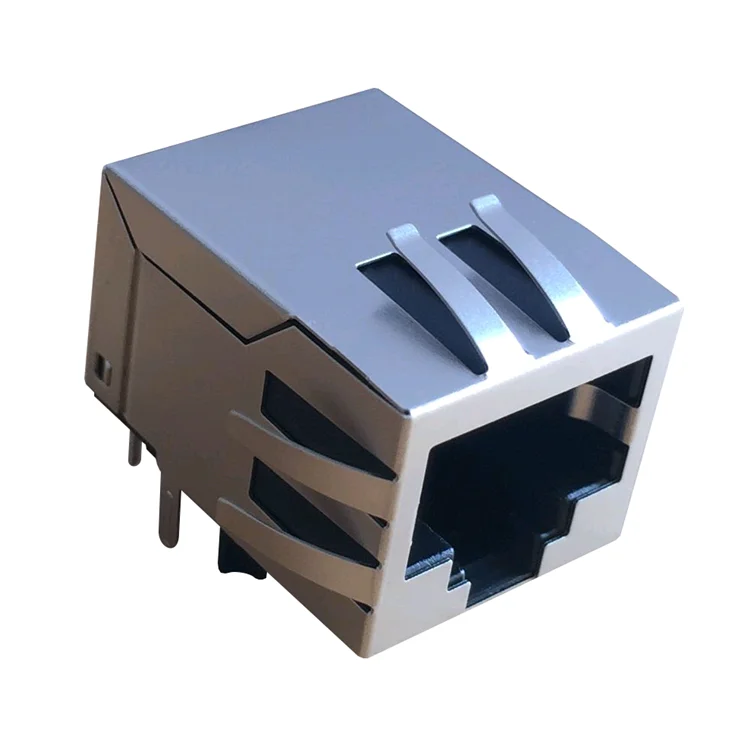

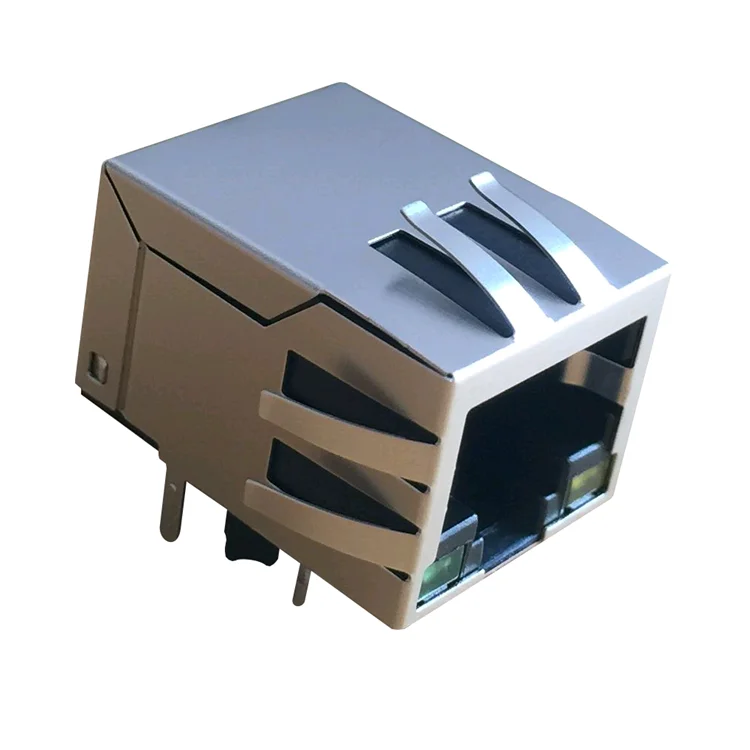

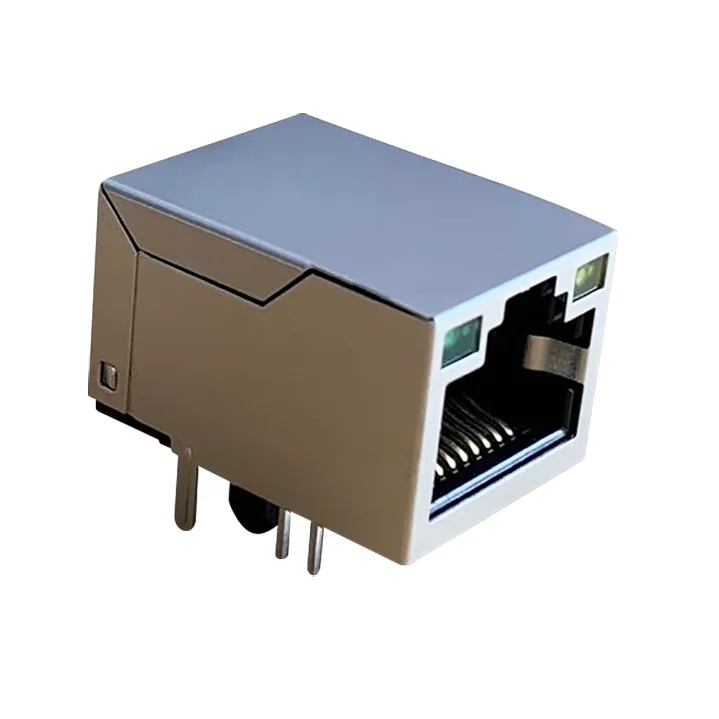

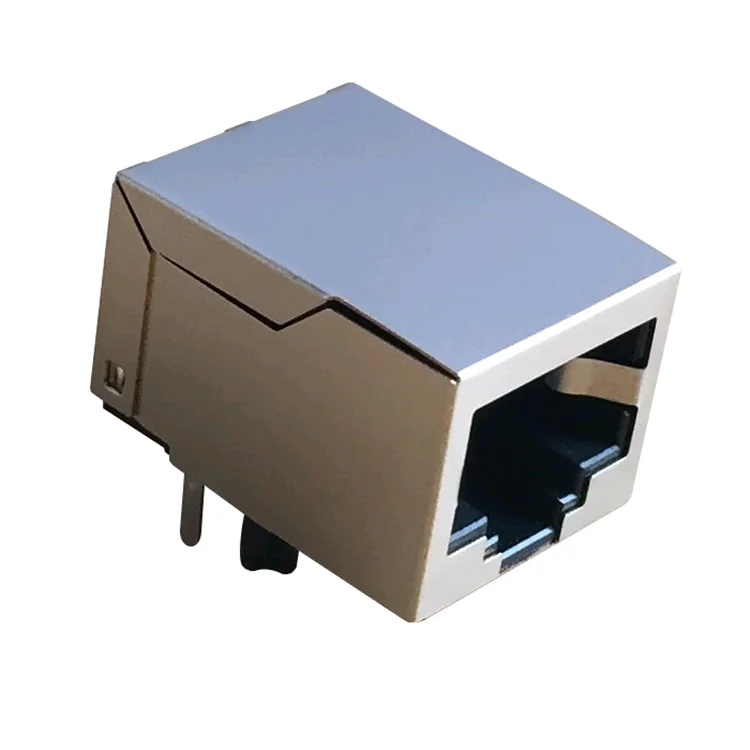

RJMG109xx7101xR 1x1 Port 10/100 Base Type With Filter And LED Option RJ 45 Connector
All categories
Click on the image below and find what you need:
Product Description
| Categories | Connectors, Interconnects |
| Modular Connectors - Jacks With Magnetics | |
| Application-LAN | ETHERNET ( NoN PoE ) |
| Connector Type | RJ45 |
| Number of Positions/Contacts | 8p8c |
| Number of Ports | 1x1 |
| Applications Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.537" (13.65mm) |
| LED Color | With LED |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| RoHS Compliant | YES-RoHS-5 WIth Lead in Solder Exemption |
| Why Choose Us |
Company Information
•Free Samples. •Delivery Time 1-2 Weeks.
ZhuSun Electronic SFP\\RJ45 Connector and LAN Transformer 10+ years of Manufacturing Experience.
Factory
•We have over 1000 workers.
•The area of ZhuSun is 60,000 square meters.
•Yueqing ZhuSun Electronics Co.,Ltd have owns 3 factory in sichuan,hubei,Zhejiang.
Quality
•Lean production management.
•100% Tested (Not Just Batch Tested).
•Quality Guarantee:5 Years.
Certification
•ISO 9001:2008,
•ROHS CE FCC Compliance
•Active Environmental Policy.
Have R&D dept
•OEM Service Offered,Design Service Offered.
•Engineer Can Design Products As You Need,Developer Tooling As Customer Require.
Price And Service
•Than PULSE TE HALO BEL Wurth Amphenol MOLXE BOTHHAND ABRACON FOXCONN And HANRUN More Competitive Price And Delivery.
Certifications
FAQ
Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.
Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welocome.
Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q5:What kind of payment do accept ?
A:ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
Packaging & Shipping
Contact Us
How to contact us right now?
Send your inquiry details in the below.Then click"send".
We are sure your any information can be attention without any delay.
RJMG109xx7101xR 1x1 Port 10/100 Base Type With Filter And LED Option RJ 45 Connector
