Характеристики
Warm Reminder
1) The above price is not including any 3G, 4G module.
2) That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
3) Please ask me if you have any question before order here! Thanks!
2) That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
3) Please ask me if you have any question before order here! Thanks!
Product Description

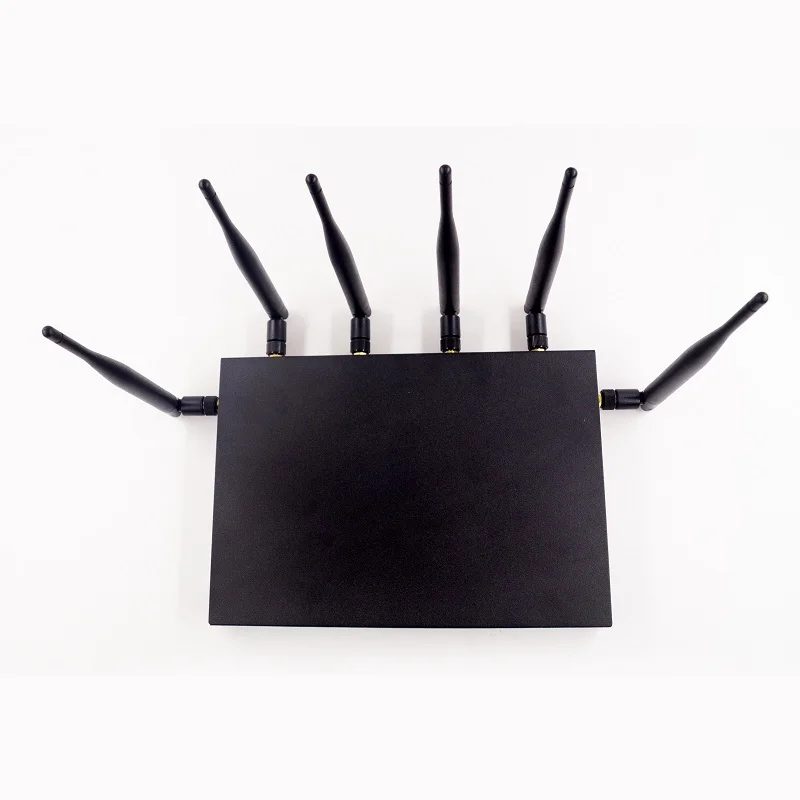

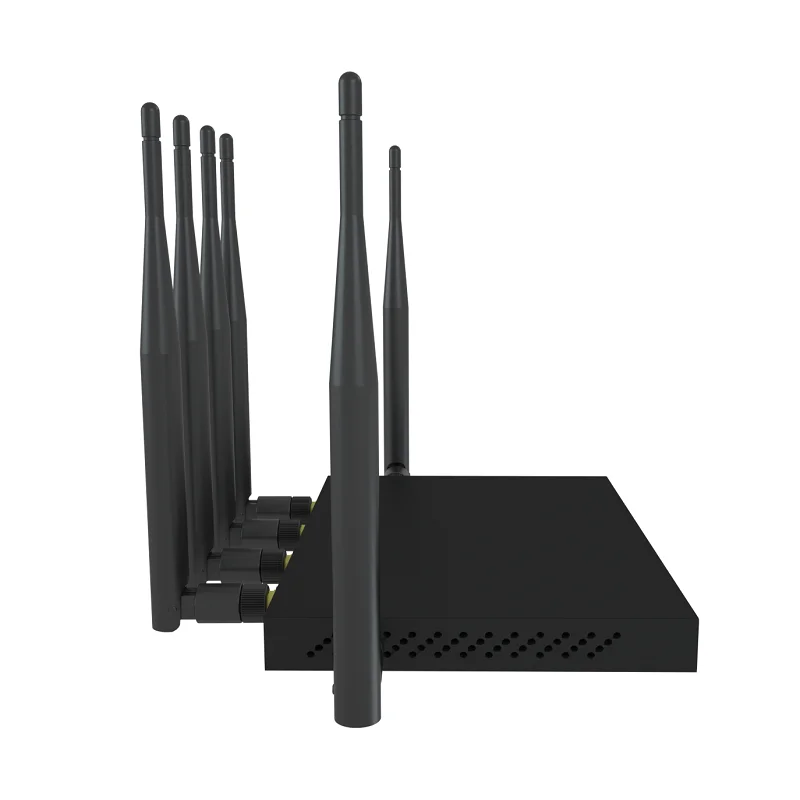

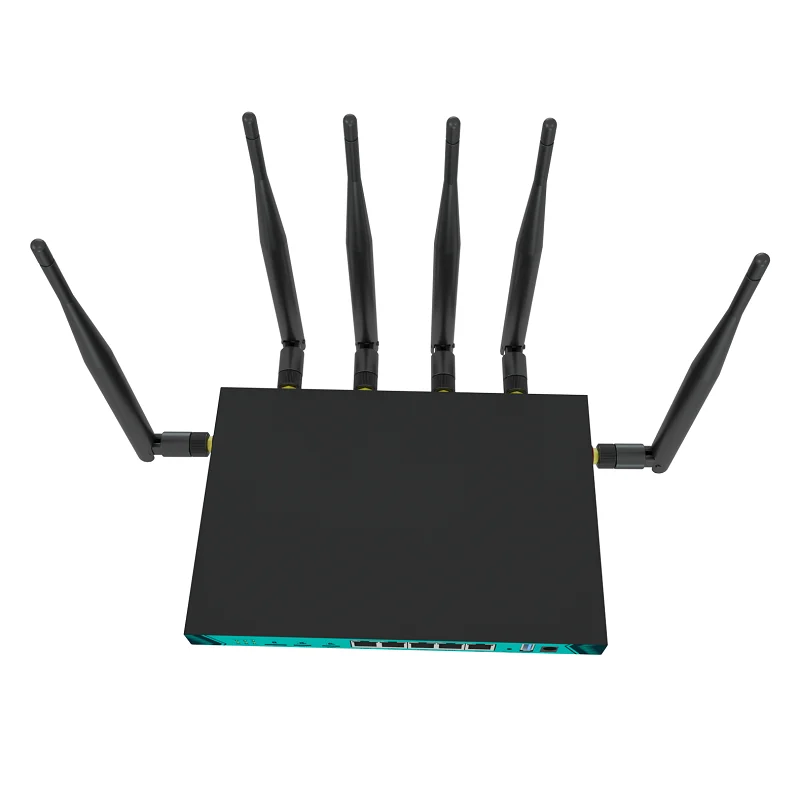

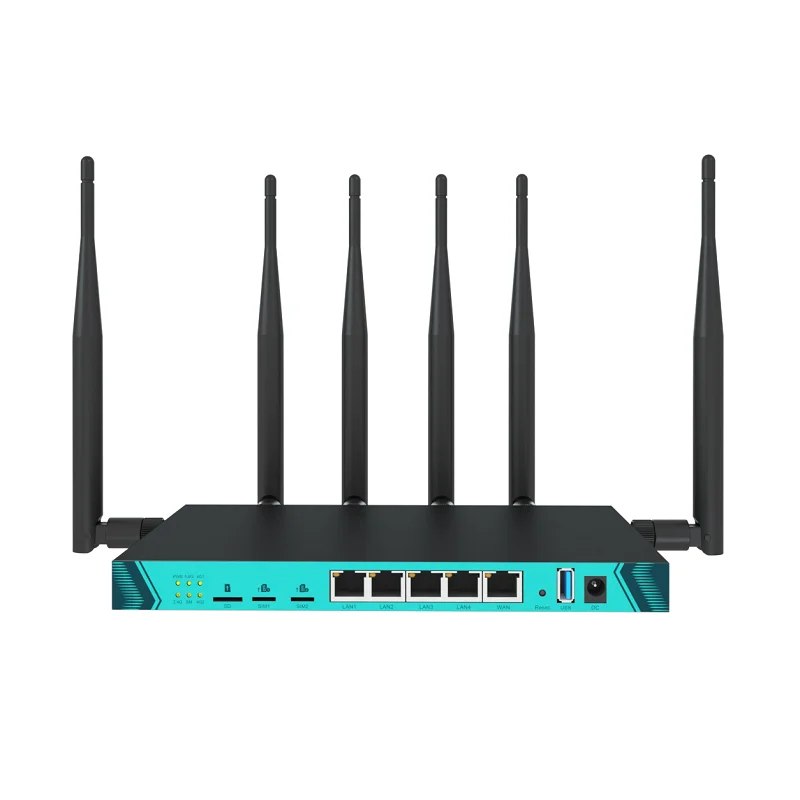

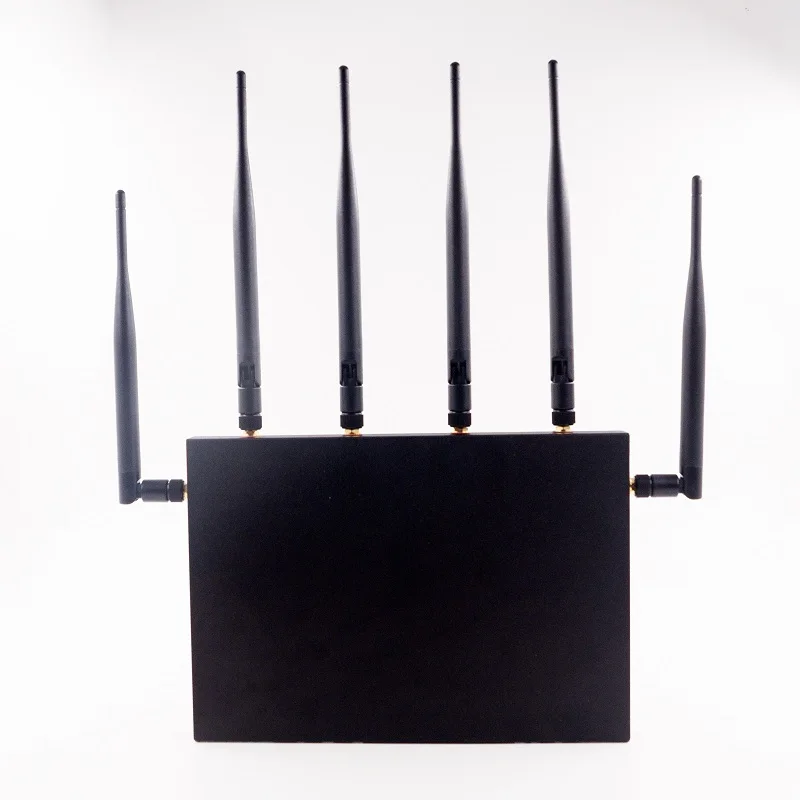

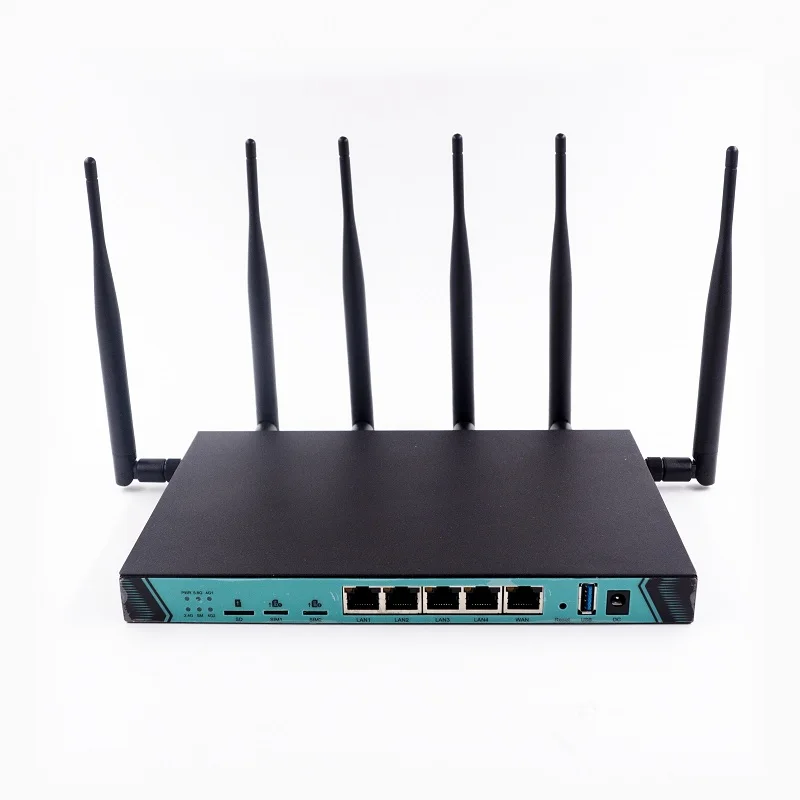

1000Mbps WAN port dual SIM USIM interface sim card gsm cabble19192.168.1.1 1200mbps wireless wifi customize moden router
Simply description
Adopt MT7621 chipset, frequency up to 880MHZ, CPU is equipped with a standard radiator to ensure the stable operation of the system
Dual 4G modules and dual SIM card slots to support dual sim flow bonding and load balance function.Clients can be free choosebonding or load balance function.
Hardware introduction
WG1602 used MT7621 chipset,MIPS dual-core CPU, the main frequency is up to 880MHZ. Equipped with large-capacity DDR3 RAM and high-speed SPI Flash to improve system performance. Provide five 1000M adaptive Ethernet interfaces. Provide dual-band WIFI,2.4G 300Mbps, plus 5.8G 867Mbps collectively referred to as 1200Mbps wireless network, independent WIFI chip standard shielding cover and thermally conductive silicone, enhance WIFI anti-interference ability, and improve chip heat dissipation. Simple and clear LED indicator, customizable USB2.0 interface, TF card interface. Meet the needs of various routing applications, with high cost performance.
Wireless introduction
Compliant with IEEE802.11n/g/b/a/ac wireless network protocol,2.4G WIFI supports 40MHz bandwidth, adopting 2x2 MIMO (Multiple Input Multiple Output) architecture,5.8G WIFI supports 80MHz bandwidth. The dual-band concurrent wireless transmission rate up to 1200M, and the standard 5dbi high-gain omnidirectional antenna is used. In an open environment, the wireless signal coverage radius is greater than 50 meters, and the number of wireless belts exceeds 50.
Software introduction
Adopting a mature and stable SDK system, it provides an intuitive and easy-to-use setting interface; integrates multiple network application functions.
Customizable
In order to meet the "routing enthusiasts" and some "special industry" applications, WG1602 supports "one-click webpage brush mode", which can be easily implemented.
Adopt MT7621 chipset, frequency up to 880MHZ, CPU is equipped with a standard radiator to ensure the stable operation of the system
Dual 4G modules and dual SIM card slots to support dual sim flow bonding and load balance function.Clients can be free choosebonding or load balance function.
*Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, wireless standard, wireless transmission rate up to 1200Mbps WIFI uses 2.4G and 5.8G dual frequency antennas
*Support IEEE 802.3/3u/ab standard, 1WAN+4LAN 10/100/1000M adaptive network port, support automatic flip (Auto MDI/MDIX)
*Support USB2.0, TF card (this interface can be added or canceled according to customer needs)
*Support multiple Internet access methods, PPPoE, dynamic IP, static IP
*Support WEP, WPA, WPA2 and other security encryption modes
*Built-in dual MINI-PCIE slot
Hardware introduction
WG1602 used MT7621 chipset,MIPS dual-core CPU, the main frequency is up to 880MHZ. Equipped with large-capacity DDR3 RAM and high-speed SPI Flash to improve system performance. Provide five 1000M adaptive Ethernet interfaces. Provide dual-band WIFI,2.4G 300Mbps, plus 5.8G 867Mbps collectively referred to as 1200Mbps wireless network, independent WIFI chip standard shielding cover and thermally conductive silicone, enhance WIFI anti-interference ability, and improve chip heat dissipation. Simple and clear LED indicator, customizable USB2.0 interface, TF card interface. Meet the needs of various routing applications, with high cost performance.
Wireless introduction
Compliant with IEEE802.11n/g/b/a/ac wireless network protocol,2.4G WIFI supports 40MHz bandwidth, adopting 2x2 MIMO (Multiple Input Multiple Output) architecture,5.8G WIFI supports 80MHz bandwidth. The dual-band concurrent wireless transmission rate up to 1200M, and the standard 5dbi high-gain omnidirectional antenna is used. In an open environment, the wireless signal coverage radius is greater than 50 meters, and the number of wireless belts exceeds 50.
Software introduction
Adopting a mature and stable SDK system, it provides an intuitive and easy-to-use setting interface; integrates multiple network application functions.
Customizable
In order to meet the "routing enthusiasts" and some "special industry" applications, WG1602 supports "one-click webpage brush mode", which can be easily implemented.
Specification
item | value |
With Modem Function | No |
Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a |
Wi-Fi Supported Frequency | 2.4G & 5G |
Chipset | MT7621A solution |
2.4G Wifi chipset | MT7603EN |
5.8G wifi chipset | MT7612EN |
frequency rate | 1200Mbps |
Ram | 256MB DDR3 |
Flash | 16MB Nor Flash |
Wan port | 10/100/1000Mbps |
TF Card interface | 1* Standard TF card interface |
SIM Card Slot | Nano SIM Card |
Antennas | 4G antennas |
characteristic | 1) 2 pieces 4G module can be installed 2) SIM Card Slot-2*Nano SIM Card, Support SIM/USIM 3)Power interface-DC5.0*2.1MM port |
