Трансформатор тока открытого типа ct для ремонта 400 А/50 мА диаметр 36 мм 10 ВА КЛАСС 0 5
- Категория: Трансформаторы >>>
- Поставщик: Acrel,E-Business,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.70 $* | 0.83 $* |
| Aug-17-2025 | 0.21 $* | 0.40 $* |
| Jul-17-2025 | 0.98 $* | 0.23 $* |
| Jun-17-2025 | 0.53 $* | 0.61 $* |
| May-17-2025 | 0.52 $* | 0.58 $* |
| Apr-17-2025 | 0.14 $* | 0.27 $* |
| Mar-17-2025 | 0.6 $* | 0.80 $* |
| Feb-17-2025 | 0.54 $* | 0.87 $* |
| Jan-17-2025 | 0.58 $* | 0.81 $* |
Характеристики

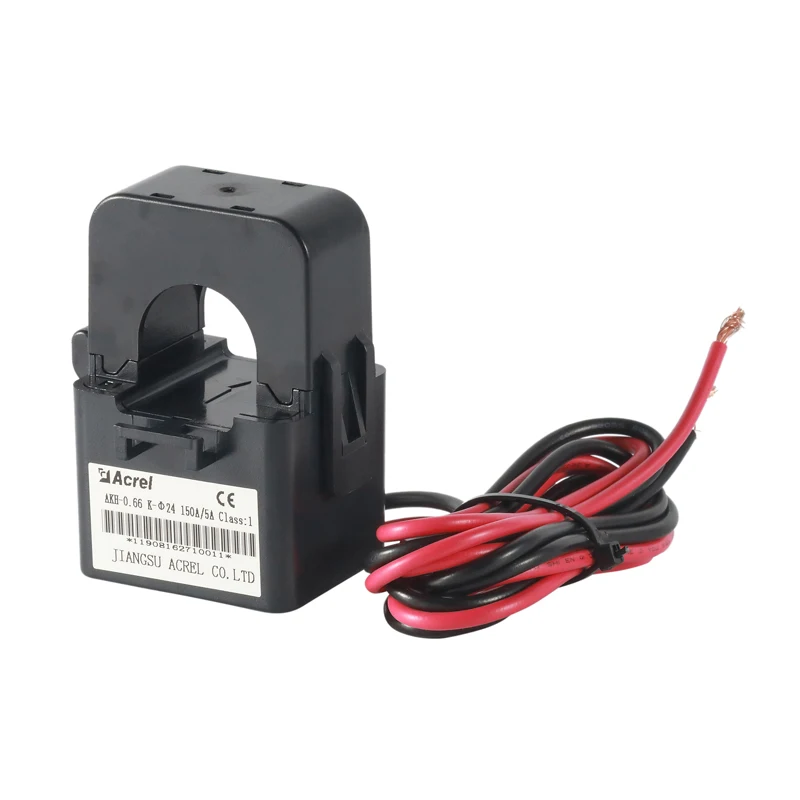

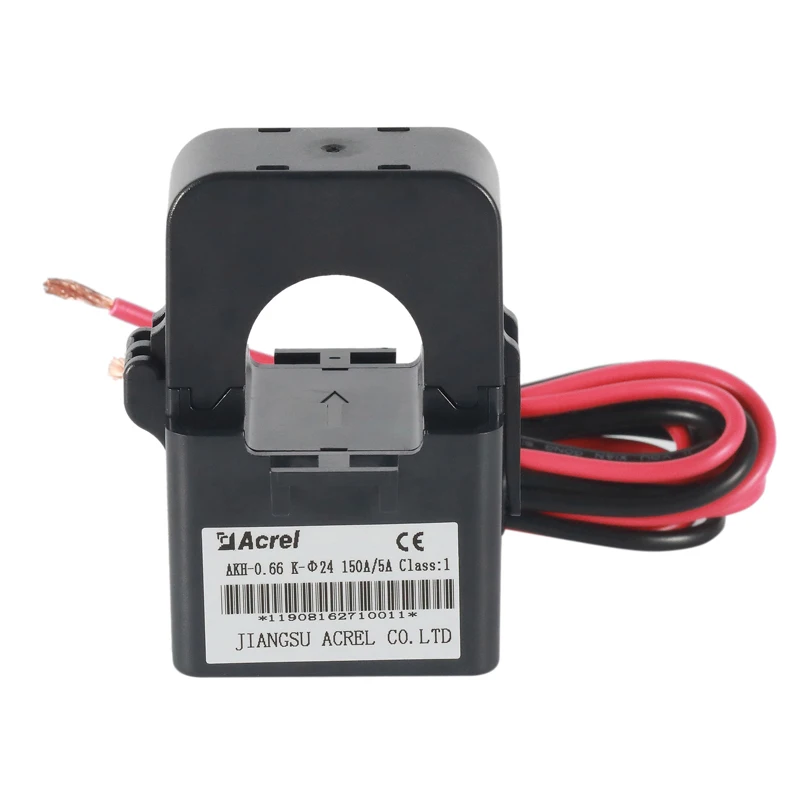

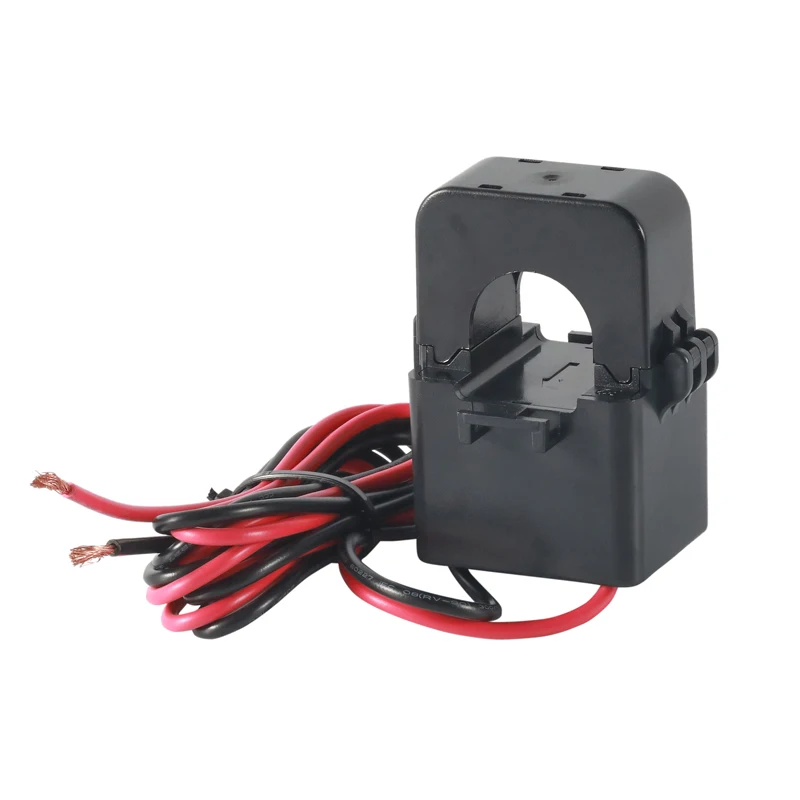

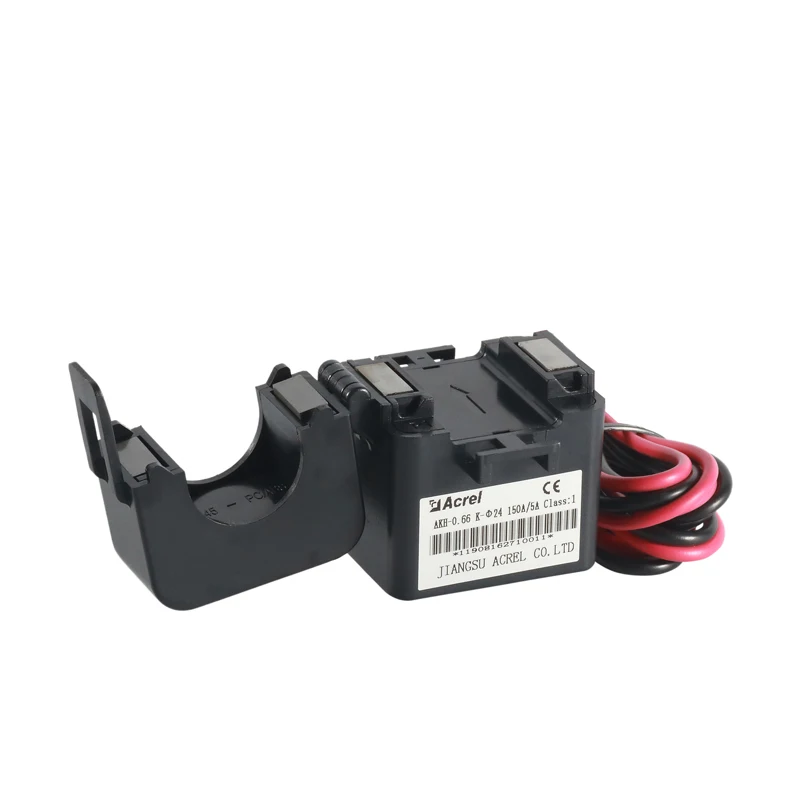

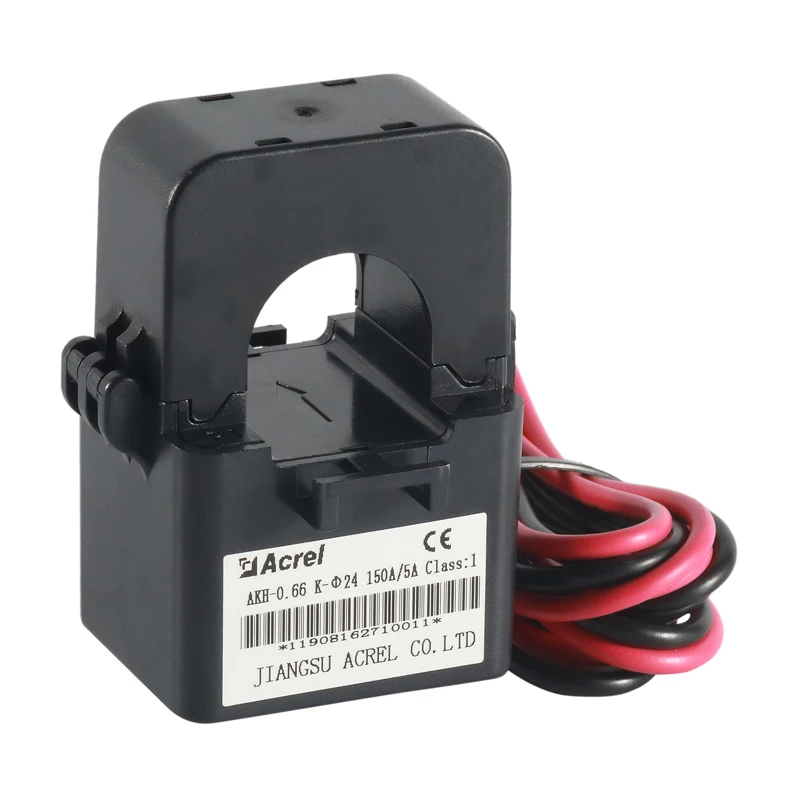

Split core Current Transformer
Product Description
General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments.
Standards
IEC/EN61869-1,IEC/EN61869-2
* Model: AKH-0.66/K K-&36 400A/50mA
* Aperture : 36mm
* Rated secondary current: 50mA
* Rated primary current: 400A
* Security factor: FS<5
* Maximum system voltage: 720V AC
* Test voltage: 3kV AC(1min)
* Rated frequency: 50/60Hz
* Rated dynamic current: Idyn=2.5Ith
* Continuous overload: 120%In
* Protection level: IP30
* Casing: Non-flammable,polycarbonate self extinguishing ABS
* Environment: Operating temperature:-25℃-+50℃
Storage temperature:-40℃-+80℃
Relative humidity, no condensation:90%
Specification
Type | Ratio | Burden(VA/Ω) | Accuracy | Dia.(mm) | FOB Shanghai(USD) |
K-10 | 5A/1.67mA | 10 | Class0.5 | 10 | 3.5 |
K-10 | 5A/2.5mA | 10 | Class0.5 | 10 | 3.5 |
K-10 | 10A/5mA | 10 | Class0.5 | 10 | 3.5 |
K-10 | 40-50A/20mA | 10 | Class0.5 | 10 | 3.5 |
K-10 | 80A/26.7mA | 10 | Class0.5 | 10 | 3.5 |
K-16 | 120A/40mA | 10 | Class0.5 | 16 | 4.9 |
K-16 | 40-100A/20mA | 10 | Class0.5 | 16 | 4.9 |
K-16 | 80A/32mA | 10 | Class0.5 | 16 | 4.9 |
K-24 | 60-200A/20mA | 10 | Class0.5 | 24 | 7.7 |
K-24 | 200A/40mA | 10 | Class0.5 | 24 | 7.7 |
K-36 | 400A/50mA | 10 | Class0.5 | 36 | 11.9 |
K-36 | 400A/40mA | 10 | Class0.5 | 36 | 11.9 |
K-36 | 600A/75mA | 10 | Class0.5 | 36 | 11.9 |
K-36 | 200-400A/20mA | 10 | Class0.5 | 36 | 11.9 |
K-24 | 150-200/5(1) | 1 | Class1.0 | 24 | 7.7 |
K-24 | 250-300/5(1) | 1.5 | Class1.0 | 24 | 7.7 |
K-36 | 300-400/5(1) | 1.5 | Class1.0 | 36 | 11.9 |
K-36 | 500-600/5(1) | 1.5 | Class0.5 | 36 | 11.9 |
Dimension
Installation
Packing & Delivery
Company Profie
