Должны высокая частота инвертора солнечной энергии IP65 3 фазы сетки галстук 7KW ~
- Категория: Solar Inverter >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 571.33 $* | 600.12 $* |
| Aug-20-2025 | 566.90 $* | 594.97 $* |
| Jul-20-2025 | 475.76 $* | 499.0 $* |
| Jun-20-2025 | 557.51 $* | 585.9 $* |
| May-20-2025 | 485.68 $* | 509.17 $* |
| Apr-20-2025 | 547.15 $* | 574.14 $* |
| Mar-20-2025 | 542.82 $* | 569.90 $* |
| Feb-20-2025 | 538.0 $* | 565.58 $* |
| Jan-20-2025 | 533.77 $* | 560.27 $* |
Характеристики

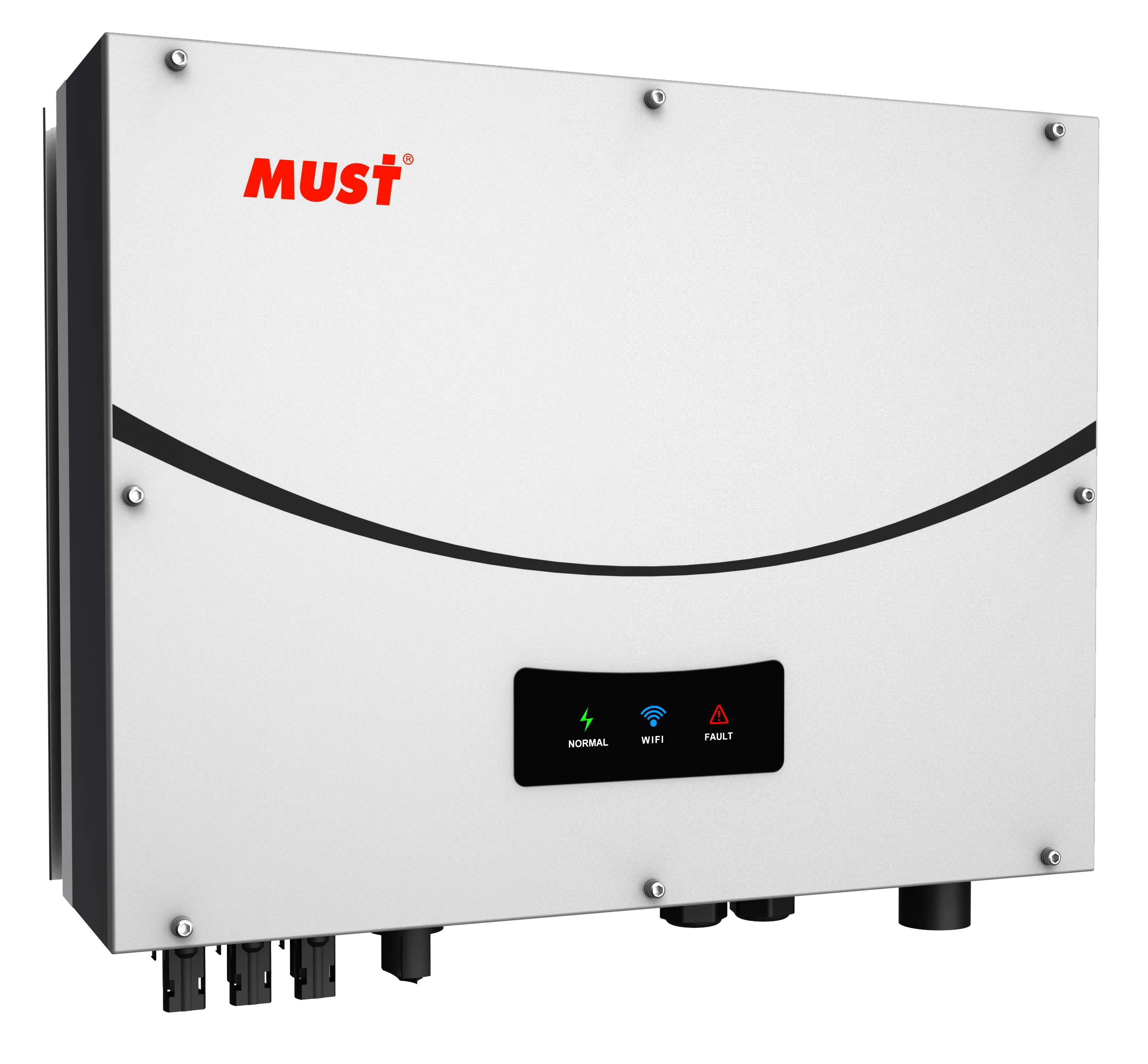

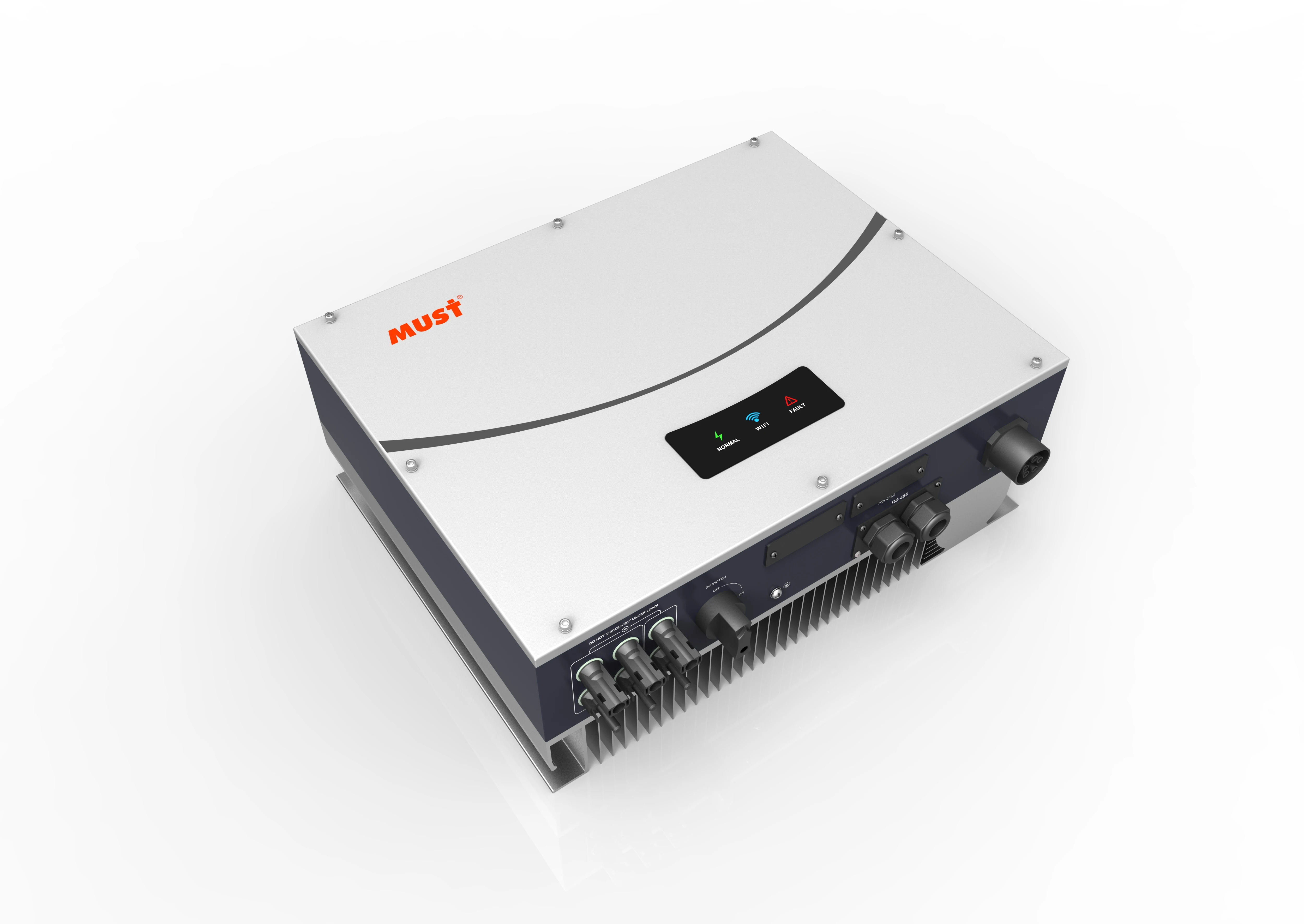

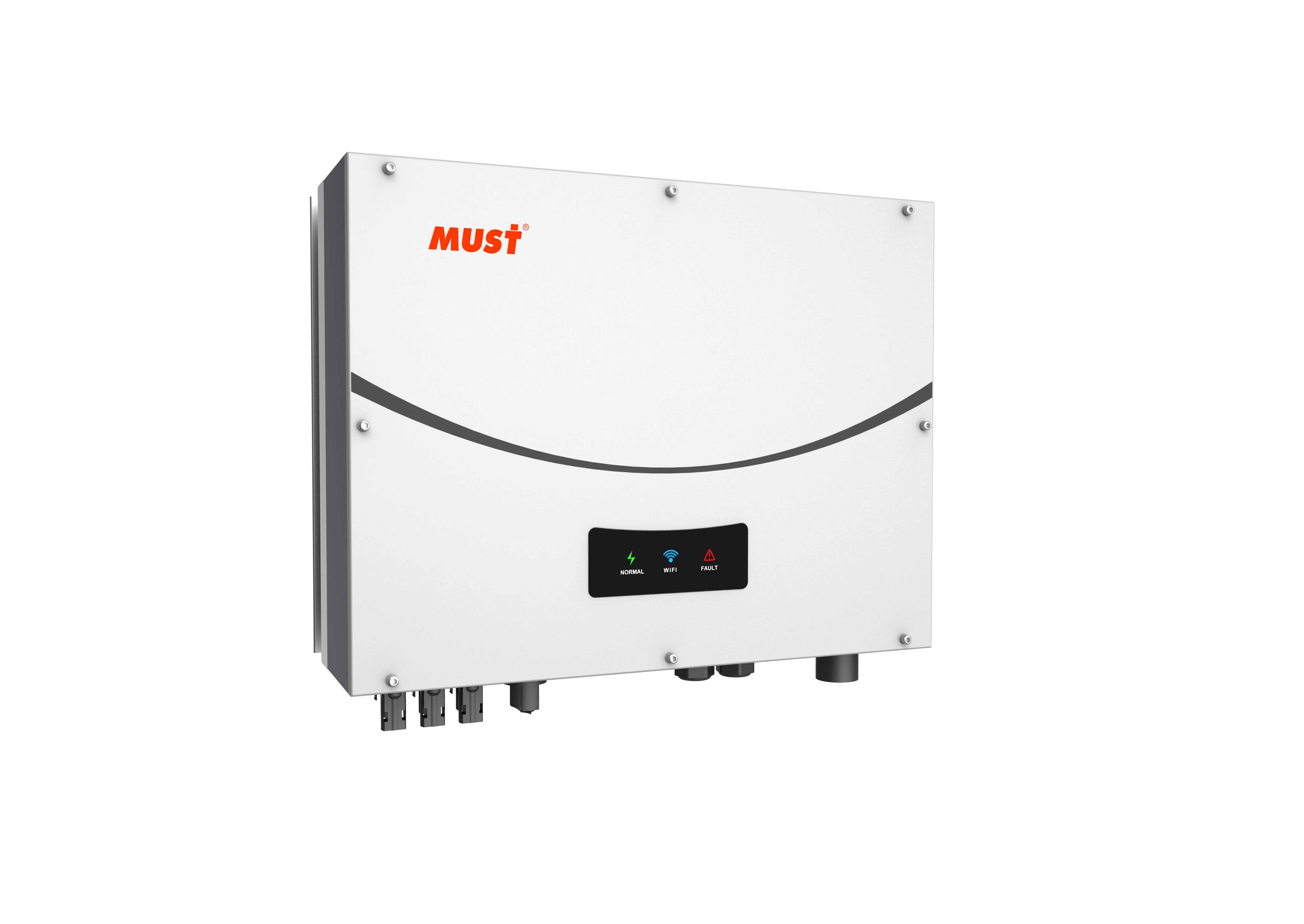

MUST High Frequency solar inverter IP65 3 phase Grid Tie Inverter 7KW ~ 15KW 15KW
Product Description
High Frequency On Grid Solar Inverter
PH5000TM Series (7-15KW)
PH5000TM series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life. Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
Features
- Rated power:7KW-15KW
- Dual MPPT
- Wide input voltage range 160V-1000Vdc
- Integrated DC switch
- DSP controller
- The maximum efficiency is 98.3%
- Multi protection and detection
- Support export limitation
- WIFI monitoring standard
- IP65 protection rating
- Natural cooling
- Easy installation
- Five years warranty
Spec
| MODEL | PH50-7000T | PH50-8000T | PH50-9000T | PH50-10000T | PH50-11000T | PH50-12000T | PH50-13000T | PH50-15000T |
| Output (AC) | ||||||||
| Rated AC output power | 7000W | 8000W | 9000W | 10000W | 11000W | 12000W | 13000W | 15000W |
| Max.AC apparent power | 7700VA | 8800VA | 9900VA | 11000VA | 12100VA | 13200VA | 14200VA | 16500VA |
| Max.output current | 11.1A | 12.7A | 14.3A | 15.9A | 17.5A | 19A | 20.6A | 23.8A |
| Nominal AC Voltage | 230V/400V | |||||||
| AC Voltage range | 184Vac-300Vac | |||||||
| AC grid frequency range | 50±5Hz | |||||||
| 60±5Hz | ||||||||
| Power factor at Rated power | 1 | |||||||
| Adjustable displacement power factor | 0.8leading. 0.8lagging | |||||||
| THDi @ Full load%THDv <1% | < 3% | |||||||
| AC grid connection type | 3W+N+PE | |||||||
| Input Data | ||||||||
| Max.DC power | 8400W | 9600W | 10800W | 12000W | 132000W | 14400W | 15600W | 18000W |
| Max.DC voltage | 1000V | |||||||
| Start voltage | 160V | |||||||
| PV voltage range | 160V-1000V | |||||||
| MPP voltage rang | 200V-1000V | |||||||
| Full load voltage range | 295V-850V | 335V-850V | 375V-850V | 416V-850V | 458V-850V | 420V-850V | 450V-850V | 520V-850V |
| Max.input current | 12.5A/12.5A | 20A/10A | ||||||
| Number of independent MPP trackers / strings per MPP tracker | 2/1 | 2/2+1 | ||||||
| DC connection | H4/MC4 | |||||||
| Efficiency | ||||||||
| Max efficiency | 98.30% | 98.40% | ||||||
| Euro weighted efficiency | 97.50% | 97.80% | 98% | |||||
| MPPT efficiency | 99.50% | |||||||
| Protection devices | DC reverse polarity protection, Output over current protection, Output overvoltage protection-varistor, DC reverse polarity protection, DC switch rating foreach MPPT(opt.), Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit | |||||||
| GENERAL DATA FEATURES | ||||||||
| Dimension(W/H/D)(mm) | 500*428*200 | |||||||
| Weight (kg) | 22 | 24 | ||||||
| Operation temperature range | -25℃ -+60℃ with derating above 45℃ | |||||||
| Noise emission(typical) | ≤35dB(A) | |||||||
| Altitude | 3000m | |||||||
| Self-consumption night | < 1W | |||||||
| Topology | transformerless | |||||||
| Cooling concept | Natural | |||||||
| Environmental protection Rating | Ip65 | |||||||
| Relative humidity | 100% | |||||||
| Features | ||||||||
| AC connection | connector | |||||||
| Display | LED | |||||||
| Interfaces:USB/WI-FI/GPRS/ RS485 | YES/YES /Opt/YES | |||||||
| Warranty | Standard 5 years/10 years opt.) | |||||||
| Certificates and approvals | CE/IEC62109 | |||||||
3 PHASE GRID TIE INVERTER WORKING MODE :
Company Information
1. MUST Factory located in Huanan Chuanggu Science and Technology Park, Chancheng District, Foshan City. We are a high-tech manufacturer specializing in R&D, production, sales and service of industrial automation, new energy and power electronics related products.
2. MUST main products include: (UPS), Inverter, Photovoltaic Controller, Photovoltaic Inverter, Photovoltaic control inverter integrated machine, photovoltaic energy storage inverter, photovoltaic grid-connected inverter, Photovoltaic power generation system, photovoltaic pump system, microcomputer room system, dedicated loss converter, servo drive, servo motor, servo system
3. MUST's products have passed CE, SAA, SONCAP, SGS, Tell certification and other safety certifications, ISO: 9001, ISO: 14000 and other quality management system certification,
4. MUST products are exported to Spain, Italy, Russia, Australia, the Middle East, Ukraine, South Africa, Nigeria, Pakistan and other countries to provide customers with quality and efficient services.
Our Services
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
Packaging & Shipping
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
Certifications
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must products.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
