100kg 300 kg Biomass biomass fired wood pellet heating steam boiler  steam generator for beer industry

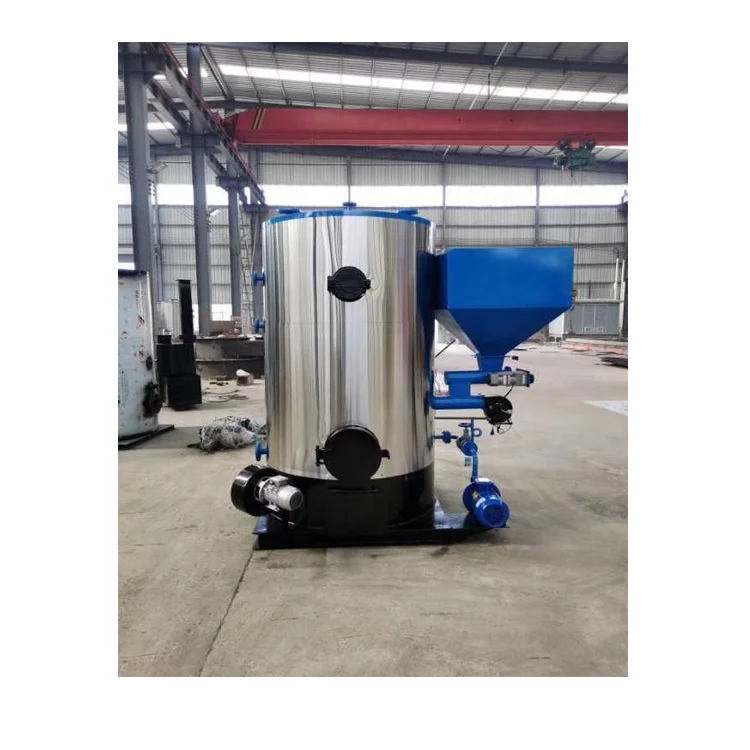

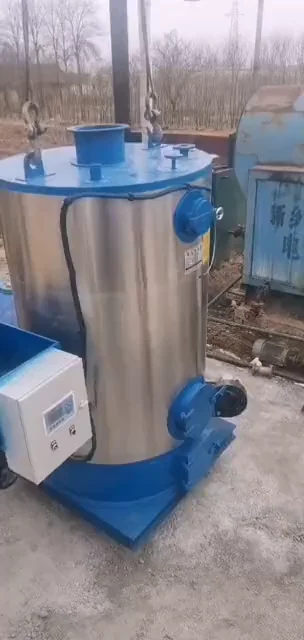

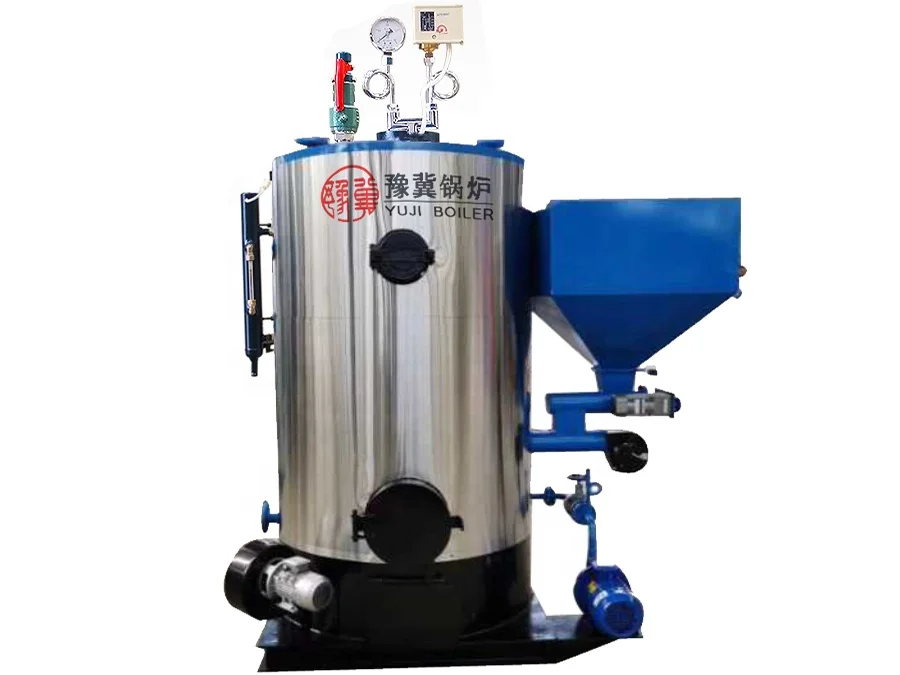

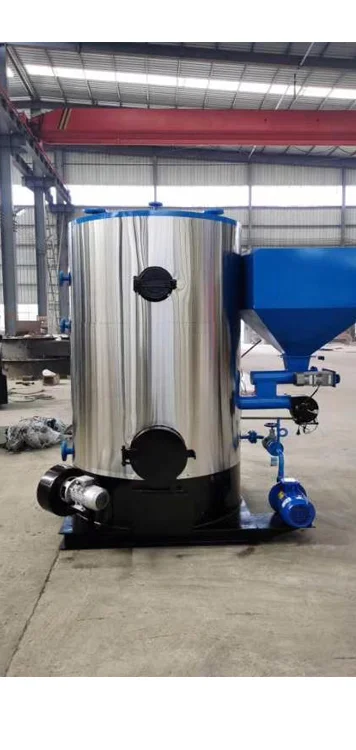

The LSG series vertical small pallet steam boiler is a small volume boiler with internally designed circulating water pipes. Smooth water circulation, scientific and reasonable layout of heating area, fast heat conduction , fast steam pressure rise, and movable combustion grate ,flexible and easy to control. Suitable for the direct combustion of various shapes biomass , strong fuel adaptability. It adopts dome combustion chamber and horizontal circulation water pipes, increases the heat absorption area and has high thermal efficiency. No fan is needed for natural ventilation operation, simple operation.



1. Quick steam generation

Steam is quickly generated (3-5 minutes) after the boiler is started, and it reaches high temperature and pressure soon.

2. High thermal efficiency

(1)Vertical water pipe membrane wall structure,increase heat absorption area,reduce heat loss,save fuel.

(2)Equipped with energy saver, improve thermal efficiency.

3. High-end automatic control system

National standard electric control components and world brand burner , can realize the automatic operation stablely.

4. High security

(1)Very small internal water capacity, does not need annual inspection

(2)Equipped with safety interlock device, such as water shortage, overpressure, overtemperature, air leakage, motor overload and other safety protection functions.

5. High reliability

(1)The whole equipment is manufactured according to the standard of large steam boiler.

(2)Safety protection devices: pressure controller, pressure transmitter, safety valve, pressure gauge, water level automatic control, etc.

6. Exquisite structure

Unique appearance design ,small and practical.

Model	Rated evaporation capacity(t/h)	Rated pressure (MPa)	Steam temperature(°C)	Thermal efficiency  (%)	Fuel consumption   (kg/h)	Dimension  D×H (m)	Weight (t)
LSG0.1-0.4	0.1	0.4	151	≥83	18.39	0.81×2.59	0.72
LSG0.2-0.4	0.2	0.4	151	≥83	36.23	0.91×2.9	0.98
LSG0.3-0.7	0.3	0.4/0.7	151/171	≥83	53.8	1.02×3.2	1.6
LSG0.5-0.7	0.5	0.4/0.7	151/171	≥83	89.76	1.32×3.68	2.88
LSG0.7-0.7	0.7	0.4/0.7	151/171	≥83	125.1	1.42×3.87	3.67
LSG1-0.7	1	0.4/0.7	151/171	≥83	178.7	1.62×4.38	4.8

Q. Are you manufacturer?

A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?

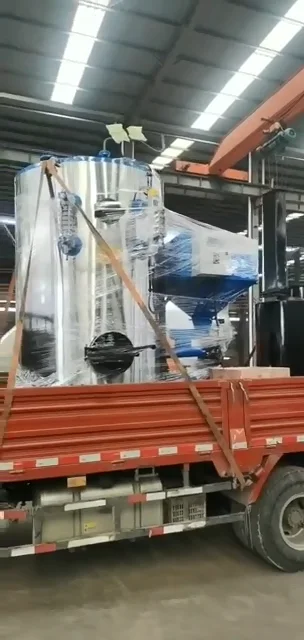

A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
