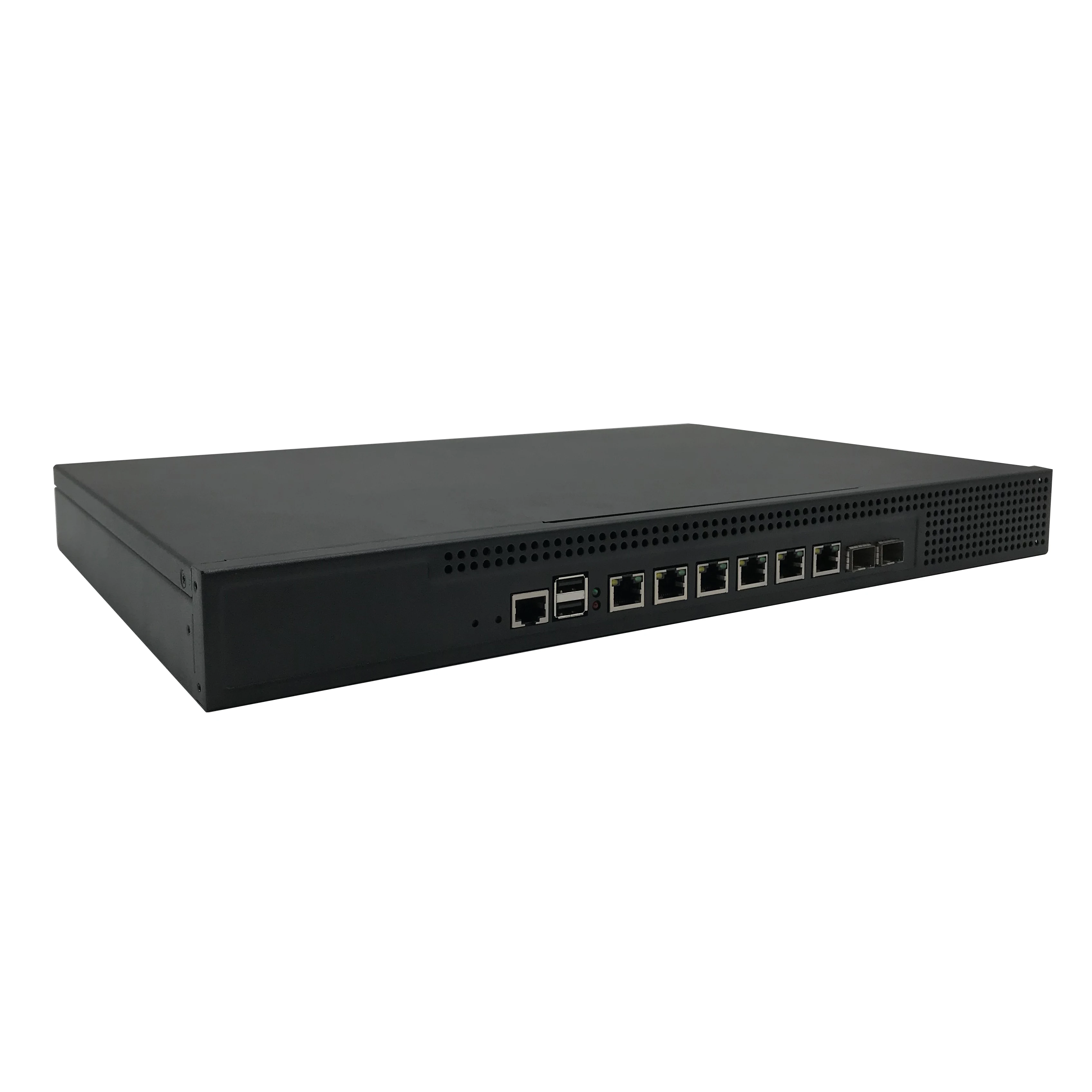

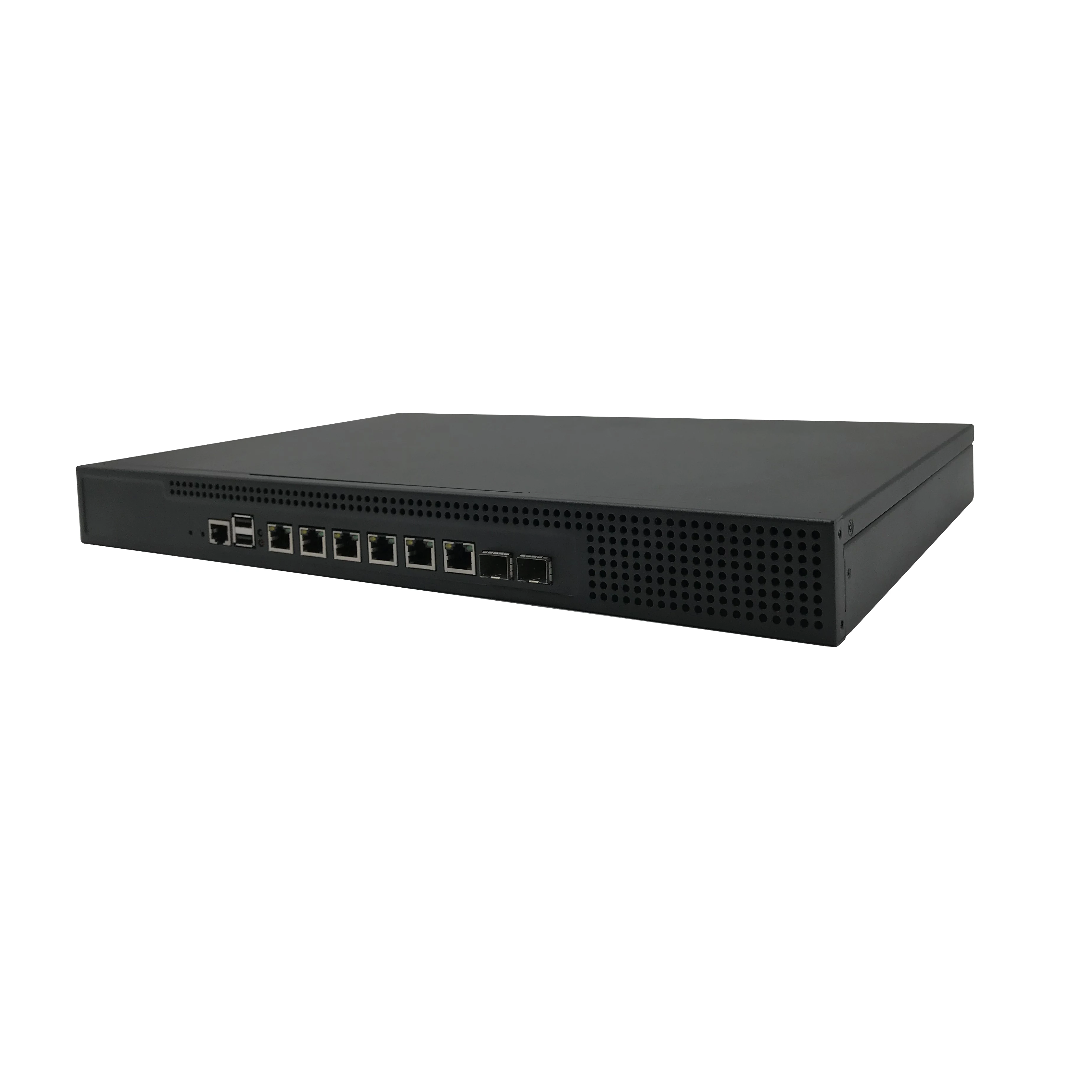

FW-8764-2O

1U Rackmount Network Appliance with Intel Core i3/i5/i7 or Xeon with 6 GbE LAN, 2 x 10 GbE SFP supporting mSATA and Wi-Fi/LTE card





Overview:

Thank you for choosing the FW-8764-2O. The system is powered by Intel Core Processors, codenamed Ivy Haswell, with the Intel Z87 Series Chipset. It supports up to 16GB of DDR3 system memory at 1600MHz on dual-channel DIMM banks. The FW-8764-2O is equipped with advanced I/O capacity which includes an RJ-45 console port, 4 Serial-ATA ports (comply with SATA Standard 3.0 and 2.0), a mini SATA slot and a CompactFlash slot.



The onboard Ethernet ports be configured with bypass depending on the module specification.



Feature:

Adopts the dedicated multi Ethernet application scheme to design

Based on Intel Z87 express chipset

Integrated with 6 x Intel 82583V or 82574L 1000M Ethernet cards, supports 2 pairs BYPASS

Integrated 1 x Intel 82599 or i350, supporting 2 x 10GbE SFP ports

Provides 1 Mini PCIe slot, supports Wi-Fi/LTE modules

Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps

Supports SSD, SATA HDD, CF card storage

Specification:                            FW-8764-2O



Model No.		FW-8764-2O
Form Factor		1U Rackmount
Platform	Processor Options	Intel Haswell 22nm Core i7/i5/i3, Pentium, Celeron, Xeon E3 1200 v4.
	CPU Socket	LGA1150
	Chipset	Intel Z87
OS Support		Linux, Ubuntu, CentOS, pfSense, Windows All
BIOS		AMI 32M
System Memory	Technology	DDR3 1600/1333/1066MHz
	Max. Capacity	16GB
	Socket	2 x SO-DIMM
Networking	Ethernet Ports	6 x Intel 82583V/82574L GbE LAN 2 x GbE SFP via Intel i350 or 82599
	Bypass	1 pair of BYPASS
Storage	HDD Bays	1 x 3.5 inch, or 2 x 2.5 inch
	CF/SD	1 x CF socket onboard
	mSATA	1 x mSATA socket onboard
I/O Interface	Reset Button	1 x Reset Button
	LED	1 x Power LED, 1 x HDD LED
	Power Button	1 x Power Button
	Console	1 x RJ45 Console
	USB	2 x USB 2.0
	LCD Module	N/A
	Display	1 x VGA output
	Power Input	1 x AC Inlet
Expansion	PCIe	N/A
	Mini-PCIe	1 x Mini PCIe
Miscellaneous	Watchdog	Yes
	Internal RTC with Li Battery	Yes
	TPM	N/A
Cooling	Processor	1 x Bronze CPU Fan
	System	3 x 4020 System Fan
Environmental Parameters	Temperature	-15~60℃
	Humidity	0% ~ 95%, non condensing
Physical Dimensions	(WxHxD)	430*270*44mm
	Weight	4.5KG
Package Dimensions	(WxHxD)	530*370*150mm
	Weight	5.0KG
Power	Type/Watts	220W
	Input	4A 100-127V~ or 2A 200-240V~ 47-63Hz
Approvals and Compliance		CE, FCC

System Structure
