5-12 мм пневматическая усиленная катушка стальная проволочная сетчатая сварочная

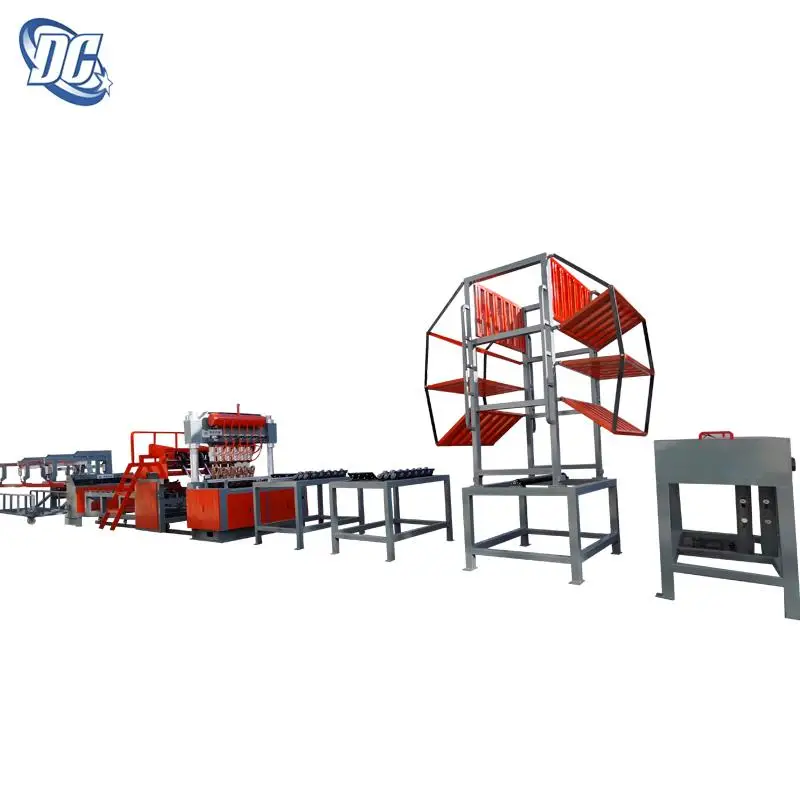

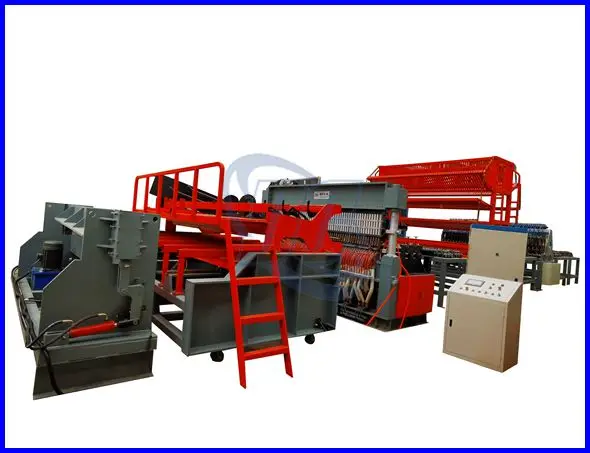

 The details of coil wire reinforced steel wire net welding machine

1.The machine is used for wire diameter 4-10mm, it is an automatic equipment that desiged and manufactured by ourselves. This machine is driven by pneumatic system and composed of line wire support system, water cooling welding transformer, pneumatic control cross wire falling system, servo motor pulling mesh device.

2.The machine uses  PLC touch screen control technique, we use Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, so it can weld different mesh size on the same mesh panel .

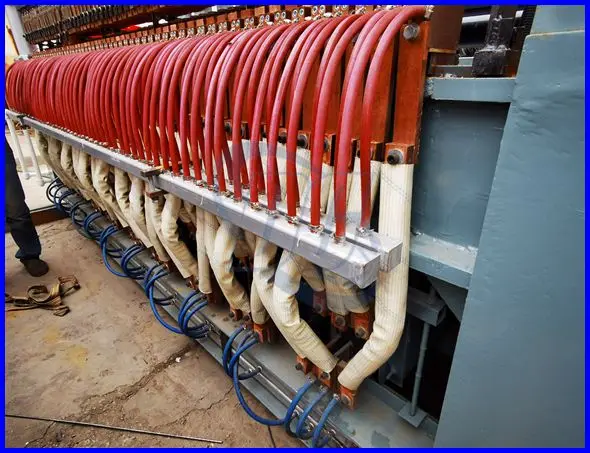

3.Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.

4.Feeding and Welding System  Cross wire feeding:  Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one

Line wire feeding:  firstly use 1tons wire tray to coil wire into wire straightening wheel. Then the line wires are sent by fed automatically, when it welding and drawing,  it increases the production efficiency.

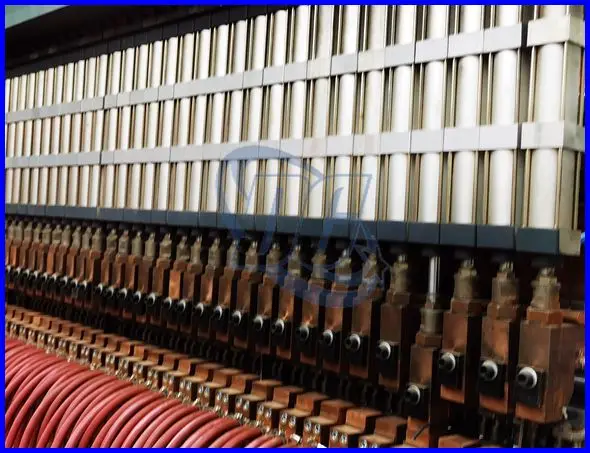

5.Welding system: the machine welding system is controled by pneumatic system, which makes the adjusting of welding pressure simple and convenient. At the same time, the welding electrodes are equipped with water cooling system to make sure the welding during a long working time, and prolong the life .

6.The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.

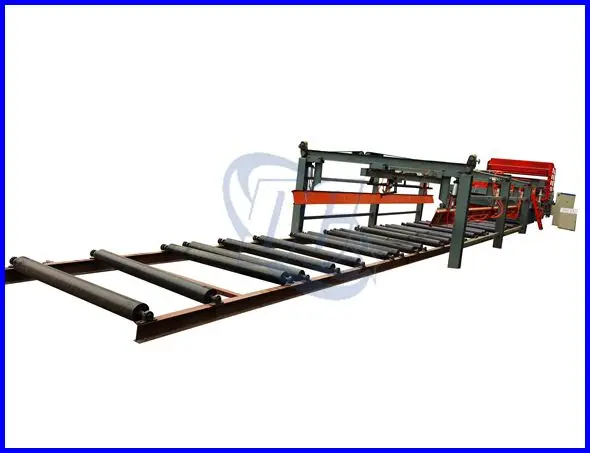

7.Mesh falling system: Automatic falling mesh panel system is adopted, so it save much labor to move the mesh panels.

Application: It can be used for producing high-level construction and bridge mesh, high-way reinforce mesh, construction reinforce mesh, floor pouring mesh, airport reinforce mesh and so on.

Suitable materials: Galvanized wire, stainless steel wire, iron wire and so on.

1.The machine will be packed with plastic films.

2.Some accessories and wearing parts will be packed with wooden box.

3.Shipping within 30 days after receiving your deposit.

1.If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port.

2.Maintenance period :one year for whole machine except vulnerable parts

3.The numbers of technical persons: one technician per machine

4.The fees: the buyer have to pay the technical salary 80 USD per day, and the round-trip ticket, accommodation and other related fees.

During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.

If  need more information, please click our web: http://dechenmachine.en.alibaba.com

     Anping Dechen Wire Mesh Machine Co.,Ltd in Asia's largest industrial base screen--Anping, Hebei province, covers an area of 8,000 square meters, since the plant more than a decade, has become aset of research and development of power electronic control equipment,production and sales of integrated enterprise welding equipment.

     Anping Dechen Wire Mesh Machine Co., Ltd, which aims the customer first, good faith to the purpose, we welcome foreign friends from all over the world to visit our company.

Other machines of our company,please click the pictures

3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)

4.  Do you want to weld wire mesh panel or mesh in coil ?
