Характеристики


1. Open structure makes repair and maintenance easier .


2. Touch screen makes operation easier with dialogic function. Programmable and multi-language available .


3. The diameter of loading door is larger , which facilitates loading and unloading .


4. It runs smoothly thanks to inverter adopted , and energy consumption is greatly reduced .


5. Pneumatic controlled water valves and steam valves guarantee the durable and good performance of the machine .


6. 4 speeds inset for high speed extraction, which can be selected according to different linen .


7. Upper suspension design reduces vibration at hi-speed .


8. Vibration is minimized thanks to the innovative spring installation .


9. New design for housing sealing system ensures the machine to get perfect sealing performance.


10. 2 degree of tilting backward during washing protects linen from being damaged .

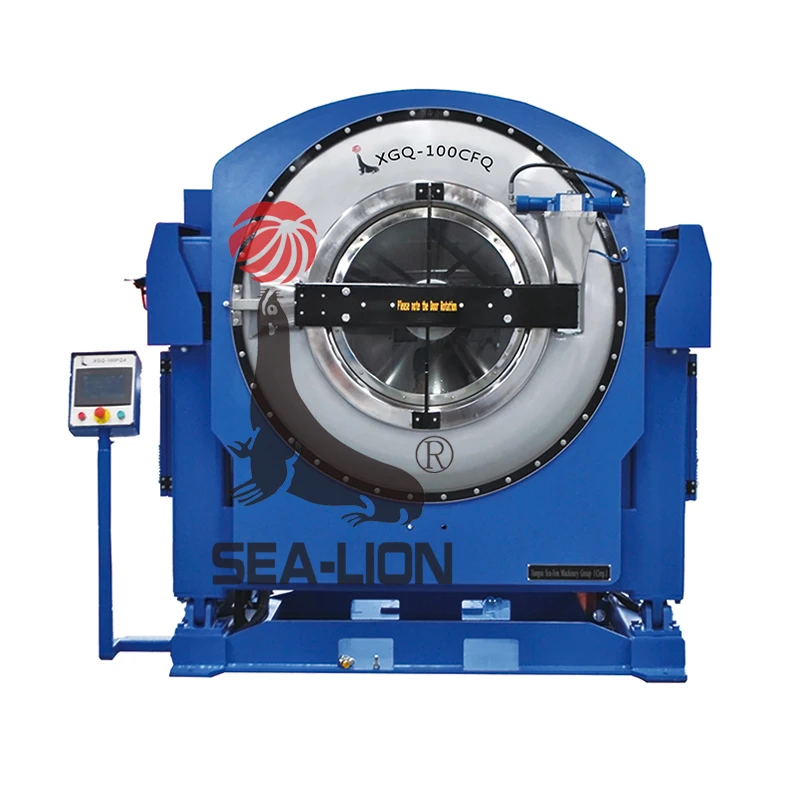

DescriptionXGQ-100CFQ
Capacity                                             kg100
Inner drum*length                            mm1240*840
Middle extracting speed                   rpm350
Motor power                                      kW7.5
Unloading tilt angle18°
Steam pipe diameter                          DN25
Cold&hot water pipe diameter          DN40
Outlet drainage diameter                  mm159/2(the root) PC
Compressed air inlet diameter          mm8
Steam pressure                               Mpa0.4-0.6
Water pressure                                Mpa0.2-0.4
Compressed air pressure                 Mpa0.4-0.6
Water consumption/cycle                   kg1500
Electric consumption/cycle                kW1.8
Steam consumption/cycle                   kg50
Dimension(W*L*H)                           mm2345*1820*2145
Weight                                             kg3600





Company information


Jiangsu Sea-lion Machinery Co., Ltd. is the oldest manufacturer of industrial laundry machines in China possessing a wealth of experience in manufacturing from years of research and development. The Sea-lion factory campus in Zhangjiagang is an impressive vertically integrated design and production facility with a building area of 166,000 SQM and total assets of 520 million RMB.





Sea-lion has the largest product range and most comprehensive variety of laundry machinery in China, including 10 series, 20 varieties and more than 100 types with annual production capacity of 15,000 machines. Sea-lion’s annual sales volume has risen to over 600 million RMB with sales to over 90 countries and territories.





In a world of seemingly unsurmountable challenges, Sea-lion’s perseverance will continue to bring success. Over the past 50 years, Sea-lion is in the era of revolution with many opportunities and challenges. Sea-lion is willing to work together with friends from all sectors of the world to create a better tomorrow by sincere cooperation, win-win development and construction. We believe that we can revitalize the national industry and climb the world peak.





Together, we create a clean world!
