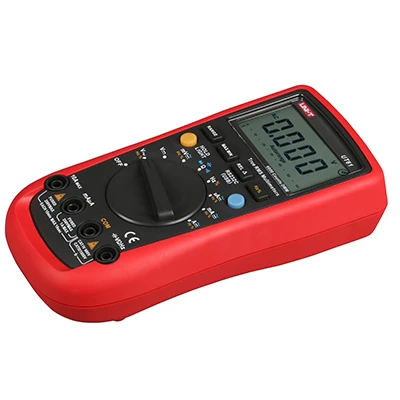

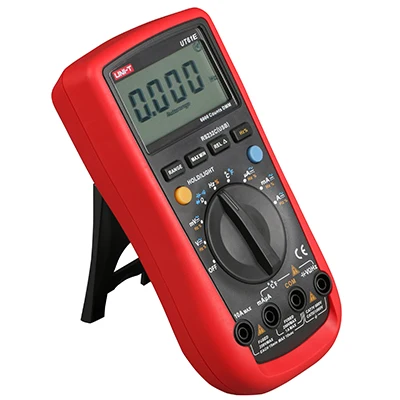

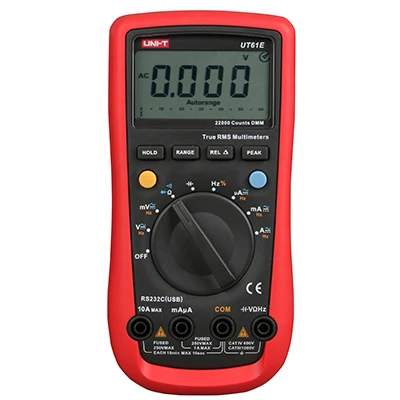

Цифровой мультиметр UT61E 6000 отсчетов автоматический выбор диапазона измеритель напряжения переменного/постоянного тока
- Категория: Мультиметры >>>
- Поставщик: Chongqing,Huakong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.50 $* | 1.12 $* |
| Jul-17-2025 | 1.66 $* | 1.93 $* |
| Jun-17-2025 | 1.66 $* | 1.24 $* |
| May-17-2025 | 1.43 $* | 1.1 $* |
| Apr-17-2025 | 1.61 $* | 1.30 $* |
| Mar-17-2025 | 1.53 $* | 1.45 $* |
| Feb-17-2025 | 1.31 $* | 1.1 $* |
| Jan-17-2025 | 1.86 $* | 1.82 $* |
Характеристики
Product Description
UT61 series complies with CE, ETL, and GS standards. This series is all auto range with
selectable True RMS models (UT61D/E). This series has an abundant of features and is combined with high safety rating of CAT IV
600V. It is suitable for advanced electronics and electrical users.
1. Auto range
2. MAX/MIN/REL mode
3. RS-232 and USB interface
4. Analog bar graph
5. Low battery indication
6. True RMS
7. Peak value/hold
8. Diode/continuity buzzer
8. Data hold
9. Input protection
selectable True RMS models (UT61D/E). This series has an abundant of features and is combined with high safety rating of CAT IV
600V. It is suitable for advanced electronics and electrical users.
1. Auto range
2. MAX/MIN/REL mode
3. RS-232 and USB interface
4. Analog bar graph
5. Low battery indication
6. True RMS
7. Peak value/hold
8. Diode/continuity buzzer
8. Data hold
9. Input protection
Specification
Specifications | Range | UT61A | UT61B | UT61C | UT61D | UT61E | ||||||
DC voltage (V) | 1000V | ±(0.5%+1) | ±(0.5%+1) | ±(0.5%+1) | ±(0.5%+1) | ±(0.1%+2) | ||||||
AC voltage (V) | 750V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(0.8%+10) | ||||||
DC current (A) | 10A | ±(1%+2) | ±(1%+2) | ±(1%+3) | ± (1%+3) | ±(0.5%+10) | ||||||
AC current (A) | 10A | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(0.8%+10) | ||||||
Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | |||||||||
60MΩ | ±(1%+2) | ±(1%+2) | ||||||||||
220MΩ | ±(0.5%+10) | |||||||||||
Capacitance (F) | 4000μF | ±(3%+5) | ±(3%+5) | ±(3%+5) | ±(3%+5) | |||||||
220mF | ±(3%+5) | |||||||||||
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |||||||
10Hz~220MHz | ±(0.01%+5) | |||||||||||
Temperature | -40°C~1000°C | ±(1.2%+3) | ±(1.2%+3) | |||||||||
-40°F~1832°F | ±(1.2%+4) | ±(1.2%+4) | ||||||||||
Features | ||||||||||||
Display count | 4000 | 4000 | 6000 | 6000 | 22000 | |||||||
Bandwidth (Hz) | 45Hz~400Hz | 45Hz~400Hz | 45Hz~1kHz | 45Hz~3kHz | 45Hz~10kHz | |||||||
Duty cycle | 0.1%~99.9% | √ | √ | √ | √ | √ | ||||||
General Characteristics | ||||||||||||
Power | 9V battery (6F22) | |||||||||||
Display | 65mm x 43mm | |||||||||||
Product color | Red and grey | |||||||||||
Product net weight | 370g | |||||||||||
Product size | 180mm x 87mm x 47mm | |||||||||||
Standard accessories | Battery, test leads, multi-purpose socket, RS-232 interface cable (UT61B/UT61C/UT61D/UT61E), PC software CD (UT61B/UT61C/UT61D/UT61E), point contact temperature probe (UT61B/UT61C) | |||||||||||
Standard individual packing | Gift box, English manual | |||||||||||
Standard quantity per carton | 22pcs | |||||||||||
Standard carton measurement | 455mm x 335mm x 375mm | |||||||||||
Standard carton gross weight | UT61A: 12.7kg; UT61B: 13.97kg; UT61C: 13kg; UT61D: 14.5kg; UT61E: 12.9kg | |||||||||||
Optional accessory | UT61B/UT61C/UT61D/UT61E: USB interface cable | |||||||||||
