5 в 12 В 24 микро редуктор 24byj48 постоянный магнит шаговый двигатель для кондиционера воздуха из
- Категория: >>>
- Поставщик: Ningbo,Mingjong,Electric,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.80 $* | 0.8 $* |
| Aug-17-2025 | 0.7 $* | 0.96 $* |
| Jul-17-2025 | 0.57 $* | 0.24 $* |
| Jun-17-2025 | 0.66 $* | 0.91 $* |
| May-17-2025 | 0.50 $* | 0.62 $* |
| Apr-17-2025 | 0.41 $* | 0.21 $* |
| Mar-17-2025 | 0.56 $* | 0.43 $* |
| Feb-17-2025 | 0.30 $* | 0.86 $* |
| Jan-17-2025 | 0.60 $* | 0.49 $* |
Характеристики

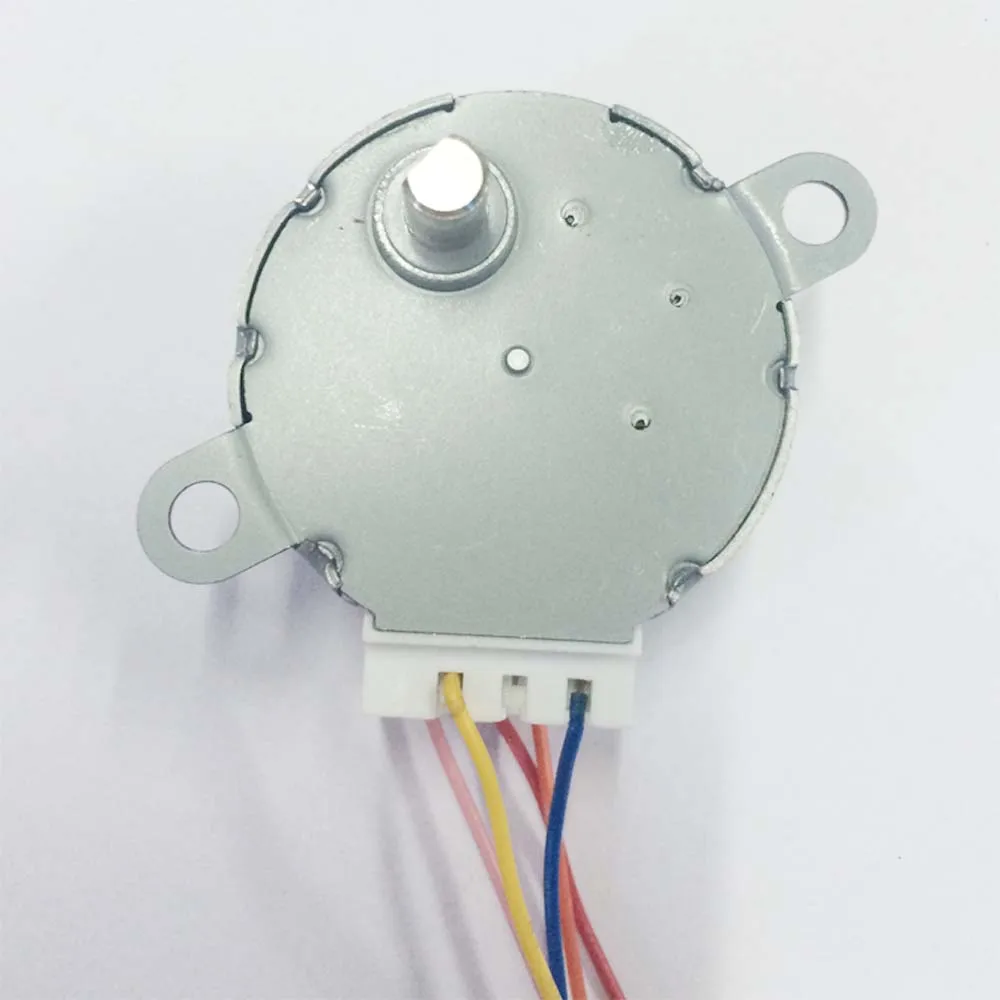

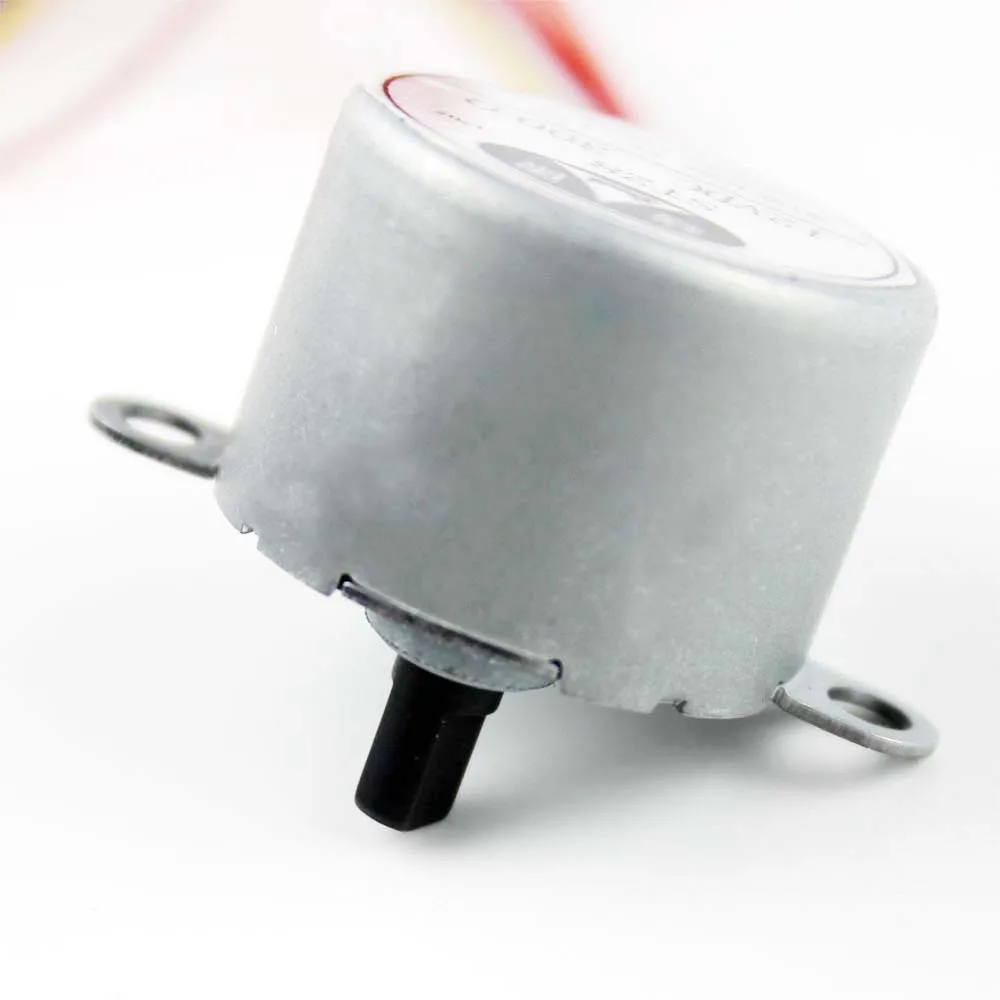

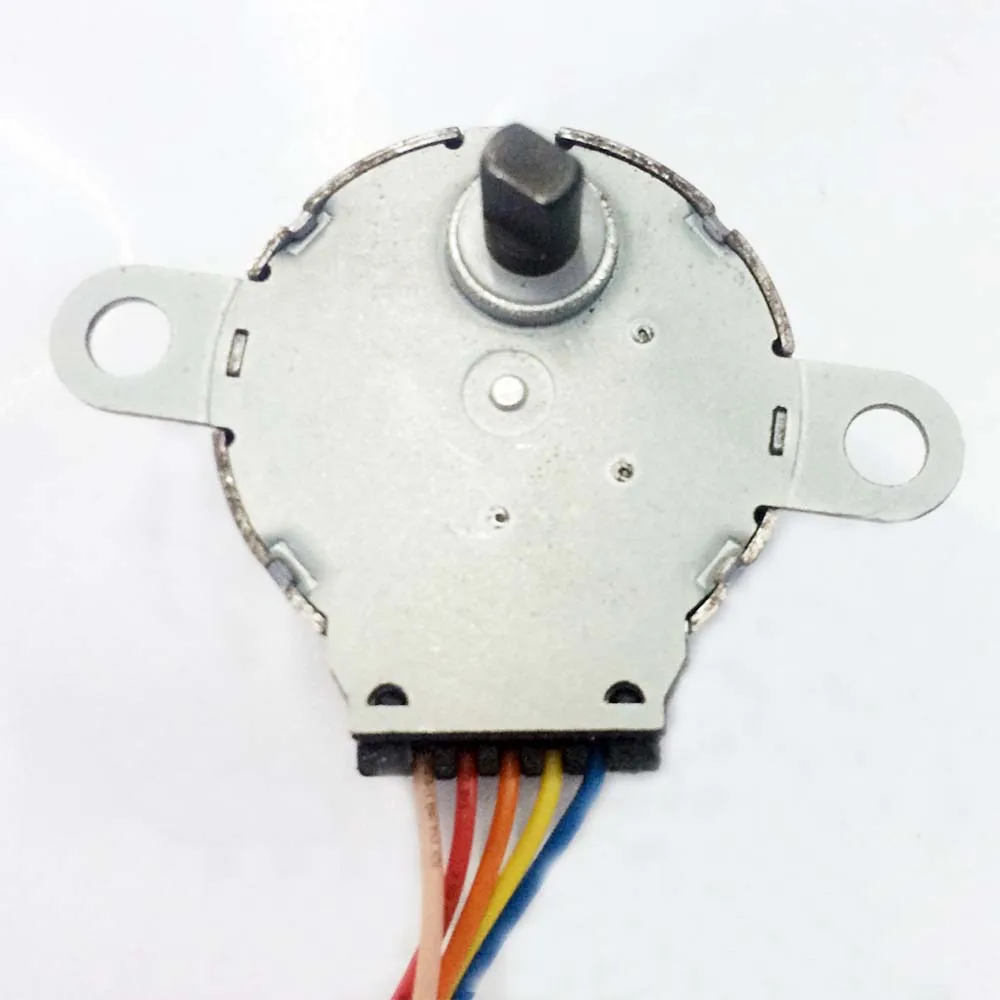

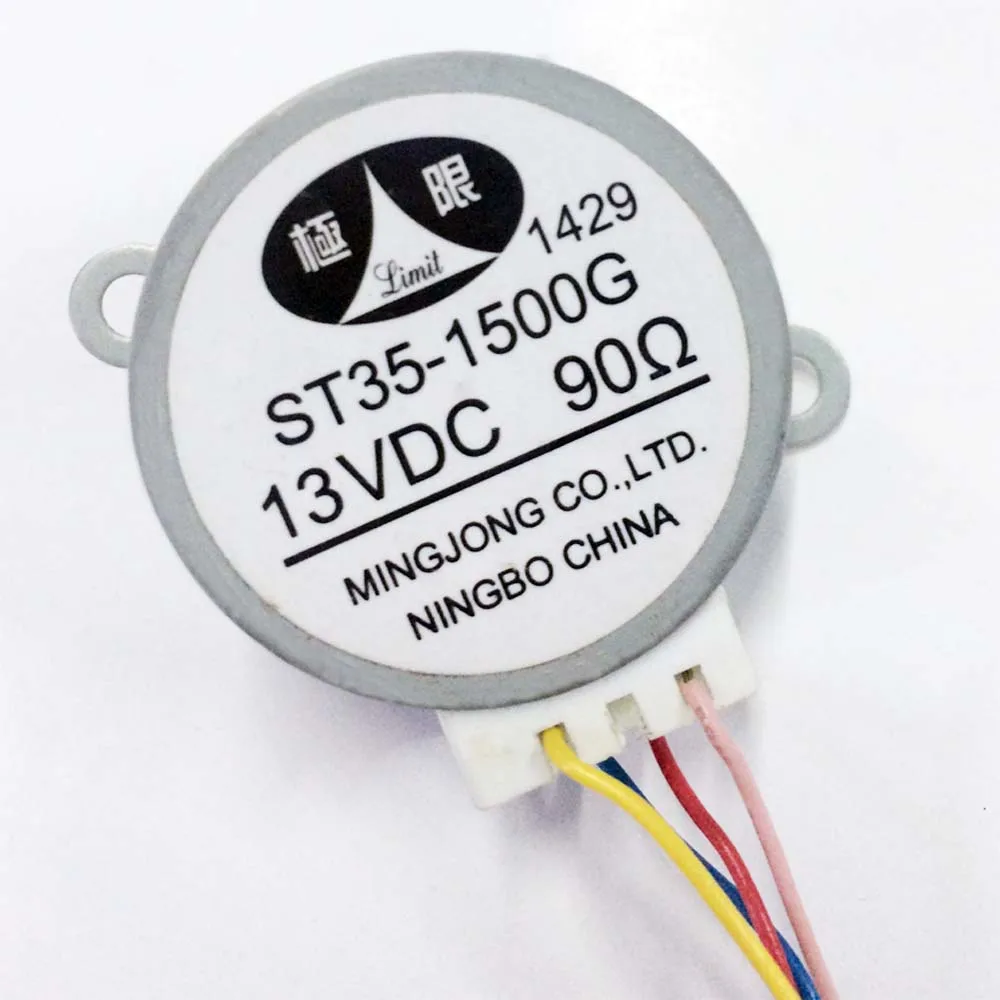

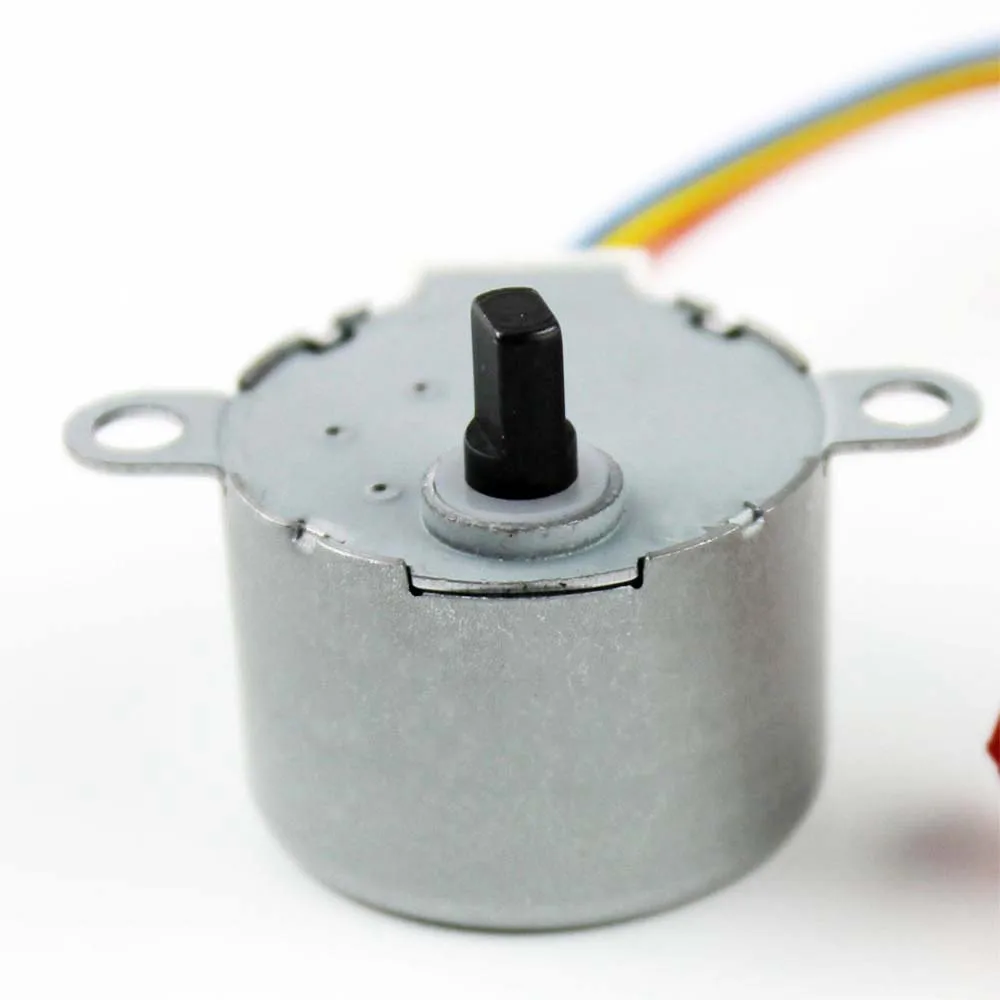

Electric Dc Micro12 Volts Stepper Motor
| Item | Specifications | Unit | |||
| Rated Voltage | 12 | VDC | |||
| Current | 92 | 60 | 48 | 40 | mA |
| Impedance | 130 | 200 | 250 | 300 | Ω |
| Pull-in Torque (at 100pps) | 900 | 650 | 620 | 470 | gf - cm |
| Step Angle | 7.5°/85 | ° | |||
| Reduction Ratio | 1/85 | ||||
| Phase | 4 | ||||
| Detent Torque min | 500 | gf - cm | |||
| Max Starting Pulse Rate | 350 | pps | |||
| Max Starting Pulse Rate | 800 | pps | |||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | ||||
| Temperature Rise | 60 | deg | |||
| Noise | 40 | dB | |||
| Diameter of Model | ψ35.0 | mm | |||
| Distance of Model (a) | 42.0 | mm | |||
| Distance of Model (a1) | 10.0 | mm | |||
| Height of Model | 17.2 | mm | |||
Service:
With a professional engineer team, we can offer the professional opinions when you want to
make OEM products. With active and enthusiastic Sales team, they will be the bridge of you
and factory. Once inquiry received, we promise reply in less than 24 hours. Our mission is try
our best to offer a reliable product with reasonable cost to our valuable customers.
Warranty:
12months after delivery.
Introduction: Ningbo Mingjong Electric Industry Co., Ltd. was established in 1993 in Ningbo, China. In order to provide the best services and products for worldwide customers, we continuously carry out innovations with our core competence.
Main product: Mini Motors, timer switch, RF control...
