    This machine is mainly suitable for pharmaceutical, food, health care products, cosmetics, audio-visual products, industry square appearance decoration items in a box, etc. Such as PCS, chewing gum, health care products, tea, sugar, condoms, rubber, mosquito-repellent incense, tape, VCD discs (CD), playing CARDS, transparent soap, square type battery, floppy disk, etc have the effect of the anti-counterfeiting, moisture, and improve the grade of products, increase product added value.

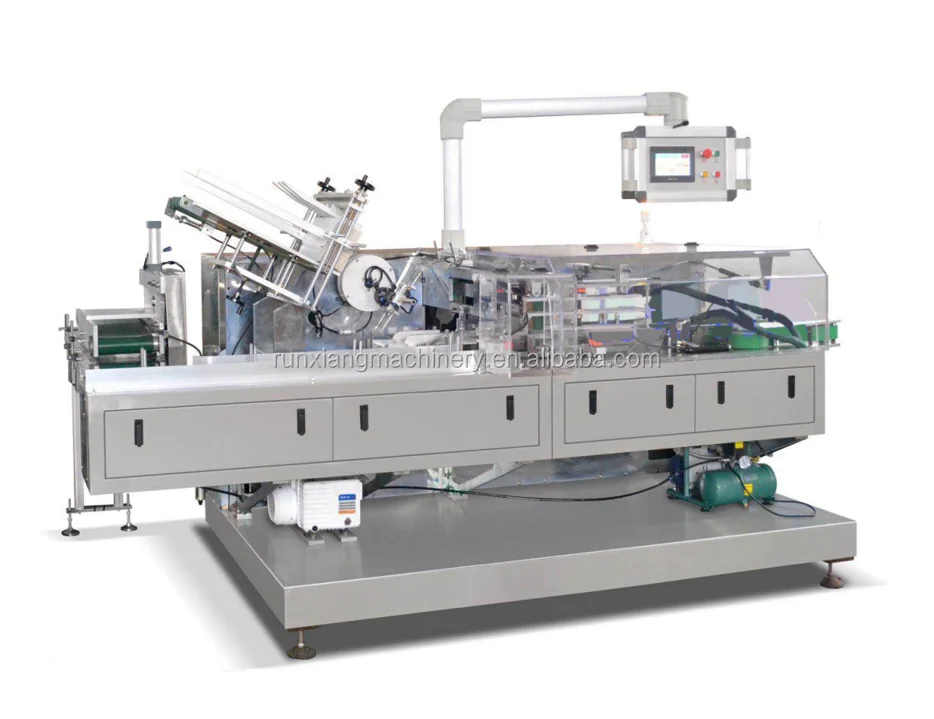

Automatic Carton Box Packing Machine For Milk Powder Pouch Bag Cartoning Machine

     This machine integrates automatic box opening, pushing, folding ears, folding, and sealing. It is suitable for multi-variety and multi-specification carton packaging machines. It is controlled by PLC microcomputer, with automatic alarm and fault indication. It has the characteristics of man-machine interface control, simple operation and convenient maintenance. Its box sealing system has the functions of automatic box opening, material pushing, folding ears, folding, box sealing, etc., without the need for human hands. All parts of the machine that come into contact with the color box are made of high-quality stainless steel and aluminum, and the surface is polished. The appearance is beautiful and generous and does not pollute the environment.



Automatic Carton Box Packing Machine For Milk Powder Pouch Bag Cartoning Machine

1.Automatic opening (sucking) box, folding instructions, cutting, feeding, batch number, sealing box,detection and rejection device.

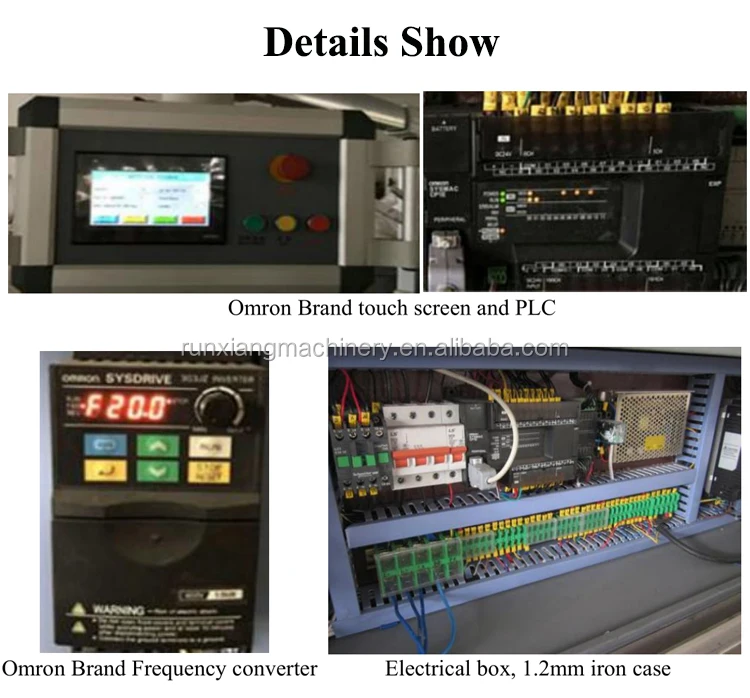

2.PLC programmable control system, man-machine interface display operation, more clear and simple, stepless frequency control.

3.Servo/stepper motor and touch screen, Well-known brand electrical components, stable and reliable performance.

4.Main drive of automatic cartoning machine has overload protection device, safe and reliable

5. With fault display, alarm and finished product counting functions, easy to maintain and handle faults.

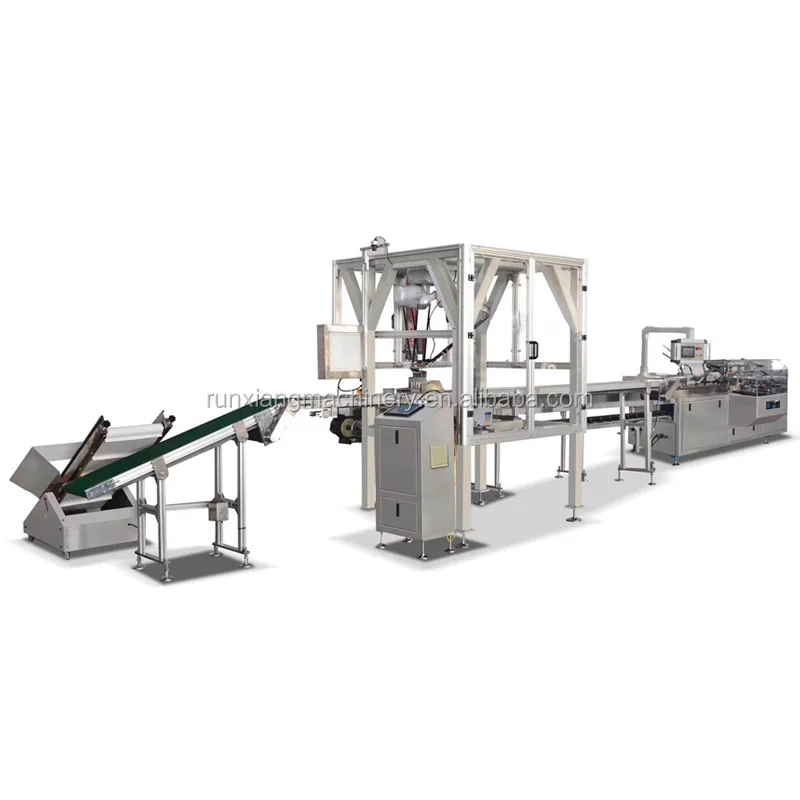

6.Various automatic feeders and conveyors and other devices are optional according to customer

requirements.

7.Hot melt machine: hot melt adhesive spray seal or design hot melt adhesive brush device.

Machine Specification

Model	RX-80	RX-100	RX-120	RX-200
Box size	L:49-120mm W:30-80mm H:14-50mm	L:5-220mm W:20-120mm H:12-70mm	L:70-180mm W:35-85mm H:14-50mm	L:70-200mm W:35-75mm H:15-70mm
Speed	40-80 pcs/min	50-100 pcs/min	50-120 pcs/min	60-200 pcs/min
Power	1.5kw	1.5kw	1.5kw	5kw
Box quality	/	250-350 g/square	250-350 g/square	300-350 g/square
Dimension (mm)	1300*1200*1500	4300*1500*1650	3100*1100*1550	4070*1680*1680
Wight	950kg	1200kg	1400kg	3000kg
Voltage	220V/380V/50Hz	380V/50Hz	220V/50Hz	380V/50Hz
Air pressure	/	0.5-0.7Mpa	≥0.6Mpa	0.5-0.7Mpa



 Performance characteristics
• Using PLC microcomputer automatic control.
• Use man-machine interface operating system to automatically display performance parameters such as cartoning speed, quantity, and cause of failure,
• The self-lubricating system runs more smoothly.
• The body is made of high-quality stainless steel, baking paint and aluminum
• Multiple specifications can be adjusted and used within the scope of the same equipment.
• Manual and automatic conversion function.
• Can be equipped with hot melt adhesive machine.
