Характеристики



Product Description

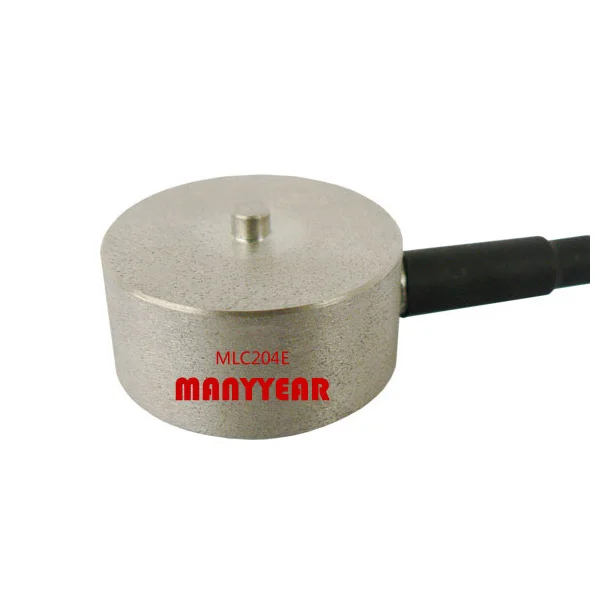

miniature button compression force sensor load cell
Model: MLC204E
Category: Button load cell
Range:5kg,10kg,20kg,50kg,100kg,200kg
Material: alloy aluminum, alloy steel (100kg & 200kg)
Application: force measure, compression test
Characteristic: miniature compression load cell, miniature force load cell








Technology Specification
Below spec is only for customer design reference. we can provide ODM product.


Comprehensive error:
0.2%FS
Output resistance:
350±5Ω
Rated output:
1±0.1mv/v
Insulation resistance:
≥5000MΩ(100VDC)
Non-linearity:
0.2%FS
Excitation voltage:
9~12VDC
Hysteresis:
0.2%FS
Compensated temp:
-10~+40ºC
Repeatability:
0.1%FS
Use temperature:
-35~+65ºC
Creep:
0.03%FS/10Min
Temp effect on zero:
0.05%FS/10ºC
Zero balance:
±1%FS
Temp effect on span:
0.05%FS/10ºC
Input resistance:
350±5Ω
Defend grade:
IP66

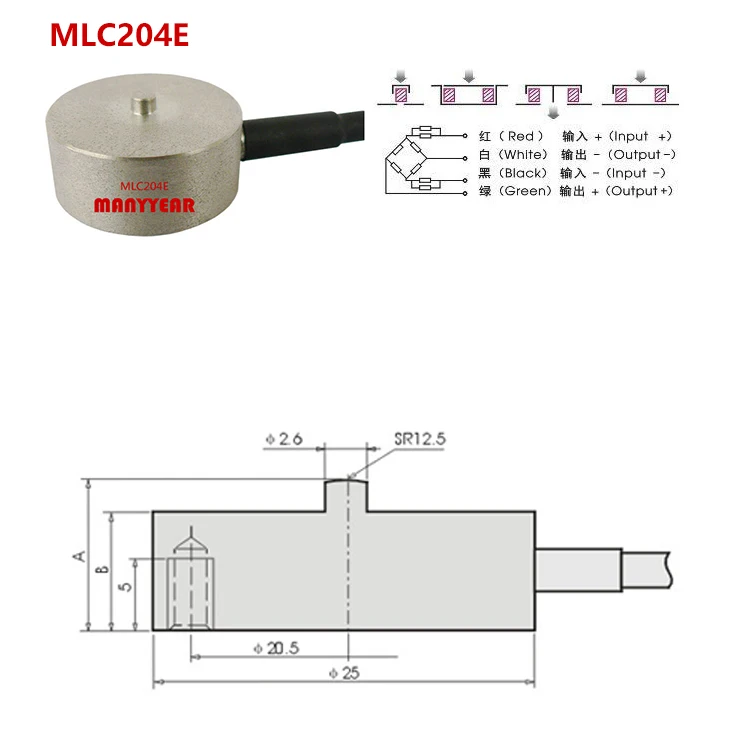

Product Assembly Structure
Blow force structure is for reference.




Product Process




Product Application




Delivery and Shipment






Related Products




Company Introduction


MANYYEAR Technology was established in 2008.
We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products.
We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity.
Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications.
We provide OEM and ODM services to our customers.
We provide free design assistance to our customers.
We have established the following product system:
Load Cell
Force Sensor
Torque Sensor
Pressure Sensor
Infrared Pyrometer
Weighing Instrument
Pressure Gauge
