BBQ furnace charcoal briquette carbonisation carbonization machine for wood



Type-1: Continuous type charcoal briquette carbonisation machine

Continuous type charcoal briquette carbonisation machine is the newest type carbonization furnace in China. And it is specially designed for fine biomass powder, such as wood sawdust powder, fruit shell powder, etc. It is used to carbonize fine biomass powder into charcoal powder in a short time for only 35-45 minutes. Its fuel can be Gas, Coal, etc.The carbonizing time is only need 30-45 minutes. And its smoke can be recycled. Continuous type charcoal briquette carbonisation machine consists of six main parts:

1> Inputting conveyor. This conveyor is screw conveyor, it is used to convey fine biomass powder into rotary drum.

2> Rotary drum. This is the main part of rotary charcoal making machine. Fine biomass powder will be carbonized in this drum.

3> Ignation cable switch and pipes. They are used to convey burning energy for rotary drum and then provide high temperature for charcoal making machine.

4> PLC. it is used to operate the whole charcoal making machine automatically.

5> Motors.

6> Outputting conveyor.

The working process from biomass wastes to charcoal powder or even charcoal briquettes are as follows:

Step 1: Crusher ------ Grind biomass wastes into fine powder, which is around 1-2mm.

Step 2: Continuous type charcoal briquette carbonisation machine ------ Turn fine biomass powder into charcoal powder.

Stpe 3: Mixer ------ Mix liquid binder with charcoal powder evenly.

Step 4: Briquette machine ------ Punch or squeeze fine mixed charcoal powder into briquettes.

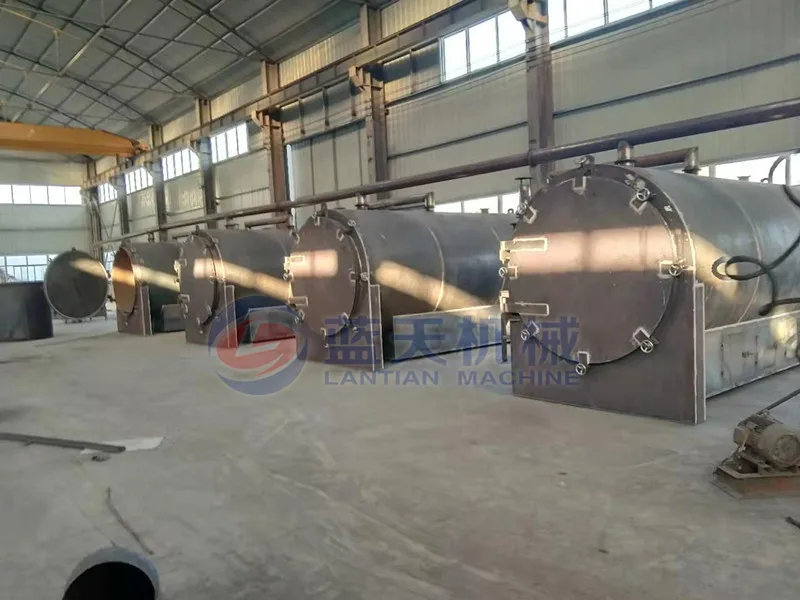

CONTINUOUS TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE

From biomass fine powder to charcoal powder by using CONTINUOUS TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE

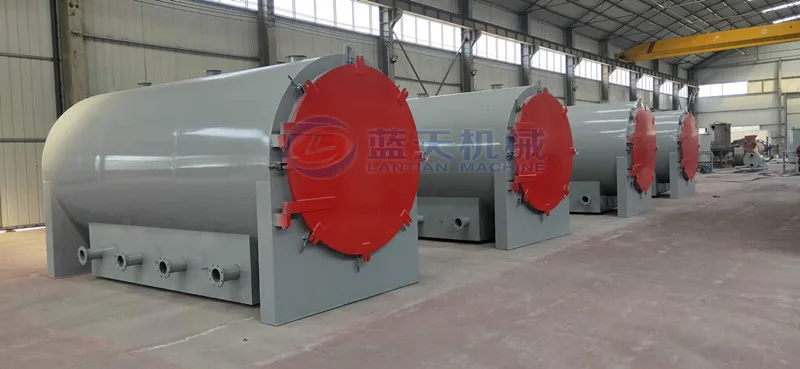

Type-2: HORIZONTAL TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE

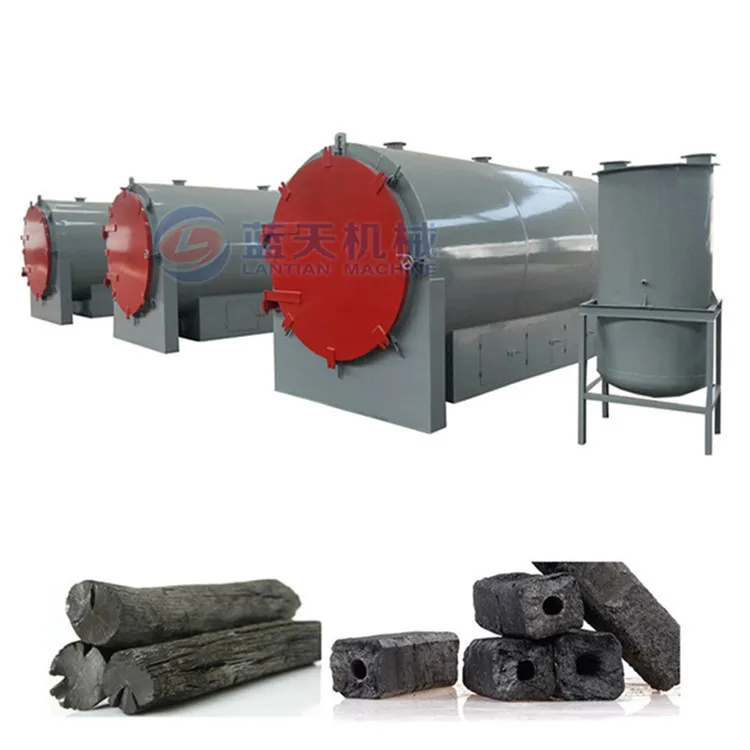

HORIZONTAL TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE is cylinder shape carbonization furnace. It contains a innner furnace inside, the innner furnace can be pulled out. So we can enlarge its production capacity by adding one extra inner furnace. This type HORIZONTAL TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE is used to carbonize big size biomass raw material into big size charcoal lumps. And these bigger size charcoal lumps can be used as natural bbq material directly. The fuel can be wood, coal, gas, etc.

Type-2: VERTICAL TYPE CHARCOAL BRIQUETTE CARBONISATION MACHINE

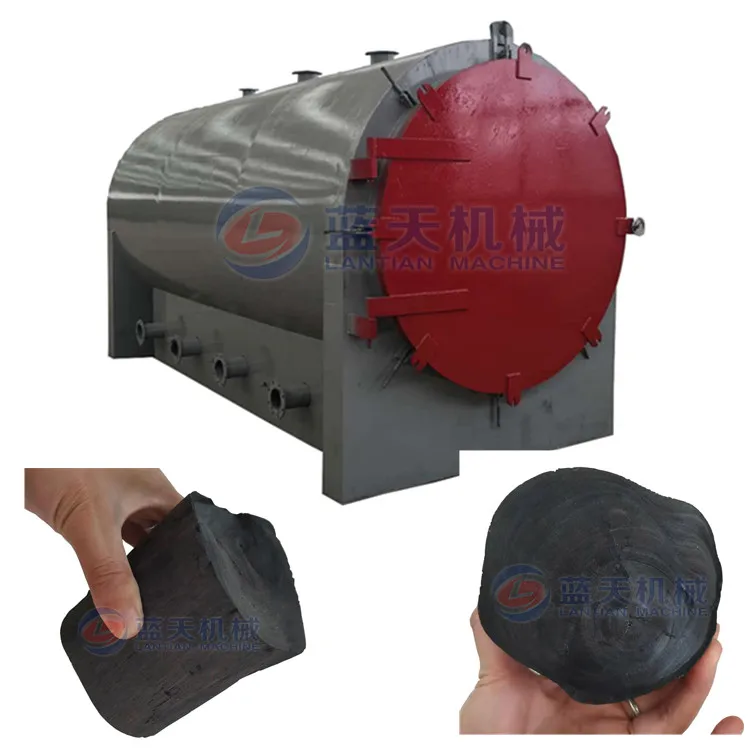

Natural bbq charcoal lumps made by HORIZONTAL TYPE charcoal briquette carbonisation machine

Main parameter of charcoal briquette carbonisation machine

Different Kinds	Natural type charcoal making machine	Airflow type charcoal making machine	Continuous type charcoal making machine
Raw material of fuel	NO NEED FUEL	GAS, COAL, WOOD, ETC.	GAS, COAL, WOOD, ETC.
Carbonizing time	more than 24 hours	Around 8-10 hours	35-45 minutes
Raw material	Must be bigger size biomass wastes	Must be bigger size biomass wastes	Must be fine powder

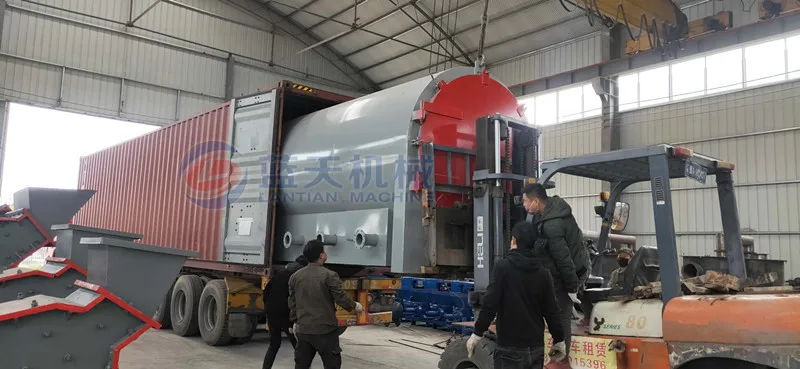

Delivery site of charcoal briquette carbonisation machine

Dear Customer, if you are interested in charcoal briquette carbonisation machine, please contact me freely!

ABOUT HENAN LANTIAN MACHINERY MANUFACTURE CO., LTD.

HENAN LANTIAN MACHINERY MANUFACTURE CO., LTD WAS FOUNDED IN 1980S IN GONGYI CITY, HENAN PROVICE, CHINA. ITS MAIN MACHINES ARE AIRFLOW TYPE COCONUT CHARCOAL EQUIPMENT; BIOMASS WOOD BRIQUETTE MACHINE; ROLLER BRIQUETTE MACHINE; HYDRAULIC PUNCHING BRIQUTETE MACHINE; SHISHA BRIQUETTE MACHINE; BIOMASS PELLET MACHINE; EXTRUDING TYPE BRIQUETTE MACHINE; MECHANICAL PUNCHING BRIQUETTE MACHINE. CRUSHERS; MIXERS; DRYERS; ETC.
