Карьерный портативный YT пневматический молоток с пневматическим
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.36 $* | 0.46 $* |
| Aug-18-2025 | 0.18 $* | 0.26 $* |
| Jul-18-2025 | 0.86 $* | 0.50 $* |
| Jun-18-2025 | 0.44 $* | 0.90 $* |
| May-18-2025 | 0.70 $* | 0.49 $* |
| Apr-18-2025 | 0.30 $* | 0.20 $* |
| Mar-18-2025 | 0.56 $* | 0.45 $* |
| Feb-18-2025 | 0.58 $* | 0.72 $* |
| Jan-18-2025 | 0.49 $* | 0.49 $* |
Характеристики
Product Description
Air leg pneumatic rock drill machine widely used for mining, roadway driving and various rock drilling operations. Air leg pneumatic rock drill machineis is an important tool in metallurgical, coal, railway, transportation, water conservancy,infrastructure and national defense stone works. This machine is suitable for wet drilling of medium hard and hard rock. The diameter of the muzzle is 34-42mm and the drilling depth can reach 5m.Yt series pneumatic rock drill may match with FT160BD short air leg of FT160BC long air leg.
Specification
YT series pneumatic rock drilling machine | ||||||||||
Model | YT28 | YT27 | YT29A | YT24C | TY24 | |||||
Weight | 26kgs | 27kgs | 26.5kgs | 24kgs | 24kgs | |||||

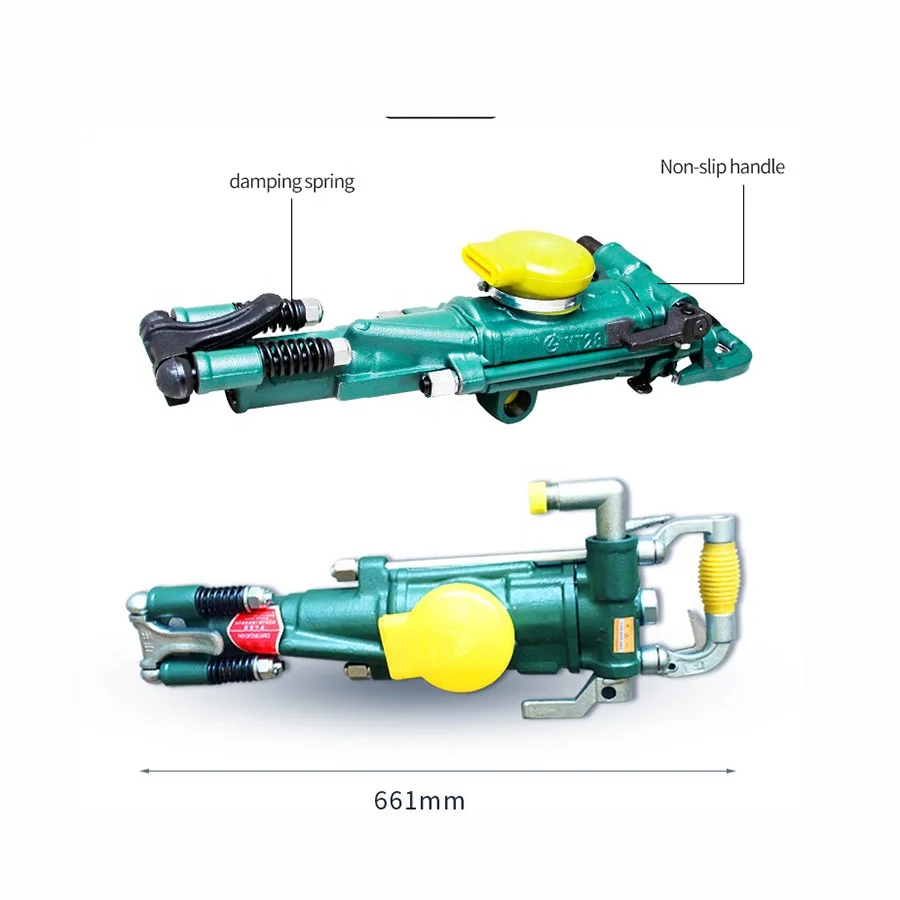

Length | 661mm | 668mm | 659mm | 628mm | 678mm | |||||
Air pressure | 0.4-0.63Mpa | 0.4-0.63Mpa | 0.4-0.63Mpa | 0.4-0.63Mpa | 0.4-0.63Mpa | |||||
Impact frequency | ≧37HZ | ≧39HZ | ≧39HZ | ≧37HZ | ≧31HZ | |||||
Air consumption | ≦81L/s | ≦86L/s | ≦88L/s | ≦80L/s | ≦67L/s | |||||
Impact energy | ≧70J | ≧75J | ≧78J | ≧65J | ≧65J | |||||
Cylinder*stroke | 80mm*60mm | 80mm*60mm | 82mm*60mm | 76mm*60mm | 70mm*70mm | |||||
Air pipe diameter | 25mm | 19mm | 25mm | 25mm | 19mm | |||||
Shank dimension | 22*108mm | 22*108mm | 22*108mm | 22*108mm | 22*108mm | |||||
Drilling depth | 5m | 5m | 5m | 5m | 5m | |||||
Bit diameter | 34-42mm | 34-45mm | 34-45mm | 34-42mm | 34-42mm | |||||
Details Images
The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and otherconstructions.
Pneumatic air leg rock drilling machine
* 1.Fit for wet drilling in medium-hard or hard rock.
* 2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism, convenient to handle and easy to maintain and repair.
* 3.Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
* 4.YT28 differ form similar products particularly in its high efficiency, strong flushing and powerful torque.
Pneumatic air leg rock drilling machine
* 1.Fit for wet drilling in medium-hard or hard rock.
* 2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism, convenient to handle and easy to maintain and repair.
* 3.Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
* 4.YT28 differ form similar products particularly in its high efficiency, strong flushing and powerful torque.
This air leg pneumatic rock drill machine can use tapered chisel bits/ Tapered cross bits/Tapered button bits, the diameters such as 32mm, 34mm,36mm, 38mm,40mm, 42mm.
B22 drill rod for air leg pneumatic rock drill machine ,the length can be customized as your demand.
Some spare parts will send to you with the pneumatic rock drill machine together,this just for free.

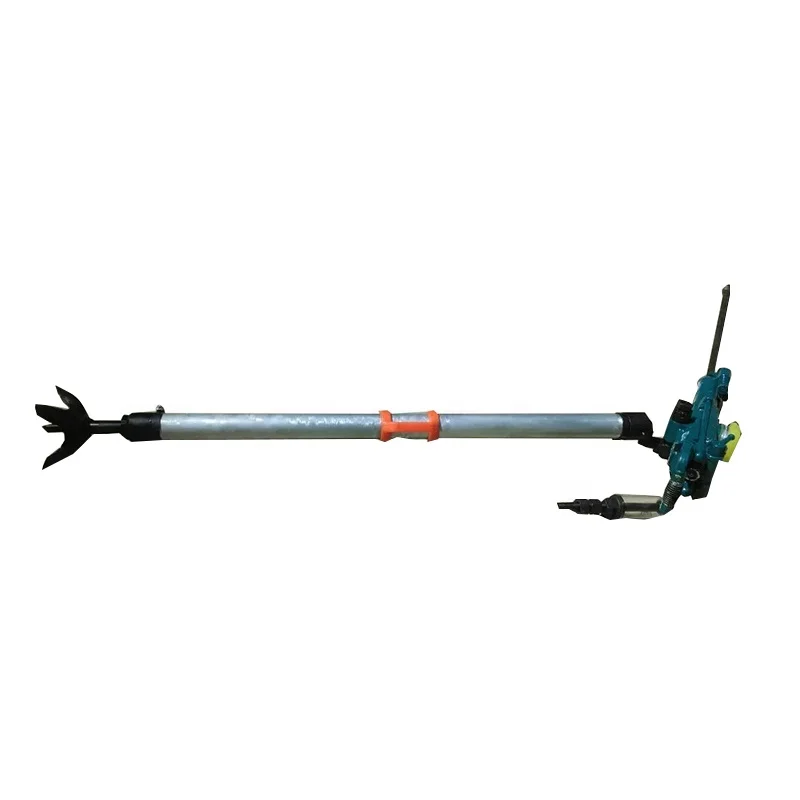

This pneumatic rock drill machine can match with FT160BD short air leg of FT160BC long air leg.
Application
Air leg pneumatic rock drill is a new type air compressor rock drill with very high efficiency. The rock drilling rig was mainly used in quarry mining and mine exploration, tunnel excavation, various of drilling blasting holes etc. And that will be certainly needed in mining, water conservancy, construction engineering, energy and transportation, geological working industries. That will be suited in medium hard and hard degree rock to drill horizontal, inclined and vertical blast hole.
Packing & Delivery
We will send the air leg pneumatic rock drill machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .Different machines' package will be different. We usually supply export wooden box,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
