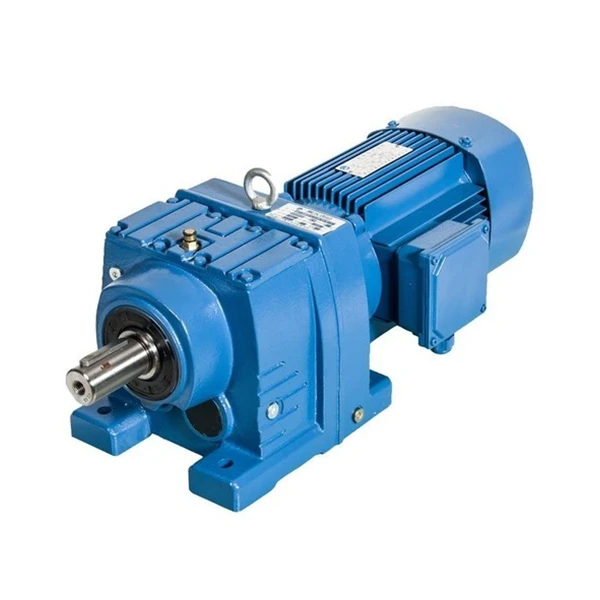

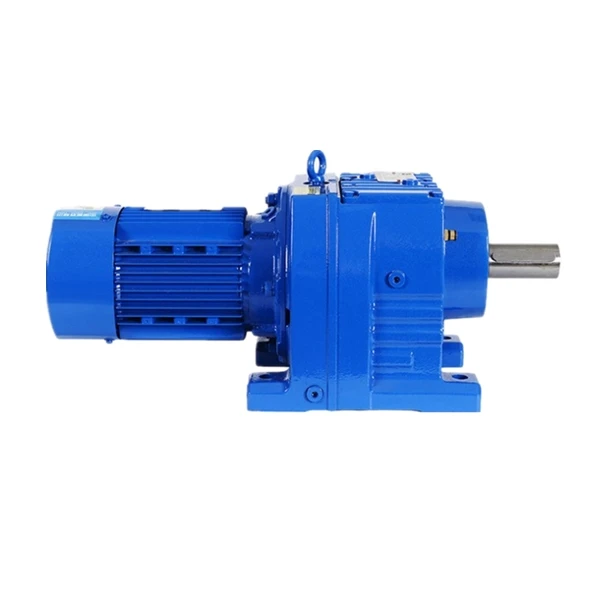

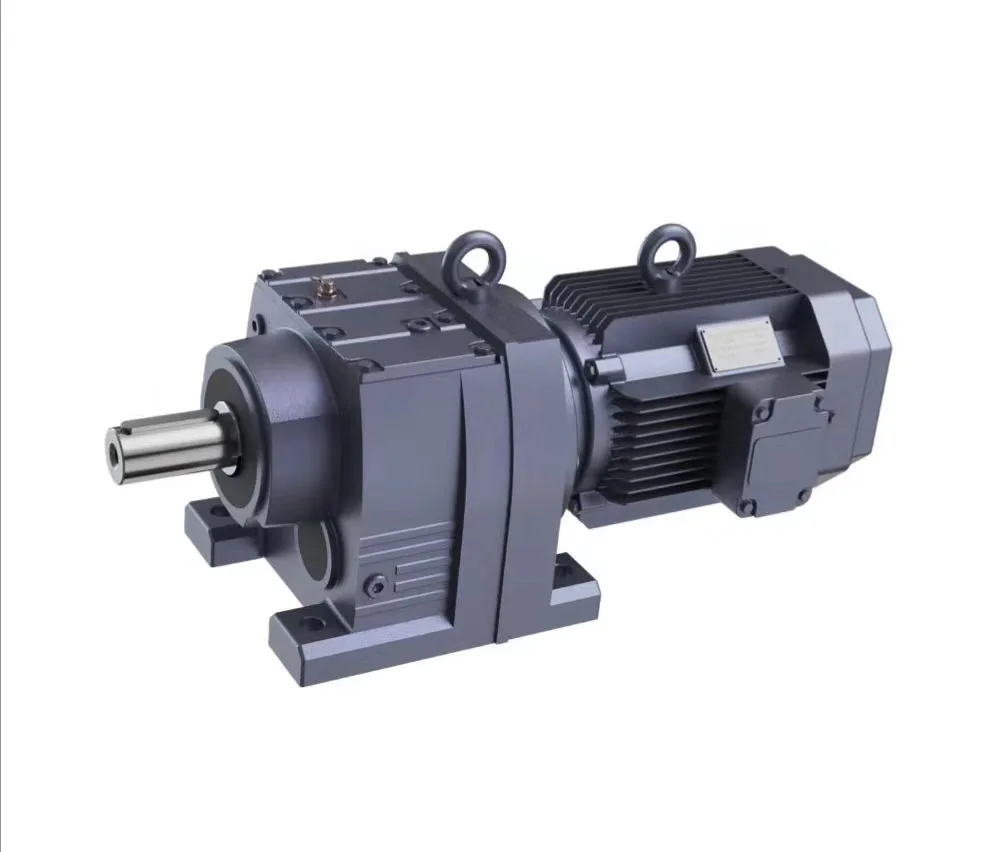

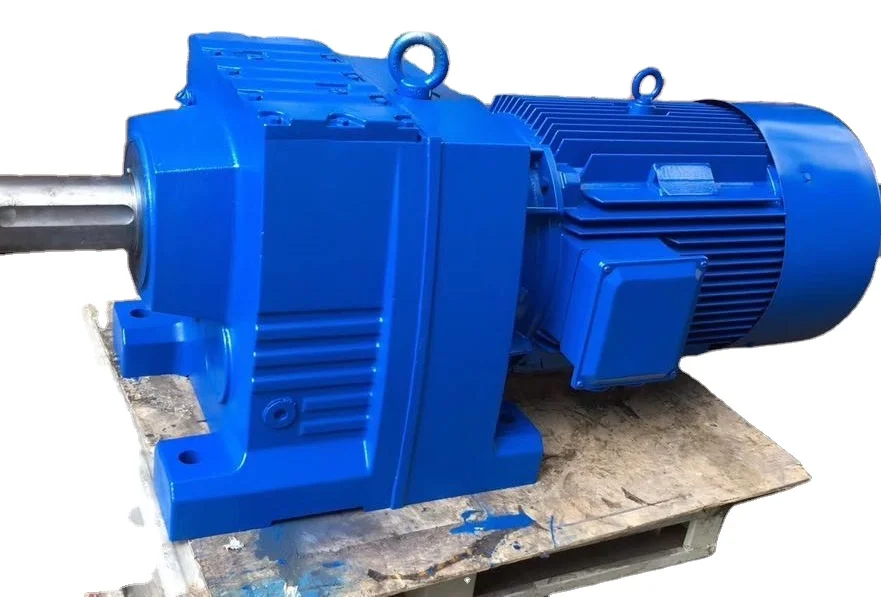

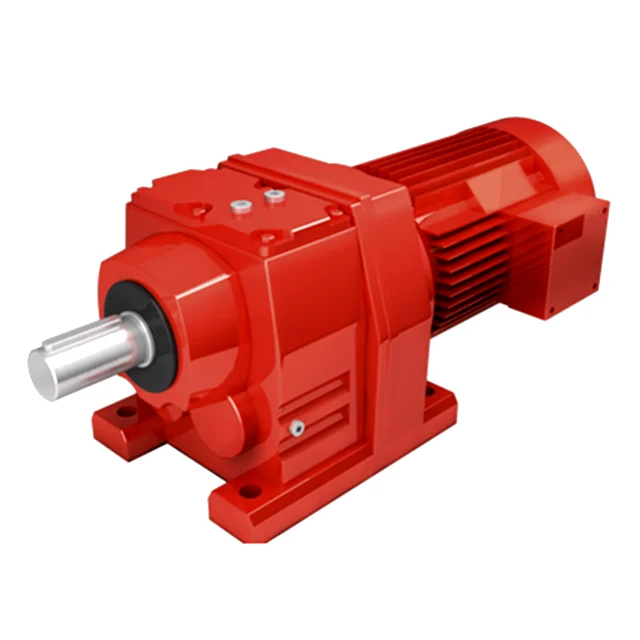

R серия винтовой мотор-3 фазы однофазный снижения скорости редуктор Микро Мотор-Редуктор
- Категория: Двигатель постоянного тока >>>
- Поставщик: Ynd,(hangzhou),Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 333.77 $* | 350.65 $* |
| Aug-17-2025 | 330.78 $* | 347.88 $* |
| Jul-17-2025 | 277.0 $* | 291.21 $* |
| Jun-17-2025 | 325.63 $* | 341.44 $* |
| May-17-2025 | 283.69 $* | 297.12 $* |
| Apr-17-2025 | 319.81 $* | 335.41 $* |
| Mar-17-2025 | 316.60 $* | 332.15 $* |
| Feb-17-2025 | 314.90 $* | 330.91 $* |
| Jan-17-2025 | 311.49 $* | 327.14 $* |
Характеристики
Products Description
Overview
Quick Details
Gearing Arrangement: Helical
Output Torque: 50~28000
Rated Power: 0.12~160KW
Input Speed: 750-1500rpm
Output Speed: 8-360Rpm
Place of Origin: Zhejiang, China (Mainland)
Model Number: RC37-RC187
Brand Name: Flying Knight
Color: Ral5010 Blue or Other
Input Form: IEC Flange, Directly Connected with Motor, Solid S
Output Form: Inline Solid Shaft
Mounting Position: Horizontal (Foot Mounted) or Vertic
Main Features
1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise
Models
Models:
RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04
Machine Parts
Components:
1. Housing: Aluminum Alloys
2. Gears: Hardened Helical Gears
3. Input Configurations: Hollow Shaft with IEC Normalized Motor Flange Solid Shaft Input
4. Applicable Motors: IEC-normalized Motors and Brake Motors
Explosion-proof Motors Inverter Motors, Servo Motors
5. Output Configurations:
Solid Shaft with B5 Output Flange
Solid Shaft with B14 Output Flange
What Customers Said
Recommend Products
K series helical-bevel gearbox with hollow shaft for sewing machine transmission
91.8% Response Rate
ZGY series suspension gearbox reducer for belt conveyor
91.8% Response Rate
NMRV series worm gearbox speed reducer machine
91.8% Response Rate
Our Advantages
Company Profile
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Product packaging
Packaging | ||
Shipping | by sea, by air or others | |
Weight | according to product | |
Packaging Details | The normal package is wooden box or pack it according to customers special request. | |
FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
4. Doyou sell motors?
We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors
with high quality.
