Product Description
foundation pile lage hole size 2meter diameter hydraulic rotary pile rig
Rotary drilling rig is a construction machine suitable for forming holes in building foundation engineering. It is mainly suitablefor soil layer construction such as sand, cohesive soil and silty soil. Rotary drill machine application: foundation construction such as cast-in-place pile, continuous wall and foundation reinforcement with big hole size.

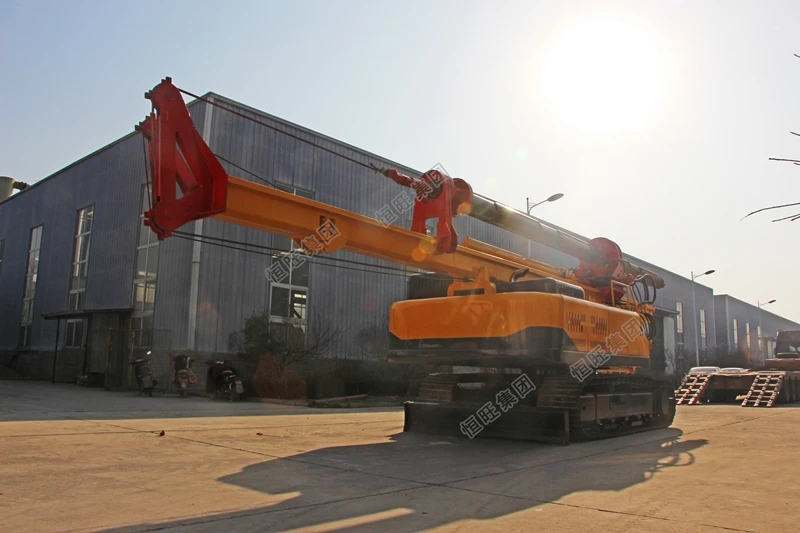

foundation pile lage hole size 2meter diameter hydraulic rotary pile rig

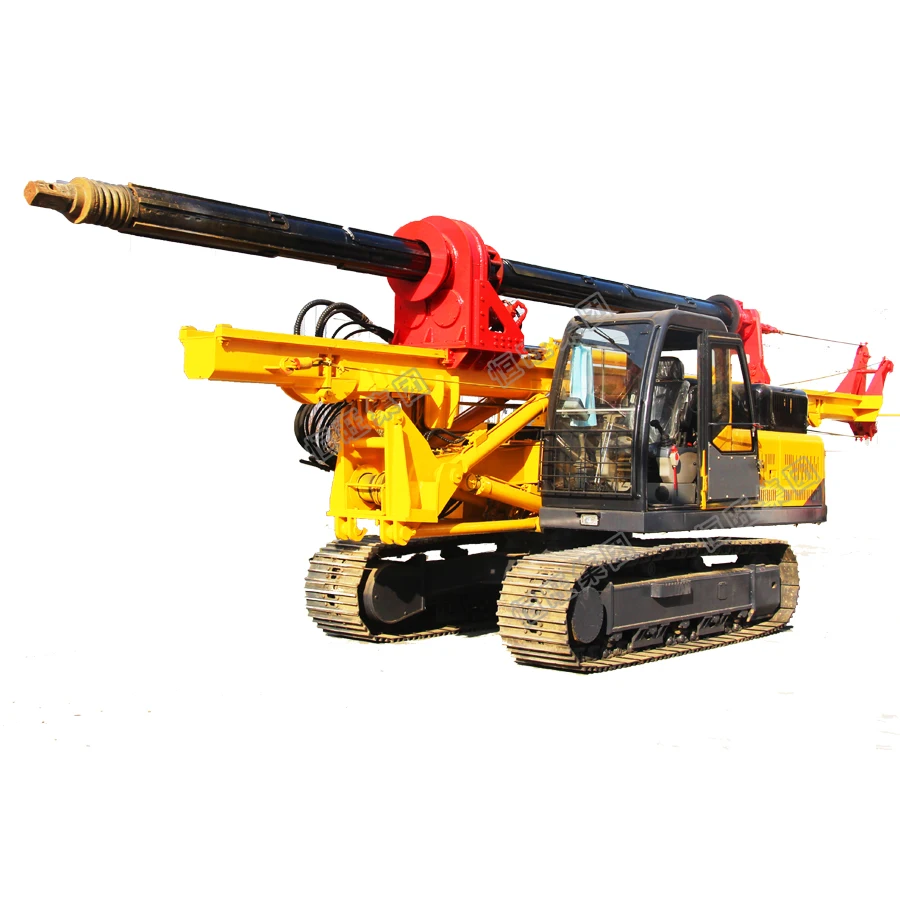

foundation pile lage hole size 2meter diameter hydraulic rotary pile rig
Features as follows:
a). Big hole size soil drilling rig with hydraulic crawler chassis, telescopic drill pipe, automatic detection and adjustment of verticality, digital display of hole depth
b). Rotary drilling machine adopts hydraulic pilot control and load sensing is light and comfortable to operate.
c) Rotary drilling rig bits can be changed according to different geology conditions, for the drilling of dry soil ground change to short spiral drill bit or for wet ground change to rotary bucket drill bit and for rock we use core drilling.
d).The crawler rotary drill equipment can be equipped with long auger, underground continuous wall grab and vibratory hammer. Etc.,

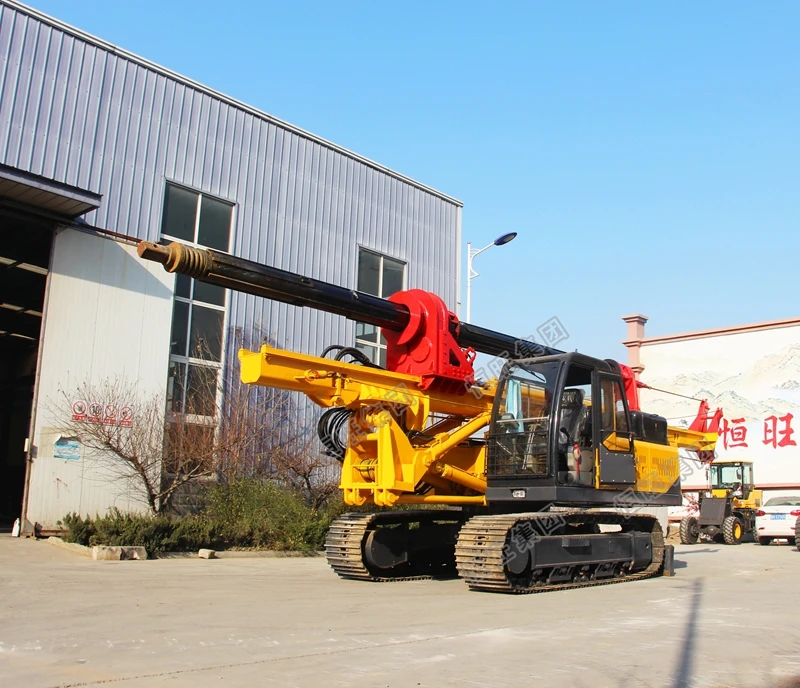

foundation pile lage hole size 2meter diameter hydraulic rotary pile rig
Size Information
large diameter rotary drill machine Technical data sheet as follows
Technical Parameters | |||||||||||||||
Parameters/Model | HWDR150 | HWDR200 | HWDR260 | HWDR300 | HWYDR350 | ||||||||||
Outsize | Working Size (L*W*H) | m | 5.9*2.3*10.5 | 7.1*2.6*12 | 8«2.8«11.5 | 8.8*2.8*12.8 | 8.8*2.8*2.8 | ||||||||
Transport Size (L*W*H) | m | 8.2*2.3*3.25 | 10*2.6*3.38 | 10*2.8*3.55 | 10.8*30*3.65 | 12.8*3.0*3.65 | |||||||||
Machine Weight | t | 17 | 22 | 26 | 28 | 28 | |||||||||
Max Drilling Diameter | mm | 1200 | 1400 | 1500 | 1500 | 1500-1800 | |||||||||
Max Drilling Depth | m | 15 | 20 | 25 | 30 | 35 | |||||||||
Engine | Brand | Yuchai | Cummins | Cummins | Cummins | Cummins | |||||||||
Model | 4A115Z | 6BT5.9C150 | 6BTAA5.9C205 | 6BTAA5.9-C205 | 6BTAA5.9X205 | ||||||||||
Rated Power | kw/rpm | 86/2400 | 110/2300 | 153/2000 | 153/2000 | 153/2000 | |||||||||
Hydraulic Flow | Woring Pres | Main Pump | Mpa | 30 | 30 | 30 | 30 | 30 | |||||||
Secondary Pump | Mpa | / | / | / | 1 | a F | |||||||||
Max Flow | Main Pump | Umin | 2«63 | 2x63 | 2«80 | 2*112 | 2«80 | ||||||||
Secondary Pump | L/min | / | / | / | 1 | / | |||||||||
Power Head | Maximum Torque | Kn.m | 60 | 80 | 100 | 130 | 130 | ||||||||
Rotating Speed | rpm | 5-90 | 585 | 5-85 | 5-60 | 5-60 | |||||||||
Maximum Throwing Speed | rpm | 90 | 85 | 85 | 60 | 60 | |||||||||
Pressurized System | Maximum Pressure | Kn | 50 | 70 | 70 | 80 | 80 | ||||||||
Maximum LiKing Force | Kn | 60 | 80 | 80 | 100 | 100 | |||||||||
Maximum Travel | mm | 2800 | 2800 | 2800 | 2800 | 2800 | |||||||||
Main Holst | Maximum Lifting Force | kn | 10 | 15 | 15 | 18 | 18 | ||||||||
Maximum Lifting Speed | m/min | 72 | 71 | 71 | 68 | 68 | |||||||||
Deputy hoist | Maximum Lifting Force | kn | 15 | 20 | 30 | 45 | 45 | ||||||||
Maximum Lifting Speed | m/min | 60 | 70 | 70 | 75 | 75 | |||||||||
Mast | Tilt Left And Right | O | ±5 | ±5 | ±5 | ±5 | ±5 | ||||||||
Anterior Angle | o | 8 | 8 | 8 | 8 | 8 | |||||||||
Chassis | Maximum Walking Speed | km/h | 4 | 3 | 3 | 3 | 3 | ||||||||
Maximum Grade | o | 35 | 35 | 30 | 30 | 30 | |||||||||
Track Width | mm | 500 | 600 | 600 | 600 | 600 | |||||||||
Track Chain Pitch | mm | 154 | 190 | 190 | 190 | 190 | |||||||||
Chassis Length | mm | 3600 | 3800 | 4200 | 4500 | 4500 | |||||||||
Average Grounding Ratio | kPa | 66.3 | 77 | 85 | 92 | 92 | |||||||||
Detailed Images

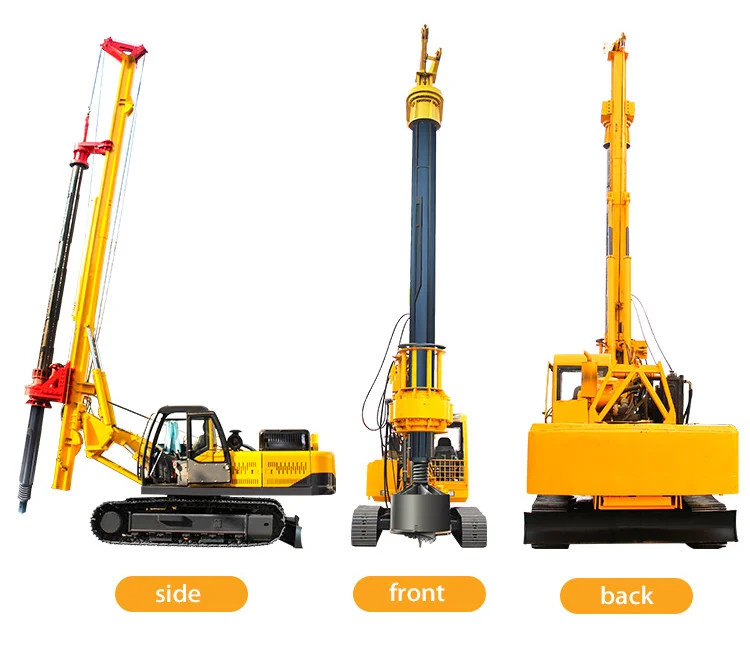

Machine lock bar rotary drilling rig
Rotary drilling machine is a kind of construction machinery suitable for hole - forming operation in building foundation
engineering.Mainly suitable for sandy soil and cohesive soil, powder soil, soil layer construction, such as in piles, continuous
wall, foundation reinforcement is widely used in many kinds of foundation construction, the rotating drill general is 125 ~ 450 kw
power rating, power output torque is 120 ~ 400 kn m., hole diameter up to 1.5 ~ 4 m, hole depth is 60 ~ 90 m, can meet the
requirements of all kinds of large-scale infrastructure construction.
engineering.Mainly suitable for sandy soil and cohesive soil, powder soil, soil layer construction, such as in piles, continuous
wall, foundation reinforcement is widely used in many kinds of foundation construction, the rotating drill general is 125 ~ 450 kw
power rating, power output torque is 120 ~ 400 kn m., hole diameter up to 1.5 ~ 4 m, hole depth is 60 ~ 90 m, can meet the
requirements of all kinds of large-scale infrastructure construction.
Big hole drilling rig engine choose from the follow brand:
Working Scene of the large hole rotary drill machine as follows:
