Лабораторная электрическая мешалка HiYi высокой резки 20 л, 100-1400 об/мин
US $120.00-$145.00
Роторная эмульсия для пищевых продуктов Инлайн эмульгатор с высоким сдвигом миксер гомогенизатор
- Категория: Гомогенизатор >>>
- Поставщик: Hefei,Huayun,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.33 $* | 0.84 $* |
| Aug-15-2025 | 0.17 $* | 0.1 $* |
| Jul-15-2025 | 0.48 $* | 0.48 $* |
| Jun-15-2025 | 0.30 $* | 0.25 $* |
| May-15-2025 | 0.45 $* | 0.74 $* |
| Apr-15-2025 | 0.16 $* | 0.75 $* |
| Mar-15-2025 | 0.44 $* | 0.37 $* |
| Feb-15-2025 | 0.97 $* | 0.25 $* |
| Jan-15-2025 | 0.59 $* | 0.87 $* |
Характеристики
Features

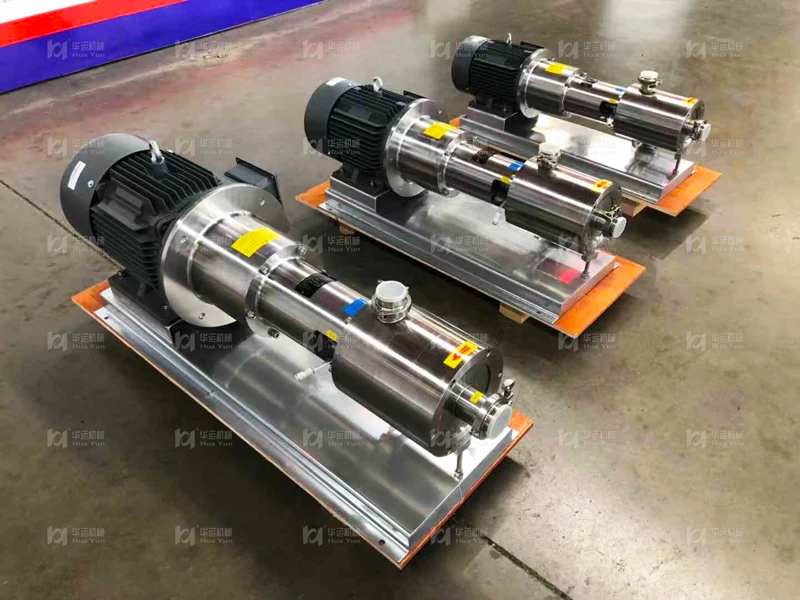

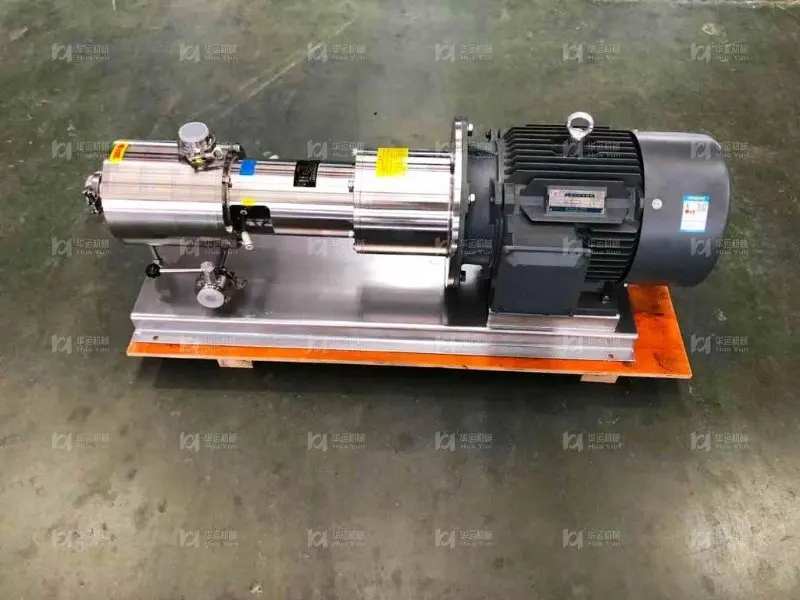

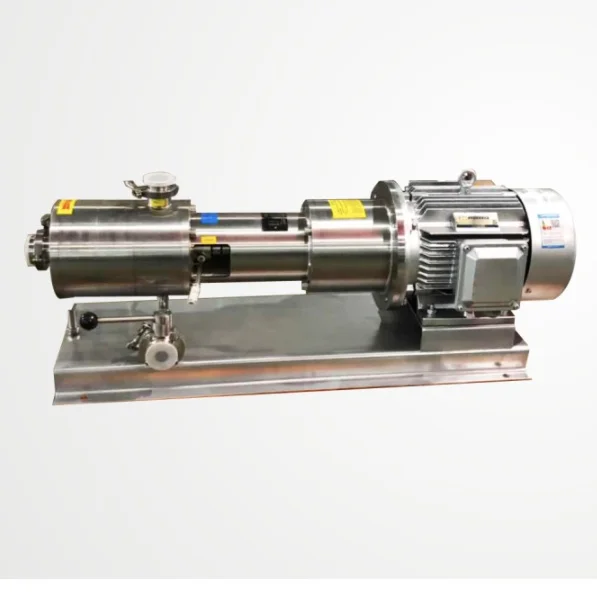

The emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine mixing equipment which integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centrifugal extrusion, impact rupture, liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase, and gas phase are uniformly and finely dispersed and emulsified in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.

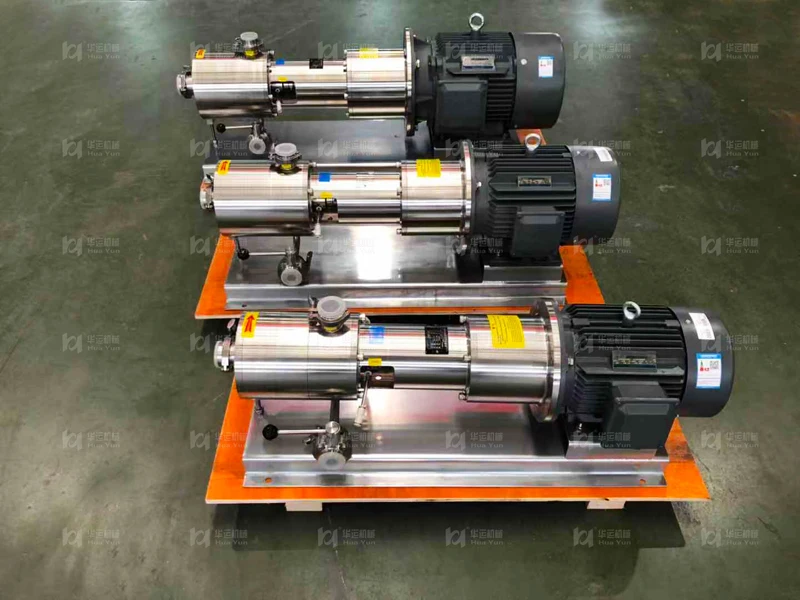

You can choose one-stage,two-stage and three stage according to your requirements.
Stator/Rotor Type
Narrow particle size distribution, high uniformity
With short distance, low lift transmission function
Elimination of quality differences between batches
Time-saving, high-efficiency, energy-saving
Low noise and stable operation
Easy to use, easy to maintain
Can achieve automatic control
No dead ends, the material 100% pass through and is dispersed and sheared
Parameters of one stage inline mixer
| Model | Motor(KW) | Rotate speed(r/min) | Flow speed(m3/h) | Head(m) |
| HIIC405 | 4 | 2930 | 6.5 | 8 |
| HIIC410 | 7.5 | 2930 | 8 | 8 |
| HIIC415 | 11 | 2930 | 12 | 8 |
| HIIC420 | 18.5/22 | 2930 | 25 | 8 |
| HIIC435 | 37 | 2930 | 40 | 8 |
| HIIC450 | 55 | 2930 | 60 | 8 |
Parameters of two stage inline mixer
| Model | Motor(kw) | Rotate speed(r/min) | Flow speed(m3/h) | Head(m) |
| HIID405 | 4 | 2930 | 2.5 | 20 |
| HIID410 | 7.5 | 2930 | 5.5 | 20 |
| HIID415 | 11 | 2930 | 11 | 20 |
| HIID425 | 18.5/22 | 2930 | 20 | 20 |
| HIID435 | 37 | 2930 | 35 | 20 |
| HIID450 | 55 | 2930 | 48 | 20 |
Parameters of three stage inline mixer
| Model | Motor(kw) | Rotate speed(r/min) | Flow speed(m3/h) | Head(m) |
| HIIE405 | 4 | 2930 | 2.5 | 20 |
| HIIE410 | 7.5 | 2930 | 5.5 | 20 |
| HIIE415 | 11 | 2930 | 11 | 20 |
| HIIE425 | 18.5/22 | 2930 | 20 | 20 |
| HIIE435 | 37 | 2930 | 35 | 20 |
| HIIE450 | 55 | 2930 | 48 | 20 |
