Характеристики



Product Description


alloy steel column type compression load cell force sensor
Model: MLC401
Category: Compression Load Cell
Load range: 10t, 25t, 40t, 60t,100t
Dimension: D58 *H82.5mm; D82.5*H127mm; D123.8 *H184.2mm
Material: alloy steel,stainless steel
Application: floor scale,warehouse scale, railroad scale , compression measurement








Technology Specification
Below spec is only for customer design reference. we can provide ODM product.


comprehensive error:
0.02%FS
output resistance:
480±5Ω
Rated output:
2±0.002mv/v
Insulation resistance:
≥5000MΩ(100VDC)
Non-linearity:
0.02%FS
Excitation voltage:
9~12VDC
Hysteresis:
0.02%FS
compensated temp:
-10~+40℃
Repeatability:
0.01%FS
use temperature:
-40~+80℃
Creep:
0.02%FS/10Min
temp effect on zero:
0.02%FS/10℃
Zero balance:
±1%FS
Temp effect on span:
0.02%FS/10℃
Input resistance:
450±5Ω
defend grade:
IP68

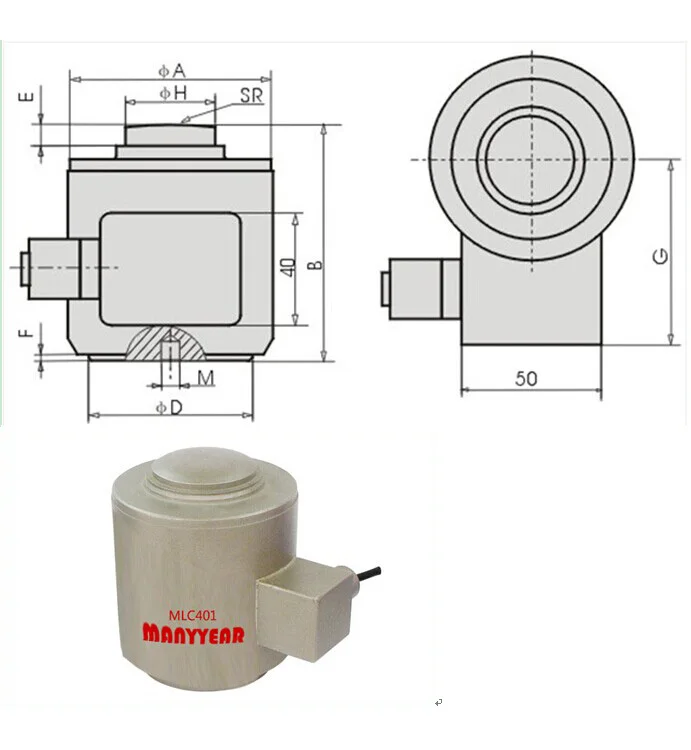

Product Assembly Structure
Blow force structure is for reference.
