Сверхпрочные стальные подставки для опалубки опорный домкрат строительных лесов металлические строительные
- Категория: Строительные леса >>>
- Поставщик: Tianjin,Huilai,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9.40 $* | 9.15 $* |
| Jul-17-2025 | 7.47 $* | 7.83 $* |
| Jun-17-2025 | 9.65 $* | 9.76 $* |
| May-17-2025 | 9.83 $* | 9.65 $* |
| Apr-17-2025 | 7.90 $* | 7.54 $* |
| Mar-17-2025 | 9.52 $* | 9.44 $* |
| Feb-17-2025 | 8.74 $* | 8.90 $* |
| Jan-17-2025 | 8.11 $* | 8.19 $* |
Характеристики
Product Description
Introduction For Steel Prop
Steel prop is composed of three main parts: inner tube and outer tube, adjusting nut, and upper and lower endplate. It is generally used in the construction industry. It is a structural frame composed of steel materials and its function is to enhance the stability of the structure.
Components: outer tube (without holes), inner tube (with holes), upper and lower endplate, cup nuts (cast iron nuts), Wire head, pin, buckle bowl.
Components: outer tube (without holes), inner tube (with holes), upper and lower endplate, cup nuts (cast iron nuts), Wire head, pin, buckle bowl.
Specification
Min Height(m) | Max height(m) | Inner tube(mm) | Outer tube(mm) | Tube thickness(mm) | |||
0.6 | 1.1 | 40 | 48 | 1.4-4.0 | |||
0.8 | 1.4 | 40 | 48 | 1.4-4.0 | |||
1.6 | 2.9 | 40 | 48 | 1.4-4.0 | |||
1.8 | 3.2 | 40 | 48 | 1.4-4.0 | |||
2.0 | 3.6 | 40 | 48 | 1.4-4.0 | |||
2.2 | 4.0 | 40 | 48 | 1.4-4.0 | |||
Surface treatment | Painted, Power Coated, Electro Galvanized or Hot Dip Galvanized | ||||||
Our props information:
1.Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ; 2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ;3.0-5.0m ; 3.2-6.0m.
2.Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm.
3.Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm.
4.Type: Heavy duty scaffolding prop/light duty scaffolding prop.
5.Surface finish: painted, powder coated,pre-galvanized, hot dip galvanized.
6.We can provide all kinds of scaffolding props with high quality at low price.
7.Material: Q235 for welded pipe and 20# for seamless pipe.
8.Produced in our own factory,can control the quality much better.
9.Samples are available.
10.ISO 9001-2000 approved.
11.Performance:good bearing capacity,durable & stable.
12.Test: SGS, BV or as per your request.
13.OEM service is available.
1.Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ; 2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ;3.0-5.0m ; 3.2-6.0m.
2.Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm.
3.Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm.
4.Type: Heavy duty scaffolding prop/light duty scaffolding prop.
5.Surface finish: painted, powder coated,pre-galvanized, hot dip galvanized.
6.We can provide all kinds of scaffolding props with high quality at low price.
7.Material: Q235 for welded pipe and 20# for seamless pipe.
8.Produced in our own factory,can control the quality much better.
9.Samples are available.
10.ISO 9001-2000 approved.
11.Performance:good bearing capacity,durable & stable.
12.Test: SGS, BV or as per your request.
13.OEM service is available.

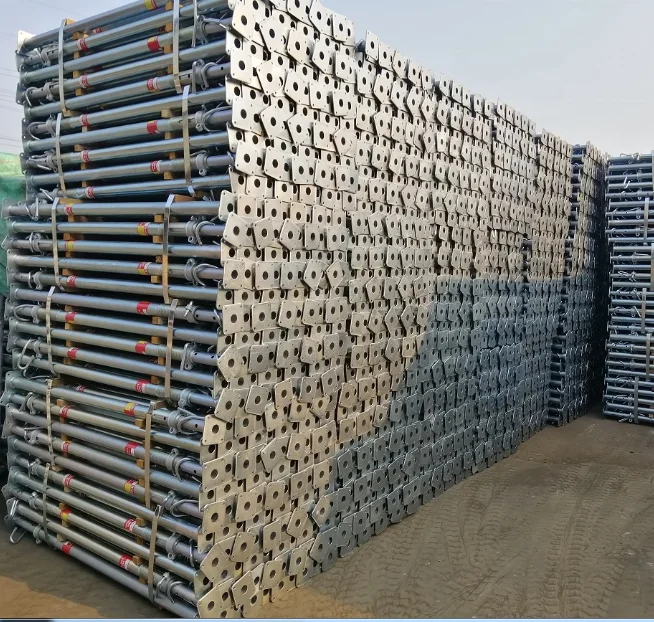

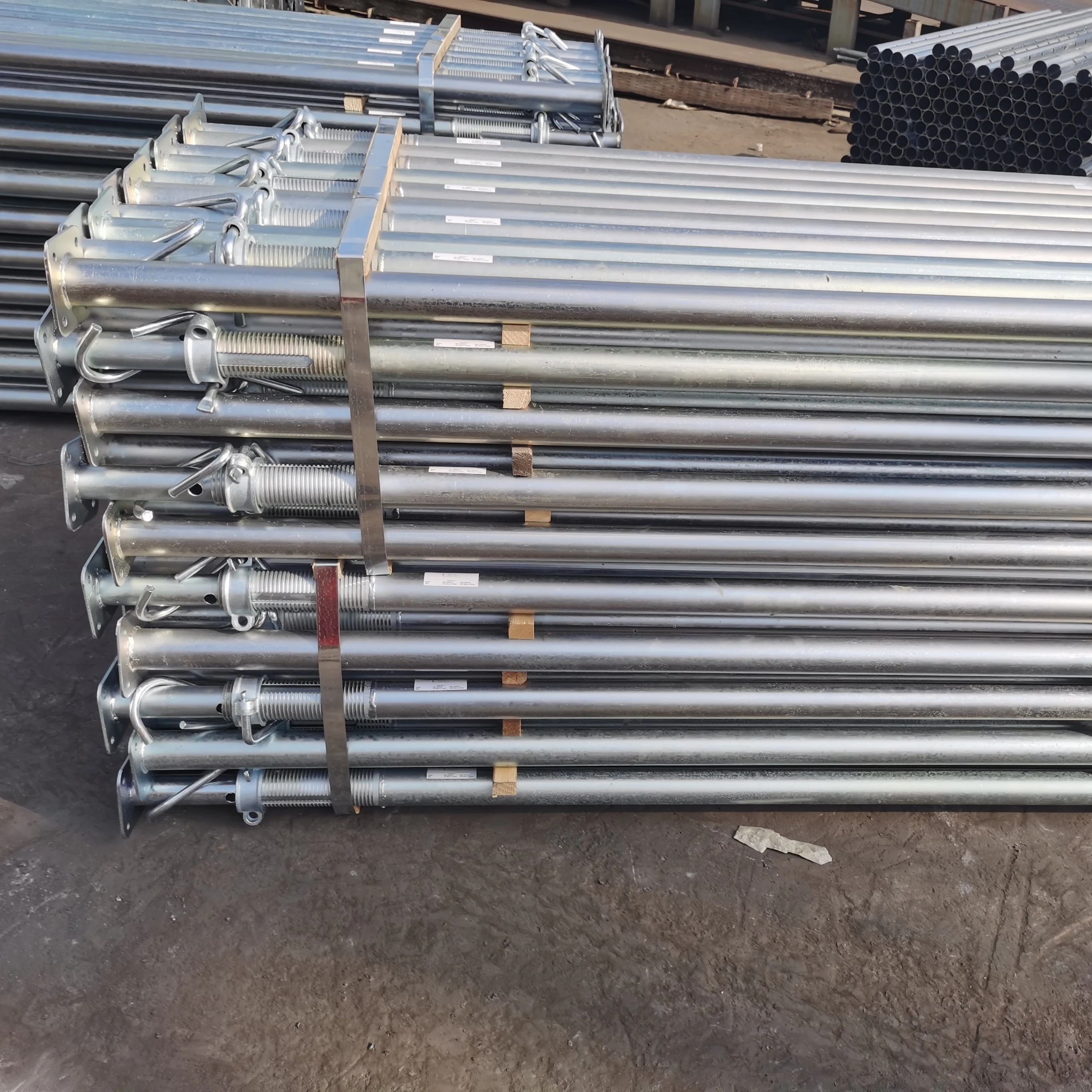

Packing & Delivery
Advantages of Adjustable Steel Prop for Construction
1. Simple steel tube construction formwork support, material saving.
2. No ledger required, fast to erect, time saving.
3. Most common adjustable height 2.0 to 3.5 meter for 3 meter high floor, other heights also available.
4. Rotating the collar nut with handle can clean the concrete on steel prop adjustor by itself.
5. Adjutable Prop sleeve thread rolling by lathe, smooth rotation of nut handle.
6. Base plates with punched holes can fit the prop on the sole plate or timber beam.
7. Adjustable scaffolding prop can serve different load capacity by using different dimensions of steel tubes.
1. Simple steel tube construction formwork support, material saving.
2. No ledger required, fast to erect, time saving.
3. Most common adjustable height 2.0 to 3.5 meter for 3 meter high floor, other heights also available.
4. Rotating the collar nut with handle can clean the concrete on steel prop adjustor by itself.
5. Adjutable Prop sleeve thread rolling by lathe, smooth rotation of nut handle.
6. Base plates with punched holes can fit the prop on the sole plate or timber beam.
7. Adjustable scaffolding prop can serve different load capacity by using different dimensions of steel tubes.
Certifications

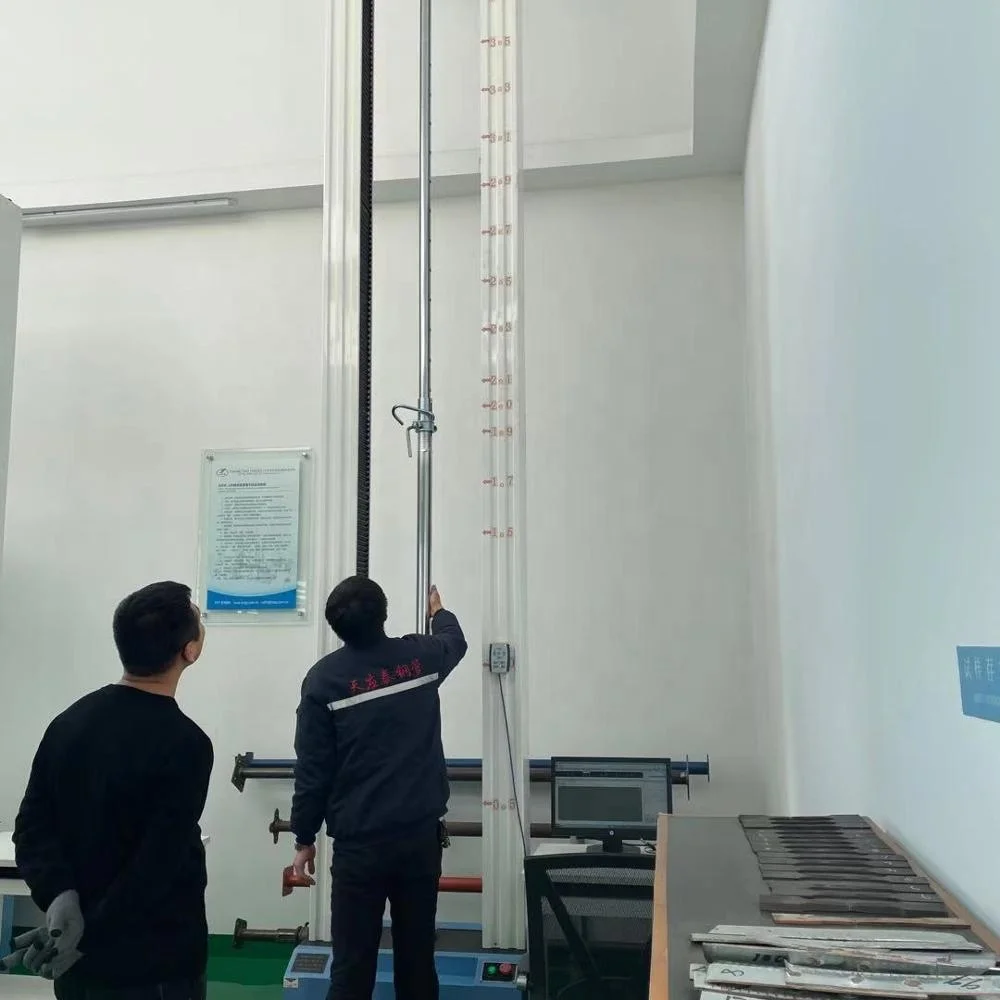

Laboratory&Test Center
Company Profile
Tianjin Huilai International Trade Co.,Ltd is one of subsidiaries company of Tianjin Tian’Ying’Tai (TYT) Steel Group, specializes in Manufacturing and Sale of system Scaffolding for almost ten years.The company always sets and maintains the very highest of standards in safety and the supplies of the qualified scaffolding and relative components, aiming to provide cost effective solutions, taking into consideration all aspects of projects requirement including logistic. The standards that can match in production are EN1065, EN12810, EN74,BS1139, and AS/NZS 1576/1577 etc, or the company can offer the specific items according to customer’s layout. To guarantee the final safety in project, HuiLai improve all of testings during production and processing, including chemical analysis, mechanical performance, loading capacity and anti-corrosion etc.HuiLai strive to do all beyond customer needs and expectations.
Our Advantages
1. We can offer you any shape product with your design.
2. All of our products have been certified by the ISO 9001 certification systems and we conduct the high quality control system.
3. There're more than 1000 experienced and specialized staff in our plant. Welcome you to contact with us freely, we will give you
the best price according to the average of the market.
4. We can also offer you the best service and high quality, with the most competitive price.
FAQ
Q1:What about the quality?
A:Third party inspections are always welcomed.as part of our dedication to the industry, we do
make arrangements for such inspections-ABS,DNV,BV,ect.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q3:Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4:May I customize the steel prop?
A:Yes, you can, we can manufacture according to your requirement, you can send the CAD or
design drawing to us.
Q5: How about the trade terms?
A: EXW, FOB, CFR, CIF will be accepted.
Choose TYT is equal to Choose Top Guarantee!
A:Third party inspections are always welcomed.as part of our dedication to the industry, we do
make arrangements for such inspections-ABS,DNV,BV,ect.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q3:Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4:May I customize the steel prop?
A:Yes, you can, we can manufacture according to your requirement, you can send the CAD or
design drawing to us.
Q5: How about the trade terms?
A: EXW, FOB, CFR, CIF will be accepted.
Choose TYT is equal to Choose Top Guarantee!
