Буровые установки для карьерного взрывоопасного
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 41650.12 $* | 43733.80 $* |
| Aug-19-2025 | 41300.50 $* | 43365.78 $* |
| Jul-19-2025 | 34650.52 $* | 36383.35 $* |
| Jun-19-2025 | 40600.56 $* | 42630.19 $* |
| May-19-2025 | 35350.62 $* | 37118.27 $* |
| Apr-19-2025 | 39900.94 $* | 41895.8 $* |
| Mar-19-2025 | 39550.9 $* | 41528.77 $* |
| Feb-19-2025 | 39200.27 $* | 41160.10 $* |
| Jan-19-2025 | 38850.17 $* | 40793.59 $* |
Характеристики
Product Description
mineral exploration projects drilling rigs for quarry explosive
1. Sandard euipped with Yuchai 4 cylinder Diesel engine for 3m drill rod with Φ60mm or Φ76mm, dry dust collector for option.
2. All stuctural parts reinfoced for various work conditions.
3. The roration unit driven by cycloid motor for more compact structure and low failure rate. Torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling.
4. New enclosure design for better appearance and converient for maintenance and serice.
5. Optional dry dust collector for dust free diling .more environment fiendly and energy saving.
Detailed Images
mine / rock drill machine small portable ore dth drill rigParameter | ||
Drill pipe size | φ60*3000mm | |
Hole diameter range | φ80*115mm | |
Rotation torque(Max.) | 1650N.m | |
Rotation speed | 0-110rpm | |
DTH hammer | 3.5inch | |
Drill depth | 20m | |
Working pressure | 14.5bar | |
Air consumption | 12m3/min | |
Gradient | 30° | |
Total weight | 6800kg | |
Transportation dimensions | 6000*2800*2750mm | |

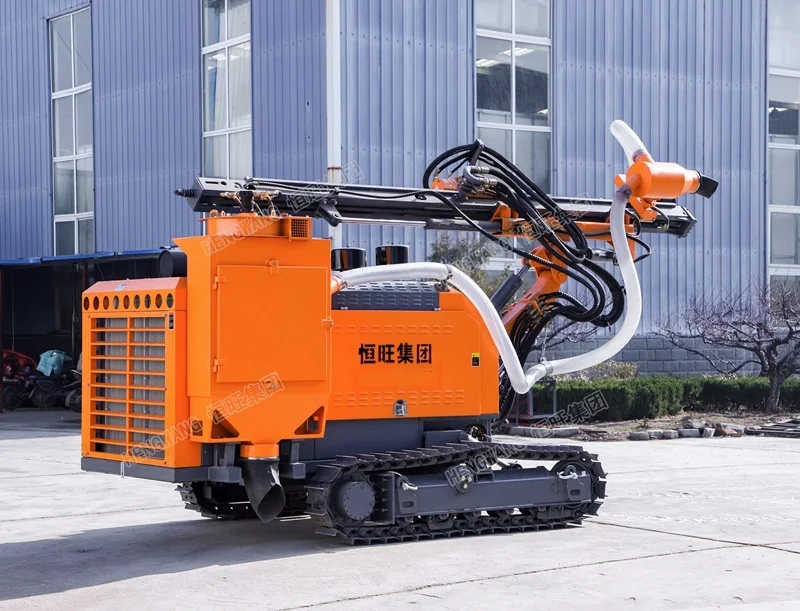

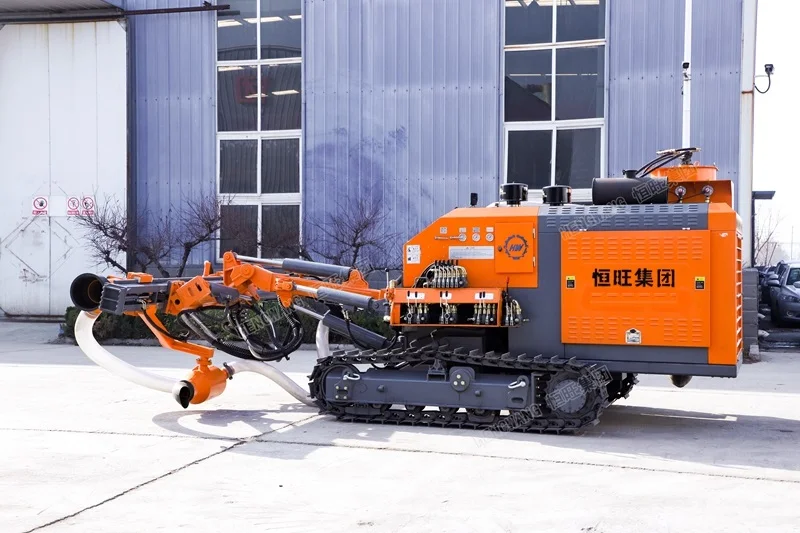

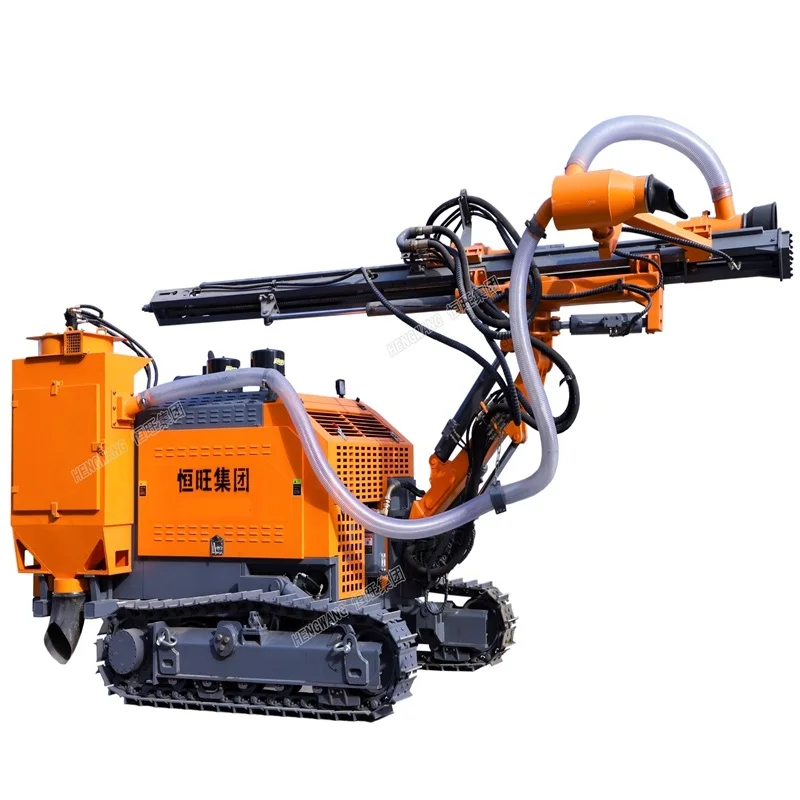

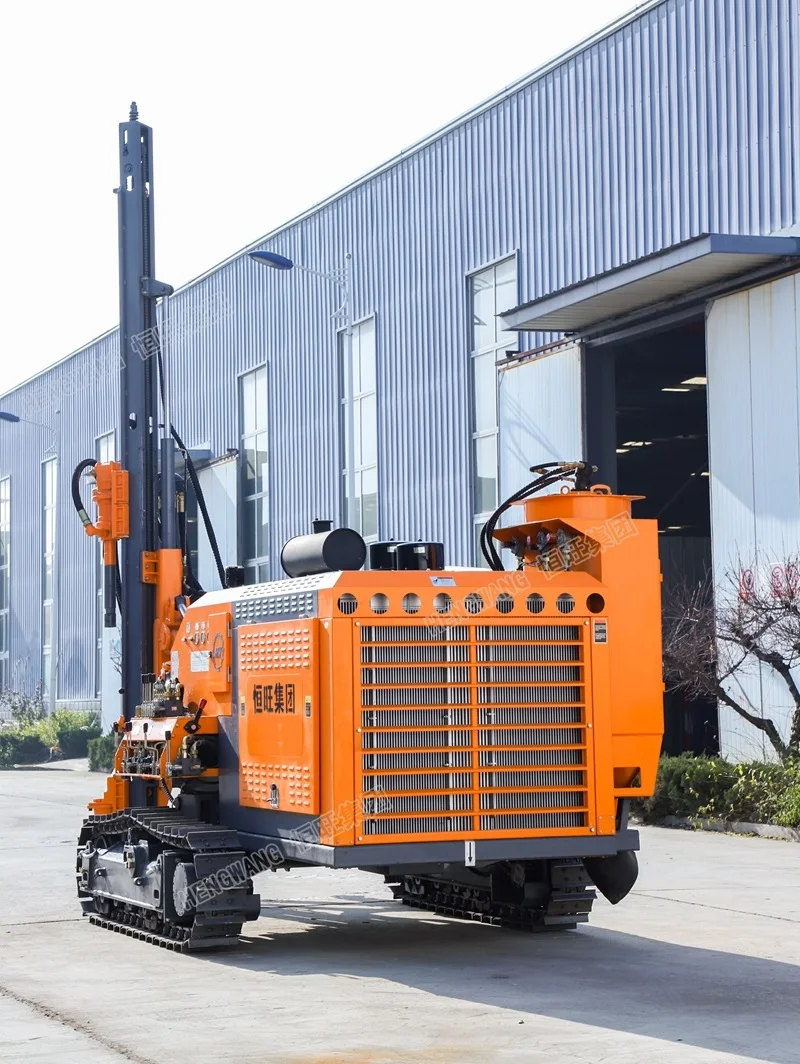

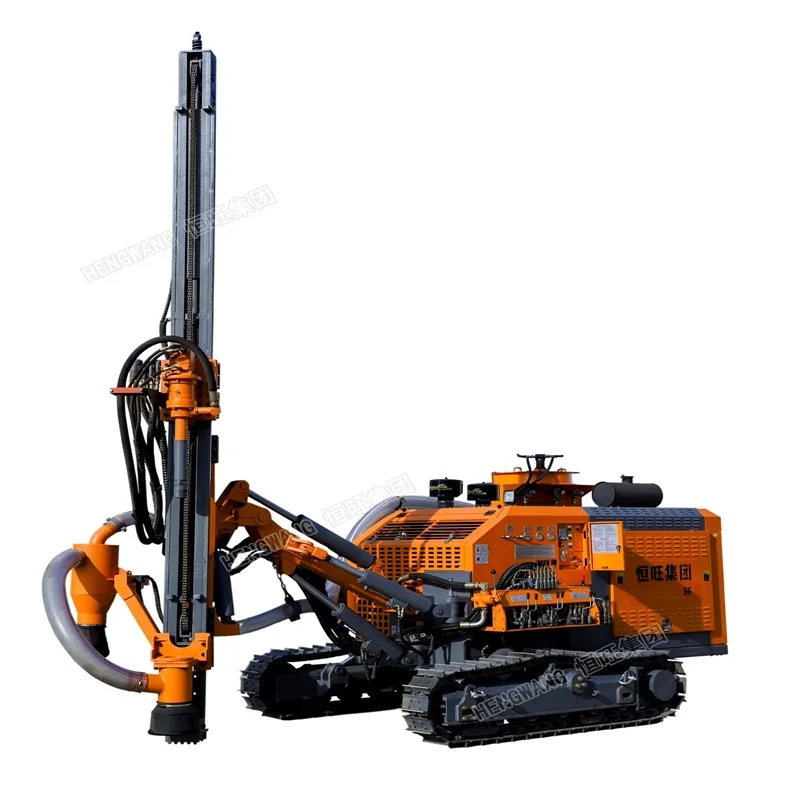

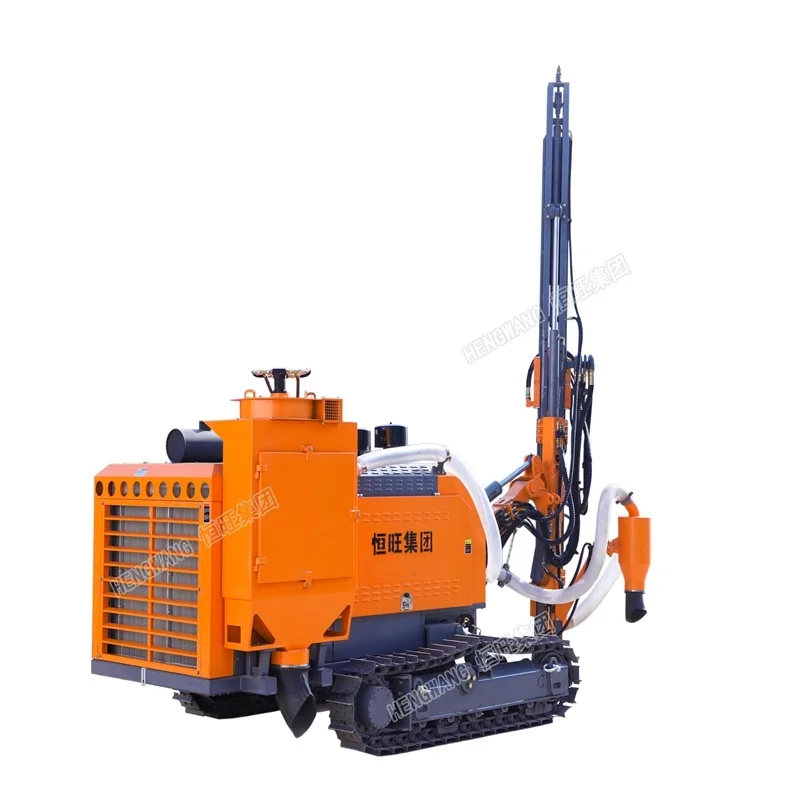

detailed image
mineral exploration projects drilling rigs for quarry explosive
mineral exploration projects drilling rigs for quarry explosive
DTH ground surface Drilling rig
Main Features
All controls integrated on the control panel for convenient operation,higher worker efficiency,safer and more comfortable operation.
All controls integrated on the control panel for convenient operation,higher worker efficiency,safer and more comfortable operation.
larger displacement single motor
drill machine compact size and large rotation torque,the rotary head adjustable according to different work conditions and requirement,greatly increasing drilling efficiency.
Casted track
Piston tramming motor,special processed casted track shoe for stronger tramming traction force and more stable quality.
Eco-friendly dust collection system
Equipped with Hengwang drill rig own developed dry dust collection system for high efficiency and more eco-friendly.
Boday layout
Compact with air compressor housed in
Easy to maintance , less oil comsumption
115mm diameter 15meter Mineral exploration drilling rigs for sale
Our Company
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of various drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of various drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
