400 BPH 5L полуавтоматическая машина для выдувания полости


Поделиться:


Цена:2 000,00 $ - 2 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 2380.71 $* 2499.3 $*
Aug-17-2025 2360.29 $* 2478.73 $*
Jul-17-2025 1980.71 $* 2079.81 $*
Jun-17-2025 2320.50 $* 2436.30 $*
May-17-2025 2020.19 $* 2121.70 $*
Apr-17-2025 2280.98 $* 2394.41 $*
Mar-17-2025 2260.51 $* 2373.12 $*
Feb-17-2025 2240.67 $* 2352.27 $*
Jan-17-2025 2220.35 $* 2331.49 $*

Характеристики



Product Description

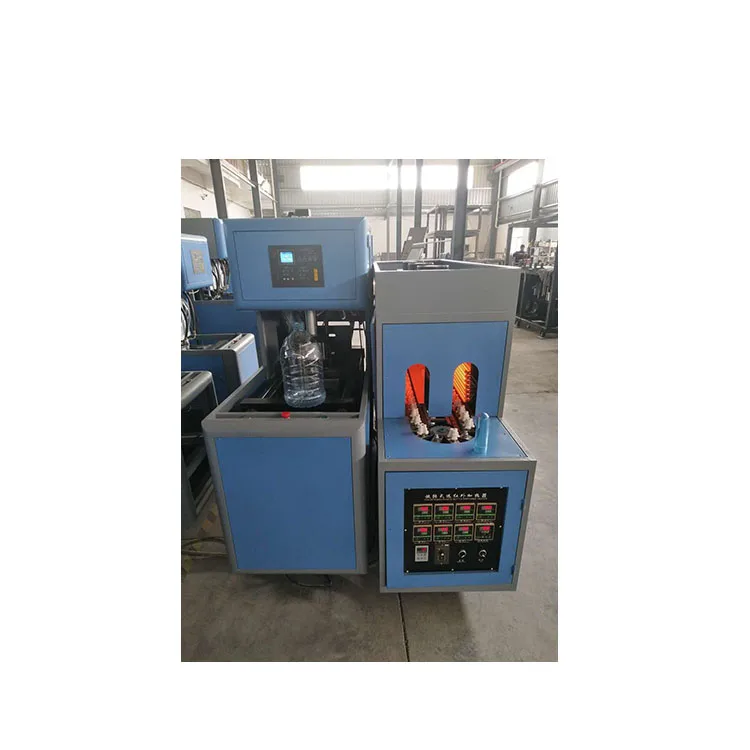

One cavity Semi-automatic PET Bottle Blowing Machine




Configuration


Components Name
Brand
Origin
PLC
Bothfit
China
Cylinder
Yongcheng
China
Blowing valve
Yongcheng
China
Operating valve
Yongcheng
China
Circuit Breaker
DELIXI
China


Workflow


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Technical Parameter


Model
FG-500C Semi Automatic PET Bottle Blowing Machine
Theoretical output
300-400pcs/h



Finished bottle
Max. bottle volume
10L
Max. neck diameter
48mm
Max. bottle diameter
230mm
Max. bottle height
460mm


Mold specifications
Cavity
1 cavity
Mold thickness
140mm-310mm
Open stroke
260mm



Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
23kw
Actual power consumption
8kw
Airsource
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend waterchiller
5HP
Blowing machine size
Length*width*height/weight
2000*630*1570mm/850kg
Heater size
Length*width*height/weight
2170*565*1360mm/450kg


Detailed Image



High Pressure Air Compressor (1.2m3/30kg)
1.Air Discharge: 1.2 m3/min
2.Pressure: 3Mpa
3.Motor Power: 15kw
4.Tank: 150L
5. Running speed: 730 r.p.m
6. Weight: 600kg
7.Package: 1900mm*1000mm*1300mm








Air Dryer (2.0m3/30kg)
1.Throughput: 2.6m3/min
2.Inlet pressure: 3 Mpa
3.Inlet temperature: below 80℃
4.Dew point: 2℃——10℃
5.Refrigerant: R-22
6.Power:0.22kw
7.Size:630mm*420mm*800mm
8.Weight: 63kg

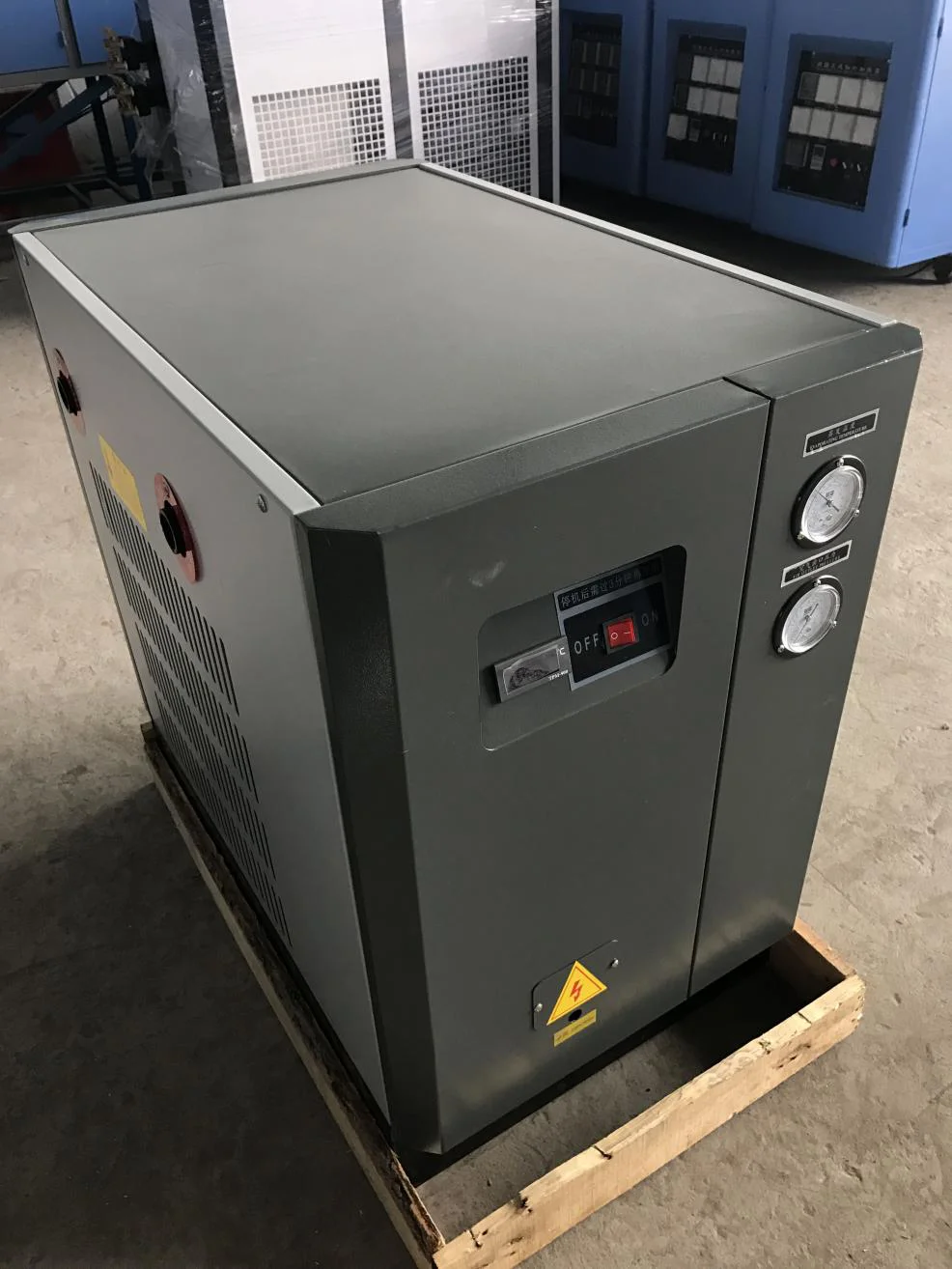

Water chiller 5HP
1.Chilling capacity: 11180Kcal/hr
2. Max.Flow rate of chilled water: 90 Ltr/min
3.Tank capacity: 50L
4.Power: 3.75kw
5. External dimension: 1200*680*1350mm
6. Weight: 195kg

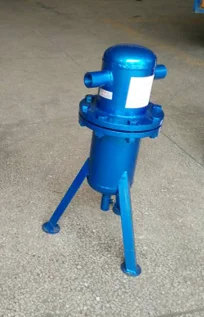

Air Filter (2.0m3/min,30kg)
1.Flow rate: 2.6m3/min
2.Weight: 17kg
3.Height: 660mm
4.Diameter:300mm


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Our comapny




Faygo Group is located in Korean Industrial Park, Zhangjiagang City, Jiangsu Province, Phoenix, covering more than 40 acres,and many have a standard plant and warehouse. Companies have strong scientific research and technology. professional research and development and manufacturing air compressors in the industry has made quality leader. Funds into U.S. companies and the introduction of high-tech companies to a new levelon the production of high-tech products reached the international first-class level. The foreign hired Engineers Singapore Permanent factory site guidance to ensure a reliable and stable product quality.Advantages of our products are handsome in appearance,with a compact, low noise, small vibration, wind cooling, no need to install, qualit really a 24-hour serice.The companysproducts are widely used all over the world, especiallyy in the power station, blowing factloy is very popular.
The company with distribution services nitis in Singapore,. Manila, Bangkok. Kuala Lumpur. Karachi, Souh Arica, NewZealand, and more convenient for users and ficient services.


Our staff


Playing basketball
New Year Day's party
Tour of Tonglu


Our customers
Through thick and thin.






Our service




1.One year warranty. During warranty, we provide free of charge for repairing cost.
2. Lifetime maintenance. After-sales department can provide life long maintenance service.


Our certification




FAQ


Q:Are you machinery factory or trading company?
A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.

Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.

Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we
will pick up you at the airport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

Q:How long is the warranty?
A:1 year

Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.

Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information..
