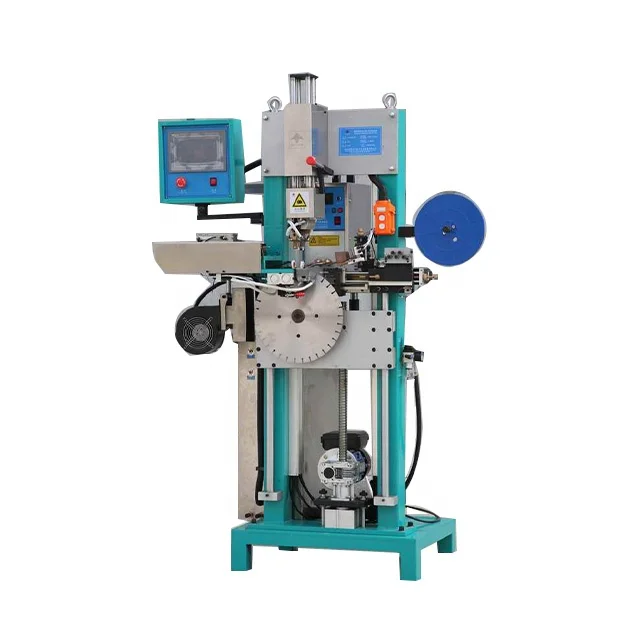

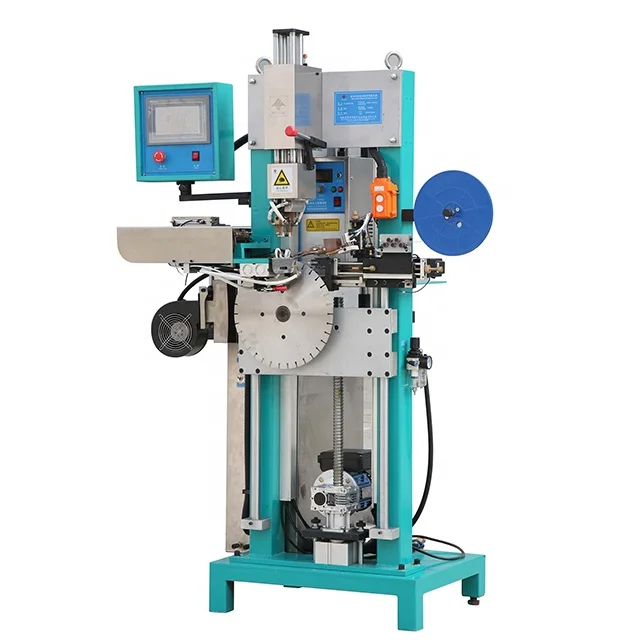

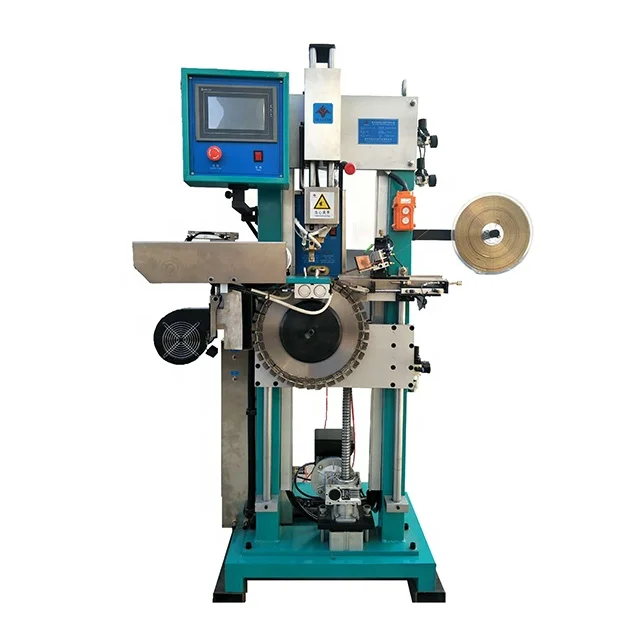

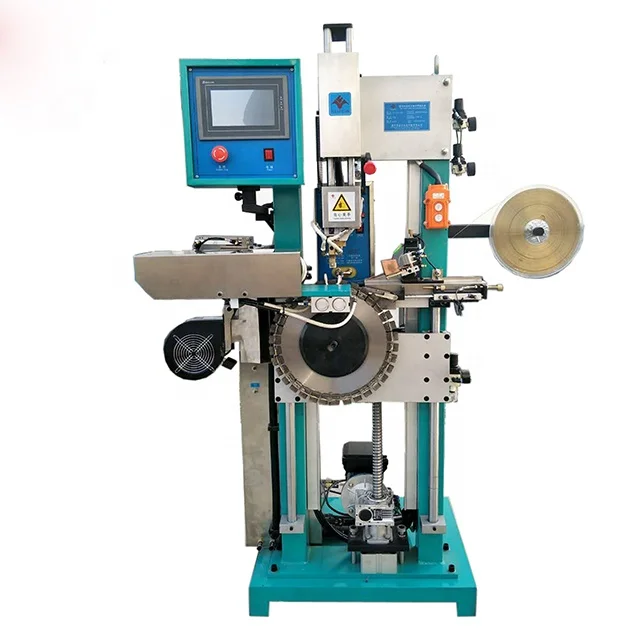

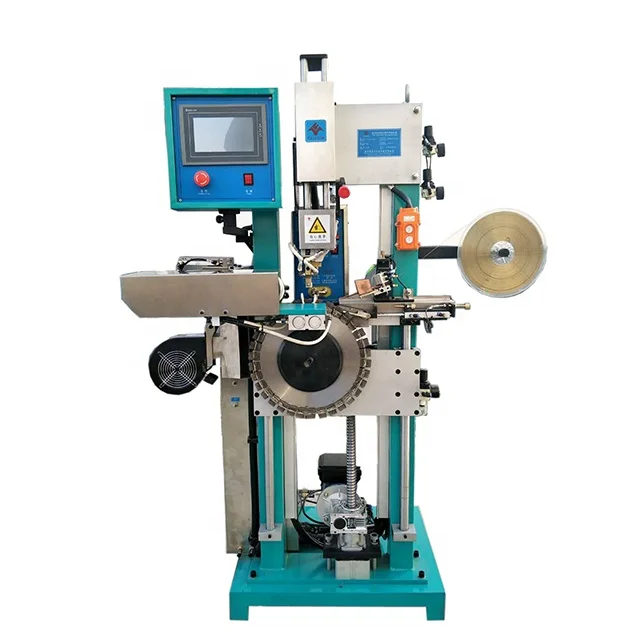

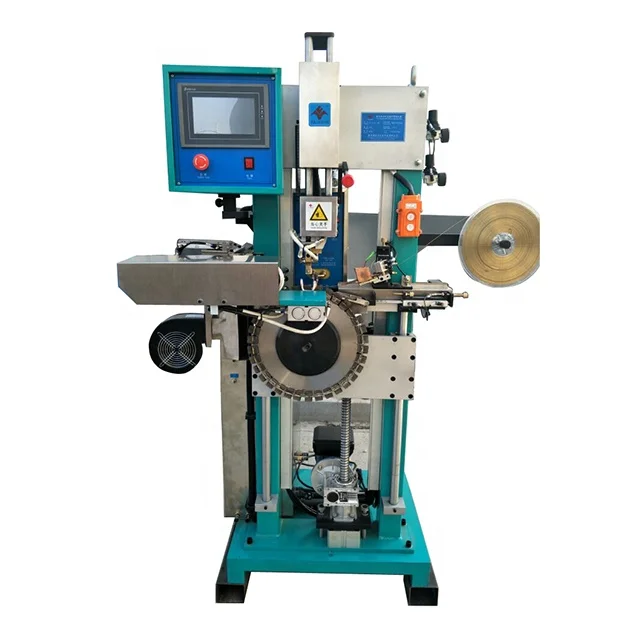

circular saw induction heating brazing welding machine for concrete tools segments

Product Features:

1. Automatically to the diamond cutter and matrix;

2. Automatic welding ,with Solder wire length compensation function,low error rate;

3. Touch screen humanized operation design,easy to use;

4. Constant temperature heating flux,coating is more uniform;

5. Abnormal welding automatic alarm function;

6 .High degree of automation,high positioning accuracy, automatic sending welding wire.

7.Wide welding range,The new and old saw blade can make sure welding accuracy

Model	FL-QZDHJ-1200mm
Welding Range	Φ300mm-φ1200mm
Verticality	±0.02mm
Parallelism	less than ±0.02mm
Welding Rate	3-9s/pcs
Air Pressure	0.3-0.6Mpa
Water Pressure	≥0.2mpa  flow 2-5L/min
Voltage	220v ,50Hz
Power (From Led Light)	1.0W
Machine Dimensions	L1130MM*W1030MM*H1880MM
Gross Weight	430KG

Products Description:

1.  Segment automatic picking & fixing system. Machine can automatic pick the segment and fix to the welding position.

2.  Segment manually centering system. Manually adjust the welding position of the segment before the welding.

3.  Traditional sliver solder automatic sending system. It is effective and cheaper choose but less accurate and inconvenient.

4.  Sliver solder automatic cutting & sending system. Operator can set the length of the solder in the touch screen, then    machine will automatic cut off the solder and sent to the welding position. Very accurate and convenience.

5.  Automatic put soldering flux on the welding side of the segment. Sliver solder sending and flux putting are both independent, so they will not influence each other.

6.   Automatic put soldering flux on the welding side of the saw blade.

7.  Pneumatic automatic segments separating system.

8.   Ceramic clip protection function.

Features
1. Segment and saw disc automatic centering
2. Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running
3. Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.
4. Automatic feeding solder, brushing flux, automatic centering, at the last segment, it will feed solder two times to ensure the end teeth welding strength
5. With touch screen control and HMI operation
6. Easy to operate and maintaince
7. Applicate for welding segments for stone cutting saw blade
