GreenTouch 15.6 inch 10 points multitouch screen monitor , open frame touch display

1)TOUCH READY -GreenTouch touch solution adopts the latest projected capacitive solution with (G+G) 10-point touch ,it delivers great optical clarity and touch durability. 3mm thickness tempered cover glass provide front IK08 vandal-proof degree .



2) FEATUREED ELMENTS -The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.



3) RICH INTERFACES - Coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.

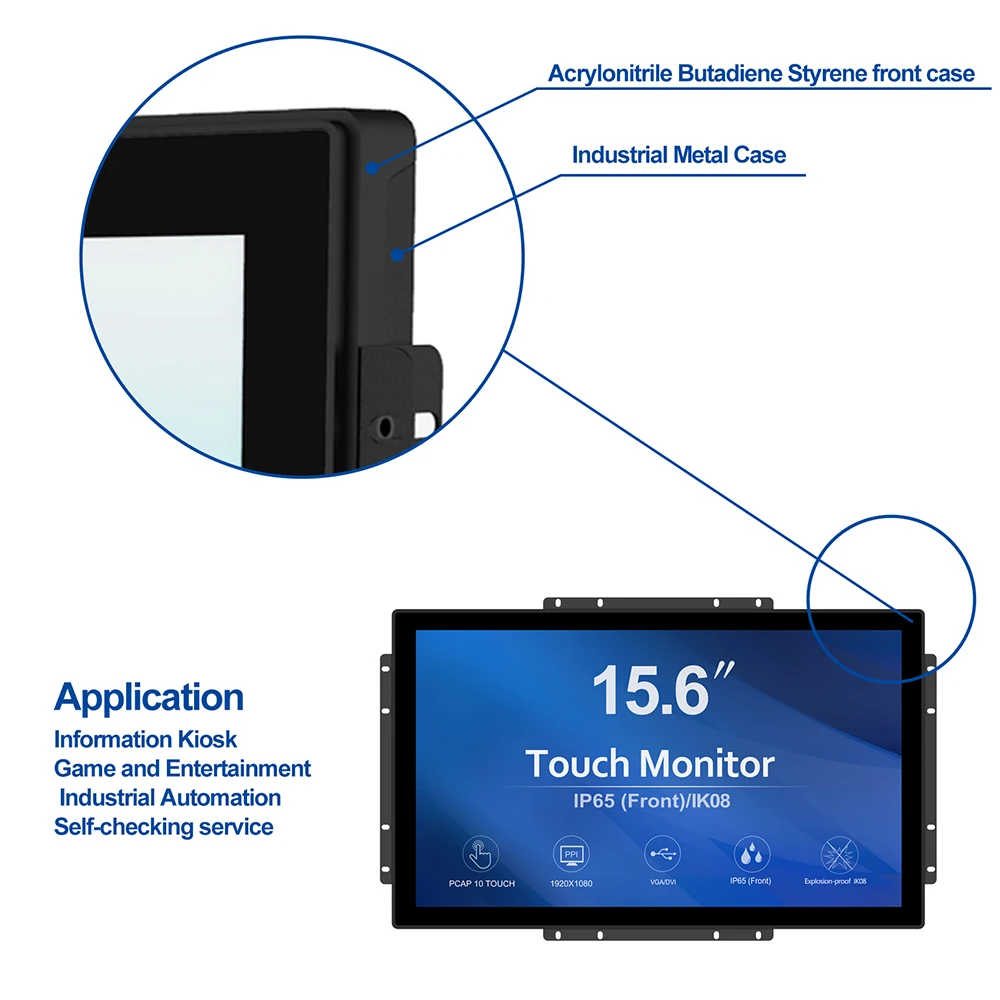

4) COMMERCIAL GRADE - The GreenTouch open frame touchscreen monitor delivers the quality and reliability GreenTouch is known for. We design, build and are responsible for the complete solution with touch integrated from the start.



5) STABILITY - Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).

Product Parameters
Product Name:	Touch Screen Monitor
Model No.:	GT-TM-1562C
Display Type:	Active Matrix TFT LCD, LED Backlight
Touch Technology:	Projected Capacitive (10 Points)
Case/ frame Color:	Black
The Diagonal Dimension:	15.6" diagonal
Aspect Ratio:	16:9

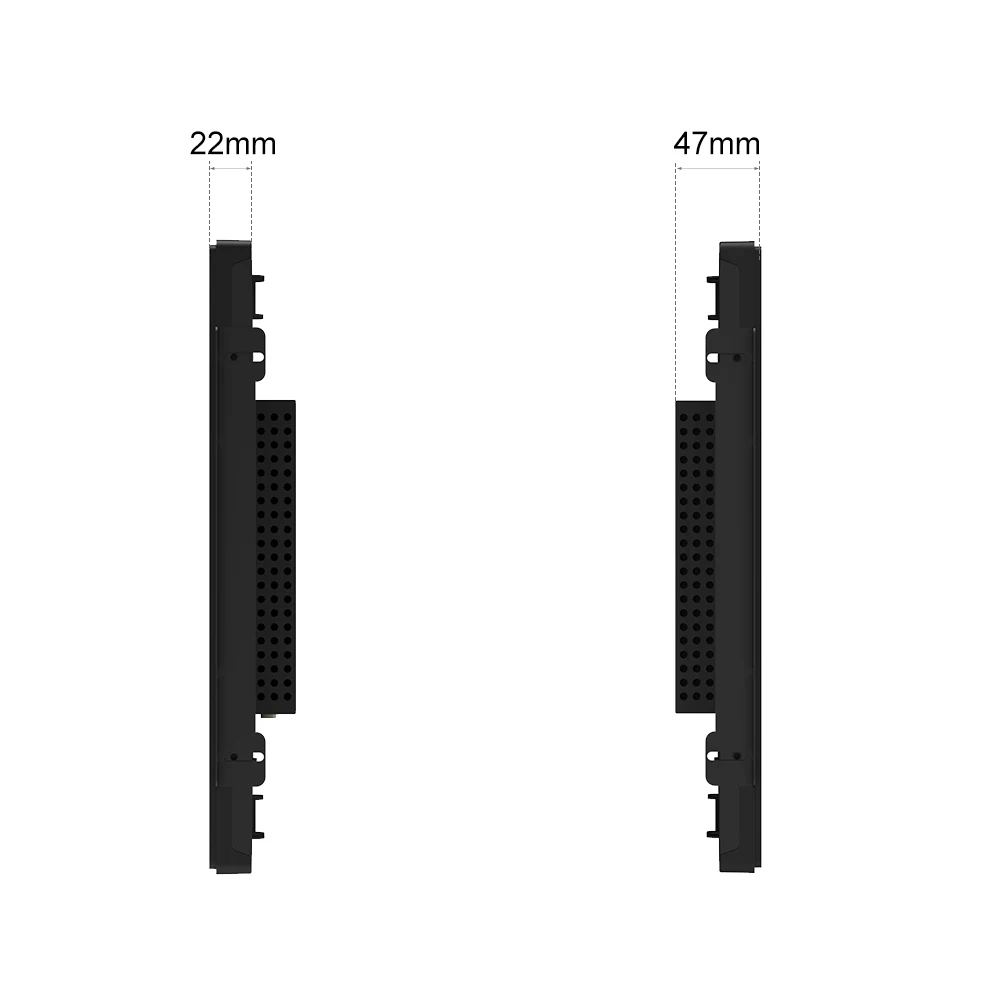

Overall Dimensions:	398mm(W) x248 mm(H),Thickness: 47 mm
Active Area:	344.232mm(H) x 193.536mm(V)
Display Colors:	16.7M
Resolution(pixel):	1366 x 768 @ 60Hz
Brightness(Standard):	250 cd/m²
Response time:	5 ms
View Angle(from center):	L/R:45/45;U/D:20/45 (Typ.)(CR≥10)
Contrast Ratio:	650:1(Typ.)

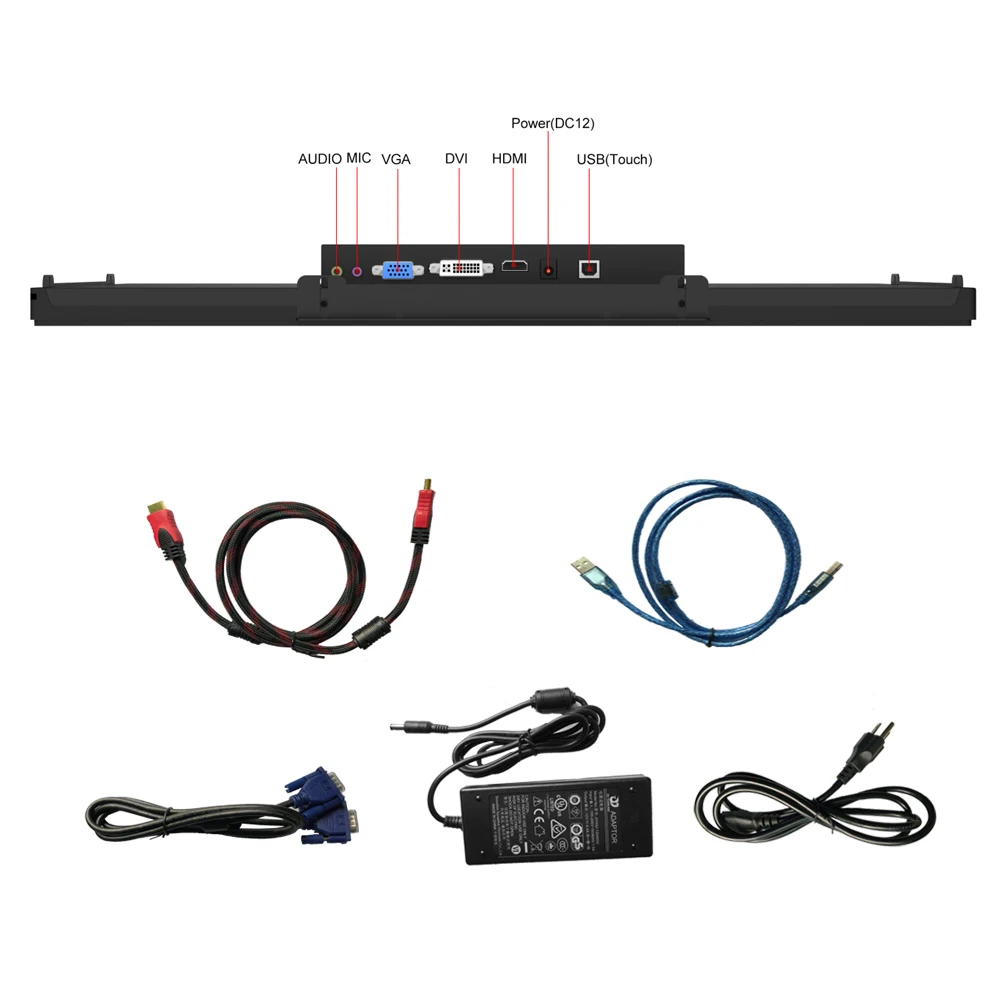

Input:	VGA,DVI,HDMI(optional DP)
Input Video Signal Connector:	Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector
OSD:	Digital OSD
User Controls:	OSD Button: Menu, Up, Down, Select, Power
Power:	Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)
	External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm);
Temperature:	Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C
Humidity:	Work: 20% to 80%; Storage: 10% to 90%

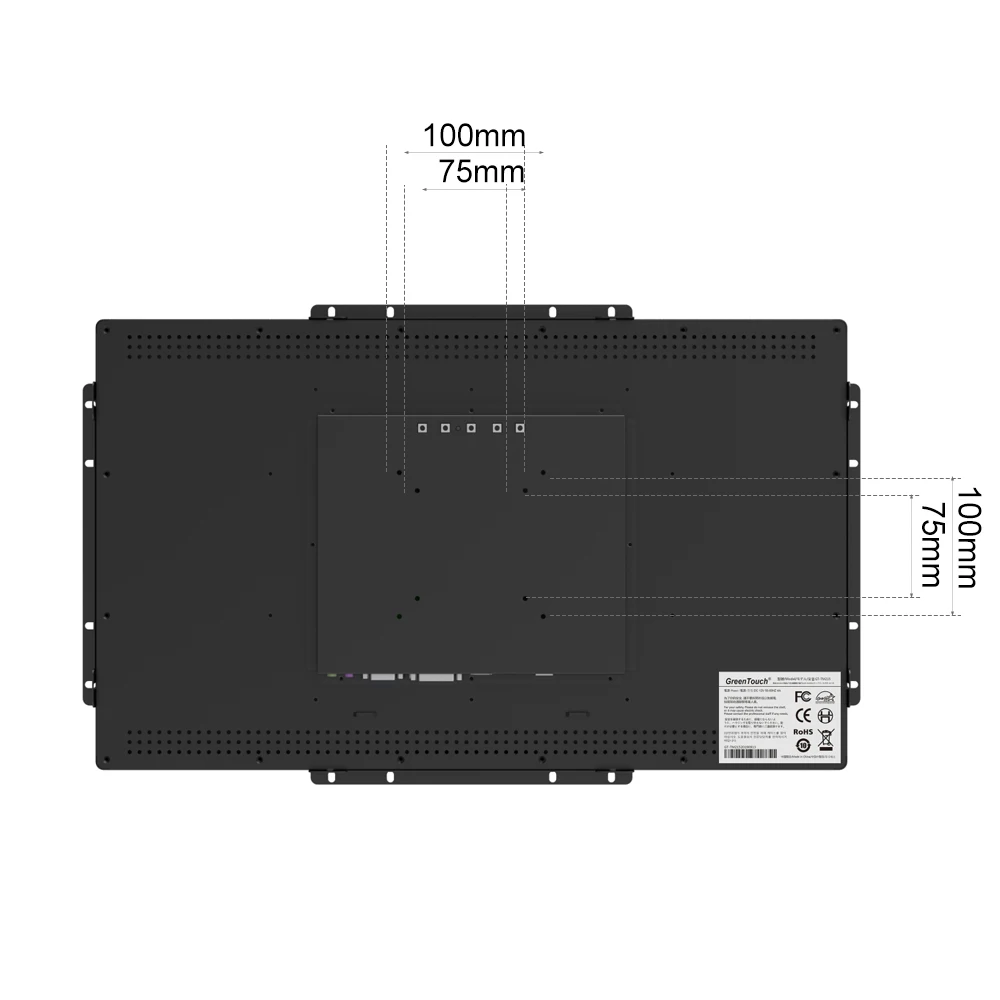

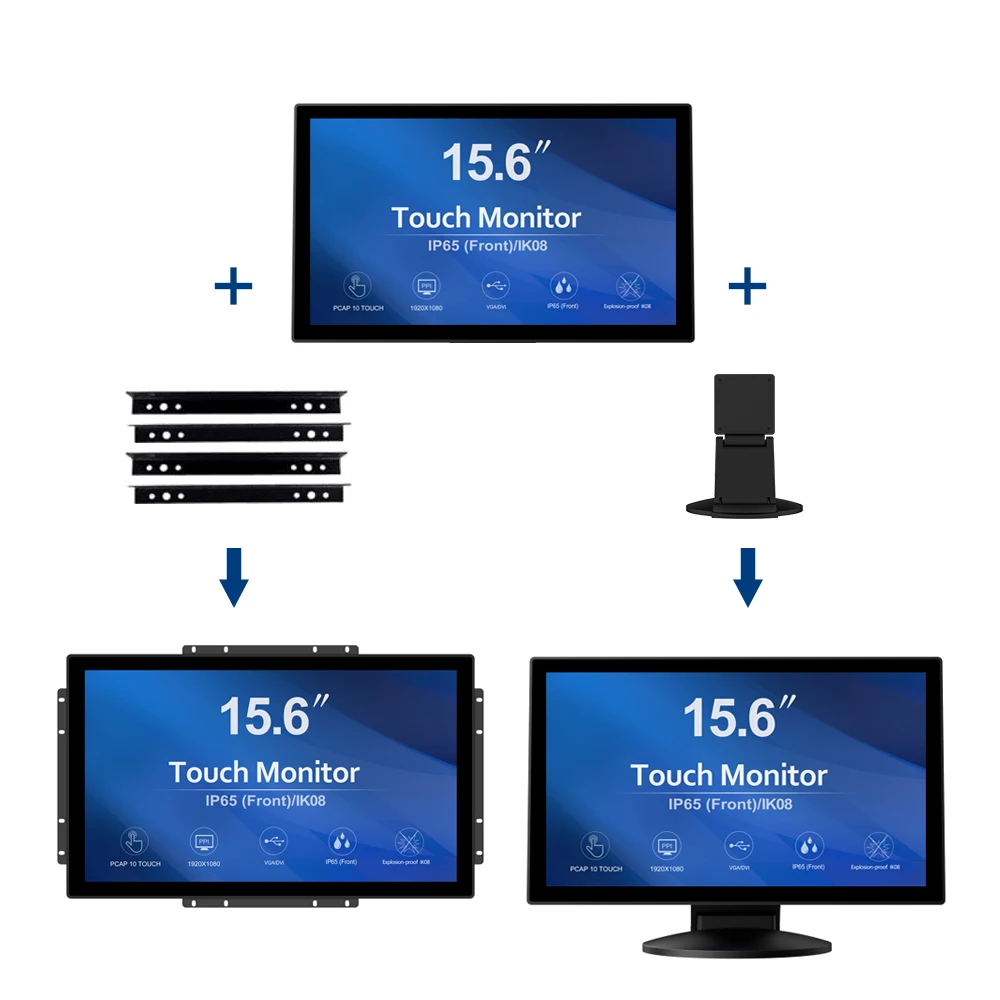

Installation options:	Open Bracket Mounting,VESA Mounting;
Warranty:	1 Year
Certificates:	FCC, CE,RoHS,CB,HDMI

Other Size Reference
Size	Model	Ratio	Overall Dimensions(W*H*T)	Active Area	Brightness	Resolution	Net weight(approximate)
10.1”	GT-TM-1012C	16:10	265*179.5*45mm	216.96*135.6mm	330 cd/m²	1280*800 @Hz	2.8 kg
15”	GT-TM-1502C	4:3	355*279*47mm	304*228mm	300 cd/m²	1024*768 @Hz	4.21 kg
15.6”	GT-TM-1562C	16:9	398*248*47mm	344*193.5mm	400 cd/m²	1920*1080 @Hz	3.67 kg
17”	GT-TM-1702C	5:4	385*317*47mm	337.9*270.3mm	250 cd/m²	1280*1024 @Hz	4.97 kg
18.5"	GT-TM-1852C	16:9	457*281*47mm	409.8*230.4mm	250 cd/m²	1366*768 @Hz	4.98 kg
19"	GT-TM-1902C	5:4	430*355*47mm	376.3*301mm	250 cd/m²	1280*1024 @Hz	5.9 kg
21.5"	GT-TM-2152C	16:9	532*319*47mm	476.6*268.1mm	250 cd/m²	1920*1080 @Hz	6.3 kg
22"	GT-TM-2202C	16:10	527.2*350*60mm	473.7*296.1mm	250 cd/m²	1680*1050 @Hz	7.5 kg
23.6"	GT-TM-2362C	16:9	581.8*350.8*60mm	521.2*293.2mm	300 cd/m²	1920*1080 @Hz	7.7 kg
23.8"	GT-TM-2382C	16:9	586*356*47mm	527*296.4mm	250 cd/m²	1920*1080 @Hz	7.55 kg
27"	GT-TM-2702C	16:9	655.7*396*55mm	597.8*336.3mm	300 cd/m²	1920*1080 @Hz	10.38 kg
32"	GT-TM-3202C	16:9	749.1*452.7*65mm	698.4*392.8mm	400 cd/m²	1920*1080 @Hz	13.3 kg
43"	GT-TM-4302C	16:9	1007.3*596.6*69mm	940.8*529.2mm	400 cd/m²	1920*1080 @Hz	15.2 kg
49"	GT-TM-4902C	16:9	1141.9*672.2*71mm	1073.7*604mm	380 cd/m²	1920*1080 @Hz	18.2 kg
55"	GT-TM-5502C	16:9	1277.7*748.5*70mm	1209.6*680.4mm	400 cd/m²	1920*1080 @Hz	20.2 kg
