Сертификат CE промышленные резервуары с изоляцией 32 кг/м3 100 мм минеральная/Стекловолоконная плита
- Категория: Other Heat Insulation Materials >>>
- Поставщик: Hebei,United,Energy,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.37 $* | 1.75 $* |
| Jul-17-2025 | 1.55 $* | 1.49 $* |
| Jun-17-2025 | 1.26 $* | 1.41 $* |
| May-17-2025 | 1.9 $* | 1.13 $* |
| Apr-17-2025 | 1.93 $* | 1.78 $* |
| Mar-17-2025 | 1.90 $* | 1.95 $* |
| Feb-17-2025 | 1.69 $* | 1.39 $* |
| Jan-17-2025 | 1.86 $* | 1.43 $* |
Характеристики
PRODUCT INFORMATION
United Insulation High-Temp industrial insulation glass wool blanket is high thermal conductivity, light weight, strong vibration resistance, high durability, and compressive cost-effective. It is designed for industrial duct high-temperature( up to 420°C) thermal insulation and facilities thermal insulation used in electric power, chemical industry, light industry, petroleum, and metallurgy, etc.
AVAILABLE FORMS
Semi-Rigid Board and Rigid Board
AVAILABLE SIZE
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Conductivty (W/m·K) | R-Value (m2/m·W) | Packing (pcs/PKG) | PKG/40'HQ (No#) | |
| UET HIBR 2450 | 24 | 50 | 600 | 0.037 | 1.35 | 9 | Loading Qty, Please consult | |
| UET HIBR 2475 | 24 | 75 | 600 | 0.037 | 2.00 | 6 | ||
| UET HIBR 24100 | 24 | 100 | 600 | 0.037 | 2.70 | 5 | ||
| UET HIBR 3225 | 32 | 25 | 600 | 0.037 | 0.65 | 20 | ||
| UET HIBR 3250 | 32 | 50 | 600 | 0.035 | 1.42 | 9 | ||
| UET HIBR 3275 | 32 | 75 | 600 | 0.035 | 2.10 | 6 | ||
| UET HIBR 32100 | 32 | 100 | 600 | 0.035 | 2.80 | 5 | ||
| UET HIBR 4825 | 48 | 25 | 600 | 0.033 | 0.71 | 20 | ||
| UET HIBR 4850 | 48 | 50 | 600 | 0.033 | 1.50 | 9 | ||
| UET HIBR 4875 | 48 | 75 | 600 | 0.033 | 2.25 | 6 | ||
| UET HIBR 48100 | 48 | 100 | 600 | 0.033 | 3.00 | 5 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET HISB 3250
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 32 kgs/m³ | |
| Thickness | GB/T 17795-2008 | 50mm | |
| Average diameter of fibers | GB/T 17795-2008 | 6.8μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.035W/m·K | |
| Thermal Resistance | ASTM C653 | 1.40 m²·K/W | |
| Average NRC | EN ISO 354 | 1.05 | |
| Maximum Service Temperature | ASTM C411 | 400°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
AVAILABLE FACINGS

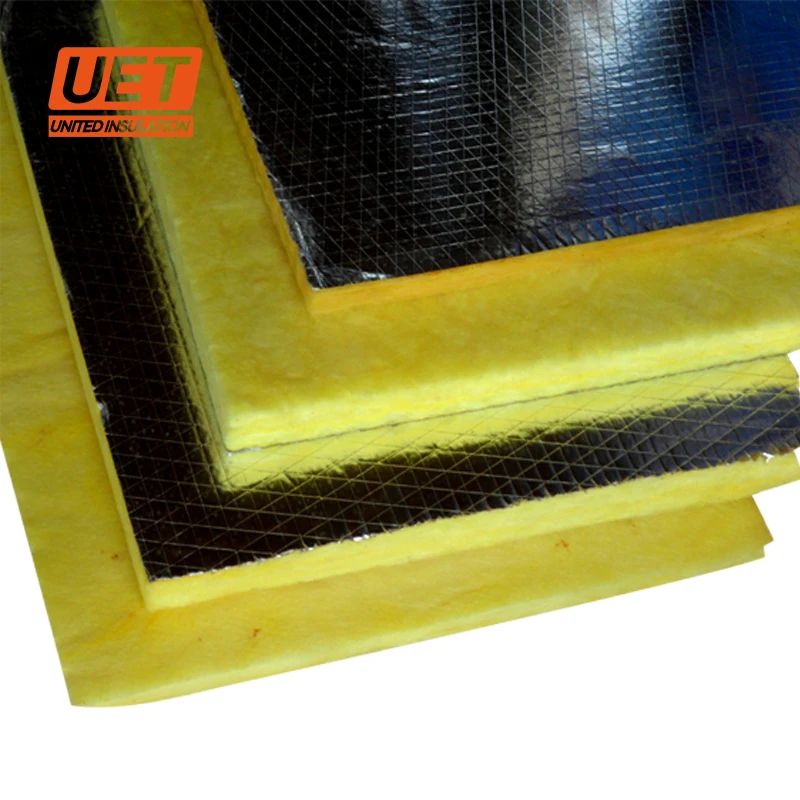

FSK, ASJ facing is available accordingly to project design.
PACKAGING

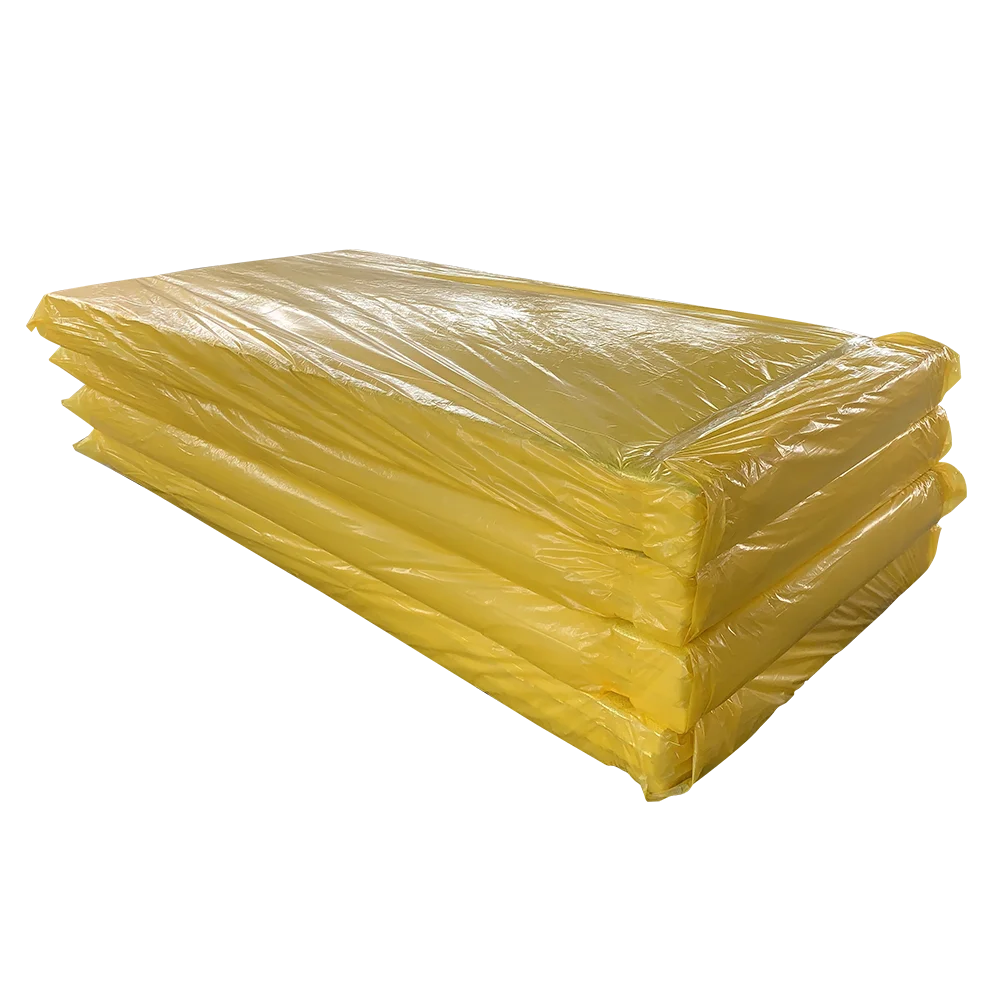

Glass wool board is packed by vaccumed packing. Inner packing is PVC bag, Outside packing is woven fabric bag. It will save transportation cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T13350-2008
With CE Certificate according to standard EN 13162:2008
GB/T13350-2008
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007
FEATURES AND BENEFITS
• Natural inorganic material
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Thermal insulation used in electric power, chemical industry, light industry, petroleum, etc
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
 |  |  |  |
UNITED PEOPLE SERVE THE WORLD
