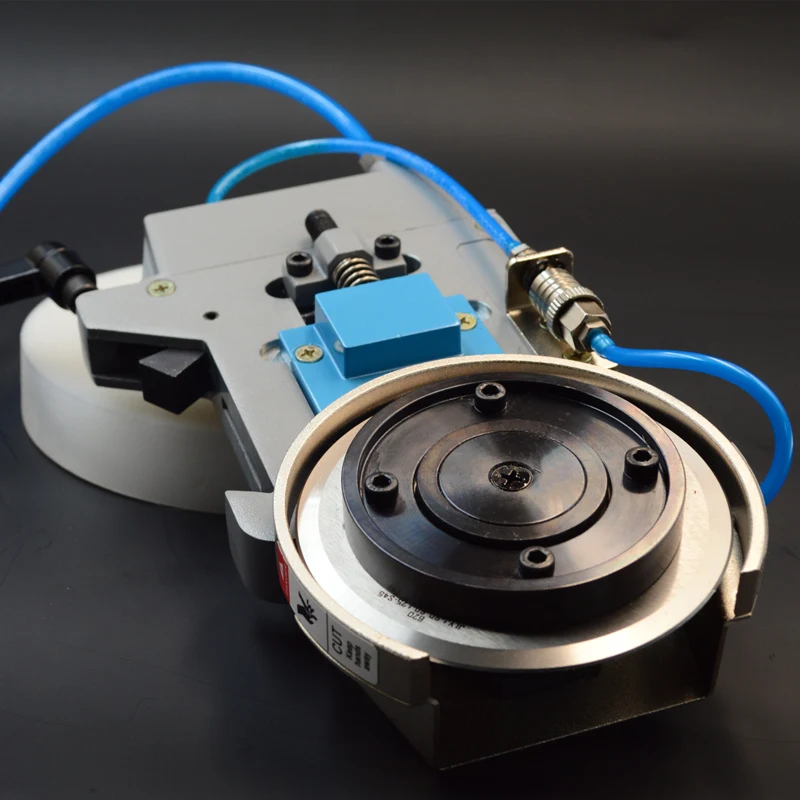

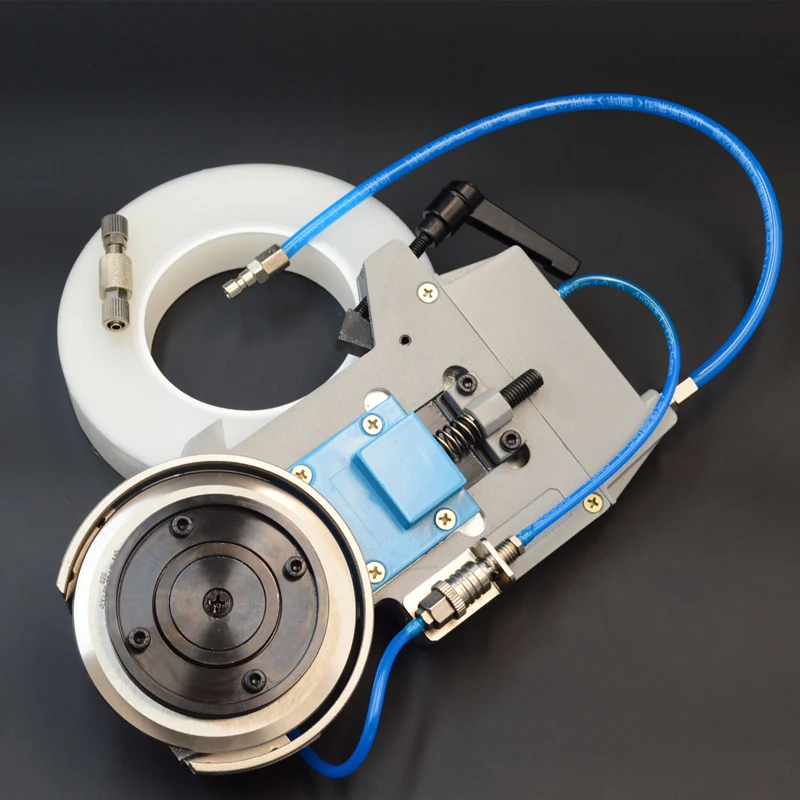

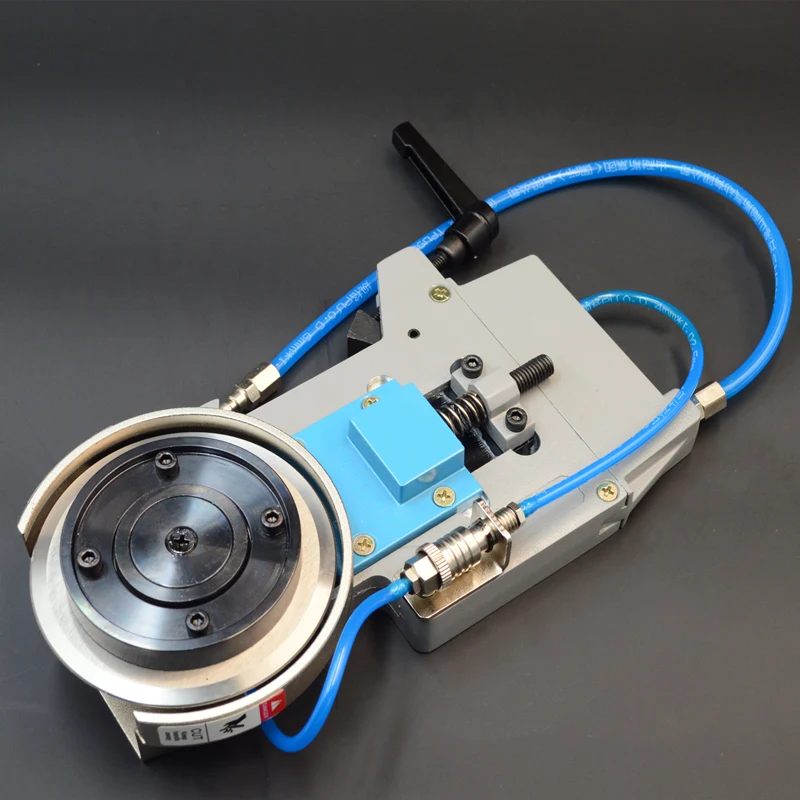

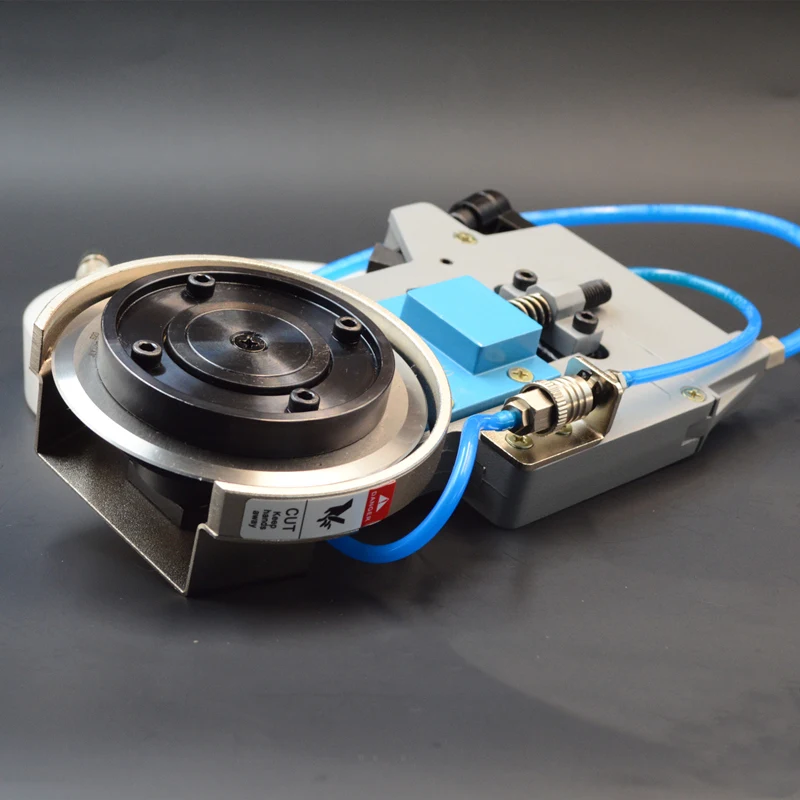

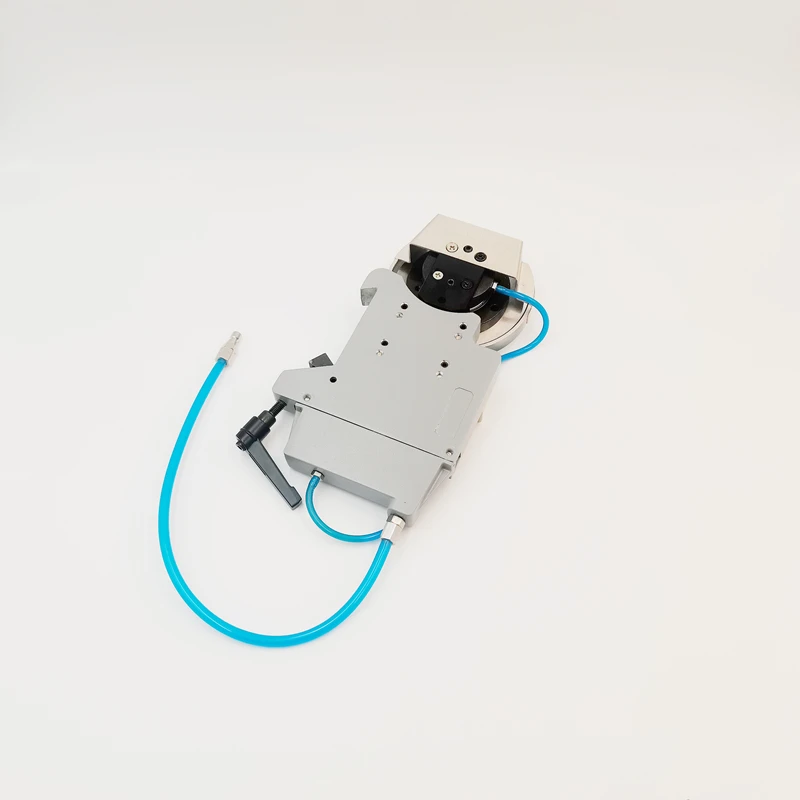

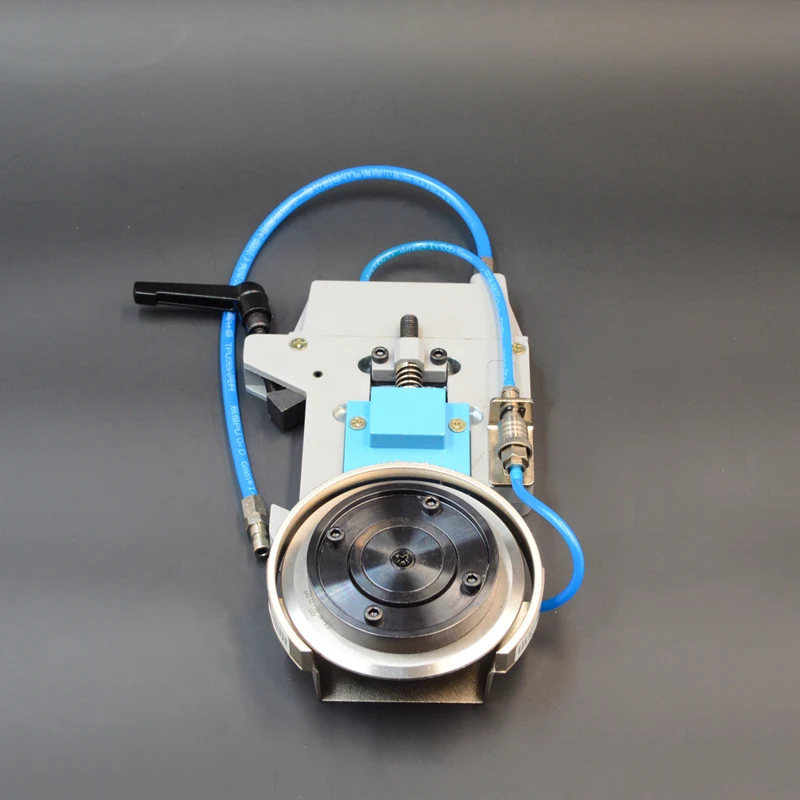

Промышленный пневматический держатель для круглых ножей

Промышленный пневматический держатель для круглых ножей

Категория: Paper Machinery Parts >>>
Поставщик: Suzhou,Shanggong,Blade,Co.,Ltd.

Цена:260,00 $ - 420,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	309.25 $*	324.63 $*
Aug-16-2025	307.43 $*	322.97 $*
Jul-16-2025	257.65 $*	270.80 $*
Jun-16-2025	302.75 $*	317.51 $*
May-16-2025	263.77 $*	276.24 $*
Apr-16-2025	296.7 $*	311.24 $*
Mar-16-2025	294.59 $*	309.64 $*
Feb-16-2025	291.90 $*	306.0 $*
Jan-16-2025	289.63 $*	303.47 $*

Характеристики

Product Description

Circular knife widely used for slitting paper,plastic films,cloth,foam,rubber,copper foils,aluminum foils,graphite,etc.This kind of knife is ground by professional equipment.Nice apperannce,high precision,durable life makes it has high cost performance.

Material	Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on
Advantage	Burr-free, Widely Applied
Thickness	0.8-1.5mm, Customized thickness available
Inner diameter	25.4, 32, 38mm
Outer diameter	OD160 - 610mm, customized size is available
Knife edge	45 °,could be adjusted according to your requirement
Design	single edge and double edge are available
Appliacation	Paper, film, foam, rubber,foil, graphite and so on
customized	Customized as needed

Direction for safety

使用说明

Be careful to install,disassemble and clean,avoid scratching due to the sharp cutting edge of the products.

Rust prevention

Clear,spray oil and then store in dry,shady and cool place to avoid rust after use(Tungsten knife,no need to spary oil,just clean and then store)

Size Information

MT A425 Thin type pneumatic cutter			MT A110 standard pneumatic cutter			MT A610 enhanced type pneumatic cutter
Minimum slitting width	26mm	Minimum slitting width	10mm	Minimum slitting width	45mm
Slitting speed	400m per min	Slitting speed	100m per min	Slitting speed	1000m per min
Pressure range	2-6kg per square centimeter	Blade material	SKD 11 or SUJ2	Maximum pressure	6kgf per square centimeter
Blade material	SKH-9			Bottom knife touching angle	3 degree Maximum

Products details

Related Products

Packing&Shipping

We will pack the blades according to different kinds of blades to avoid any damage. During transportation,please handel gently.

Company Introduction

Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around 6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing equipment which are used in processes from raw material to finished products.We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.Our Products have been exported to more than 40 countries in the world.Products are used in many industries such as electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
