KD-C02-RKJ400 Тип Элекрический термопластичный Опрыскивание нанесения Дорожной
- Категория: Маркировочная дорожная машина >>>
- Поставщик: Wuhan,Kudat,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.10 $* |
| Aug-16-2025 | 0.2 $* | 0.66 $* |
| Jul-16-2025 | 0.72 $* | 0.64 $* |
| Jun-16-2025 | 0.14 $* | 0.37 $* |
| May-16-2025 | 0.35 $* | 0.94 $* |
| Apr-16-2025 | 0.17 $* | 0.23 $* |
| Mar-16-2025 | 0.19 $* | 0.96 $* |
| Feb-16-2025 | 0.12 $* | 0.88 $* |
| Jan-16-2025 | 0.19 $* | 0.15 $* |
Характеристики

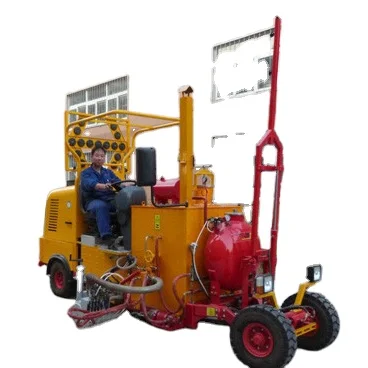

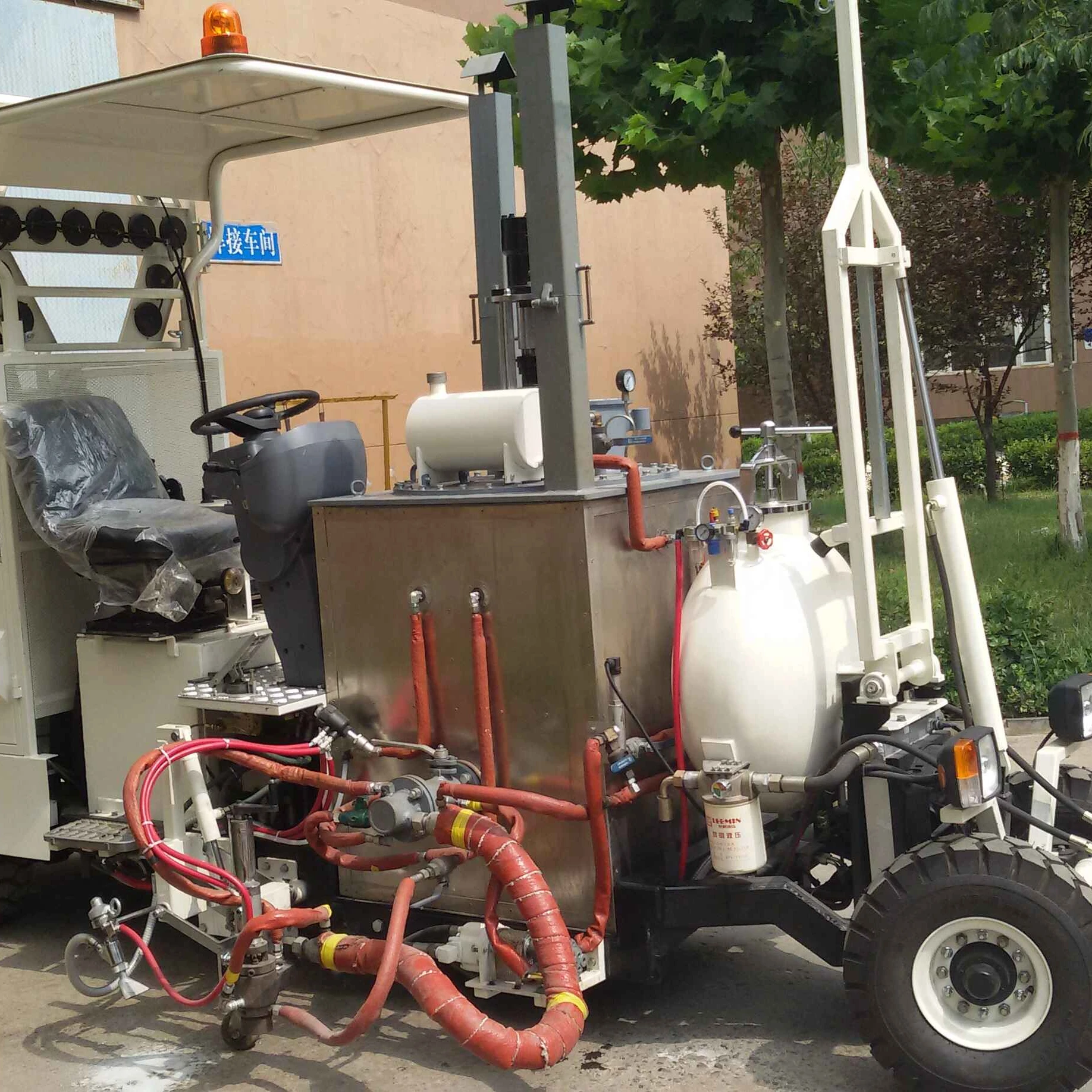

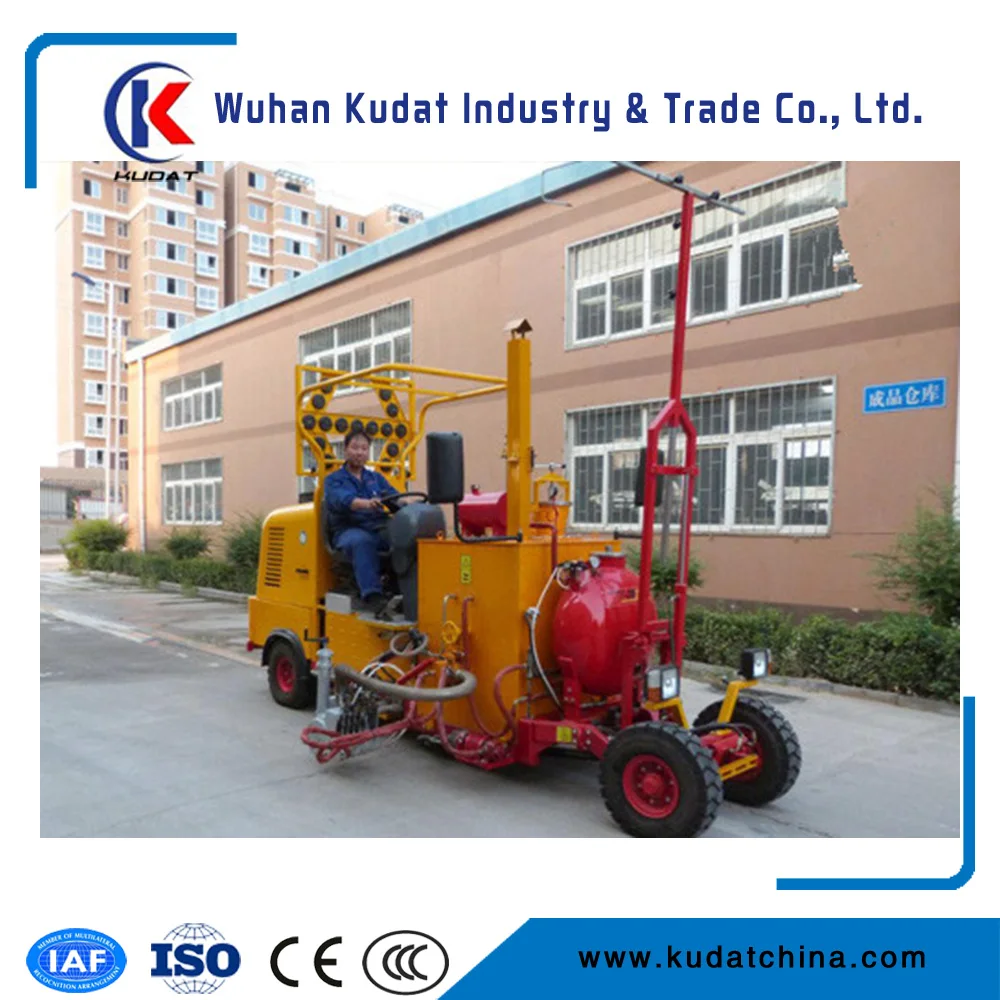

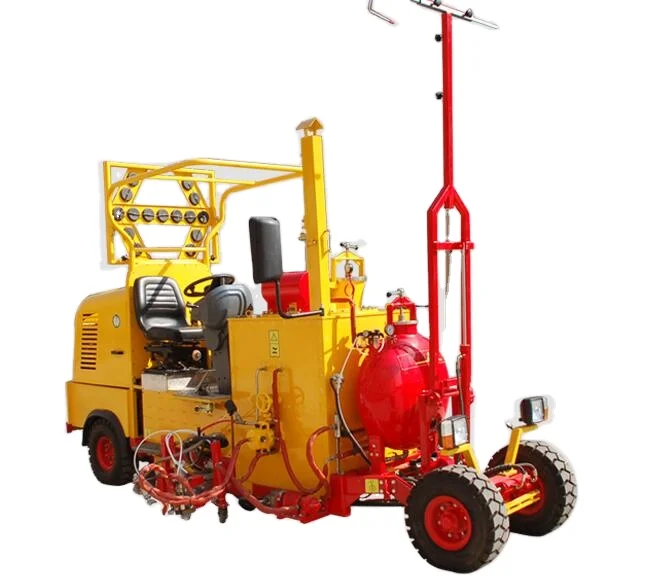

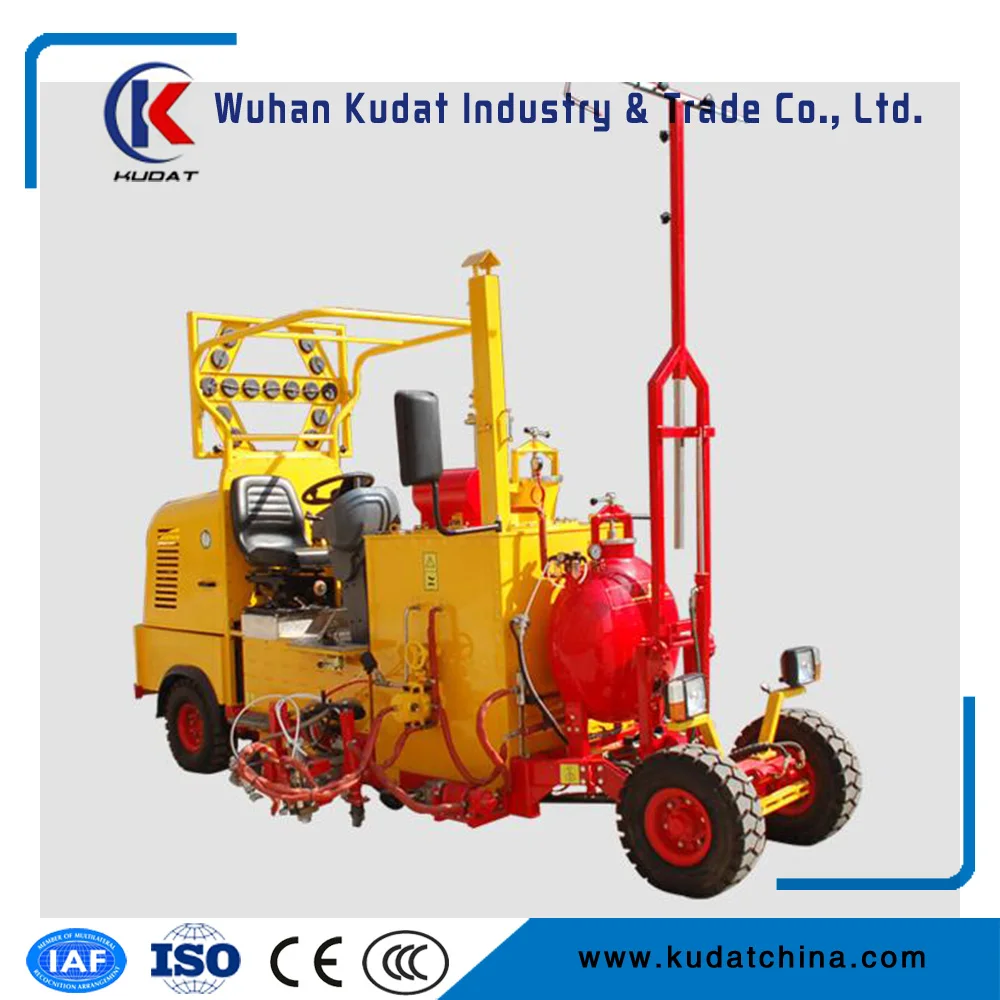

This is a type of screeding general road marking machine, compact and small, flexible to operate. Under the premise of sufficient melted material, it also has relatively high construction efficiency. The type I is for flat line, and the type II is for flat line and convex line.
Technical Data
Marking Method:extrusion, spraying or screeding (change spray gun, extrusion or screeding device)
Material Container Volume material container (pressurized): 400L
glass bead container:100L
Air Compressor Delivery Rate:1.5m³/min
Heating Method:LPG infrared burner or fuel energy efficient burner
Heat Preservation Method:heat preservation cotton, or heat transfer oil with heat preservation cotton
Temperature Control Method:auto temperature control
Marking Line Width:screeding 50/100/150/200/250/300, optional(single standard equips of 150mm, convex
device optional);
Extrusion 100/150/200/250/300mm optional(single standard equips of 200mm);
spraying 50-300mm, adjustable;
Overall Dimension 5300mm(L)×2450mm(W)×2300mm(H)
Chassis Specification:
Engine Power:44.6KW four cylinders water-cooled diesel engine
Drive Unit:hydraulic drive infinitely variable
Driving Direction & Speed:forward or backward, 0-22km/h
Glass Bead Container Volume:100L
Weight:3-3.5T
Technical Data
Marking Method:thermoplastic screeding
Material Container Volume :200L
Air Compressor Delivery Rate :0.45m³/min
Heating Method :energy efficient burner (LPG infrared burner or fuel)
Heat Preservation Method :heat preservation cotton, or heat transfer oil with heat preservation cotton
Temperature Control Method :auto temperature control
Marking Line Width:
50/100/150/200/250/300mm (optional, single equips of screeding device (150, 200, or 250mm), or convex marking device)
Overall Dimension:4000mm(L)×1910mm(W)×2100 mm(H)
Chassis Specification:
Engine Power:22.5KW or 37KW four cylinders water-cooled diesel engine
Drive Unit :hydraulic drive infinitely variable
Driving Direction & Speed forward or backward:0-22km/h
Glass Bead Container Volume :50L
Weight:2-3T
