Product Description




230m hydraulic tricycle truck mounted water well drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in fileld drilling . The rotary table drilling rig is reasonable in structure , simple in operation, convenient in maintenance and transportation and can be hoisted without crane after being transported to the working site.






Technical Parameter


230m hydraulic tricycle truck mounted water well drilling rig Parameters


Machine parameters
Drill hole depth
230m
Maximum opening diameter
75-300mm
Final hole diameter
75mm
Take the initiative to drill pipe
53/59*4200mm
Drill pipe diameter
50mm,60mm
Borehole inclination
90-75
Power (diesel engine)
15/2200kw/r/min
Structure weight/size
1150kg/2700*950*1770
Vertical shaft
Vertical spindle speed
64,128,287,730,557r/min
Vertical stroke
450mm
Hoist
Single rope lift
24KN
Single rope winding speed
0.12, 0.22, 0.49, 0.95m/s
Drum diameter
140mm
Diameter of wire rope
13mm
Wire rope capacity
35m
Rig
Rated load
5t
Effective height
6m
Tower leg specifications
89mm
Mud pump
Model
BW160
Flow
160L/min
Maximum pressure
1.3Mpa
Reciprocating frequency
165times/min
Suction pipe diameter
51mm*4.5m
High pressure water pipe diameter
32mm*6m


Detailed Images

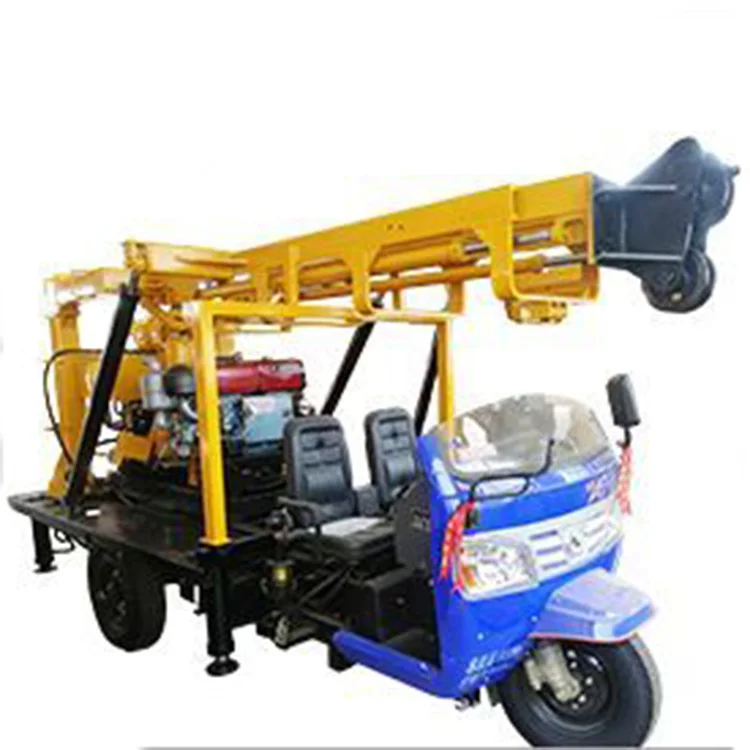

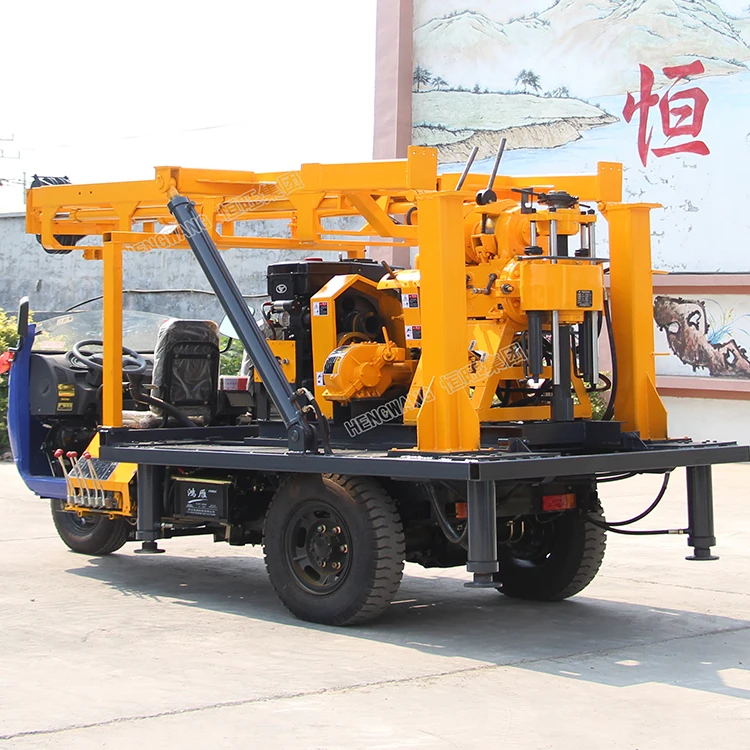

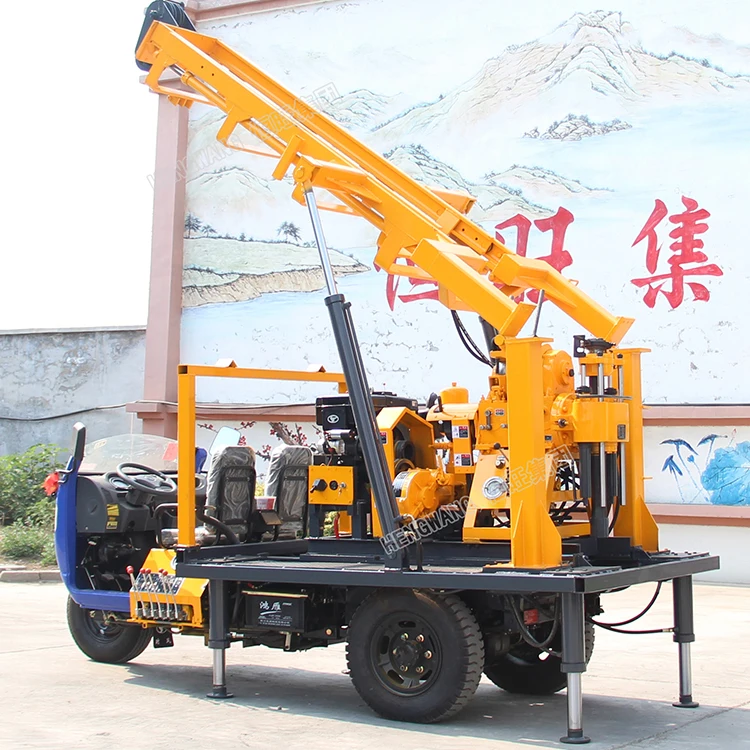

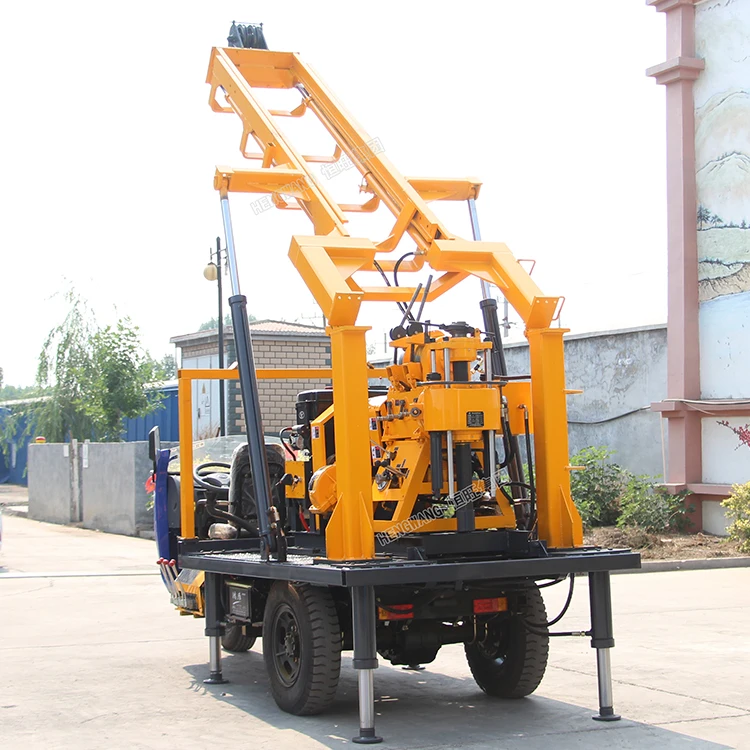

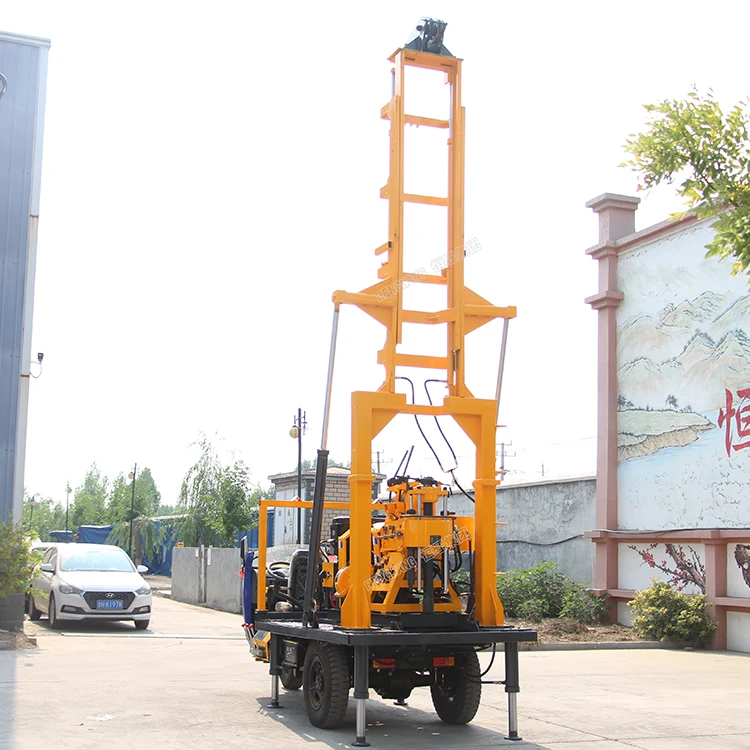

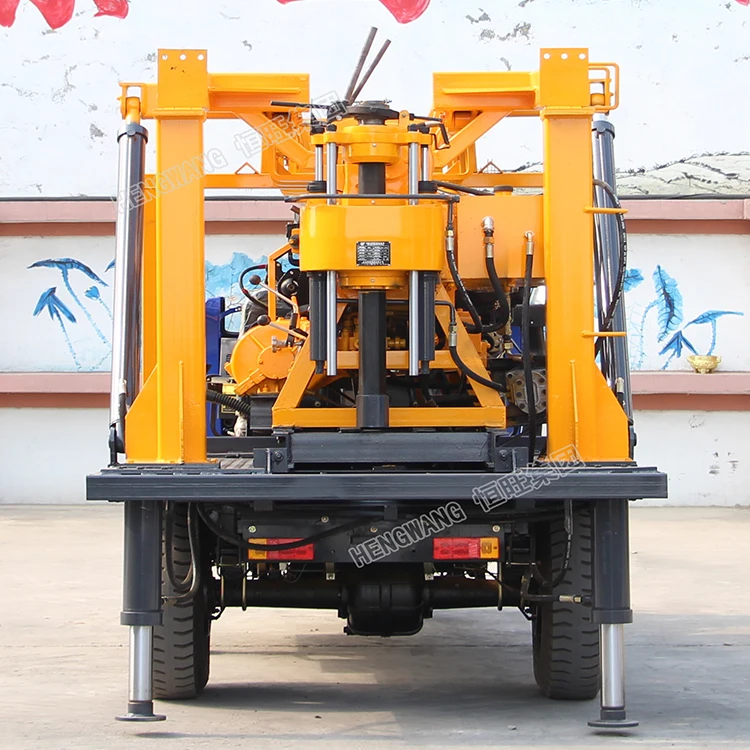

230m hydraulic tricycle truck mounted water well drilling rig
