Характеристики

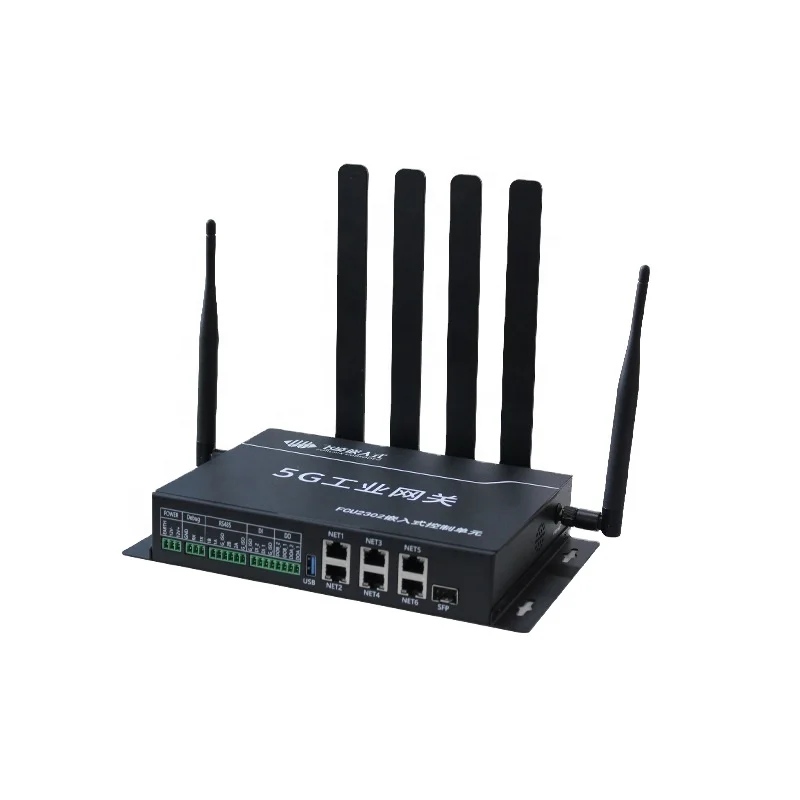

5G Embedded System Computer for Industrial Gateway Development Based on LS1046A
FCU2302 is a 5G industrial gateway with advanced performance, various high-speed communication interface, super fast and low latency. Available for 4G/ 5G network, has 6 Gigabit Ethernet ports, RS485, DI, DO and other general purpose interface. Integrated with 64-bit quad-core ARM processor LS1046A* with frequency up to 1.8GHz and CoreMark up to 45000 and carries a Huawei Brand industrial 5G module MH5000, which will help users to get super fast connection and safe data transmission. Open software supporting of Ubunut 18.04 integrated with third party clusters make it easy-to-go for smart factory, smart city, smart medical, autopolit, VR and other related applications development.
Super connection, super fast
Downward compatible with 4G and Gigabit Ethernet
Special for industrial environment gateway
Carries NSA/ SA bimodule;
Download rate up to 2Gbps, upload rate up to 30Mbps;
All netcom and full compatible 2G/ 3G/ 4G/ 5G; Industrial grade operating environment -40℃~+80℃

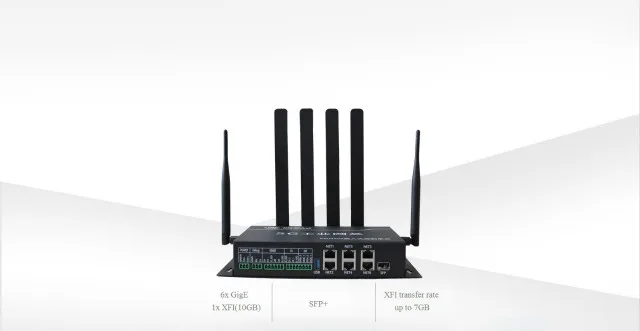

Hexa Gigabit Ethernet
6 native Gigabit Ethernet,
each with DPAA with linear speed throughout,
CPU occupancy rate below 5%.
Virtualization Technology Supporting
Can support Docker, LXC, QEMU engines.
Ease-to-go
Preinstalled with Ubuntu18.04 with supporting of IPSEC, OPENSSL, OP-TEE, DPDK, ovs-DPDK, Lighttpd and Samba;
System updated by U-disk
Target Application
Applicable for smart factory, smart city, smart health, autopilot, virtual reality, etc.
Hardware Features
| Item | Spec. | |
| FCU2302(based on LS1046A) | FCU2302(based on LS1043A) | |
| CPU | NXP LS1046AARM Cortex-A72 quad-core 1.8GHz | NXP LS1043AARM Cortex-A53 quad-core1.6GHz |
| RAM | 2GB DDR4 | |
| ROM | 8GB eMMC | |
| Mobile communication | Huawei MH5000-31 module; 5G NR: n78, n79, n41 4G LTE: B1, B3, B5, B8, B34, B38, B39, B40, B41 3G UMTS/WCDMA:B1, B8 2G: 1800MHz/900MHz | |
| Ethernet | 6 Gigabit Ethernet ports, standard RJ45 connector, 10M/100/1000M auto-negotiation | |
DO | 2x DO, electromagnet relay output, Contact capacity: 5A 30VDC / 5A 250VAC Connector: terminal with pitch of 3.81mm | |
| DI | 2x DI, optocoupler isolated, Connector: terminal with pitch of 3.81mm | |
| RS485 | 2x RS485 | |
| USB | 1x USB host, standard USB type A connector, for system installation | |
| RTC | RX8010SJ; on-board CR2032 for 1 year of consumption | |
| Reset | 1x reset | |
| User-defined key | 1x user-defined key | |
| Power and consumption | Rated voltage: 12V5A, with anti-reverse protection | |
| Dimensions | 210x154x43mm | |
| Mounting | 4x Φ3mm screws | |
| Working Environment | RH: 5%~95%, non-condencing Working temperature: -40℃~75℃ Storage temperature: -40℃~125℃ | RH: 5%~95% , non-condencing Working temperature: -40℃~80℃ Storage temperature: -40℃~125℃ |
Software Features
| Item | Spec. |
| OS | Ubuntu-18.04 |
| File system | Ext4 |
| GCC | 7.3.0 |
| Network protocol | TCP/IP, UDP, DHCP, TFTP, FTP, Telnet, SSH, Web, HTTP, IPtables |
| RTC | NTP supported |
| RS485 | supported with demo |
