 Application:



This series oil filter are mainly used for filtering the crude oil pressed out by screw type oil press. Oil filter can be matched with oil press to clear the oil, also can be used to filter the waste oil, waste water and bio-diesel etc.



Operation:





1. While the machine is in the state of working, all the pipe clips should be tightened to pervent the oil from leaking.



2. Filtering clothe should be put between the filter plate,and then ightened by tension bolt to make sure no leakage exists.



3. Under the normal operation, the oil will come out 2 or 3 minutes after starting the machine. If no oil comes out,please stop the machine which will be used when some filtering clothes is broken or the oil looks dirty.





4. In order to pervent the oil pump from being empty loaded, which will demage the cylinder and pump body . So ,when the filtering operation is finished , please adjust the position indicating plate to make the oil pump stopped.



Main data:



Model	filter plate size	Working pressure	Capacity	Power	Dimensions (mm)	weight
6LB-200	200x200mm	0.3-0.4mpa	30-50kg/h	0.55kw	550x440x640	150kg
6LB-250	250x250mm	0.3-0.4mpa	100kg/h	0.75kw	780x540x680	200kg
6LB-350	350x350mm	0.3-0.4mpa	200kg/h	1.1kw	1300x750x700	470kg

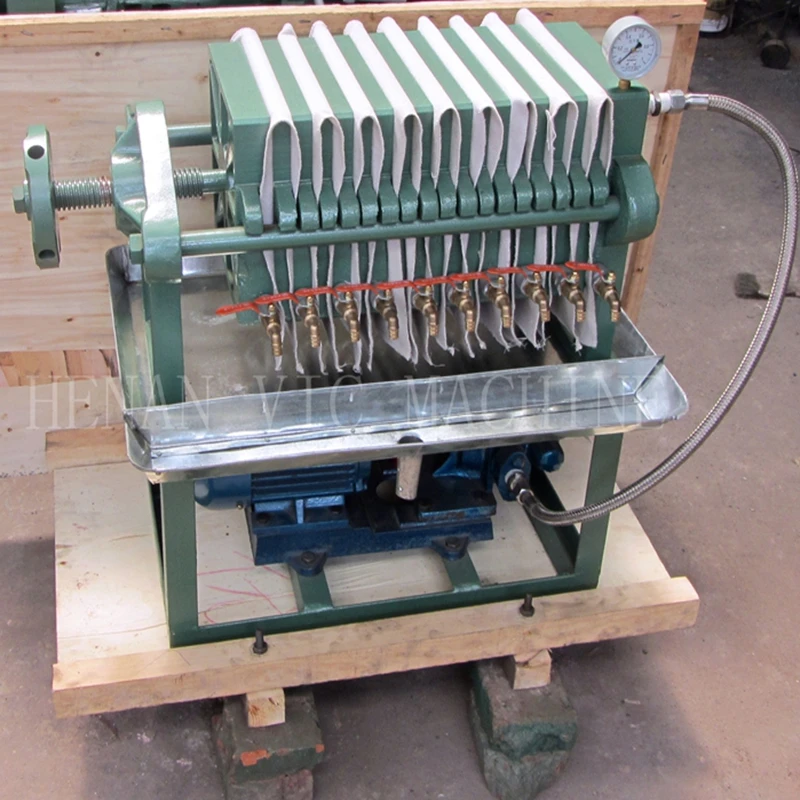

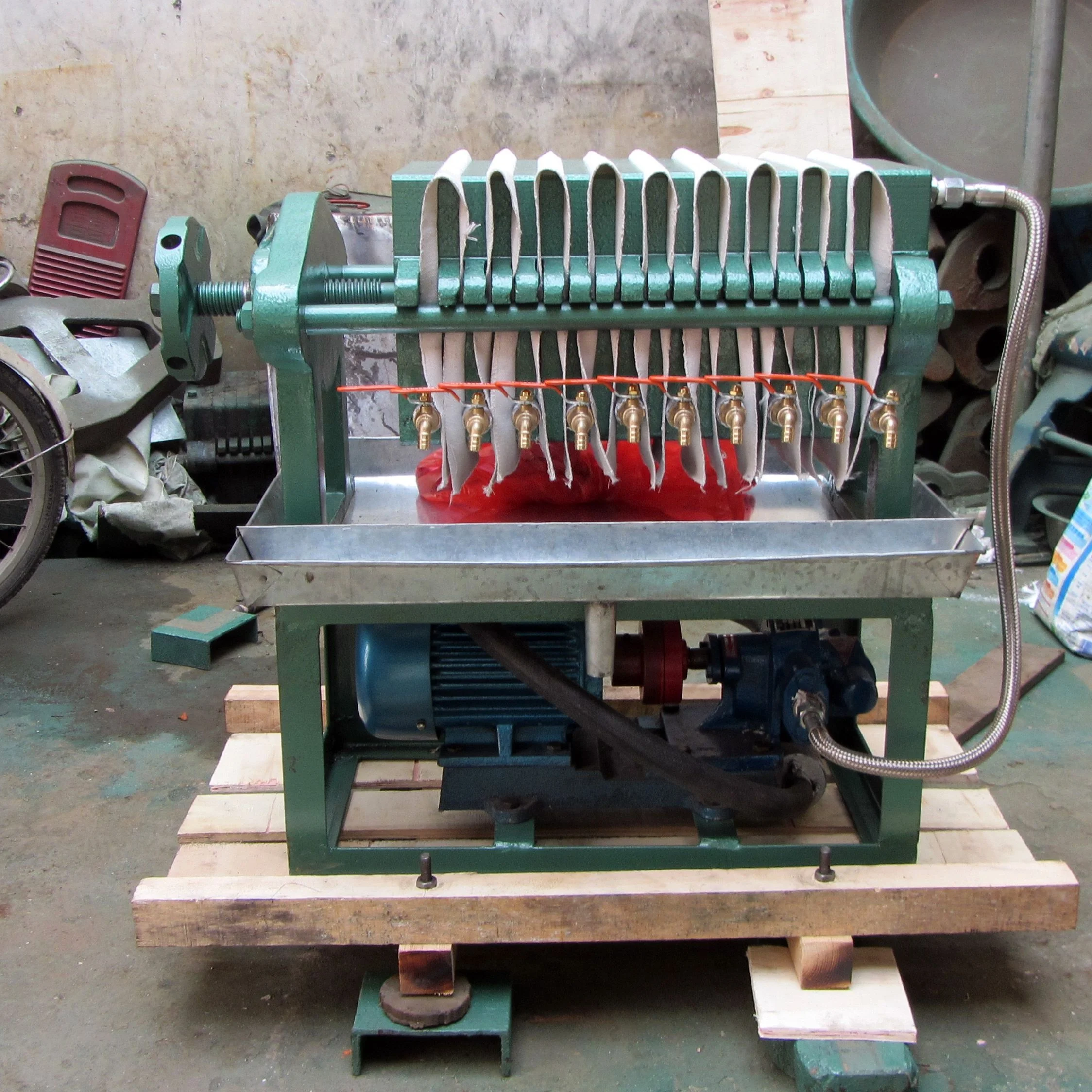

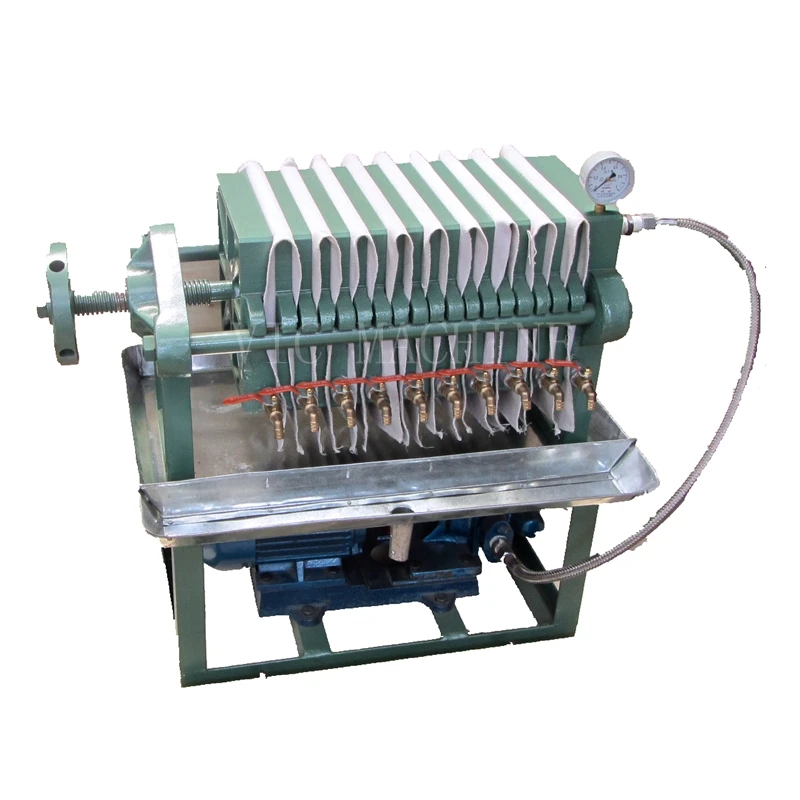

More picture:







 Other stainless steel plate oil filter

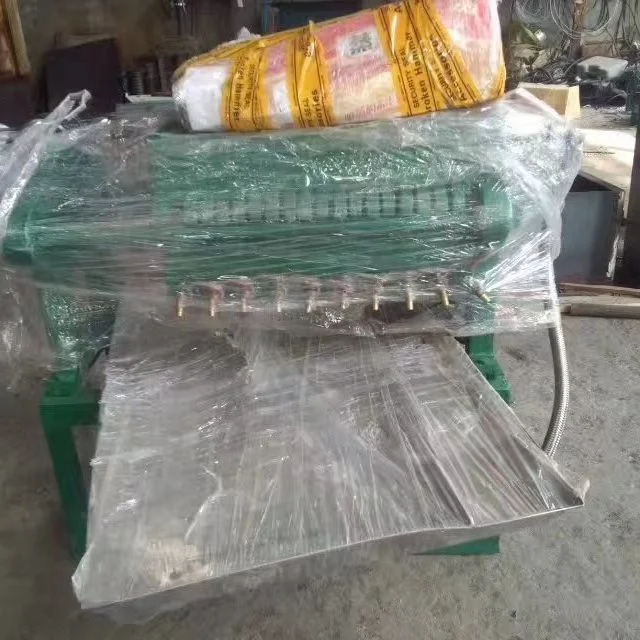

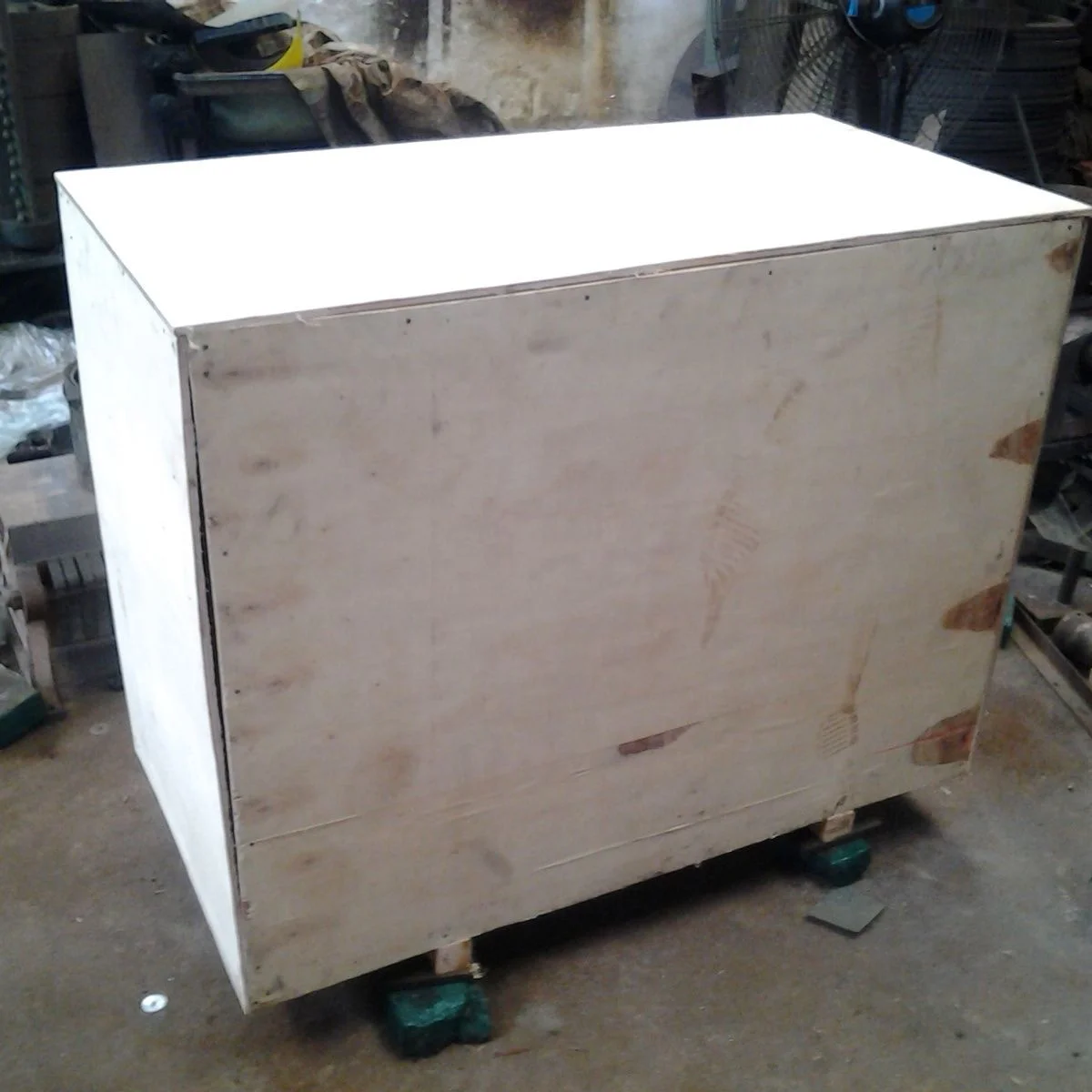

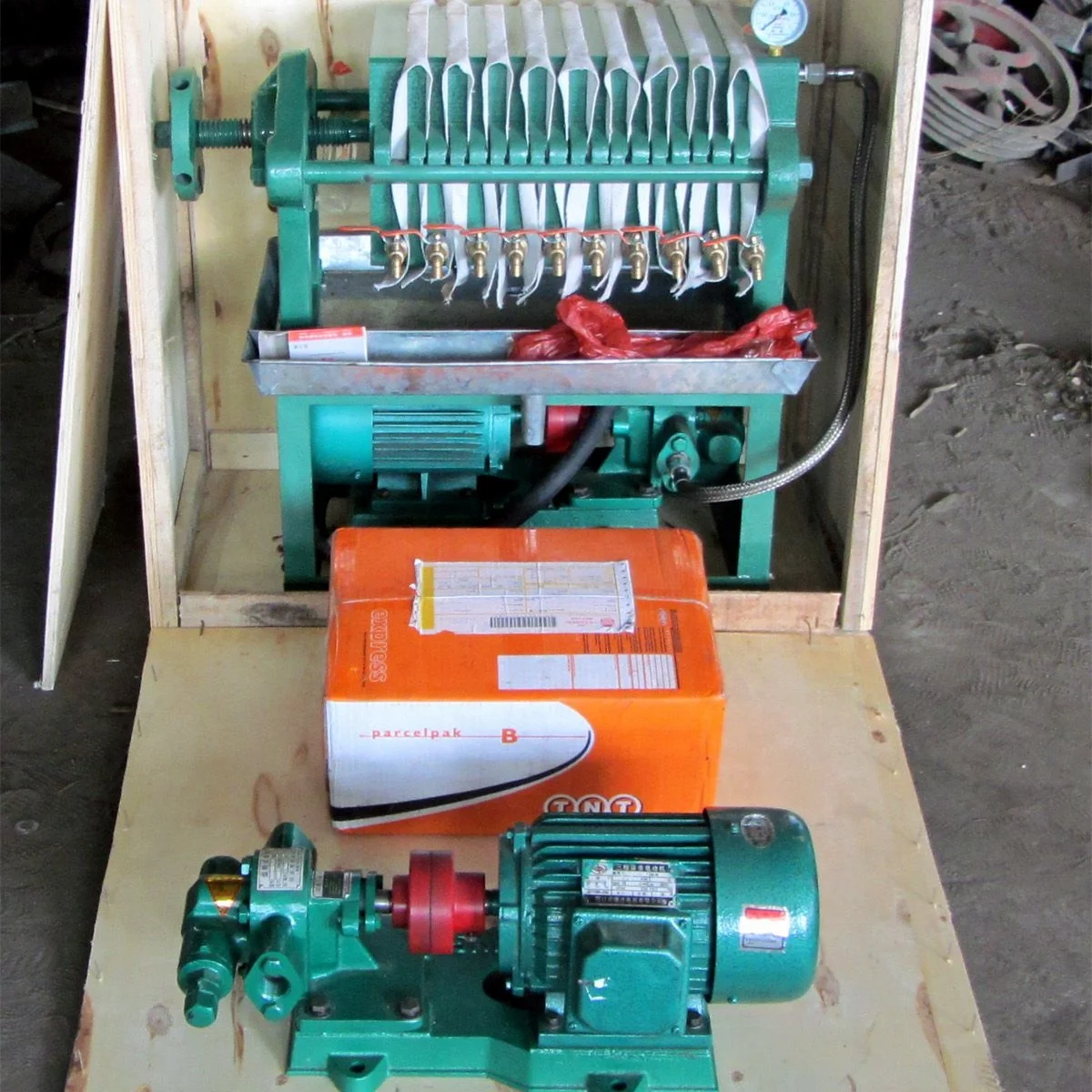

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Quality guarantee terms:



Quality guarantee is one year. Spare parts we supply at factory cost lifetime.



We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
