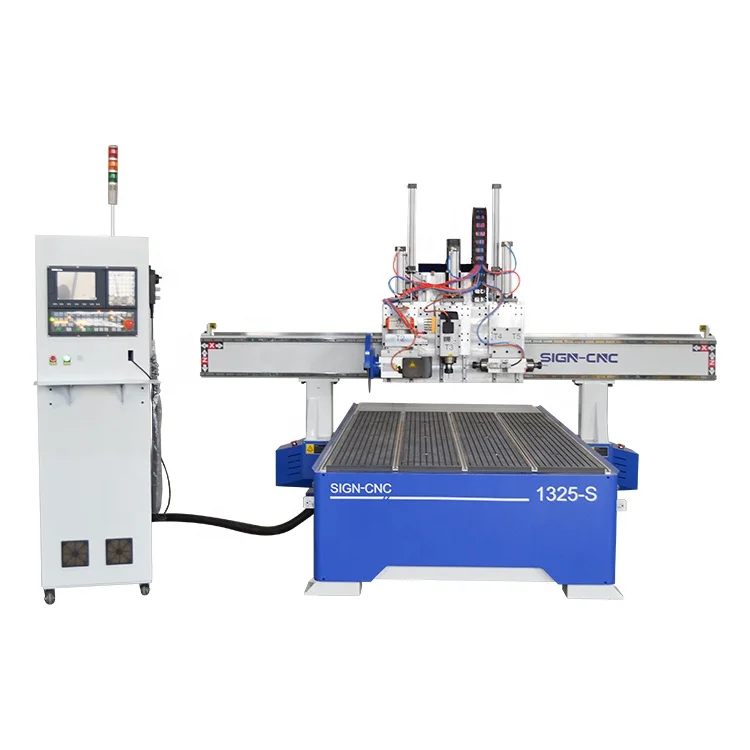

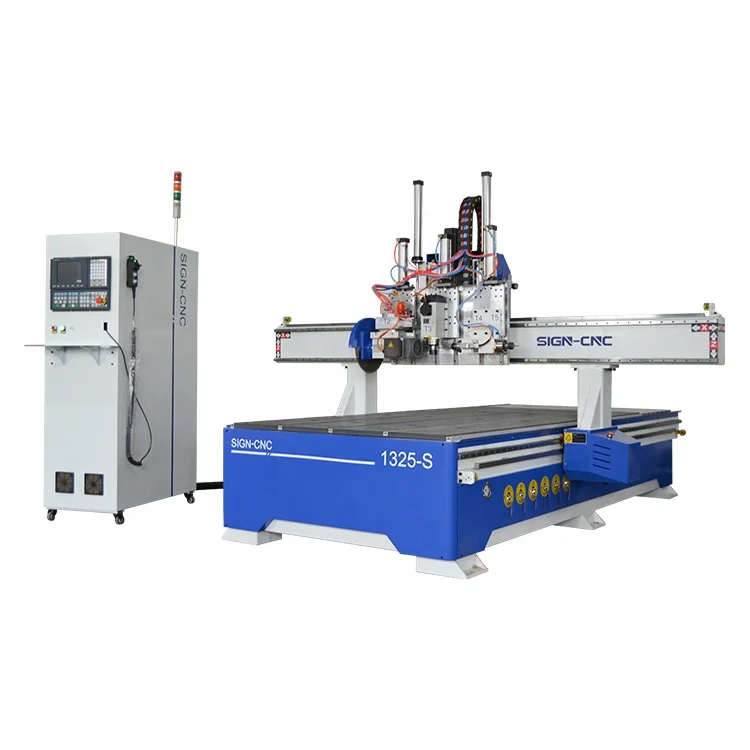

Деревообрабатывающие двери фрезерный станок с ЧПУ тремя головками пила для горизонтальной резки
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan,Sign,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1699116.52 $* | 1733098.18 $* |
| Jul-17-2025 | 1378024.89 $* | 1405584.78 $* |
| Jun-17-2025 | 1672359.51 $* | 1705806.68 $* |
| May-17-2025 | 1658980.23 $* | 1692160.25 $* |
| Apr-17-2025 | 1324508.98 $* | 1350998.89 $* |
| Mar-17-2025 | 1632222.27 $* | 1664866.58 $* |
| Feb-17-2025 | 1618843.96 $* | 1651220.24 $* |
| Jan-17-2025 | 1605464.85 $* | 1637573.77 $* |
Характеристики
Wood Working Door Making CNC Router Three Heads Machine, Saw Cut Horizontal Carving Spindle Machine |
⌈ Pneumatic CNC Router⌋⌈Woodwork cnc router⌋⌈Horizontal Engraving Machine⌋
Product Description
Product Information
Jinan Sign CNC Equipment Co., Ltd.

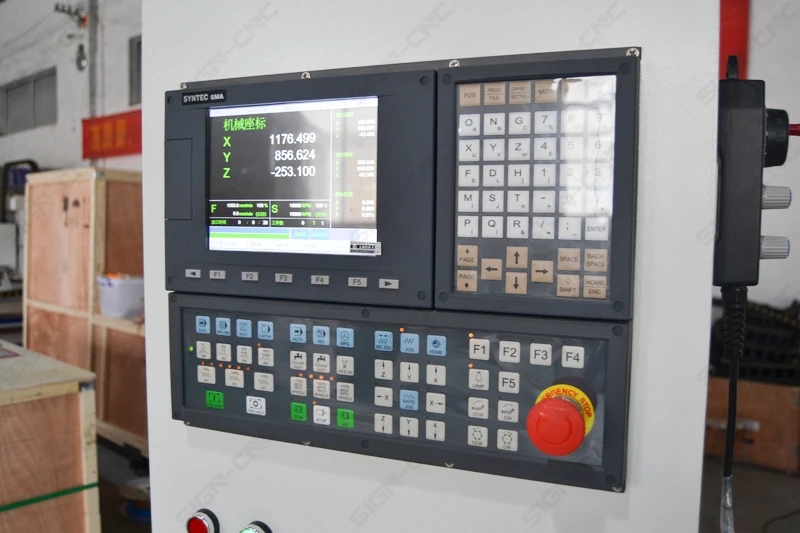

1. Syntec control system

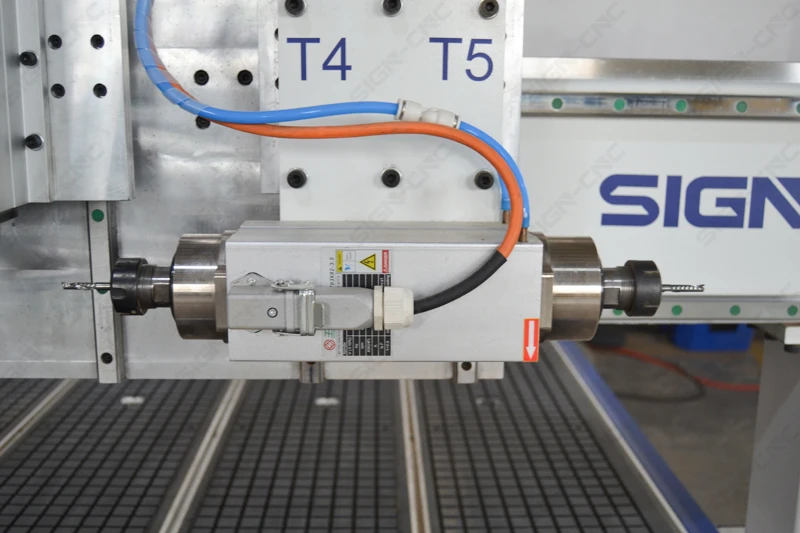

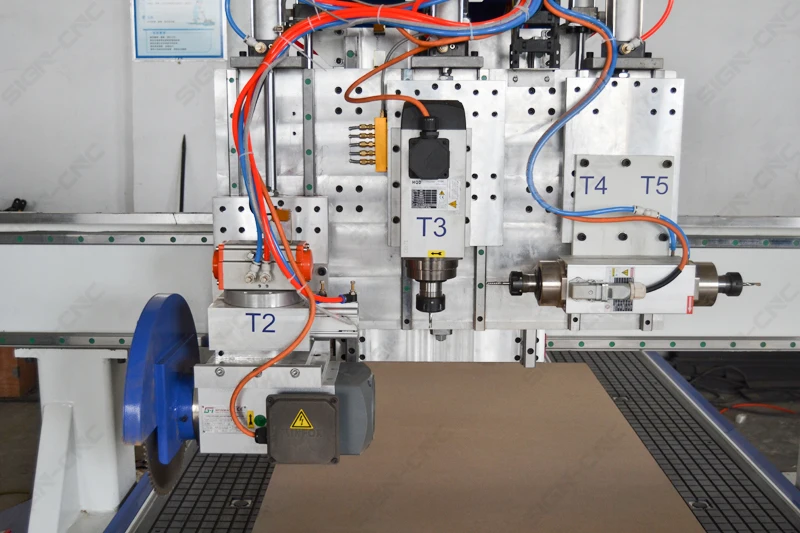

2. Two air cooling spindles (One vertical spindle 4.5kw and one horizontal spindle 3.5kw)
3. Fuling inverter 5.5kw

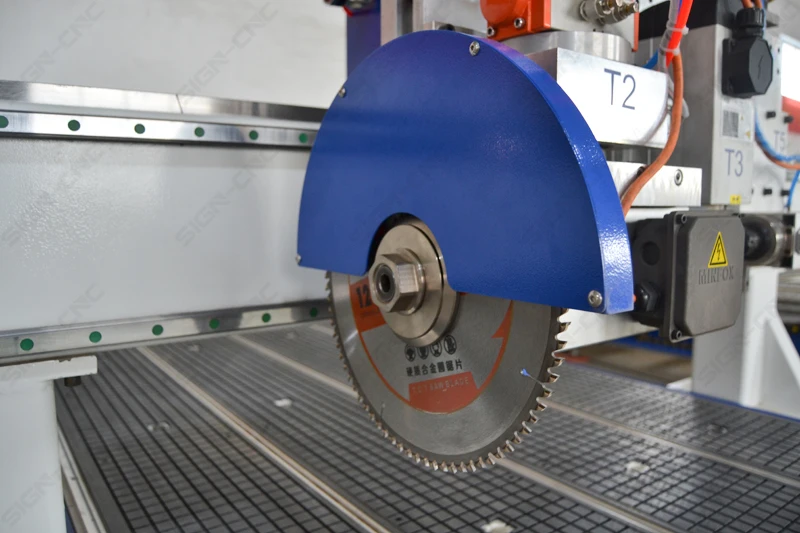

4. 3kw or 9kw saw for X and Y axis cutting
5. Hiwin 25# square guide rails, rack and gear transmission
6. Vacuum table with T-slot and 6 suckers
7. Vacuum pump 5.5kw
8. Leadshine 750W servo motor and driver
9. X and Y with reducer 750W
10. Heavy Reliable steel frame, six lag more stable.
11. The lubrication system ensures the stability of mechanical parts.
12. Dust collector make the workshop more clean during working
13. Breakpoint memory, can continue to work after power off & breaking bits
2. Two air cooling spindles (One vertical spindle 4.5kw and one horizontal spindle 3.5kw)
3. Fuling inverter 5.5kw
4. 3kw or 9kw saw for X and Y axis cutting
5. Hiwin 25# square guide rails, rack and gear transmission
6. Vacuum table with T-slot and 6 suckers
7. Vacuum pump 5.5kw
8. Leadshine 750W servo motor and driver
9. X and Y with reducer 750W
10. Heavy Reliable steel frame, six lag more stable.
11. The lubrication system ensures the stability of mechanical parts.
12. Dust collector make the workshop more clean during working
13. Breakpoint memory, can continue to work after power off & breaking bits
Applicable Materials and Industry:
|
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
|
Technical Parameter:
|
Model |
SIGN-1325 / SIGN-1530 / SIGN-2030 / SIGN-2040 |
|
X, Y Working size |
1300*2500mm / 1500*3000mm / 2000*3000mm / 2000*4000mm |
|
Z feed Height |
300mm |
|
Table Surface |
Vacuum table with t-slot |
|
Sucker |
6 pieces |
|
Vacuum pump |
5.5kw (air cooling) |
|
X, Y Structure |
Hiwin 25# Square Guide Rail, Gear and Rack |
|
Z Structure |
Hiwin 25# Square Guide Rail and Ball Screw |
|
Max. Power Consumption |
(Without spindle) 2.0Kw |
|
Max. Rapid Travel Rate |
35000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Vertical spindle |
4.5 KW air cooling spindle |
|
3.5 KW air cooling spindle |
|
|
Spindle Speed |
0-18000RPM |
|
Saw motor |
3kw |
|
Drive Motors |
Leadshine servo motor and driver 750W |
|
Reducer |
750W reducer |
|
Working Voltage: |
380V 3-phase |
|
Command Language |
G code |
|
Control System |
Syntec control system |
|
X,Y,Z repositioning Accuracy |
±0.01mm |
|
X,Y Resolution |
<0.01mm |
|
Software |
Artcam and Artform |
|
Running Temperature |
0 degree - 45 degree |
|
Relative Humidity |
30% - 75% |
|
Package |
Standard export package by wooden case |
Detailed Images
Product Display
Jinan Sign CNC Equipment Co., Ltd.
 |
 |
 |
|
 |
Packaging & Shipping
Company Information
FAQ
FAQ
1.Q: How do you send your machine?
A: Tell me sea port name that near of you, we can send our machines to your port by sea or land or rail way, If you need we also can send the machine to your doors.
If you have any doubt, please contact with me, l will reply for you in time.
