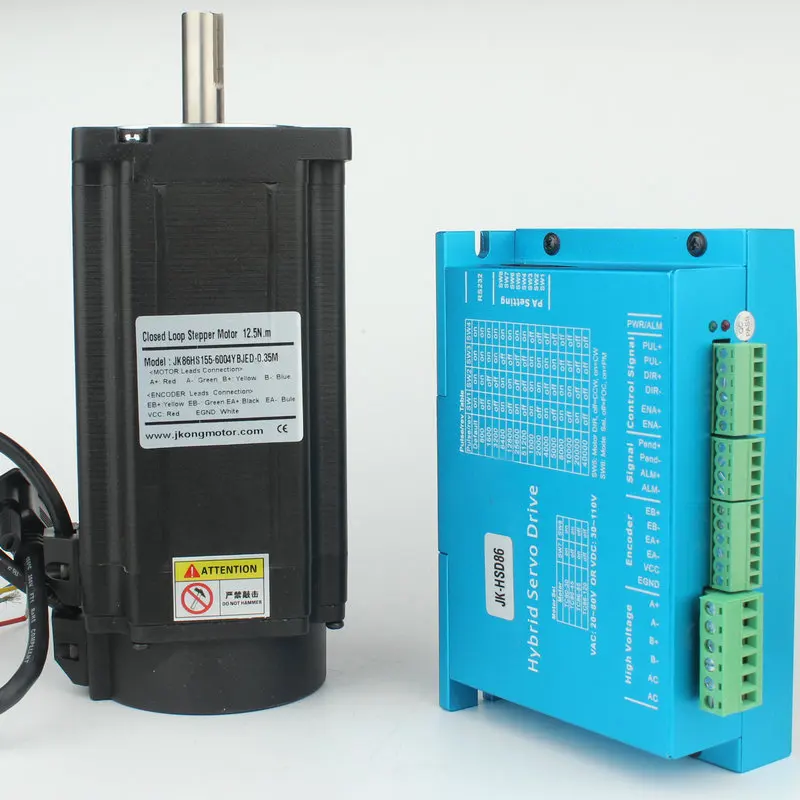

3 оси ЧПУ комплект nema 34 замкнутый контур шаговый двигатель и драйвер для фрезерного
- Категория: Stepper Motor >>>
- Поставщик: Changzhou,Jkongmotor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 118.55 $* | 120.23 $* |
| Jul-20-2025 | 96.67 $* | 98.21 $* |
| Jun-20-2025 | 116.80 $* | 118.71 $* |
| May-20-2025 | 115.72 $* | 117.96 $* |
| Apr-20-2025 | 92.54 $* | 94.85 $* |
| Mar-20-2025 | 113.81 $* | 115.61 $* |
| Feb-20-2025 | 113.9 $* | 115.43 $* |
| Jan-20-2025 | 112.16 $* | 114.33 $* |
Характеристики
Genaral Specification:
Step angle:1.8°Temprature rise:80℃ max
Ambient Temperature:-20℃-+50℃
Insulation Resistance:100Mohm,500VDC
Dielectric Strength:820VAC for 1 minute
Shaft Axial Play:0.08MAX.(450-load)
Shaft Radial Play:0.08MAX.(450-load)
Max. radial force:220N
Max. axial force:60N
Ambient Temperature:-20℃-+50℃
Insulation Resistance:100Mohm,500VDC
Dielectric Strength:820VAC for 1 minute
Shaft Axial Play:0.08MAX.(450-load)
Shaft Radial Play:0.08MAX.(450-load)
Max. radial force:220N
Max. axial force:60N
Details Images
Dimensions:
(Unit=mm)

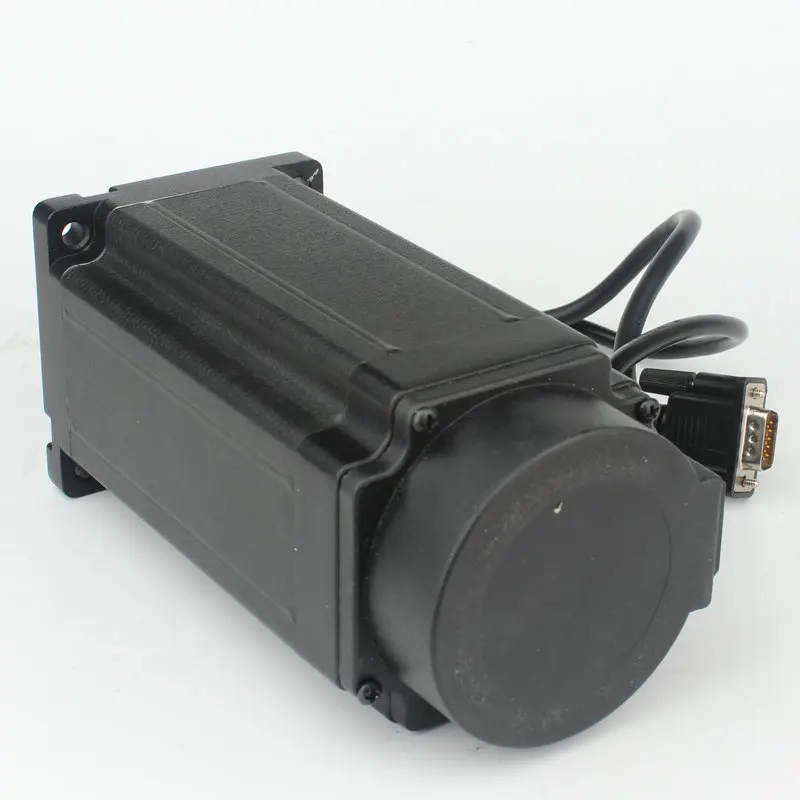

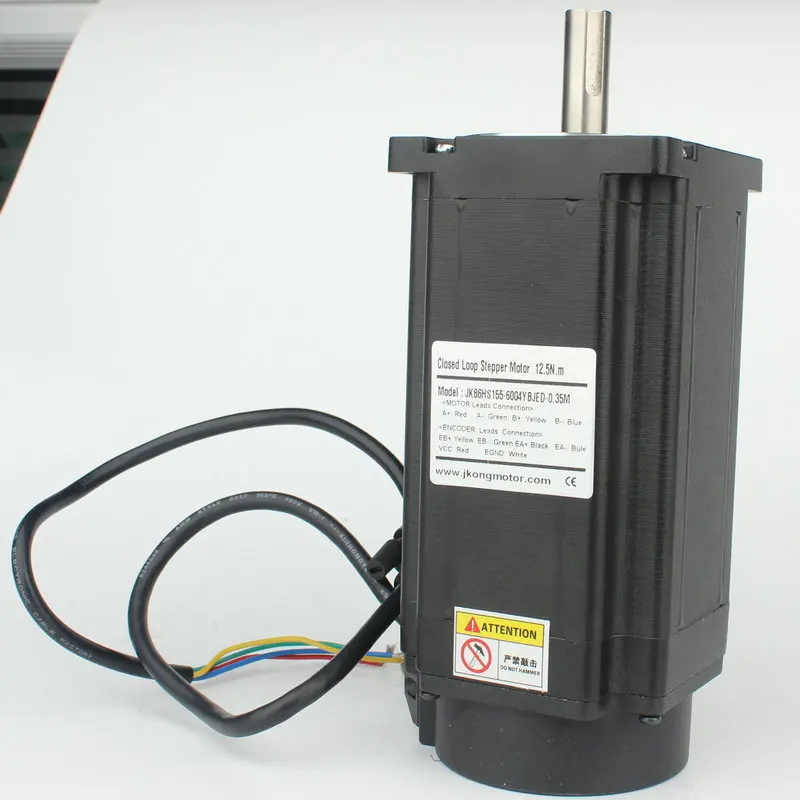

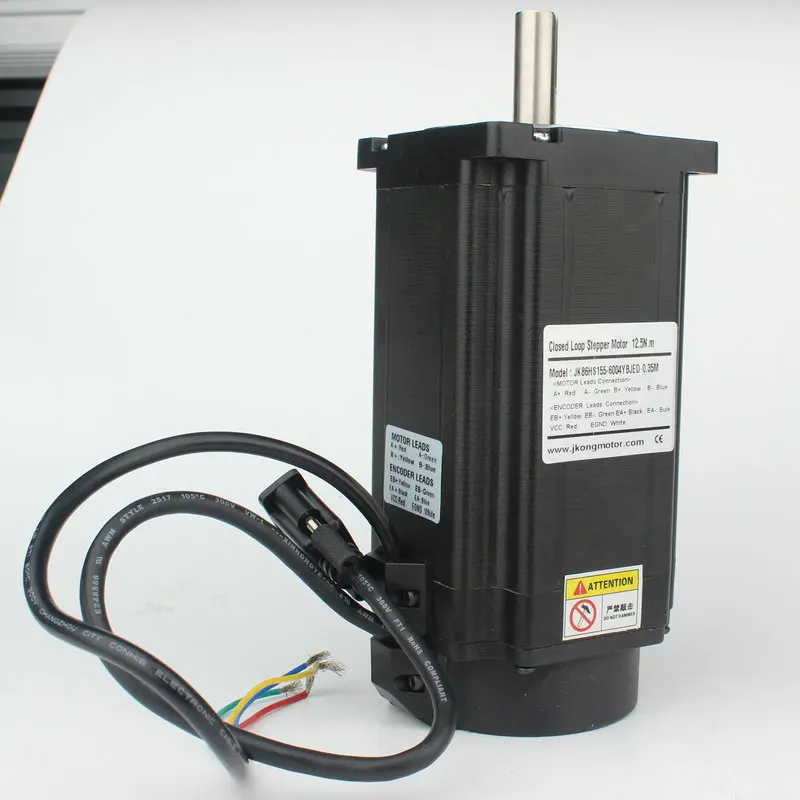

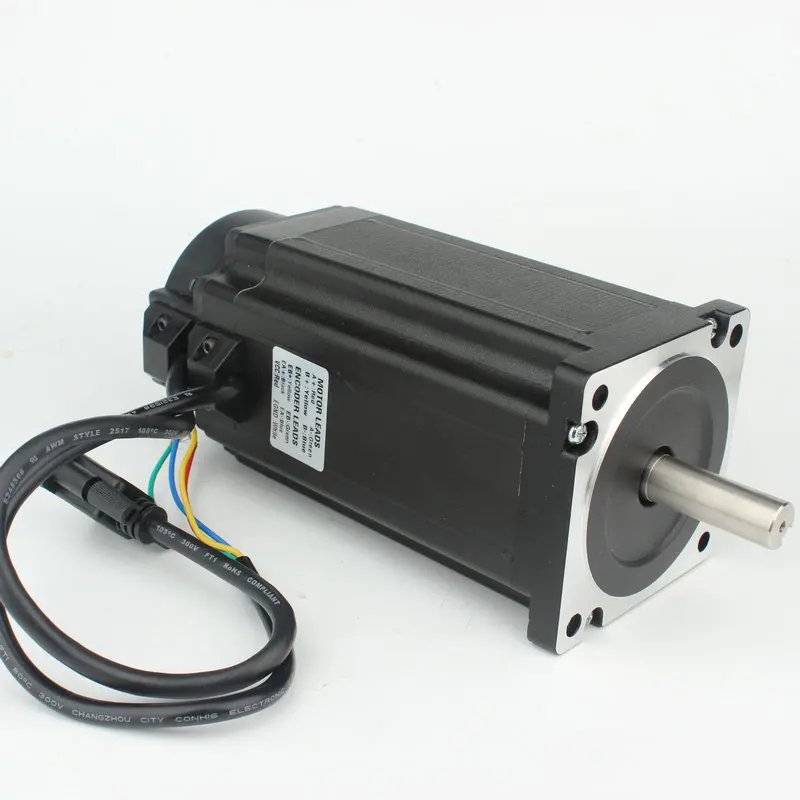

Photo of stepper motor with encoder.
Connection mode
Specification
型号 Model No. | 步距角 Step Angle （°） | 长度 Motor Length（mm） | 电流 Current /Phase（A） | 静转矩 Holding Torque （N.m） | 引线数 # of Leads (NO.) | 重量 Weight （KG） |
JK86HS78-6004XBJED-0.35M | 1.8 | 78 | 6 | 4.5 | 4 | 2.8 |
JK86HS115-6004YBJED-0.35M | 1.8 | 115 | 6 | 8.5 | 4 | 4.3 |
JK86HS155-6004YBJED-0.35M | 1.8 | 155 | 6 | 12 | 4 | 5.9 |
Production Process
Manufacturing Technique
Other products:
Hybrid stepper motor/brushless DC motor/stepper driver/BLDC driver/closed loop stepper motor/gear reducer stepper motor/gear reducer brushless DC motor/spindle motor and VFD/AC servo motor kit/DC motor/coupling/pully and so on.
