Hengwang мобильная буровая установка для бурения скважин с обратной циркуляцией воды дистанционным
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 23800.22 $* | 24990.32 $* |
| Aug-18-2025 | 23600.13 $* | 24780.28 $* |
| Jul-18-2025 | 19800.78 $* | 20790.8 $* |
| Jun-18-2025 | 23200.6 $* | 24360.39 $* |
| May-18-2025 | 20200.62 $* | 21210.64 $* |
| Apr-18-2025 | 22800.2 $* | 23940.78 $* |
| Mar-18-2025 | 22600.60 $* | 23730.37 $* |
| Feb-18-2025 | 22400.18 $* | 23520.0 $* |
| Jan-18-2025 | 22200.86 $* | 23310.2 $* |
Характеристики
Product Description
Hengwang Mobile Reverse Circulation Water Well Drilling Machine RC Drilling Rig
The impact frequency of reverse circulation tractor drilling rig is 40 times /min, the main and the auxiliary hoisting capacity is 30KN, the motor power is 45kW,not include 6BS pump. The weight of the shot bit is 4T, and it is equipped with overall cast-iron,has impact resistance.stronger impact force, high drilling efficiencoy, used for drilling 800-1500mm diameter hole. The main and the auxiliary hoisting capacity of reverse circulation tractor water well drilling rig is 50kN, maximum drilling hole diamneter is 20m and drilling hole depth is 80mjiting stroke of hoist is 1.5-3.0m,main power is 75kW. The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement. About the drill bit,except for the impact point is made of wear-resistant materials,the rest is made of 50mm or more stell plates. It can also be equipped with various specifications of drill bits.
Reverse circulation tractor drilling rig is suitable for complex foundation engineering construction, such as soil layer, cemented gravel and rock socketed,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.
Product Paramenters
Specification for Hengwang Mobile Reverse Circulation Water Well Drilling Machine RC Drilling Rig | ||
Drilling diameter | 550-2500mm | |
Drilling depth | 300m | |
Spindle Speed | 9r/min | |
Spindle Power | 15kw | |
The Spindle Torque | 22000N.m | |
Hoist Lifting Force | 18000kg | |
Mud Pump flow | 500m3/h | |
Mud Pump power | 30kw | |
Generating Set voltage | 380v | |
Rated Current | 90A | |
Rated Speed | 1500r/min | |
Rated Power | 75kw | |
size | 9200*2500*3500mm | |
weight | 12500kg | |

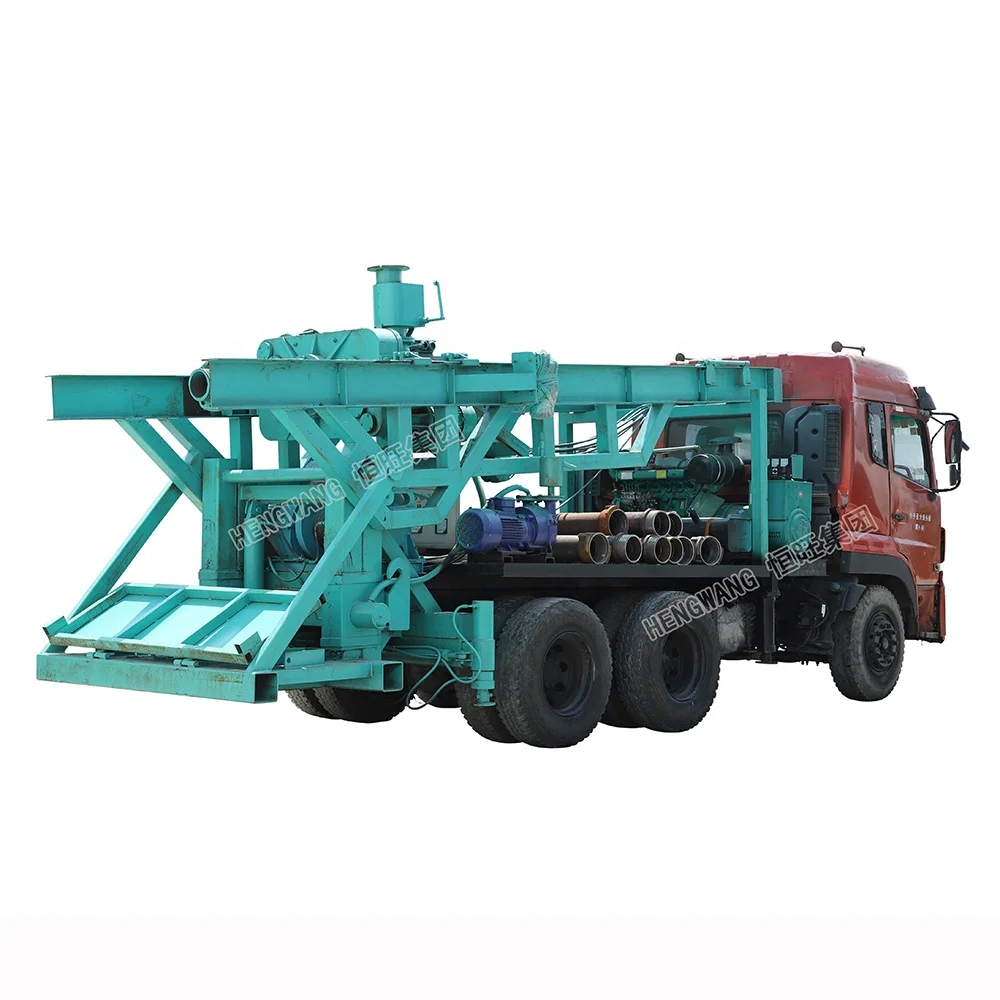

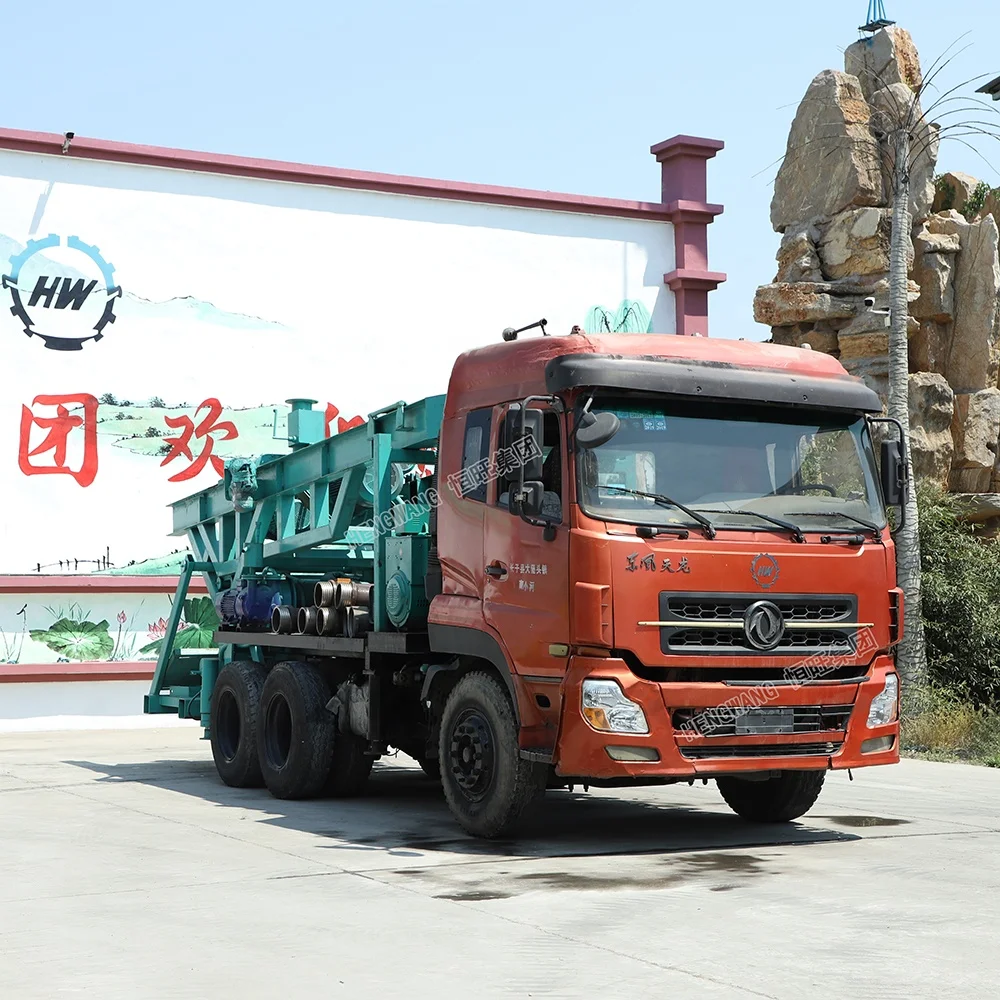

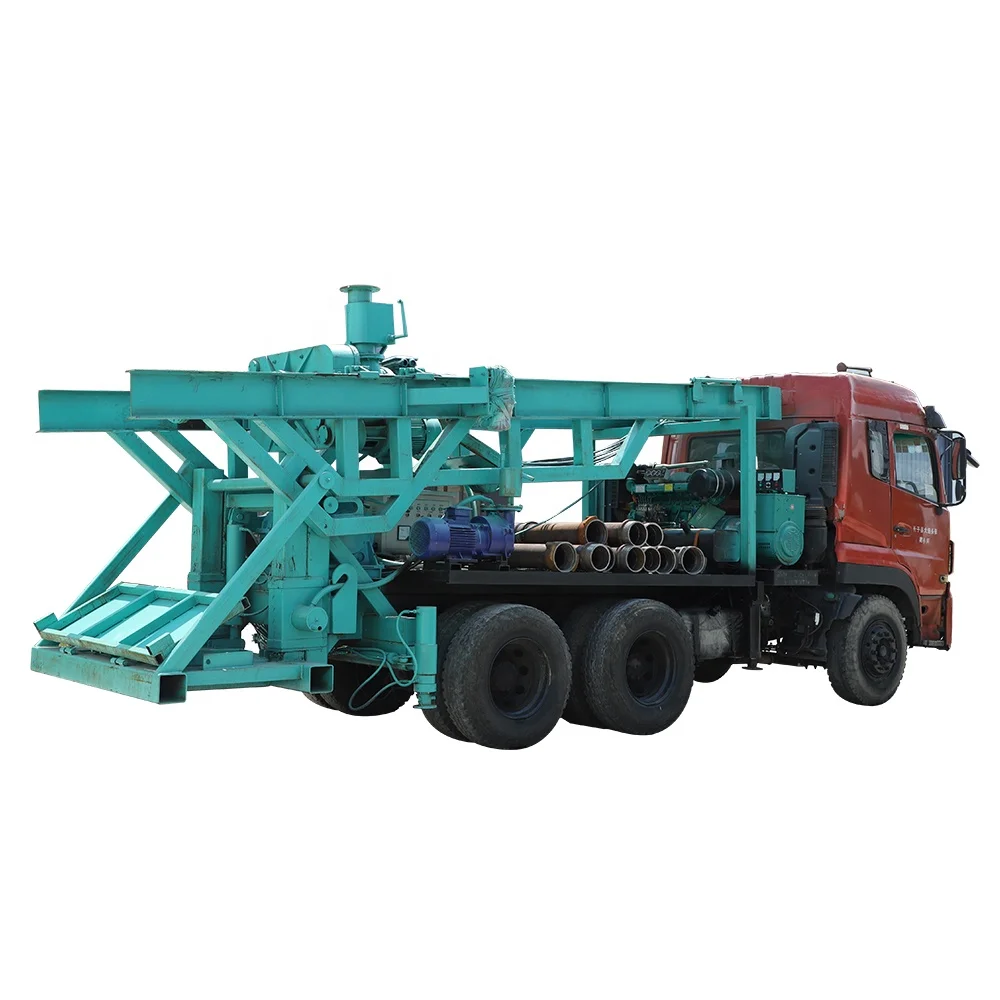

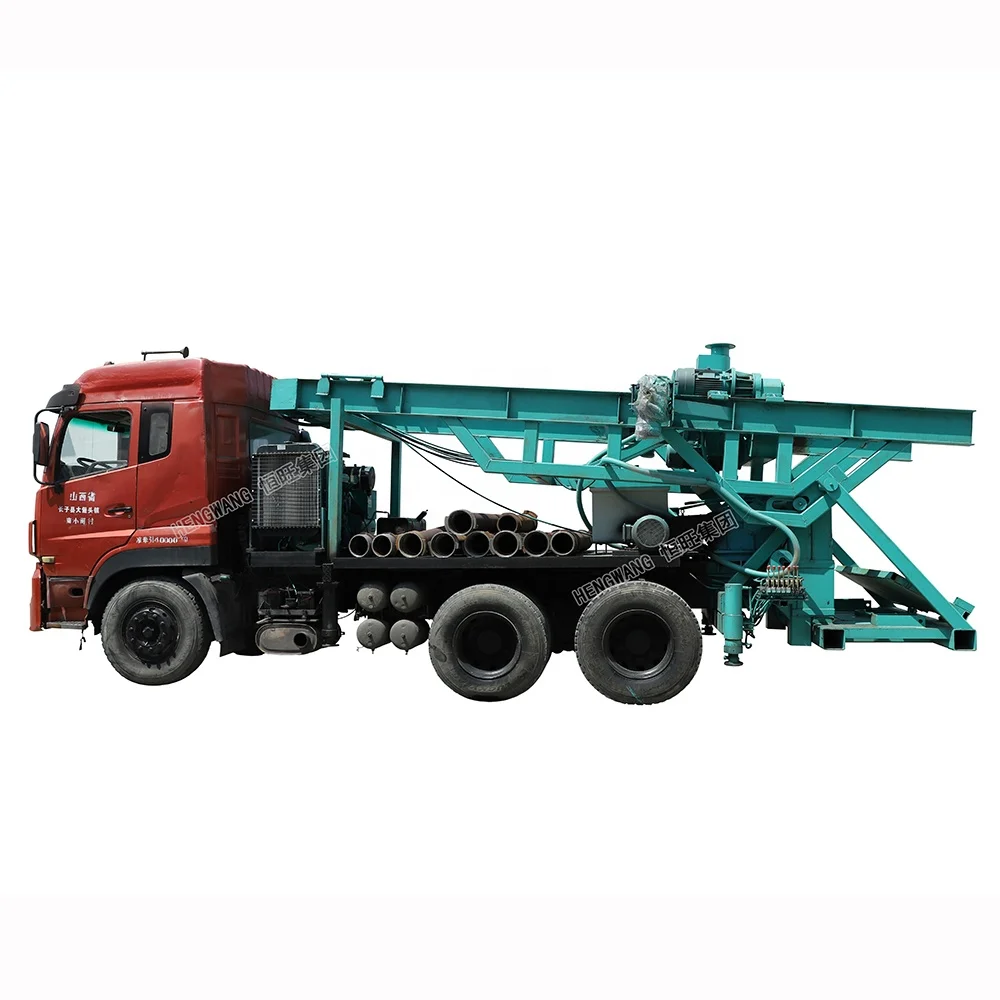

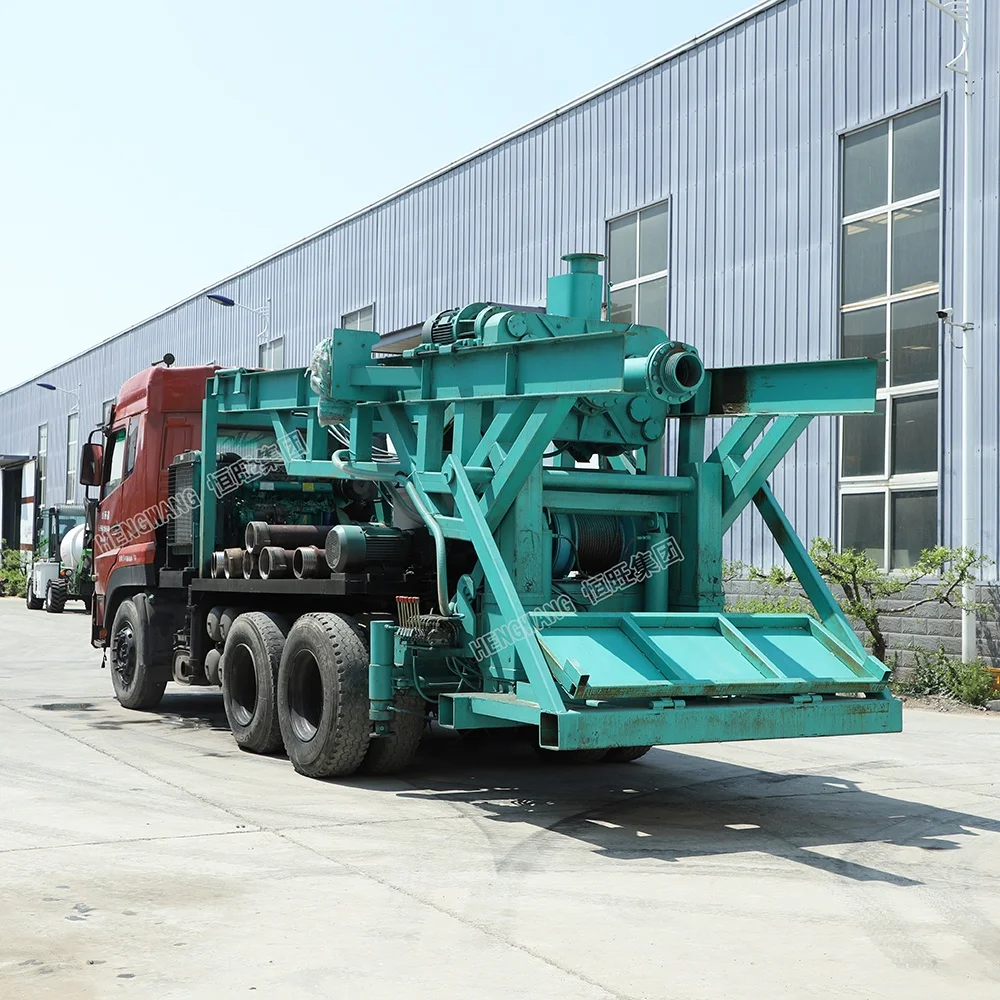

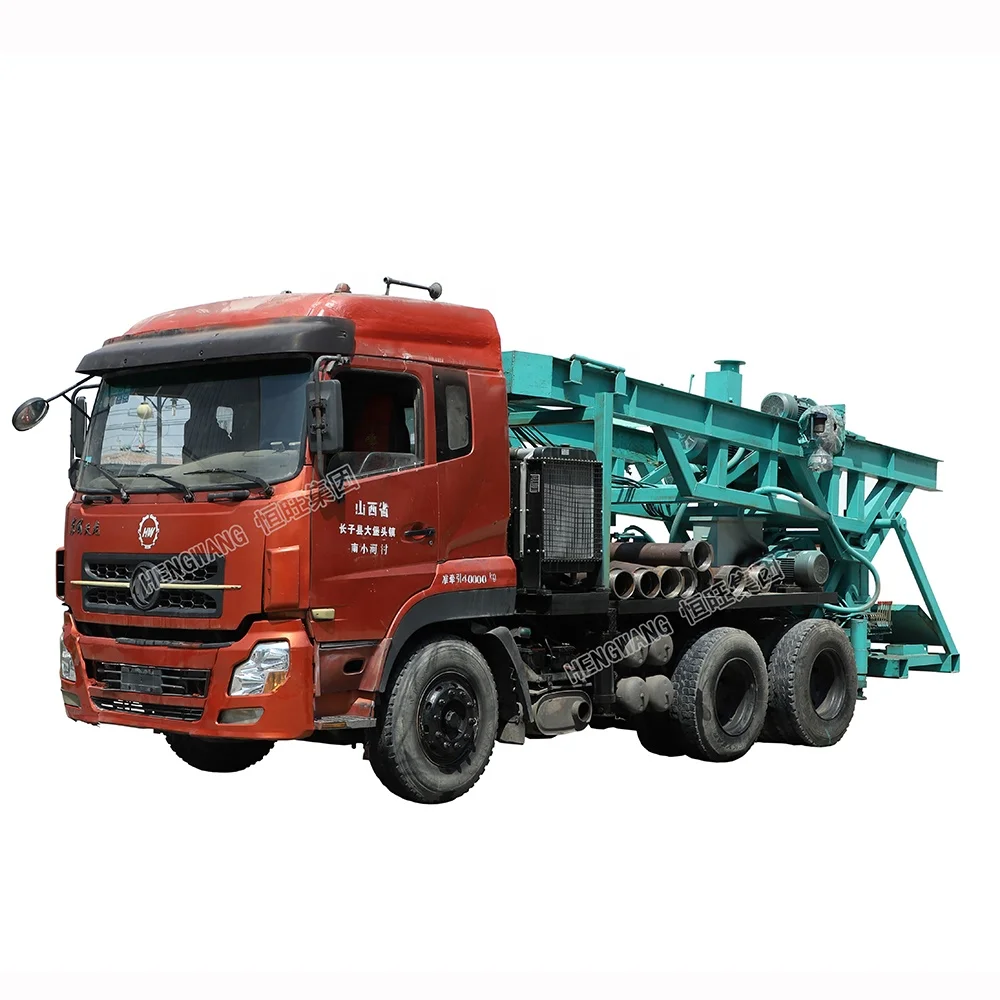

Detailed Images
Main features of reverse circulation drilling rig:
1.The big hole drill rig reverse circulation drilling rig can improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.The huge hole drill machine reverse circulation drilling rig can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.Pile drilling machine has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.Reverse circulation drilling rig also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas. truck mounted 2meter big hole diameter 30cm stone size Vacuum pump suction pile drilling rig with generator
2.The huge hole drill machine reverse circulation drilling rig can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.Pile drilling machine has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.Reverse circulation drilling rig also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas. truck mounted 2meter big hole diameter 30cm stone size Vacuum pump suction pile drilling rig with generator
Packing & Delivery
Hengwang Mobile Reverse Circulation Water Well Drilling Machine RC Drilling Rig
For soil boring reverse circulation drilling rig , if customer want it , it need a 40 feet container.
Payment & Credit
Customers buy our soil boring reverse circulation tractor water well drilling rig,they can choose any payment terms,also can pay by alibaba,we just want to supply most convenient way for customer,also will protect customer's money safe.
Exhibition
We have been participated in 2019 Shanghai BMW, the German BMW exhibition, exhibition of Pakistan, Russia of exhibition,exhibition of Vietnam, and so on.Our soil boring reverse circulation tractor water well drilling rig has got the favour of a lot of clients, and also made some cooperation, hope buyers from all over the world can know hengwang group in this way, we hope our soil boring reverse circulation tractor water well drilling rig can go to more countries.
Our Company
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of reverse circulation drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ
Q1.What is the main function of our reverse circulation drilling rig?
Ans.: It has different models used for all kinds of working site.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here.
Ans.: It has different models used for all kinds of working site.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here.
