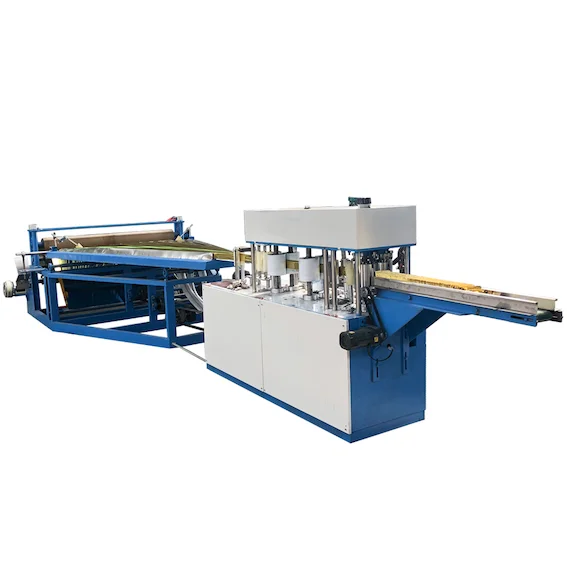

Алюминиевая аварийная машина для одеял из золотой и серебряной

Алюминиевая аварийная машина для одеял из золотой и серебряной

Категория: Прочие машины для одежды >>>
Поставщик: Lianyungang,Zhixinjie,Machinery,Co.,Ltd

Цена:20 770,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	24716.49 $*	25952.96 $*
Aug-20-2025	24509.74 $*	25734.81 $*
Jul-20-2025	20562.40 $*	21590.47 $*
Jun-20-2025	24093.24 $*	25298.29 $*
May-20-2025	20978.64 $*	22027.59 $*
Apr-20-2025	23678.31 $*	24862.27 $*
Mar-20-2025	23470.22 $*	24644.77 $*
Feb-20-2025	23262.37 $*	24425.63 $*
Jan-20-2025	23055.25 $*	24208.28 $*

Характеристики

Specification

Device name	emergency blanket folding machine
Model	YWJ-JJT -1600
function	Folding of emergency blanket

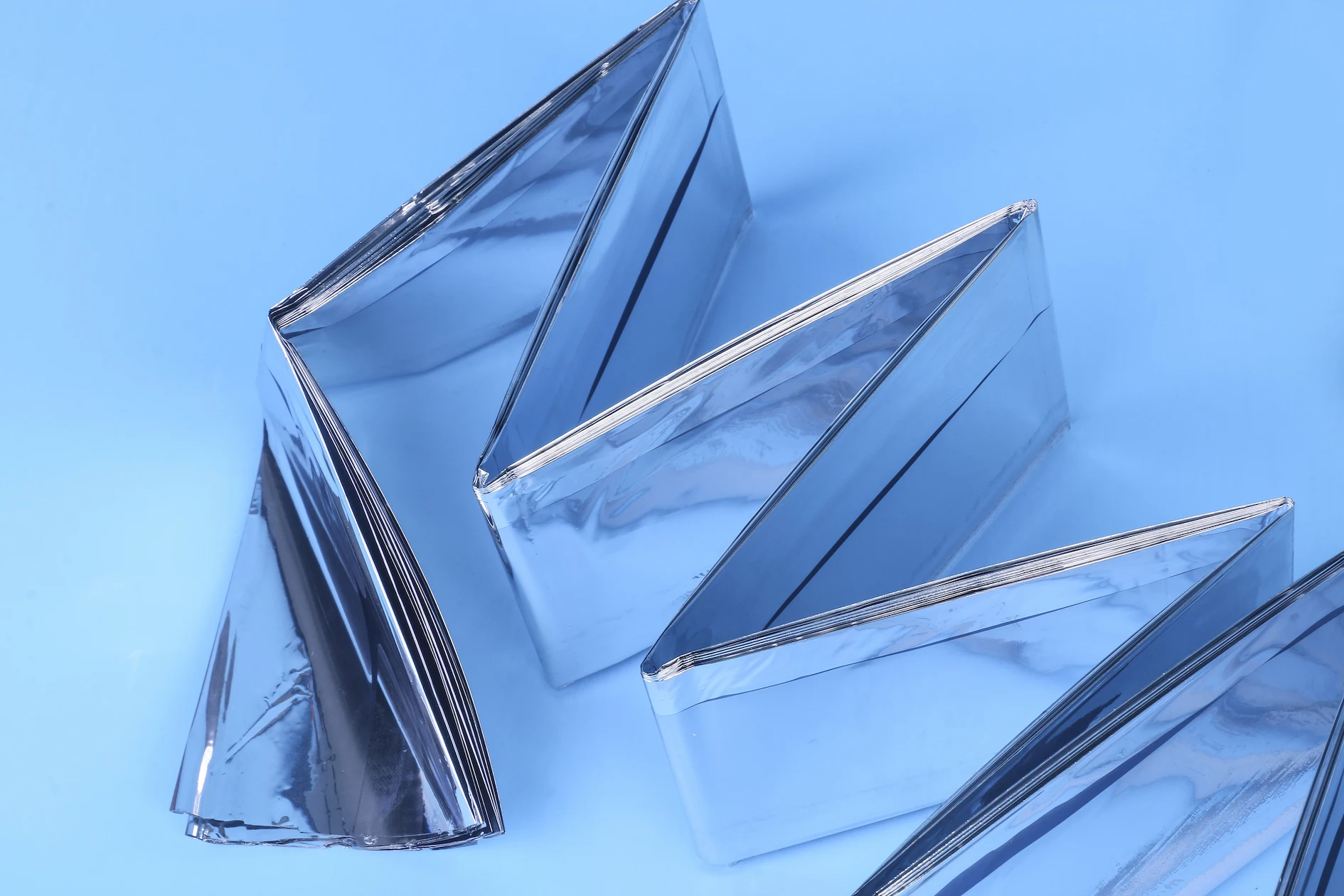

Folding method	Width: fan fold Length: Z folding
Discharging method	Using speed motor and conveyor belt to transport finished products
Width of raw material	1400-1500mm
Product size	14001900mm-15002600mm
Fan fold	Each fold 70mm
Z folding	Each fold 110mm
Material diameter	vacuum aluminum plating film
Inside diameter of paper tube	3 inches (75mm)
Material diameter	≦1000mm
Production rate	less than 70 meters per minute
Supply voltage and frequency	Three-phase electricity380v，60hz
Equipment power	3KW
weight	1000kg
Production line area	6200mmX2500mmX1400mm
Air compressor	Need air compressor, buyer provide

Product Description

Products Description

Packing & Delivery

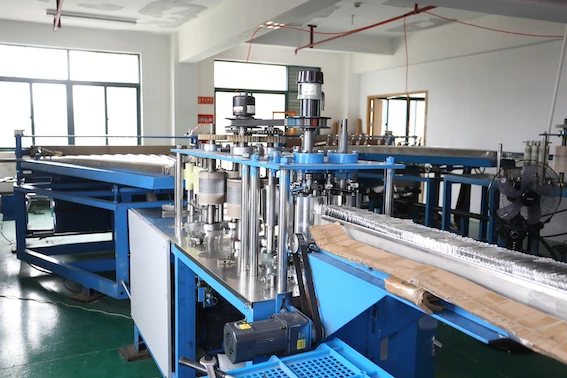

Manufacturing Technique

Equipment configuration

1.Adopts air expansion shaft to fix raw material
2.Adopts magnetic powder brake to Control the raw material into equipment
3. 1.5KW DELTA variable frequency motor drive
4. 1kW DELTA servo motor control cut dotted line，Working form:
Pre acceleration, pre deceleration, and the pre acceleration section is short, pre deceleration long, to ensure that the interruption of the knife to achieve the highest speed in the break and stop after the break
5.Cut length can be set ，control error in positive and negative 5 mm
6.Interrupt number of times can be counted continuously, can be cleared at any time
7.The length of the product can be adjusted on the touch screen (Adjustment range ：1000mm~3000mm)
8.The rollers are parallel to each other and perpendicular to the base plate.One side of the two pair of clamping rollers and the folding roller are fixed and can not be adjusted. The gap between pairs of rollers is adjusted on the other side, and the adjustment range is between 0~0.4 mm. Regulation method:handle adjustment with fine thread.

FAQ

1, Are you trading company or manufacturer?

We are manufacturer, and also provide the business solution to all the friends.

2, Do you have quality certificate?

Yes we have CE, SGS etc.

3,What's the delivery time?

Around 20~30days, however, based on order.

4, Can you help us to buy other goods?

Sure of that, it is our honor to work for you, and control the goods quality.
