Цена по прейскуранту завода Эко-дружественных 10000BPH 6 полости полностью автоматическая ПЭТ пластиковая бутылка выдувная формовочная


Поделиться:


Цена:90 000,00 $ - 100 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 107100.28 $* 112455.61 $*
Aug-17-2025 106200.31 $* 111510.27 $*
Jul-17-2025 89100.84 $* 93555.6 $*
Jun-17-2025 104400.1 $* 109620.22 $*
May-17-2025 90900.72 $* 95445.5 $*
Apr-17-2025 102600.84 $* 107730.74 $*
Mar-17-2025 101700.92 $* 106785.28 $*
Feb-17-2025 100800.64 $* 105840.72 $*
Jan-17-2025 99900.85 $* 104895.50 $*

Характеристики



Product Description

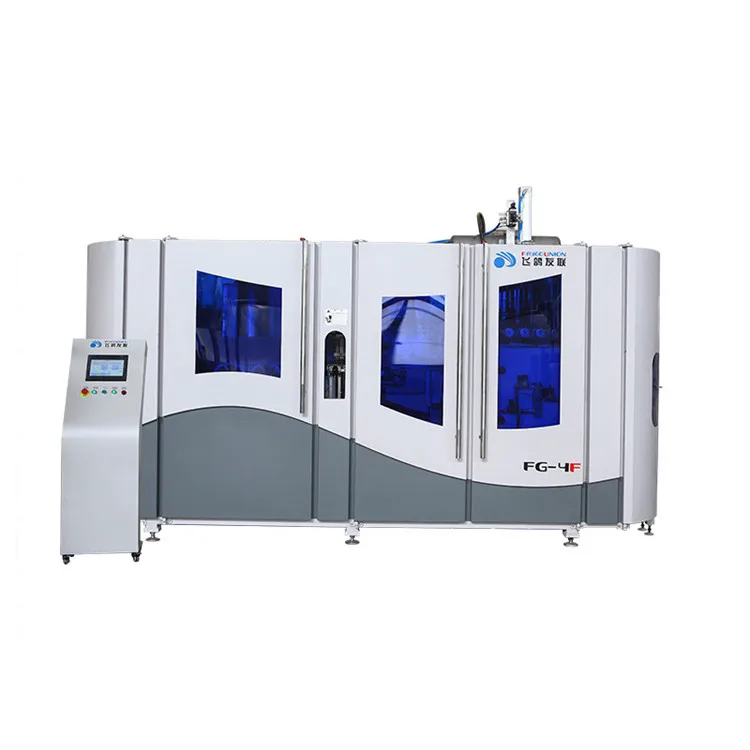

FG4 PET bottle blow molding machine




Faygo Union Machinery developed China first high speed linear blowing machine: FG4 whose single-mold speed can reach 2000 ВPН. FG4 has 4 cavities, production capacity is 80008PH.It is developed totally independently,has our own inellectual property rights, and has obtained more than 13 nationa patents.
This machine is equipped with automatic perform loading and botile unloading system. It is applicable for all shapes of drinking waterbottles, carbonated bottles and hot flling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and hostmachine.
FG4 is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high stability, meanwhile conforms tonational beverage sanitary standards. This machine symbolizes the highest level of national linear blowing machines. It is the ideal bottle making equipment for medium and large enterprises.

Step to stop blower
1.Off “preform enter” and “preform loading”.
2.After there is no preform inside the machine, off “heating” and “blowing”3.Turn off water chiller, let the machine run 5 minutes with outpreform, then off “start” and “servo”.
4.Turn off air compressor, air dryer, turn offer air inlet valve, exhaust the air inside the machine
5.Turn off the power, clean the machine and working place.

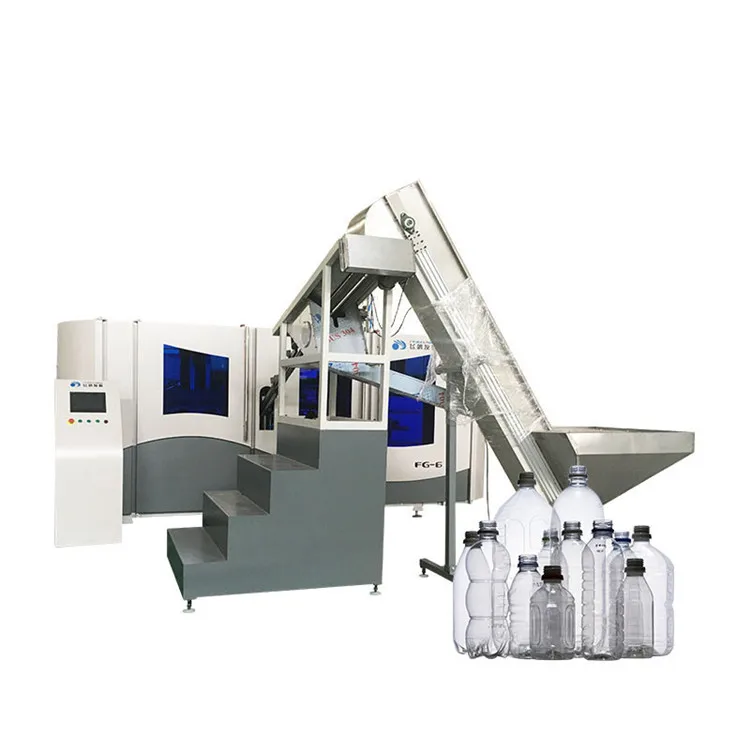

Workflow of FG6 bottle blow machine




Preform Preform unscrambler FG6 bottle blower PET bottle


Related products




Specification


Model

FG6
Mold Number (piece)
6
Max Capacity (BPH)
9000-10000
Bottle specification
Max Volume ( ml)
2000
Max  Height (mm)
328
Round bottle Max Diameter (mm)
105
Square bottle max diagonal (mm)
105
Perform specification
Suitable inner bottle neck (mm)
20--25
Max preform length (mm)
150
Electricity
Total installation power (kw)
51
Heating oven total power (kw)
46
Heating oven real power (kw)
26
Voltage/frequency (V/HZ)
380V(50HZ)
Allowed voltage fluctuation range
342V-- 418V
Compressed air
Pressure (bar)
30
Air consumption (m3/min)
6
Cooling water
Mold water
Pressure (bar)
4--6
Temperature regulation range (℃)
6--13
Flow rate (L/min)
45
Oven water
Pressure (bar)
4--6
Temperature regulation range (℃)
6--13
Flow rate (L/min)
22


Configurations


Blowing valve
Servo system
Reducing valve


Frequency inverter
PLC touch screen

Magnetic valve & Cylinder
One-way valve
Throttle valve


Our Advantages


When it cormes to bottling drinks production, 70% energy occurs at the blower. We understand that every grams of PET material you save and every electrictiy watt you reduces can turn into massive return in the future.
Smart Process
Up to 45% less by heating
Minimize distance of heating heads, maximize the heating efficiency.
up to 30% less by air
Servo driving and cam linking movement blowing section.
Smart Maintain
Up to 20 mins change mold
Up to 80% less maintain cost
Modularized design convenient for maintenance and changing changeovers.
Smart Result
Up to 99.9% qualified rate
Efficient and soft perform inlet system, ensure speed and preform protection.


Detailed Image



Servo driving system
The unique cam linking system integrates molding-opening, mold-locking and bottom mold-elevating in one moment, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerate the speed.



heating system
Equipped with remote monitoring system, engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile, feedback will be informed to the client's site if something abnormal, give the machine 24 hours' baby care in the cradle.


Air cycling system
Heater distance in the heating oven is minimized to 38mm, compared with the conventional heating oven, it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat disacharge system, it ensures the constant temperature in the heating zone.





Molds
The machine adopts modularized design concept to make it convenient and cost-saving for the maintence and changingovers, To change mold only need 30 minutes.


Packing & Delivery




Packing by film or wooden cases. Also we can pack the products according to customers' needs.


Company Profile


Our company






Our company is a high-tech enterprise covering 20000 m2 ,which specalizes in reserching and manufacturing blowing machines near twenty years. we are a strong team and big familiy, we are always stand-by to provide servise for all our customers.



Our certification




Our customer




FAQ


Q:Are you machinery factory or trading company?
A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.

Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.

Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we will pick up you at the airport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

Q:How long is the warranty?
A:1 year

Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.

Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
.
