Фара для электровелосипеда в водонепроницаемый разъем разъемы питания е-байка/ходовые электрические велосипедные

Фара для электровелосипеда в водонепроницаемый разъем разъемы питания е-байка/ходовые электрические велосипедные

Категория: Other Connectors >>>
Поставщик: Shenzhen,Realeader,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.20 $*	0.72 $*
Aug-18-2025	0.54 $*	0.57 $*
Jul-18-2025	0.22 $*	0.96 $*
Jun-18-2025	0.24 $*	0.66 $*
May-18-2025	0.66 $*	0.89 $*
Apr-18-2025	0.30 $*	0.97 $*
Mar-18-2025	0.30 $*	0.38 $*
Feb-18-2025	0.92 $*	0.69 $*
Jan-18-2025	0.75 $*	0.26 $*

Характеристики

Products Description

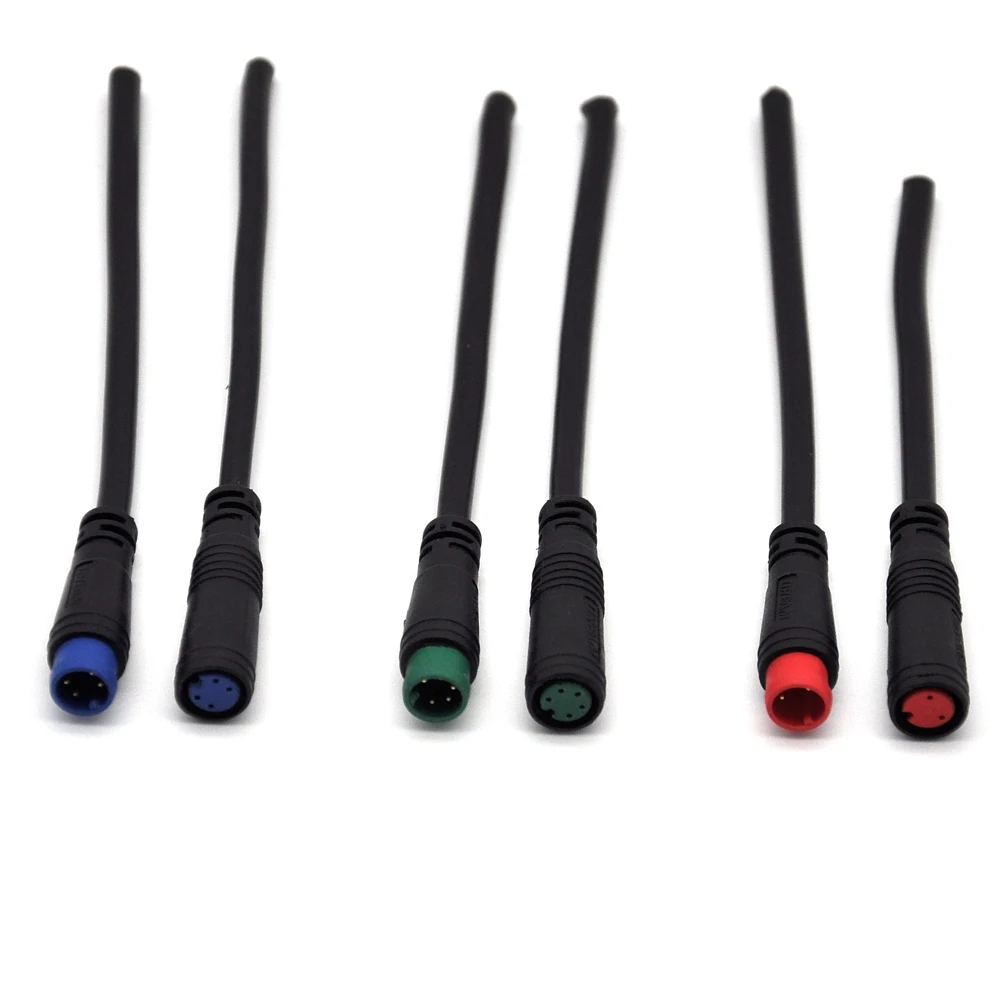

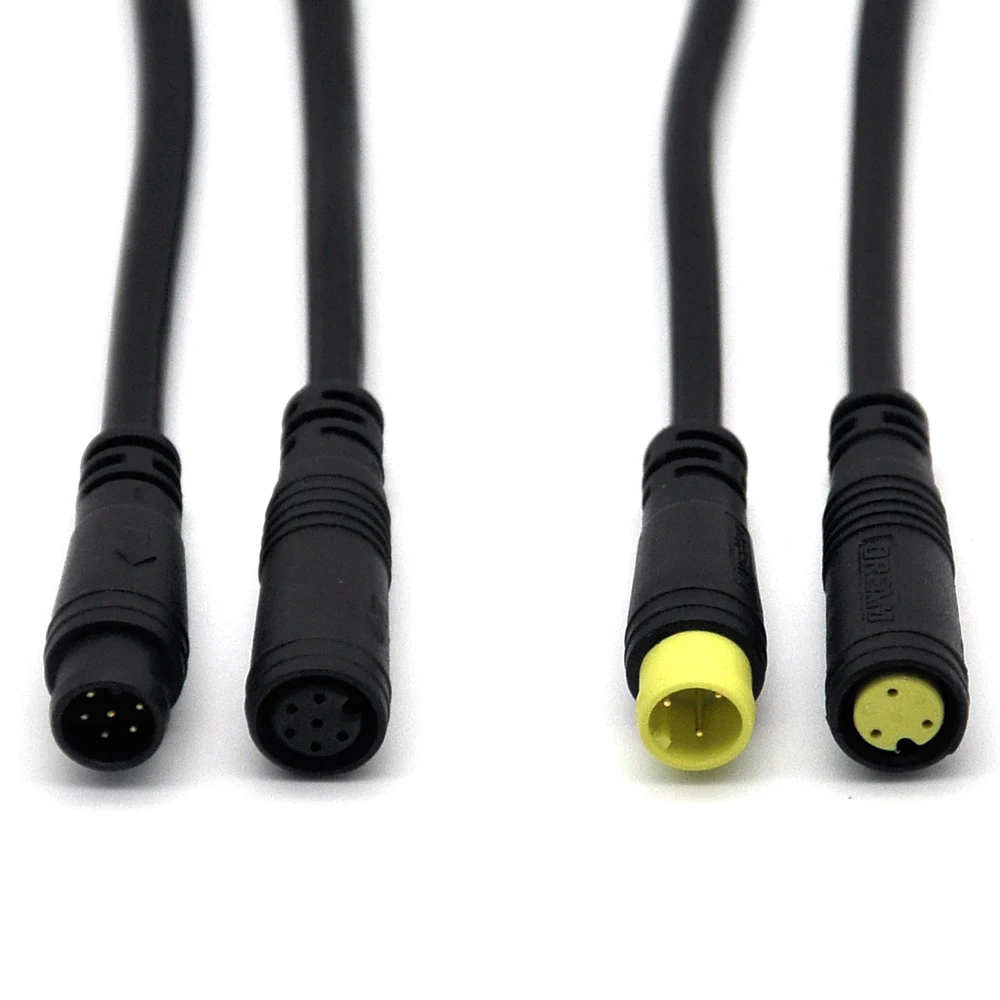

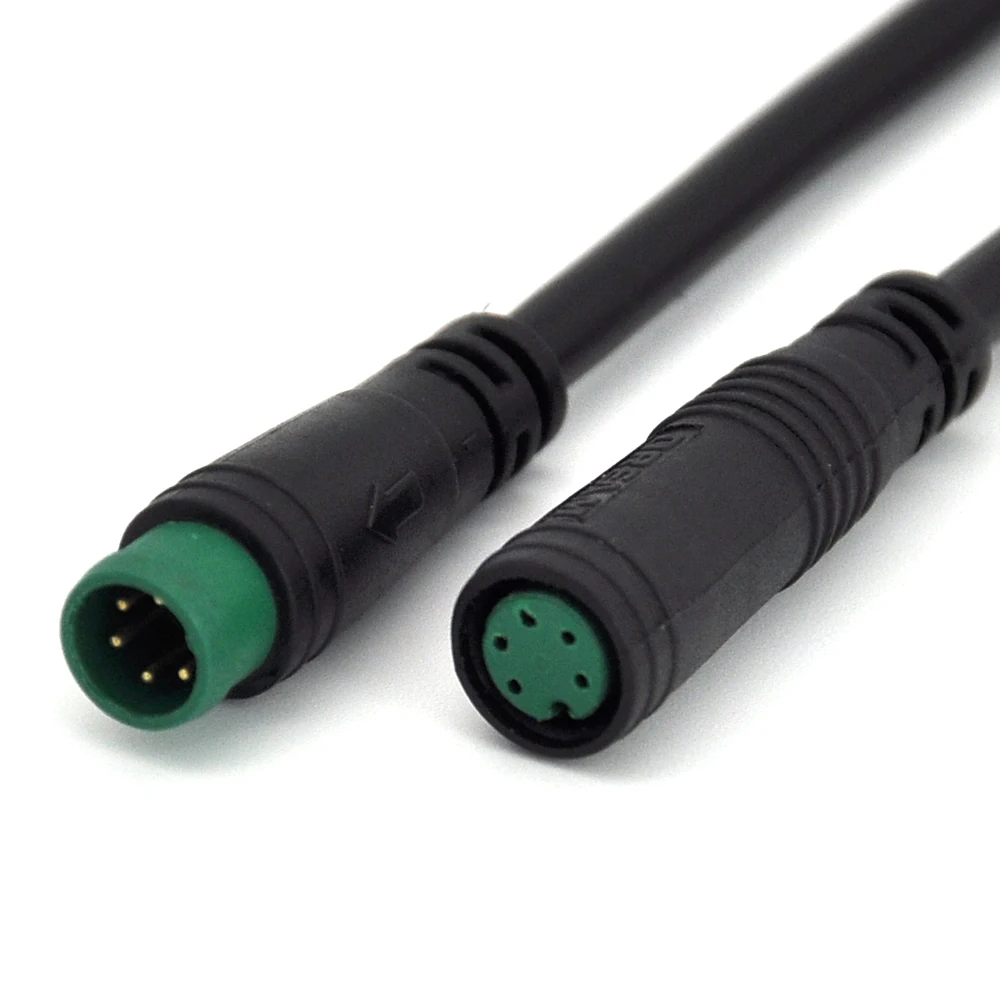

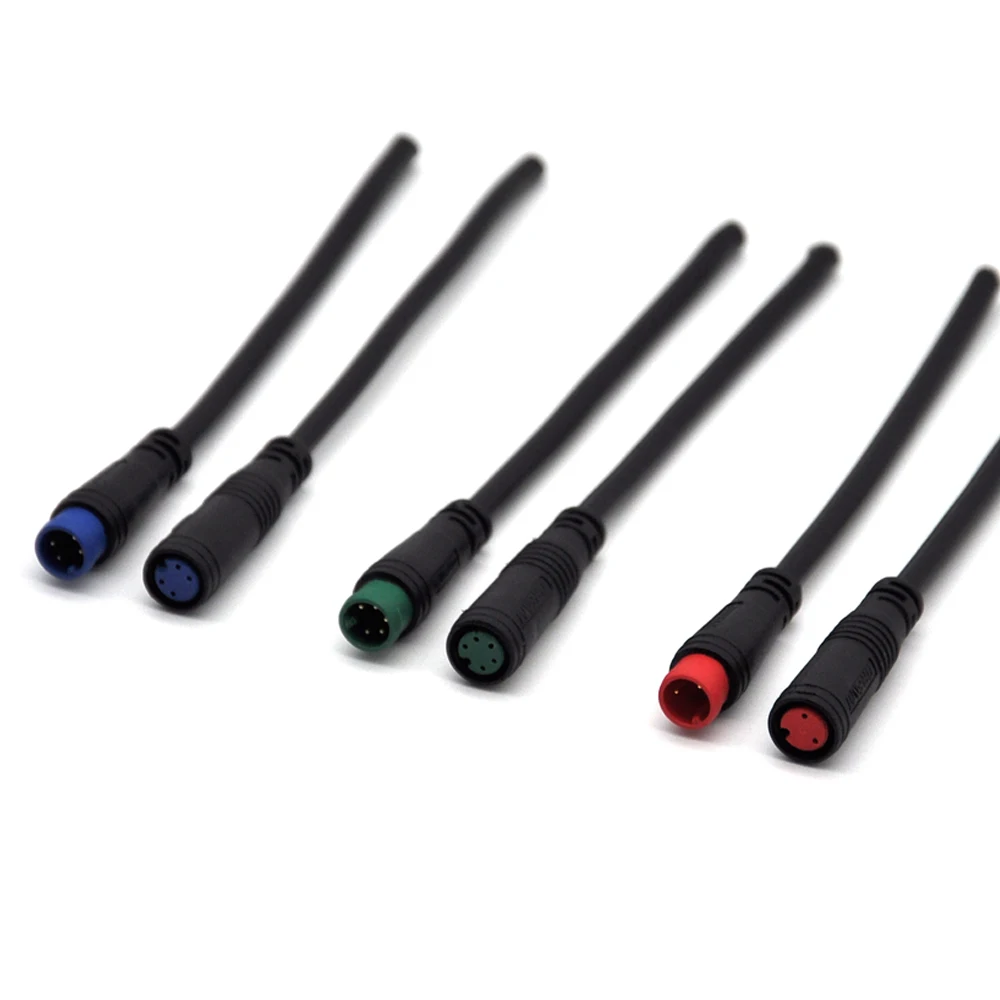

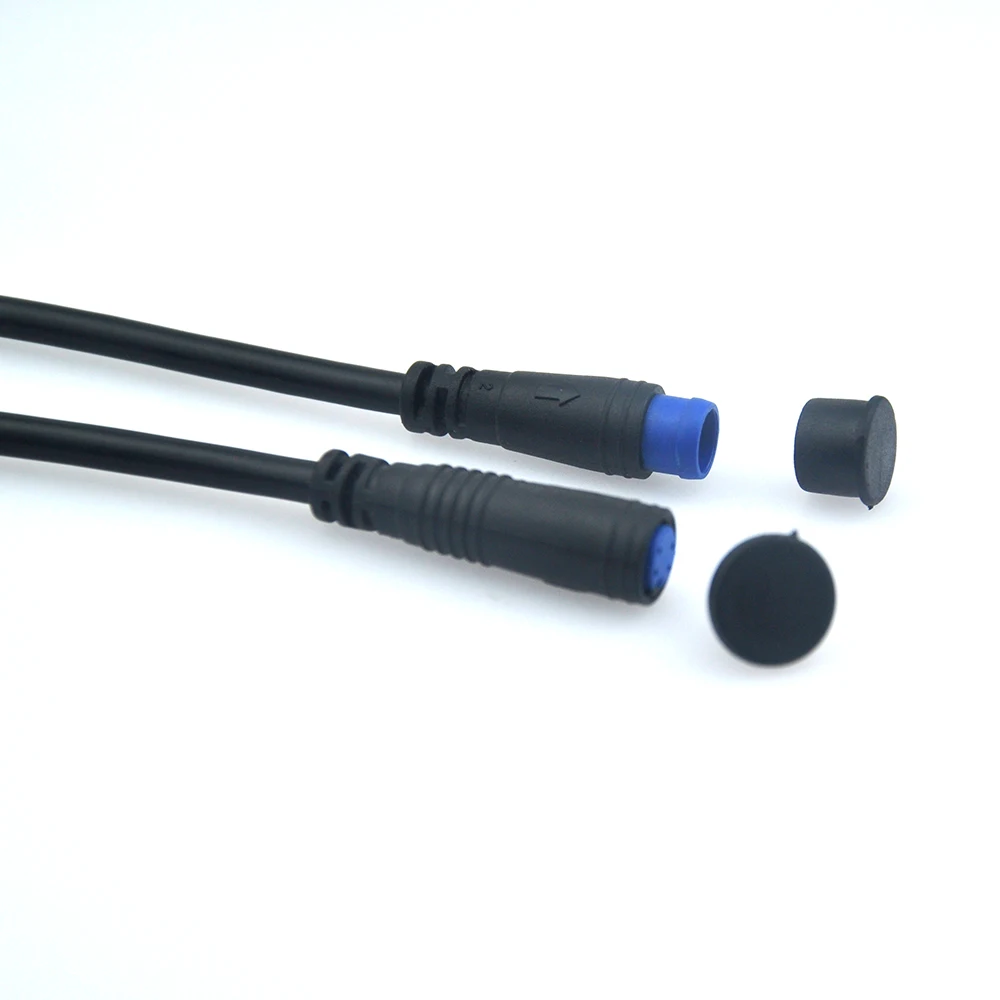

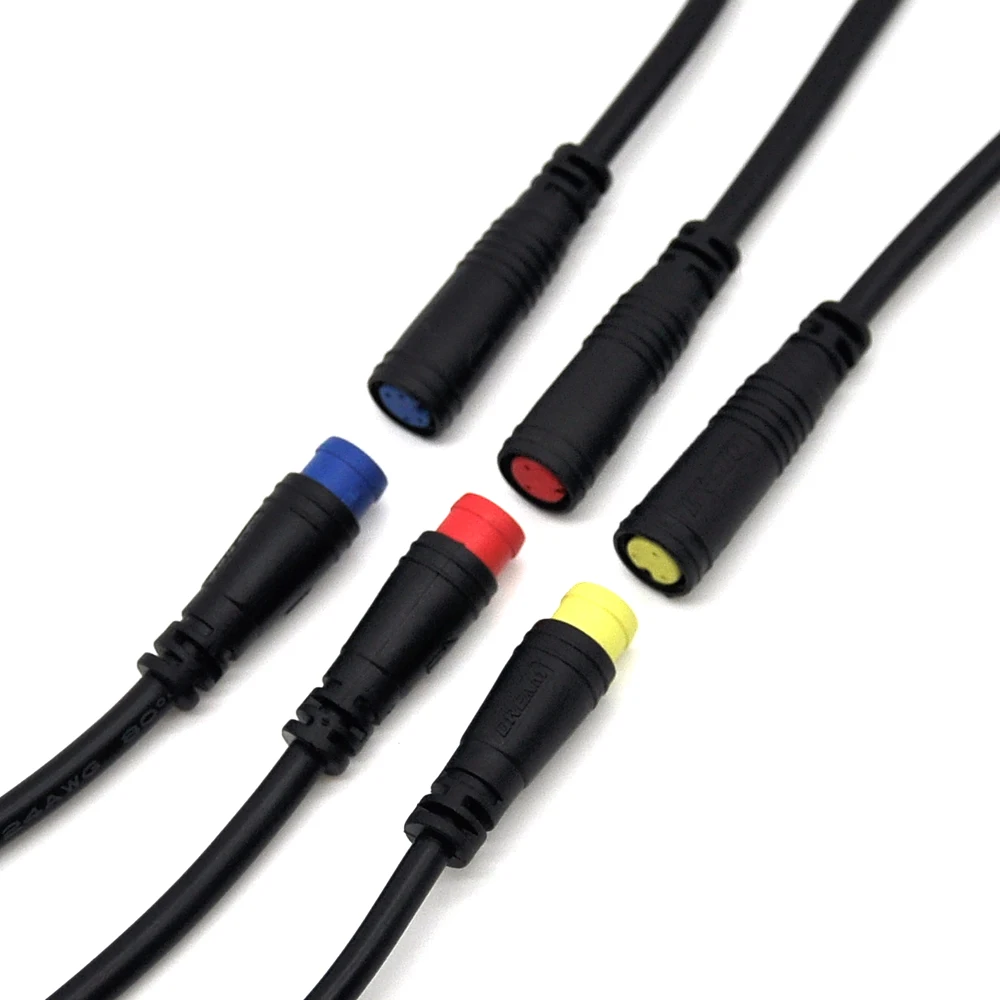

E-BIKE Electric Bike 5pin Motor Waterproof Extend Cable Connector e bike Bicycle

1. Direct plug-in assembly, simple in using, convenient in installation;
2. Specially designed for low-voltage, weak-current products;
3. With compact structure, small and exquisite shape, the plug is more suitable for product needs;
4. Our company developed the plug for electric bicycle signal lines in 2011.

Product Specification

Contact Cores	2Pin	3Pin	4Pin	5Pin	6Pin
Rated Voltage	2A	2A	2A	1.5A	1.5A
Rated Current	60V AC	60V AC	60V AC	40V AC	40V AC
Contact Resistance	10mΩ	10mΩ	10mΩ	10mΩ	10mΩ
Insulation Resistance	100MΩ	100MΩ	100MΩ	100MΩ	100MΩ
IP-Code	IP65	IP65	IP65	IP65	IP65
Cable Specifications	≦0.3mm²	≦0.2mm²	≦0.2mm²	≦0.2mm²	≦0.2mm²
Cable Range	0-4mm	0-4mm	0-4mm	0-4mm	0-4mm

Details Images

Product Paramenters

Customized Cases

Customer Feedback

Product packaging

Why Choose Us

Shenzhen Realeader Industrial Co.,Ltd

Shenzhen Realeader Industrial Co.,Ltd , which focus on waterproof connectors for over 14 years. Realeader's main products are waterproof plugs , waterproof connectors and circular connectors . The company with independent research and development capabilities , scientific and sound production management system and a wide rang of testing equipment , has passed ISO9001 quality management system.

Adhering to the spirit of continual learning and striving for perfection, the company has developed a variety of waterproof signal connectors , waterproof power connectors , waterproof motor plugs , waterproof mufti-function plugs, "T" type connectors , "Y" type connector , as well as other types of waterproof connectors and circular connectors . The products are widely used in LED lighting lamp , intelligent induction products , household products , new energies , electrical bicycle motor , outdoor appliance, transportation , agricultural machinery and other industrial and fields .

We sincerely look forwarder to working with the board masses of new and old customers sincere cooperation, mutual benefit the industry level and create a better future !

FAQ

1. Q: Do you have E-catalog? Can you send me the catalog to check all your products?
A: Yes,we have product catalog.Please contact us online or send an Email for catalog.

2. Q: I need your price list of all your products, do you have a price list ?
A: Sorry , we do not have the price list of all the product , we also need to check the price from our company price system ,thanks for your kindly understanding .

3. Q: Does your company provide OEM and ODM service ?
A: Yes , Our Company provide OEM & ODM service , Pls kindly provide your company Logo and Your own drawing for our engineer reference , thank you

4. Q : Can I have my own design for the package ?
A : Yes. Pls kindly provide your design and Dimension of the Cartons , thanks

5. Q: Can you provide Free samples ?
A: Yes , we can provide 2 piece free sample for your test , just pay the shipping cost we can send the sample to you .

6. Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer), Western Union and Paypal.

7. Q : What about your delivery time ?
A : We have a lot of products in stock . We can send the stock products in 3-4days. If without stock , we need to confirm the delivery time according to your detailed quantity .
