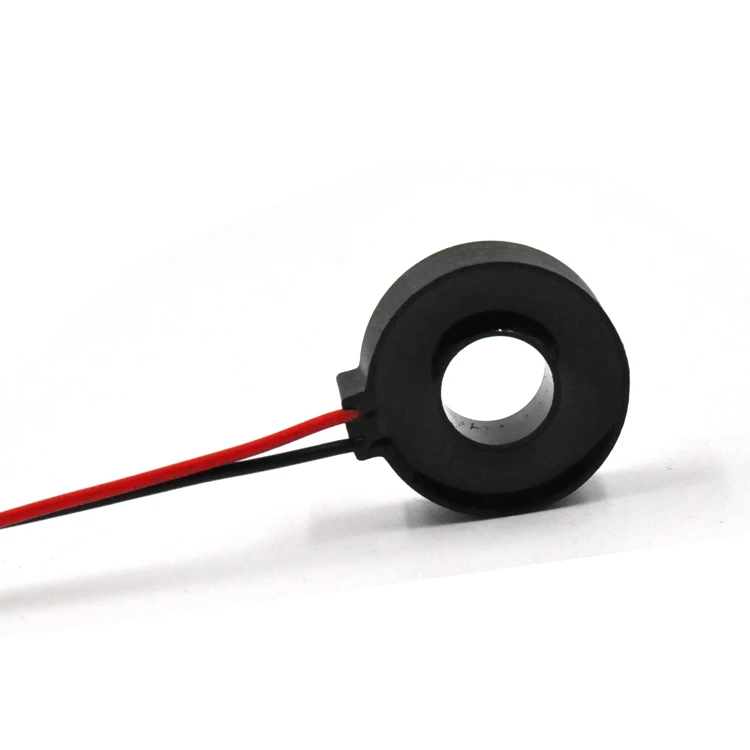

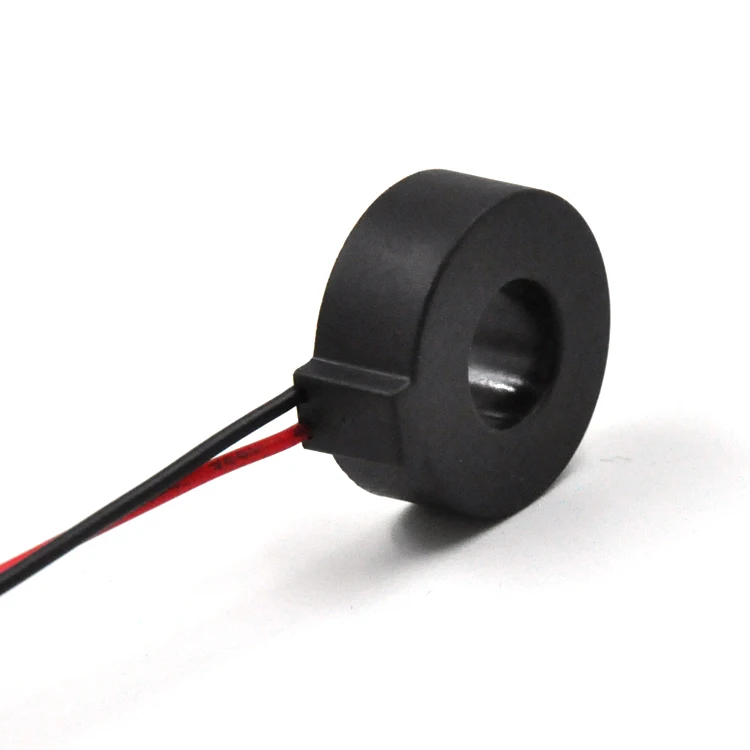

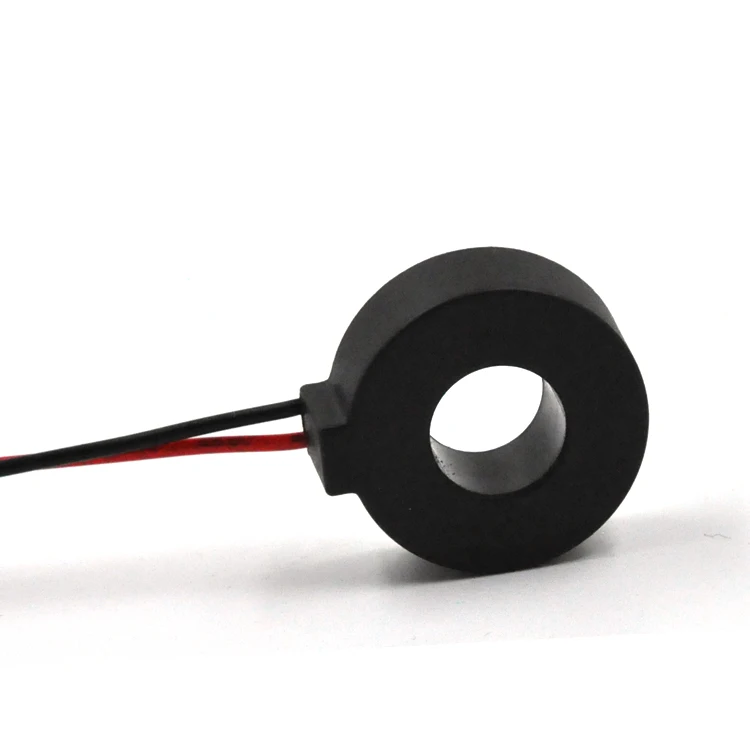

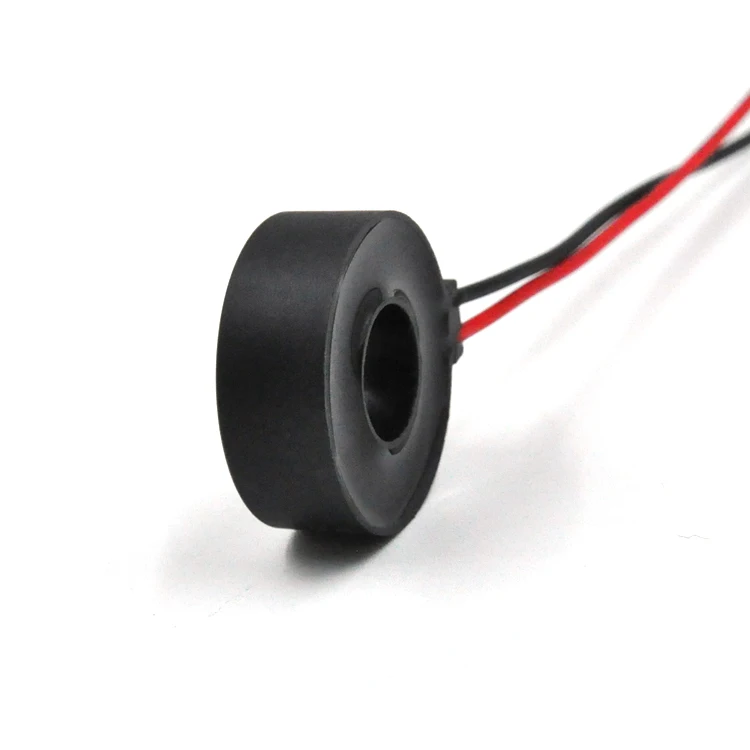

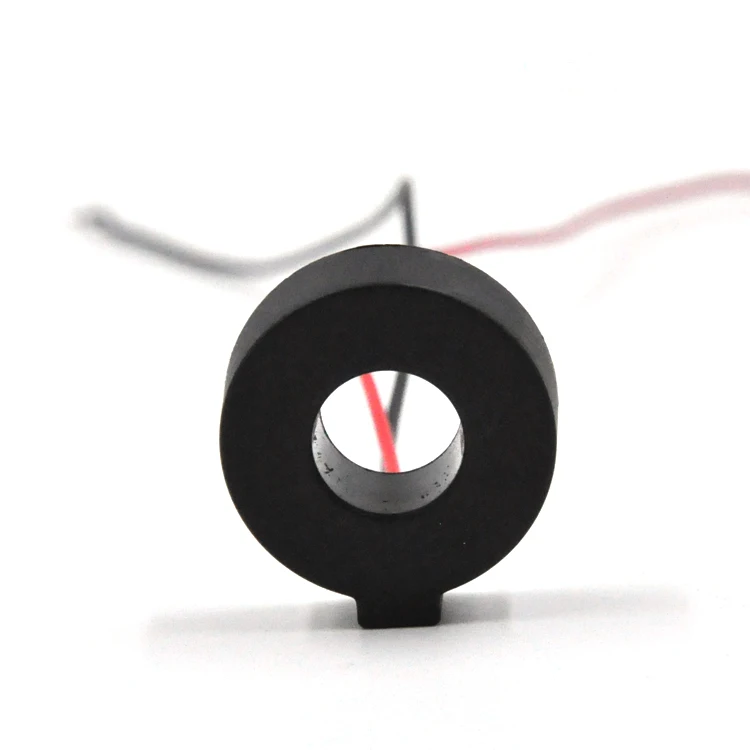

China supplier mini current transformer 40A/20mA ac current transducer
Feature:
1.Permalloy core, 2.High precision, good linearity; 3.Epoxy potting , Safe and reliable 4.Flame retardant (UL94- V0), 5.Environmental protection( EU RoHS). 6.Small size and light weight 7.Easy to assemble and weld Guideline: National standard gb 1208-2006; Industry Standard jbt 10665-2006. Use Temperature:-25℃-+85℃ Relative humidity:≤95% Scope of application: Suitable for instrumentation, etc., need to convert large current into small current for precise measurement, Used for precision measurement or as electrical safety protection. Notes: If the load connected to the secondary of the transformer exceeds the rated load capacity, it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.
Note: This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.
Specification:
No
Project
Performance
1
Model
DHC06CB6
DHC06CB7
DHC06CB8
DHC06CD6
DHC06CD7
DHC06CF6
2
Rated input current
20A
40A
30A
20A
40A
20A
3
Rated output current
10mA
20mA
15mA
20mA
40mA
40mA
4
Allow overload multiple
1.2 timers
5
Ratio
2000:1
1000:1
500:1
6
Ratio difference
≤0.1%
≤0.2%
≤0.5%
7
Phase difference
≤5´
≤10´
≤30´
8
Accuracy level
0.1
0.2
0.5
9
Linear range
0~120%
10
Linearity
≤0.1%
≤0.2%
11
Load Resistance
20Ω
12
isolation withstand voltage
3kV/2mA/1min
13
frequency range
20~20kHz(Test frequency:50Hz)
14
Working Temperature
-25~85℃
15
Storage Temperature
-40~90℃
16
Relative humidity
≤95%
Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.
