Китайско galvo Лазерная головка 20 Вт 30 50 raycus волоконный лазерный станок маркировочная
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Shandong,Liaocheng,Dinkum,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1785.4 $* | 1874.46 $* |
| Aug-16-2025 | 1770.14 $* | 1859.11 $* |
| Jul-16-2025 | 1485.99 $* | 1559.87 $* |
| Jun-16-2025 | 1740.93 $* | 1827.60 $* |
| May-16-2025 | 1515.85 $* | 1591.33 $* |
| Apr-16-2025 | 1710.10 $* | 1796.82 $* |
| Mar-16-2025 | 1695.68 $* | 1780.33 $* |
| Feb-16-2025 | 1680.98 $* | 1764.70 $* |
| Jan-16-2025 | 1665.71 $* | 1748.15 $* |
Характеристики
Product Description

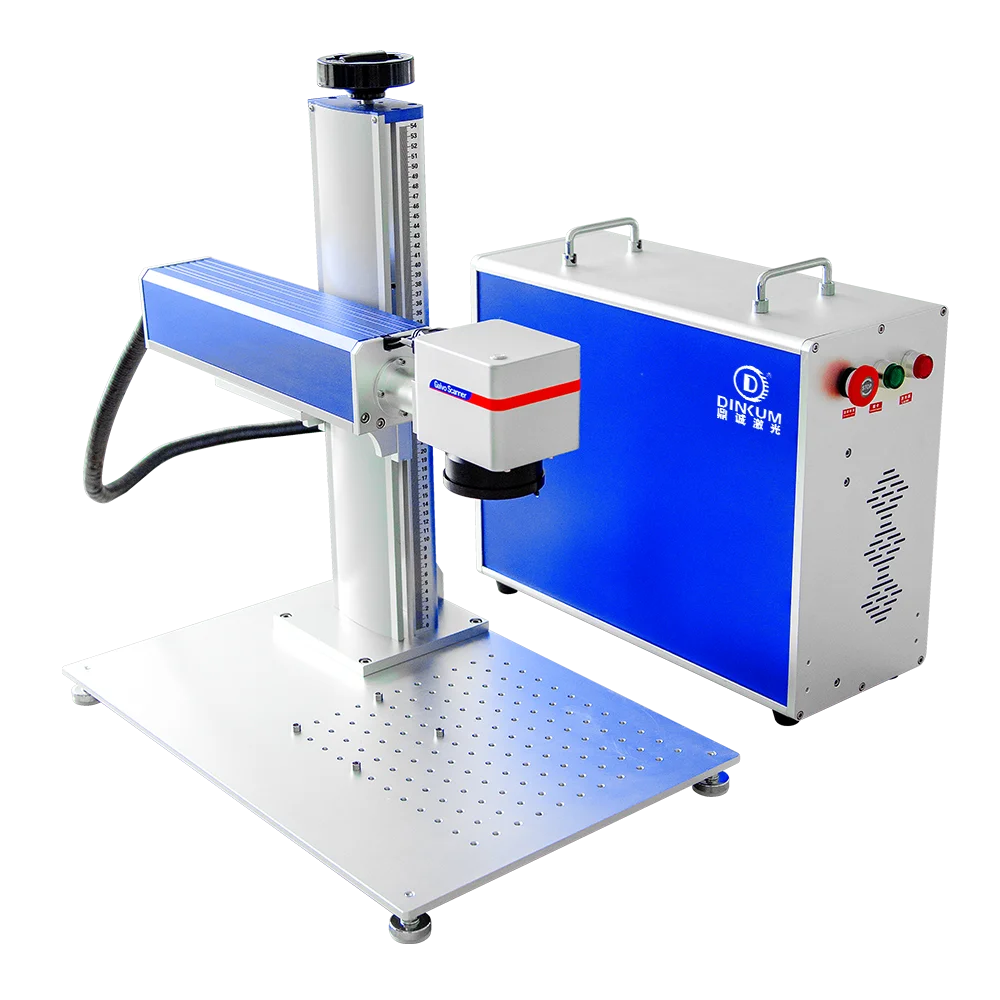

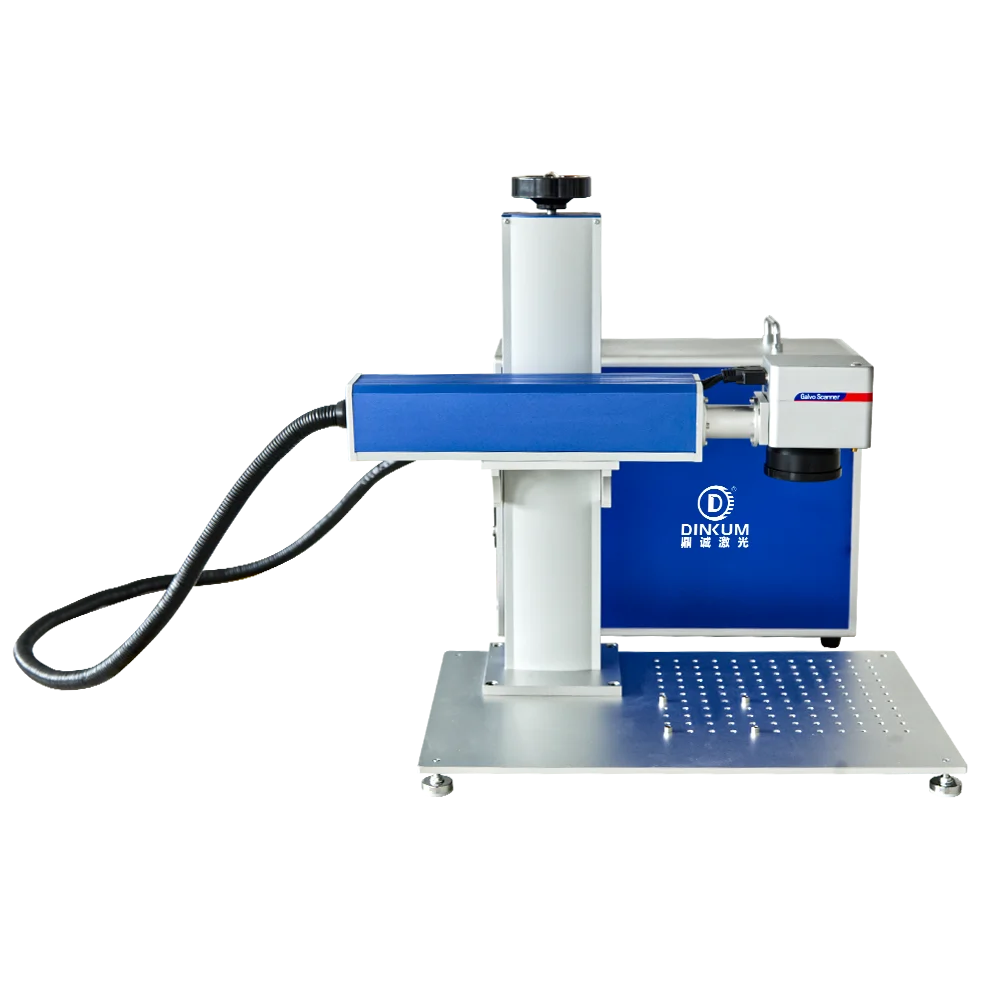

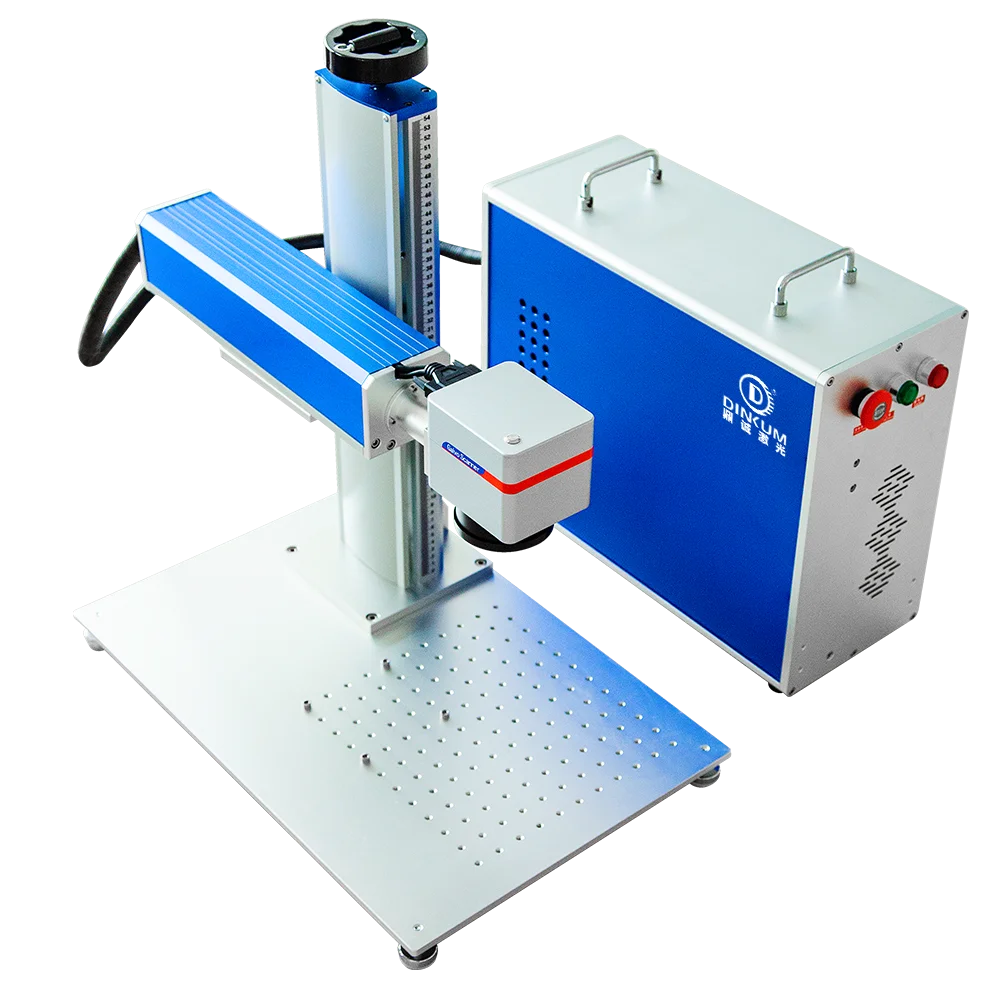

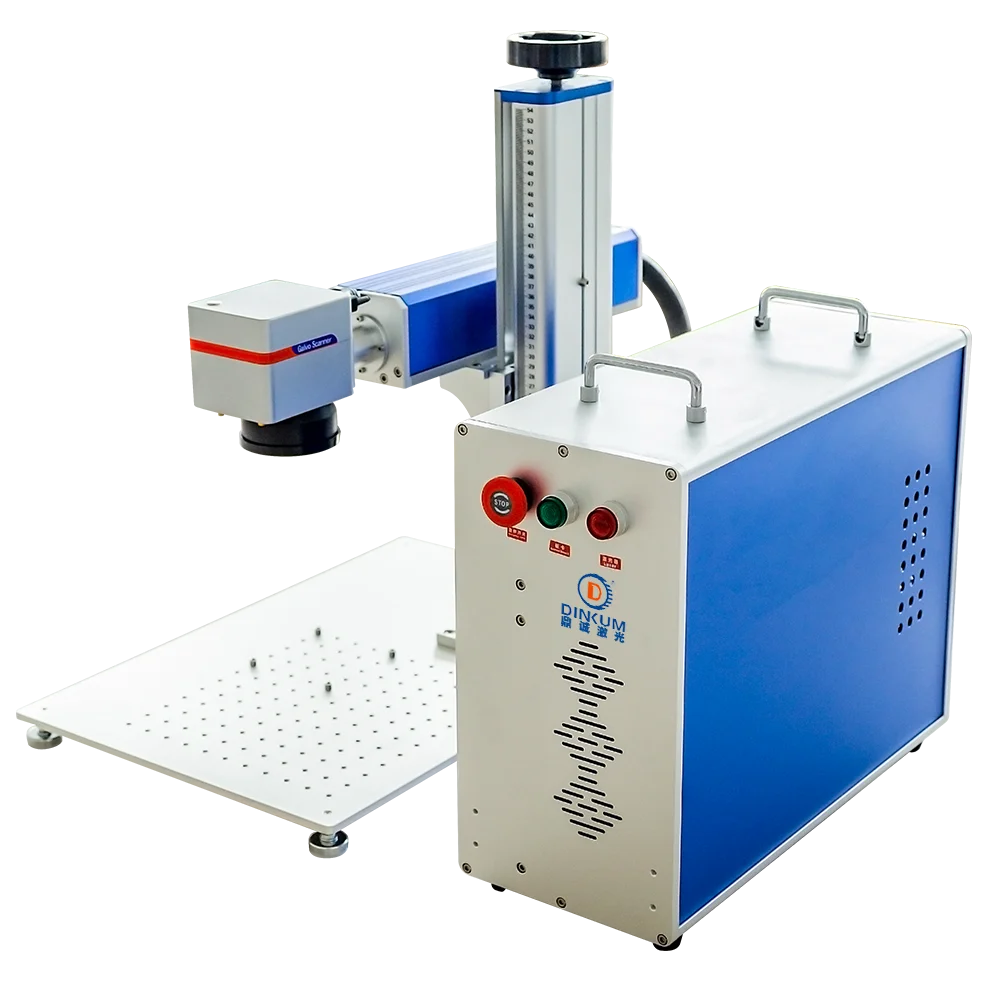

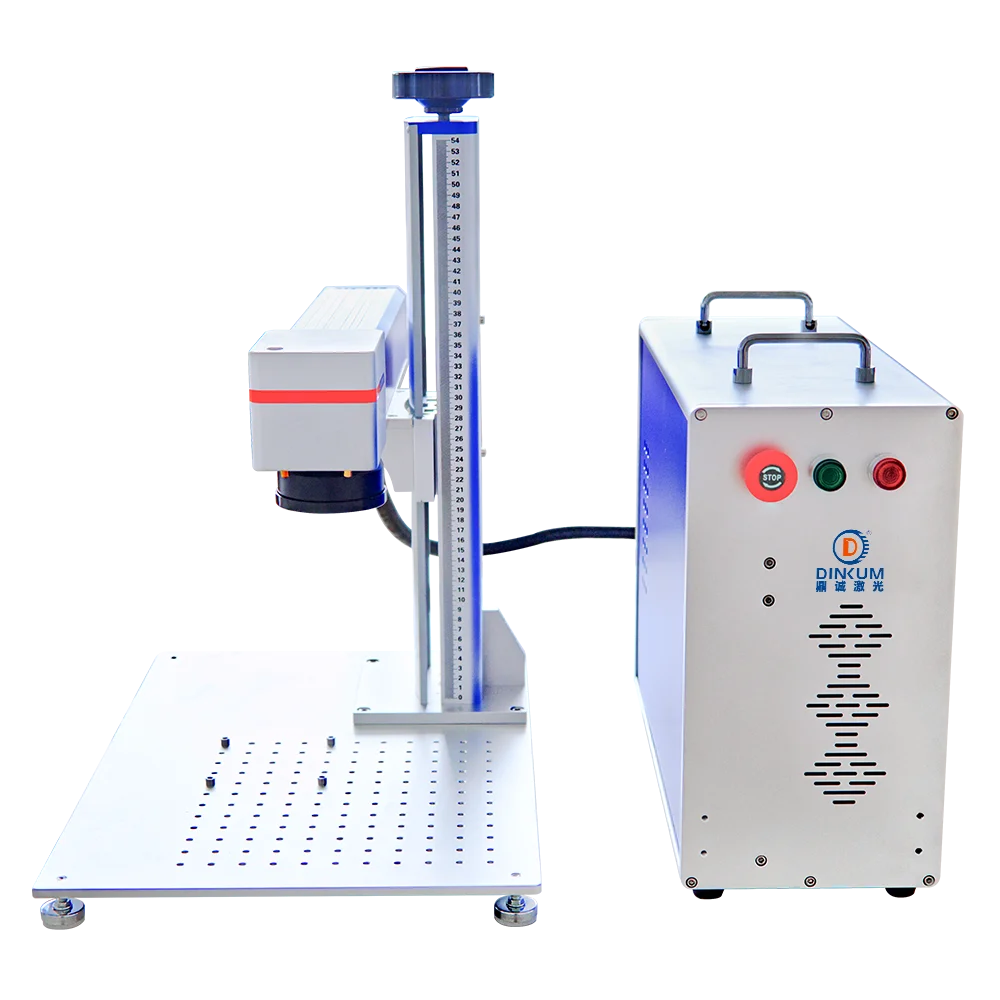

SINO galvo head 20w 30w 50w raycus fiber laser marking machine for metals
Main Features:
1. Free maintenance, low operation cost
2. Compact, small, easy to operate and move
3. Can put rotary devices
4. double red light indicator positioning
1. Applicable Materials
Metal(including precious metals), alloy, electroplating materials, coating materials, plastics(including engineer plastic), colored paper, ceramics and other materials.
2. Applicable Industry
Stainless steel, mobile phone decorations, watches, mold, IC, light penetrating phone keys and other industries.
3. Detailed Parameters
Machine type | split type auto focus fiber laser marking machine | ||||
Laser type | Pulse fiber laser | ||||
Laser power | 20W/30W/50W | ||||
Laser source brand | MAX, JPT, Raycus or others (As your requirements) | ||||
10W marking area | 110x110mm | ||||
20W marking area | 110x110mm / 150x150mm / 175x175mm (marking light) | ||||
30W marking area | 110x110mm / 150x150mm / 175x175mm / 200x200mm / 220x220mm (marking light) | ||||
50W marking area | 110x110mm / 150x150mm / 175x175mm / 200x200mm / 220x220mm / 300x300mm (marking light) | ||||
Max single pulse energy | 0.67mj | ||||
Pulse duration | 90-120ns | ||||
Laser Wavelength: | 1064nm | ||||
Software | Ezcad software | ||||
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect. | ||||
Beam quality | <1.5 | ||||
Pulse repetition frequency | 30KHz-80KHz | ||||
Laser power density | 80ZMW/mm2 | ||||
Marking depth | 0-1mm | ||||
Spot size | 43um | ||||
Minimum character size | 0.2mm | ||||
Minimum line width | 0.01mm | ||||
Max position speed | 800 characters/s | ||||
Repetitive accuracy | ±0.001mm | ||||
Cooling way: | Air cooling | ||||
Operating voltage: | 110/220V ± 10% /50/60HZ | ||||
Ambient operating temperature | 15 ° C - 35 ° C | ||||
Packing: | International plywood packing | ||||
Dimensions: | 92*55*520cm | ||||
Gross Weight: | 60kg | ||||
The whole power consumption | 500-600W | ||||
Warranty | 3 years | ||||
Detailed Images
double red light switch
This small button is the red light position switch. when you turn on your machine and connect the fiber laser marker with your computer, then turn on this switch, there will be two red dots output from galvo scanner.

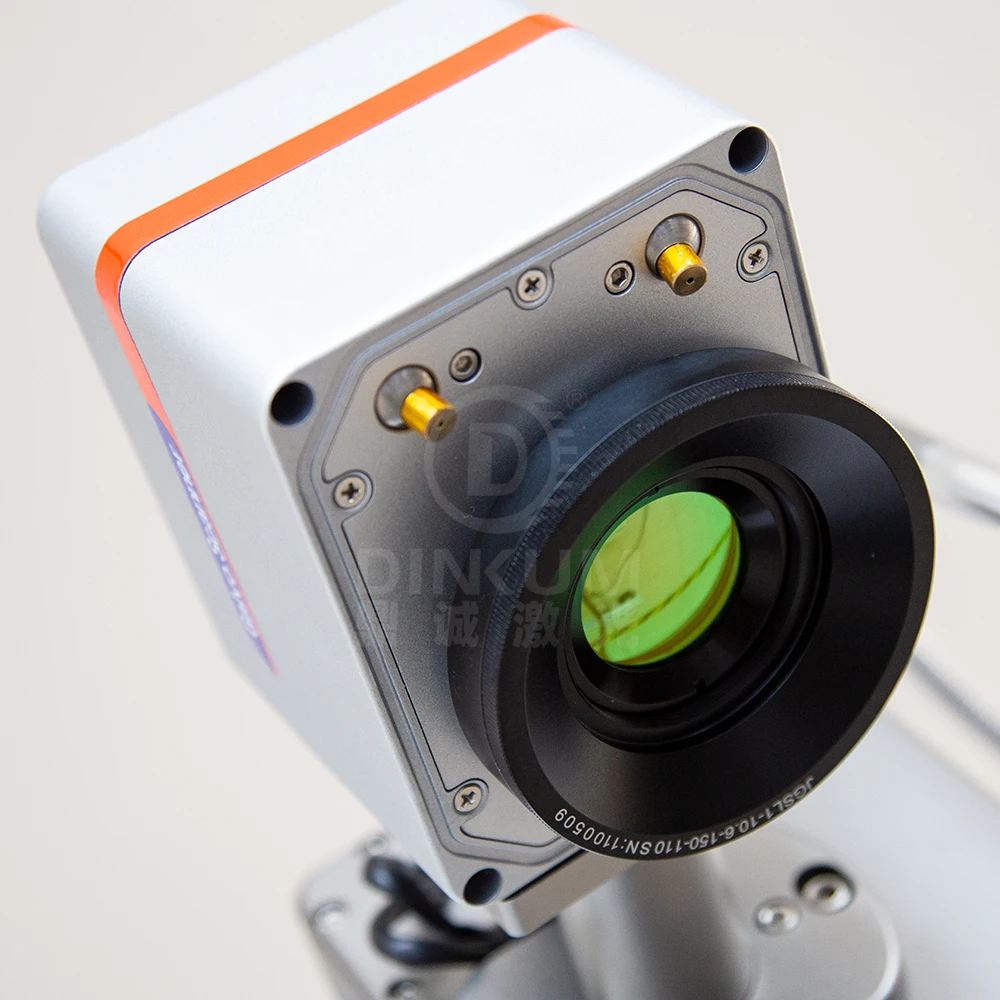

double red light indicator
when you press the red light position switch, there will be two red dots output from galvo scanner.
You can adjust the height of galvo scanner till the two red dots in one, then this height is the focus length of this machine.
It is easy to operate to find the exact focal length.
Samples
Packing & Delivery
Related Products
Portable Fiber Laser Marking Machine
Up-down Portable Fiber Laser Marking Machine
Table Fiber Laser Marking Machine
Handheld Fiber Laser Marking Machine
Split Desktop Fiber Laser Marking Machine
Split Handheld Fiber Laser Marking Machine
Fly Laser Marking Machine
CO2 Glass Tube Laser Marking Machine
Our Company
Our Service
Pre-sale service
1. Sample marking for free
For free sample testing, please send us your design file, we will test it for you here and make videos to show you the effect or send samples to you for checking.
2. Customized machine design
According to customer's special requirements, we can revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service
1.Before the machine delivery, we will adjust and test it well, so you can use it directly when you receive it.
2. If you have any operation problems, 24hours online professional advice available.
3. Lifetime software free upgrades.
4. The warranty for the whole machine is 3 years.
5. Express delivery to door service
6. We have professional staff to explain the instructions of the machine and the opeation problems you meet.
