Аппарат для алмазной пилы полуавтоматическая сварочная

Аппарат для алмазной пилы полуавтоматическая сварочная

Категория: Other Welding Equipment >>>
Поставщик: Huanggang,Fuli,Electromechanical,Technology,Co.,Ltd

Цена:1 100,00 $ - 1 300,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1309.53 $*	1374.33 $*
Aug-16-2025	1298.88 $*	1363.63 $*
Jul-16-2025	1089.5 $*	1143.75 $*
Jun-16-2025	1276.21 $*	1340.27 $*
May-16-2025	1111.96 $*	1167.12 $*
Apr-16-2025	1254.68 $*	1317.91 $*
Mar-16-2025	1243.63 $*	1305.18 $*
Feb-16-2025	1232.50 $*	1294.37 $*
Jan-16-2025	1221.30 $*	1282.14 $*

Характеристики

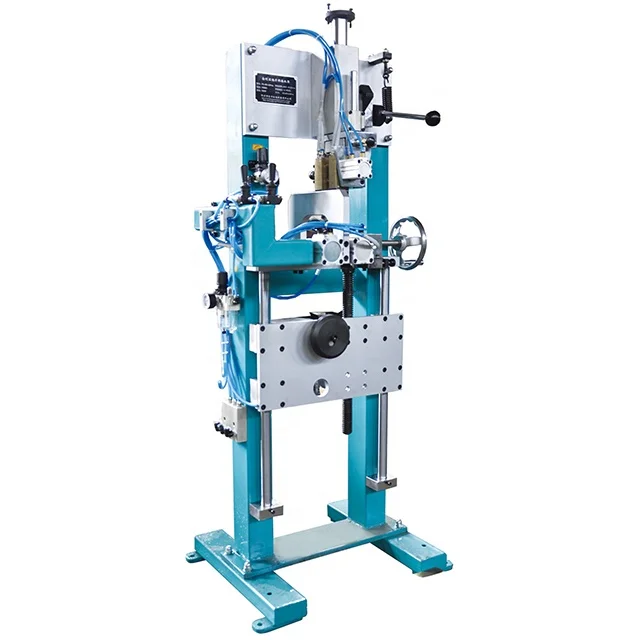

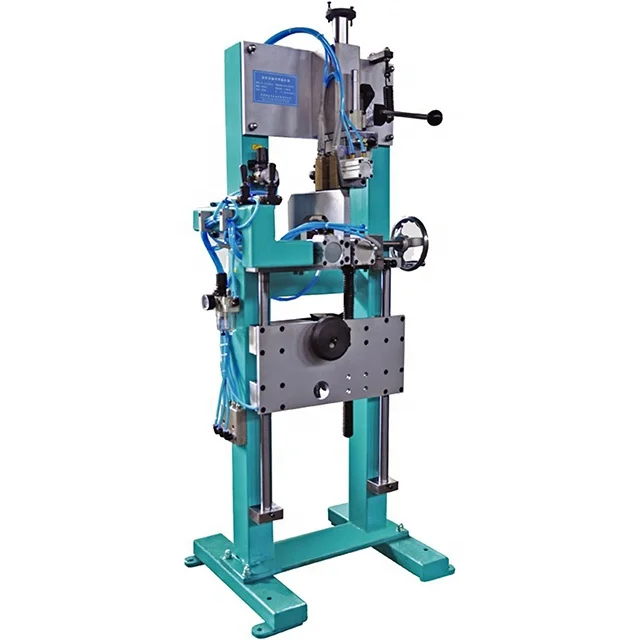

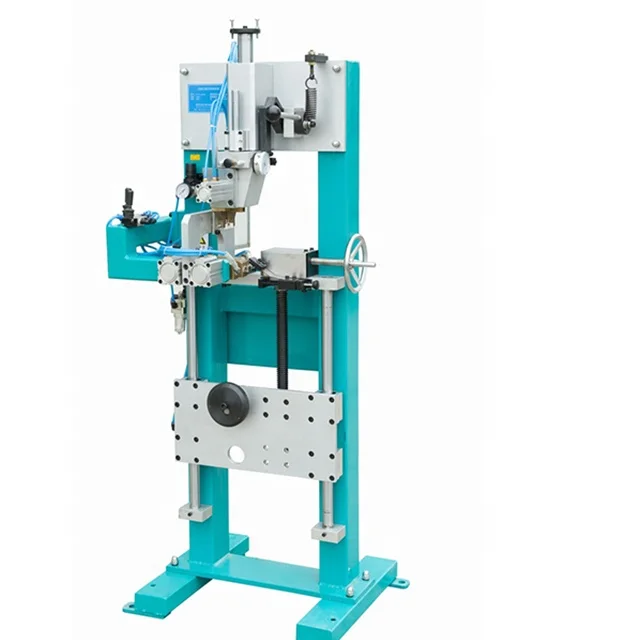

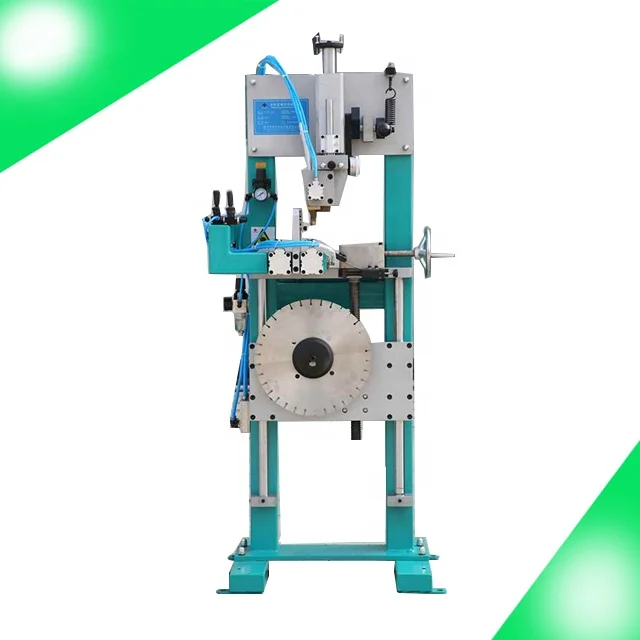

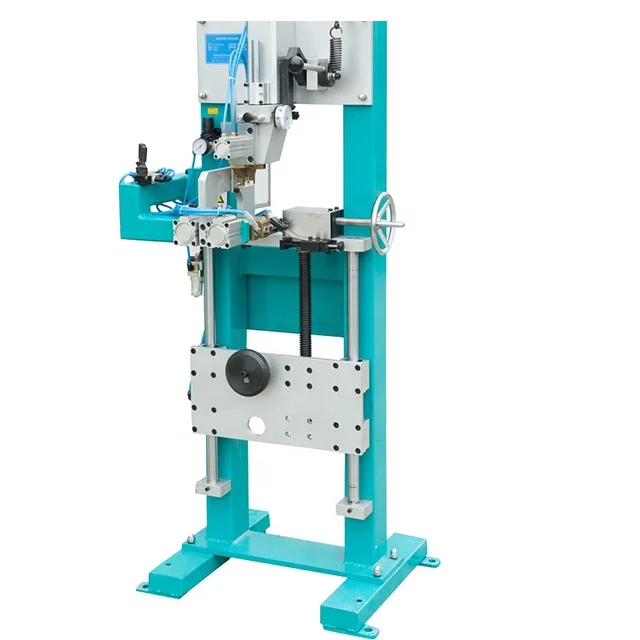

Diamond Saw Blade Segment Brazing Machine Semi Automatic Welding Frame Machine

FL-HJ-1200MM series welding frame is semi-automatic welding machine.Manually sent segment,manually put silver solder,manually put soldering flux,and human-assisted segment separating,other welding steps will be finished automatically.

Configuration:
1.Segment automatic fixing system.Machine can automatic fix the segment to the welding position.
2.Segment manually centering system.Manually adjust the welding position of the segment before the welding.
3.Human-assisted segment separating system.
4.Blade lock protraction system.Prevent damage of the cupreous part when operator rising the saw blade.

Features:

1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High level of automation, good stability, long service life
4. To ensure the welding diamond segments and the matrix intensity ;
5. Automatic high-frequency heating, cooling quickly, the segment clamp tightly ;
6. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.

We Accept any Sizes of Application Range to Customize According Customers Requested !

Induction Brazing Welding Machine functions:
1)Digital plc auto-control, it has the function of manual, semi-auto,full-auto, heating-keeping-cooling device period to control.
2) perfect function of protect itself. such as, over-voltage, over-current,lack of water, phase fail,etc.
3)auto frequency tracking, the power can be adjusted to maximum.
4)Special cycle cooling system, make sure the machine work continuously.
5)machine small volume, light weight, easy to remove,it has no high voltage, make operation more safety.

After-sale service:

· 12 months warranty period

· Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.

· If any big quality problems occurs during the guarantee period, we will send maintenance

· technician to provide visiting service after checking with the customer and charge for a favorable price.

. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

. The above mentioned are only basic aftersale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

Parameters:

Model	FL-HJ-1200mm	Welding Rate	3-9s/pcs
Welding Range	Φ300mm-φ1200mm	Air Pressure	0.3-0.6Mpa
Verticality	less than ±0.3mm	Water Pressure	≥0.2mpa flow 2-5L/min
Parallelism	less than ±0.3mm	Voltage	220v ,50Hz
Size	L1500W850H750MM	Net Weight	165kg
