Характеристики
Product Description
HQZ180L DTH wells drilling machine portable water_well_drilling_rig
HQZ series drilling rig is an efficient and versatile drilling and drilling equipment. It is mainly used for drilling
wells,agricultural irrigation wells, geothermal air-conditioning holes and other wells. It is especially suitable for water intake projects in mountainous and rock formations. . The efficiency is ten times higher than that of the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive. In particular, it solves the difficulty of drilling the soil air DTH hammer, the construction problem of the rotary rock drill with hard rock layer, gravel and pebble layer, and can work efficiently under various geological structures, achieving the perfect combination of rhinestone and air drilling.
wells,agricultural irrigation wells, geothermal air-conditioning holes and other wells. It is especially suitable for water intake projects in mountainous and rock formations. . The efficiency is ten times higher than that of the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive. In particular, it solves the difficulty of drilling the soil air DTH hammer, the construction problem of the rotary rock drill with hard rock layer, gravel and pebble layer, and can work efficiently under various geological structures, achieving the perfect combination of rhinestone and air drilling.
main feature of HQZ180L DTH wells drilling machine portable water_well_drilling_rig :
1. The pneumatic water well drilling rig is mechanical transmission, the other is hydraulic transmission, and the power is effectively utilized. The overall power loss is small and the drilling cost is low.
2. The water well drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m.
3, the rig has a 2 speed reverse speed, easy to deal with accidents.
4. The water well drilling rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3800MM, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
5. The water well drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump. When lifting the drill,it uses two pumps to merge; the power loss is small and the auxiliary time is short.
6. The rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7, using the crawler chassis, the leg cylinder stroke 1.5m can be automatically loaded, easy to move and transport.
8. The water well drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, and the functions can be expanded according to the process requirements of different users.
2. The water well drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m.
3, the rig has a 2 speed reverse speed, easy to deal with accidents.
4. The water well drilling rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3800MM, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
5. The water well drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump. When lifting the drill,it uses two pumps to merge; the power loss is small and the auxiliary time is short.
6. The rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7, using the crawler chassis, the leg cylinder stroke 1.5m can be automatically loaded, easy to move and transport.
8. The water well drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, and the functions can be expanded according to the process requirements of different users.
Product Paramenters
Specification for water well drilling machine | ||
Drilling diameter | Ø130- Ø294mm | |
Drilling depth | 180m | |
Drill rod diameter | Ø76,Ø89, Ø102mm | |
Drill inclination | 90° | |
rotator output torque | 4200-5600N.m | |
Rotator feeding stroke | 3000mm | |
Input power(diesel engine) | 60kw | |
Rated speed | 2400r/min | |
Traveling speed | 2.5km/h | |
working air pressure | 1.7-2.5Mpa | |
air consumption | 15-27m3 | |
Dimension | 3800*1700*2350mm | |
weight | 4200kg | |

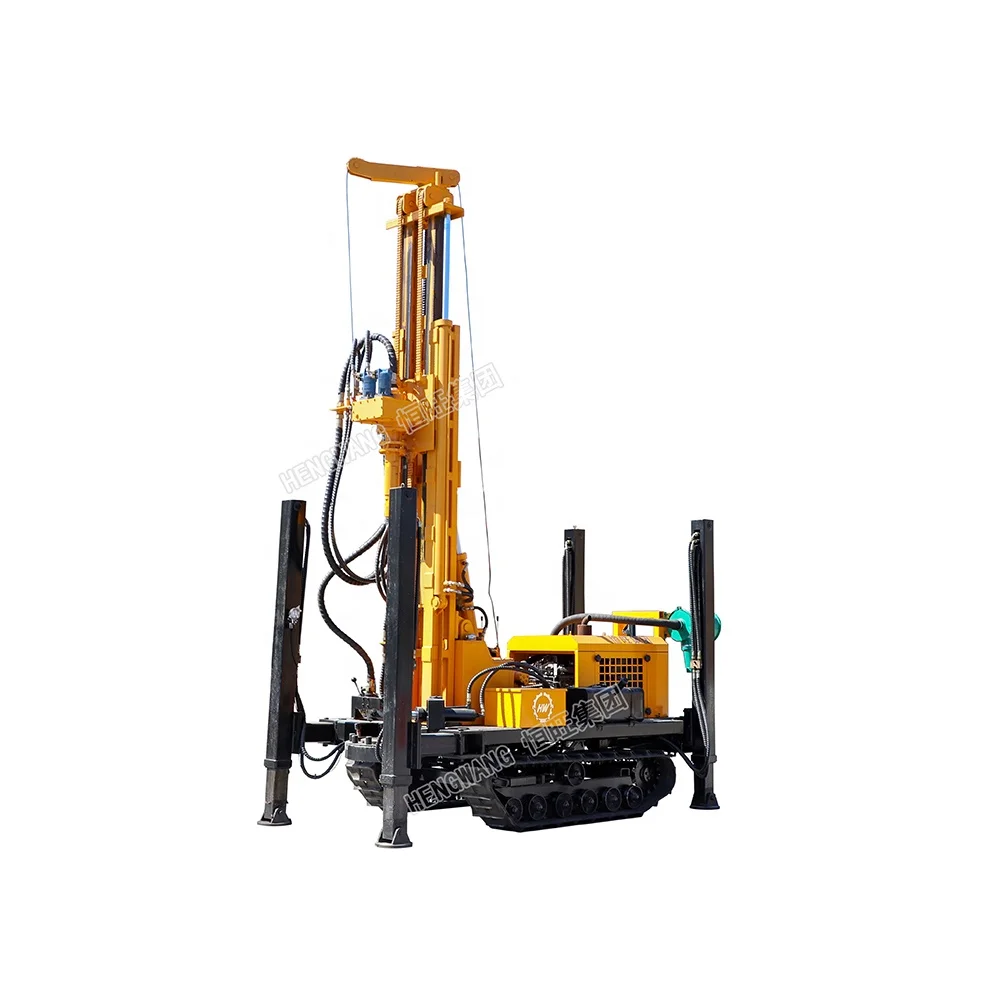

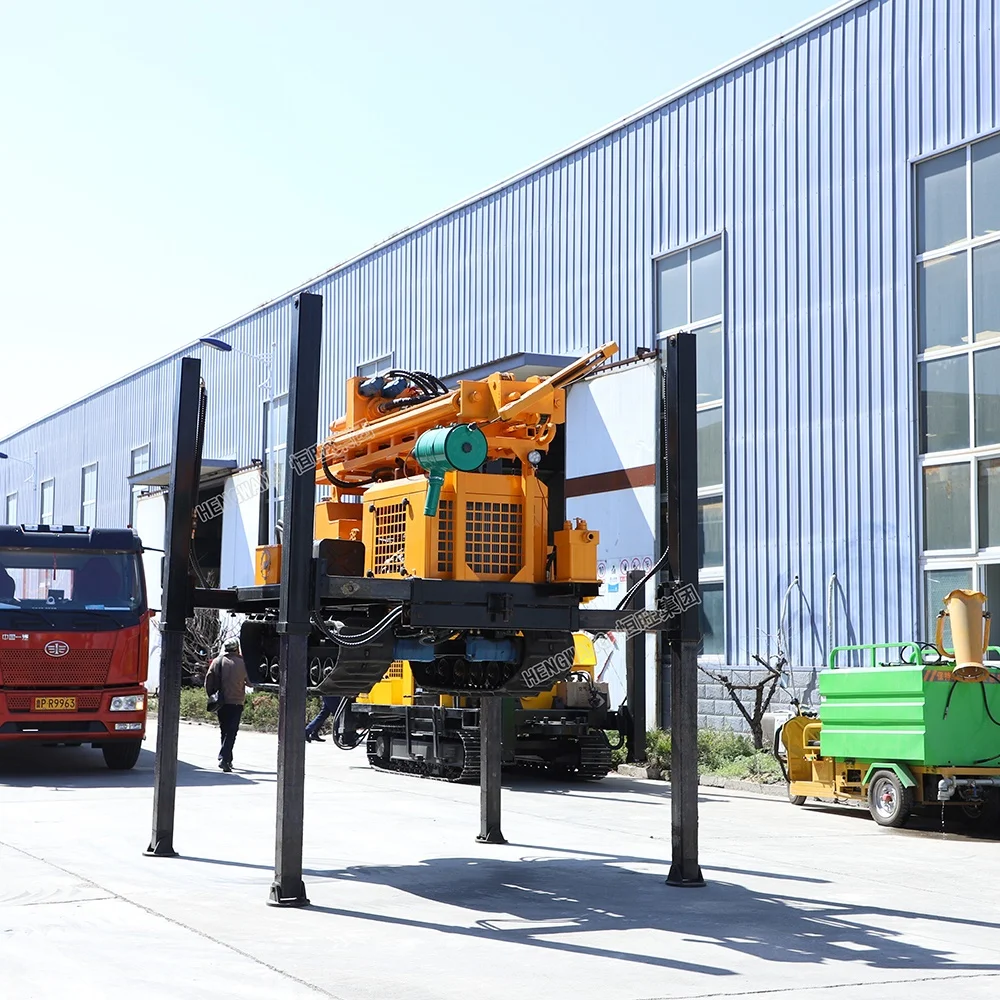

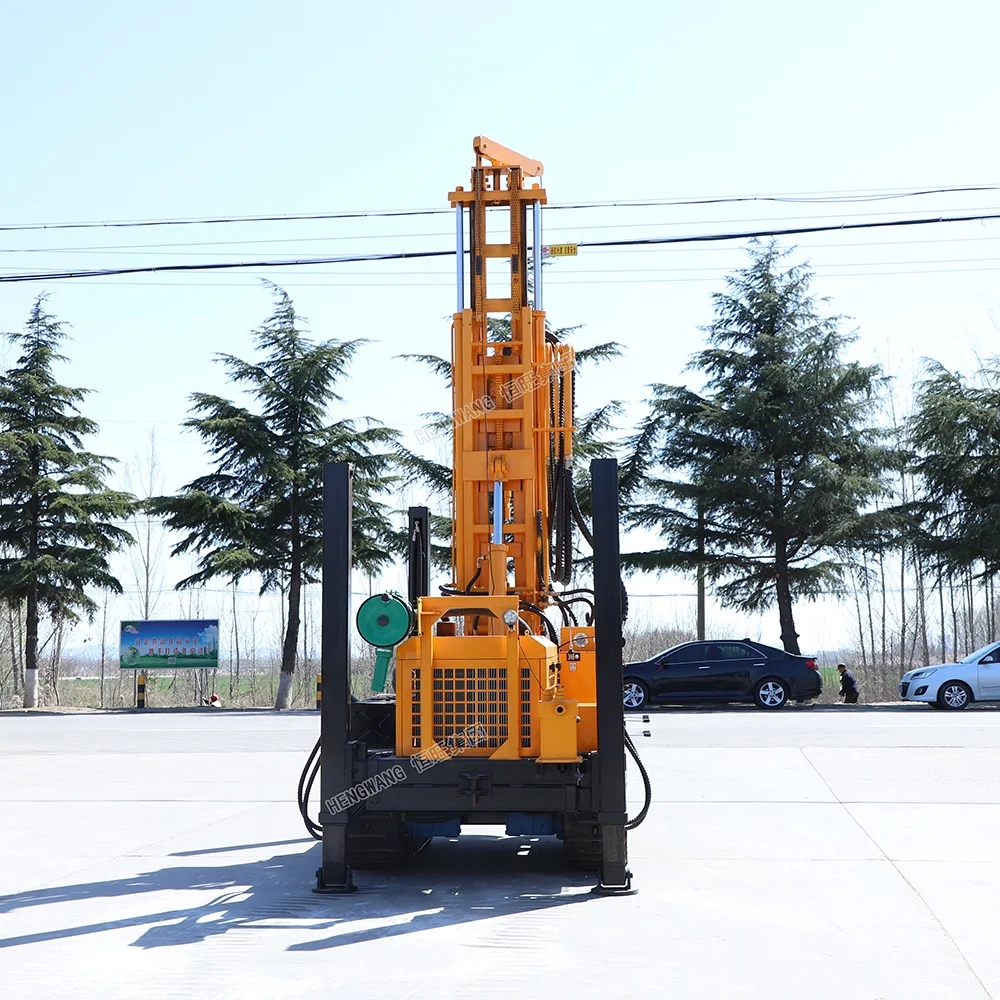

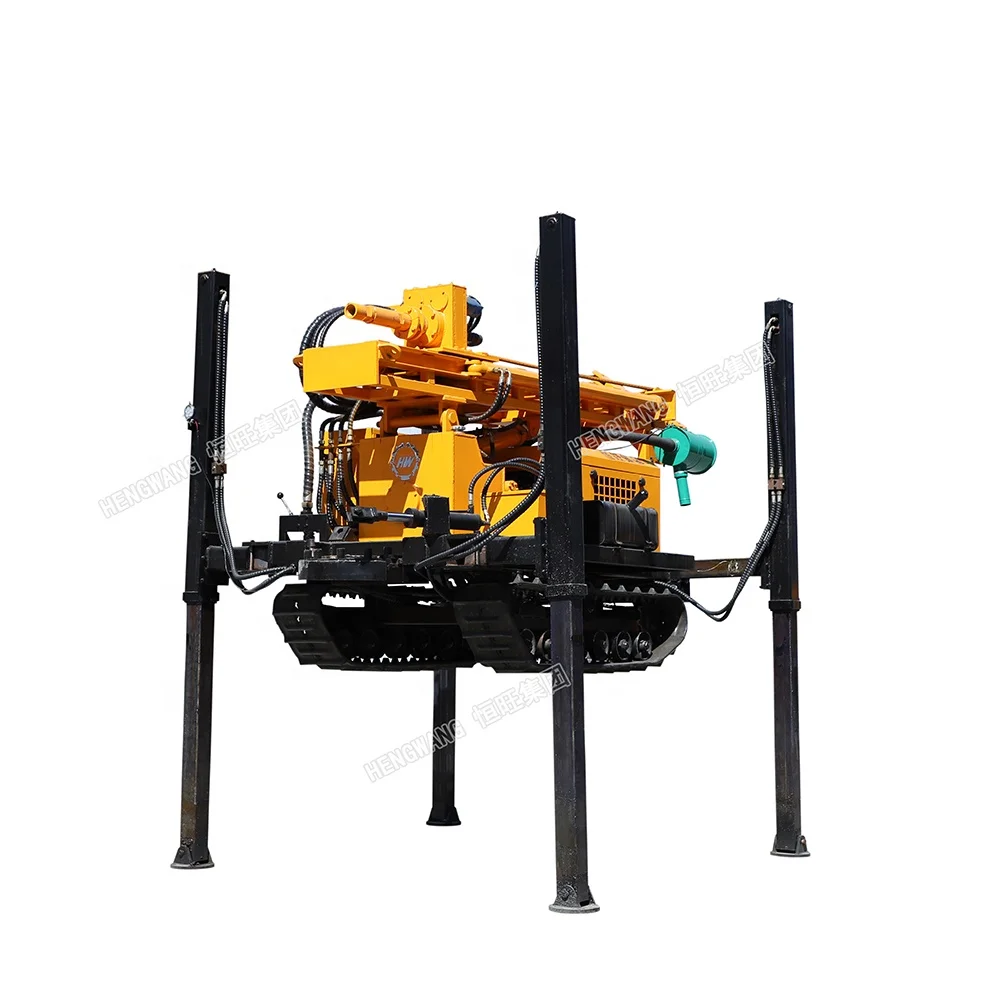

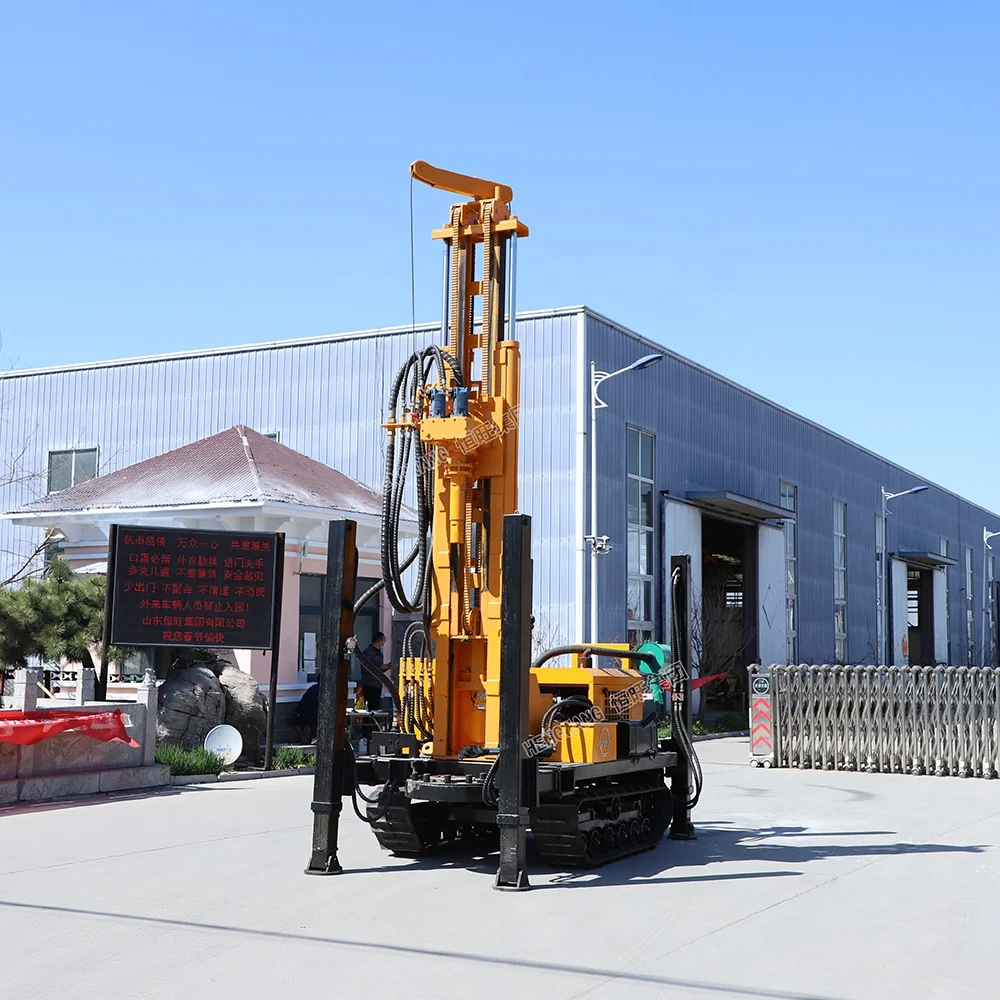

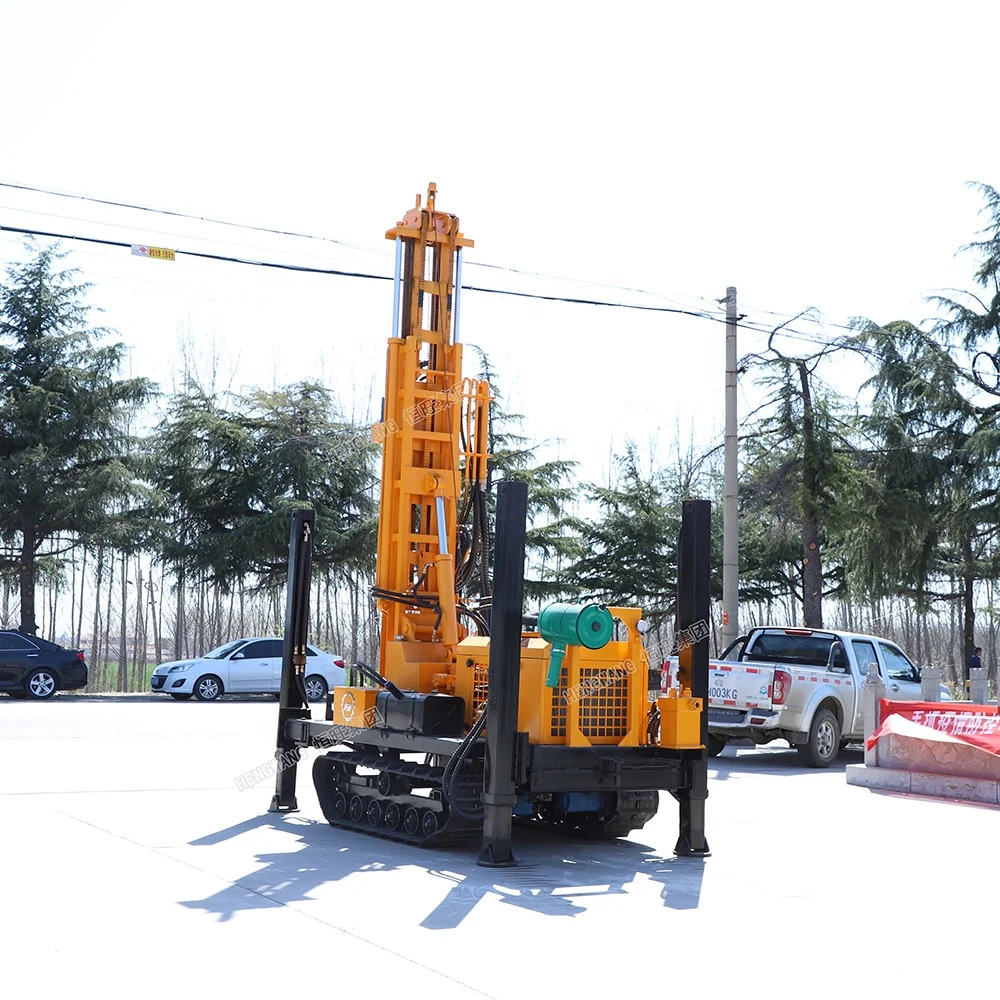

Detailed Images
Details of HQZ180L DTH wells drilling machine portable water_well_drilling_rig
Working case
Pneumatic powered drilling rigs for Stone drilling and Stone dimensioning Works. It can be attached to any back-hoe. Standard configuration: From F1N (one hammer) to F5N (five hammers). Air or water flushing. Drilling speed 1 m/min (depending on stone hardness).
Packing&Shipping
For pneumatic drilling rig , if customer need air compressor , it can loading full 40HQ container . If not need air compressor , it can loading 20 feet container
Exhibition
We have been participated in 2019 Shanghai BMW, the German BMW exhibition, exhibition of Pakistan, Russia of exhibition,exhibition of Vietnam, and so on.Our water well drilling machine has got the favour of a lot of clients, and also made some cooperation, hope buyers from all over the world can know hengwang group in this way, we hope our water well drilling machine can go to more countries.
