Beer fermenters are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Honglin stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Honglin fermenters is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
Features
1) Automatic /semi-automatic operation system ,need one or two brewer operate
2) With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes
3) We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate
4) Have good feedback from our clients
5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.
Beer Fermenter Parameter:
Fermentation Tank Series
Volume in US Gallon
Diameter
Height
100L Fermentation Tank
26US Gallon
620mm
1600mm
200L Fermentation Tank
53US Gallon
820mm
1800mm
300L Fermentation Tank
79US Gallon
960mm
1900mm
400L Fermentation Tank
106US Gallon
960mm
2100mm
500L Fermentation Tank
132US Gallon
1010mm
2100mm
600L Fermentation Tank
159US Gallon
1060mm
2150mm
800L Fermentation Tank
211US Gallon
1060mm
2550mm
1000L Fermentation Tank
264US Gallon
1210mm
2550mm
1500L Fermentation Tank
396US Gallon
1560mm
2620mm
2000L Fermentation Tank
528US Gallon
1560mm
3100mm
Fermenter Configuration: Design pressure 45 psi (3bar); working pressure 15psi (1bar) 4 stainless steel legs with leveling footpads Interior shell: 304 stainless steel, thickness 3mm Exterior shell: 304 stainless steel, thickness 2mm Interior and exterior finish bright polish to 0.6~0.8, hygiene surface 60 degree cone bottom, other angles can be specified during the design process Combined drain extensions and beer port in cone are standard

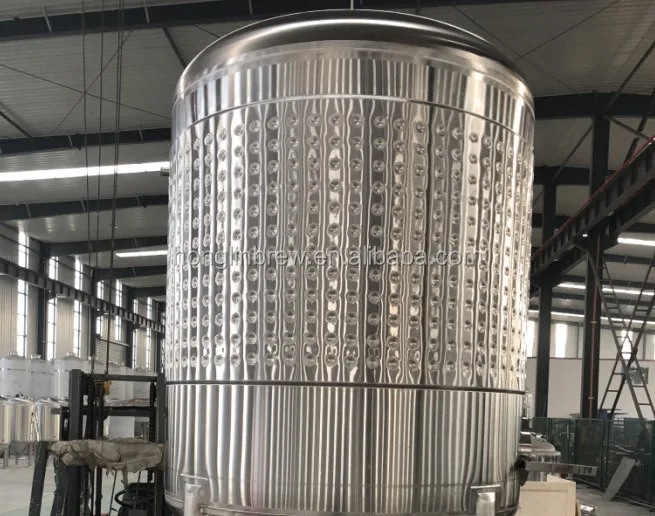

25% headspace, unless a different volume is requested Top manway or side manway door Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
Packaging & Shipping
Packaging Details:
Packing: Wooden/Veneer case for LCL;
Plastic film wrapped and iron frame fixing for FCL
We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Service & Feedback
1.Free consultation service before, during, and after sales; 2.Project planning and design services; 3.Free debugging instruction of equipment until everything is functional; 4.Management of equipments' long distance shipping from seller's factory to named port or station by buyer; 5.Training of equipment maintenance and operating personally; 6.New production techniques;
