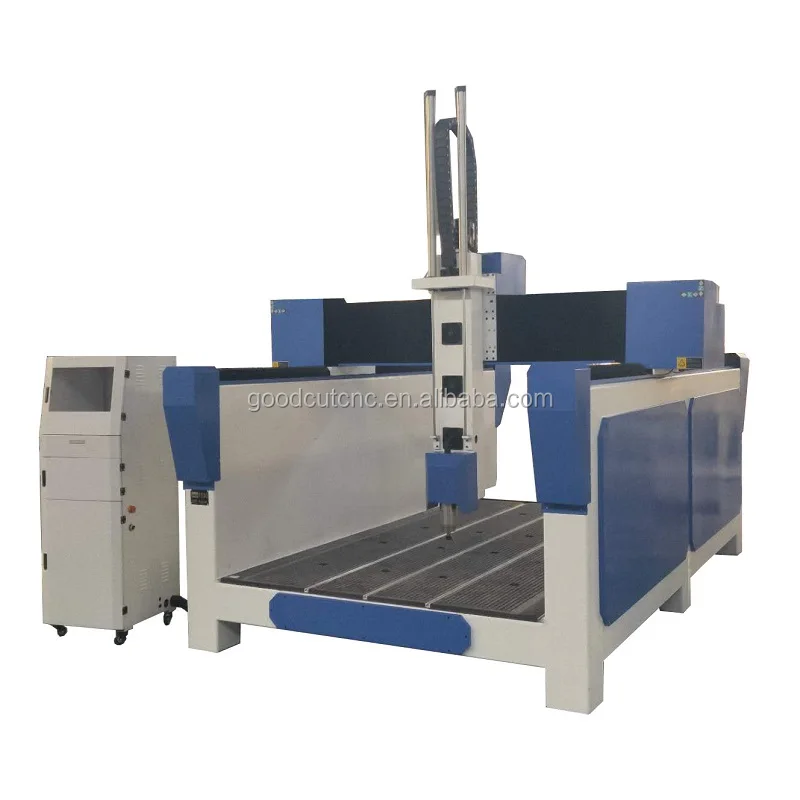

4-я осевая алюминиевая форма гравировальные машины фрезерный станок с ЧПУ из пенопласта для МДФ

4-я осевая алюминиевая форма гравировальные машины фрезерный станок с ЧПУ из пенопласта для МДФ

Категория: Foam Machinery >>>
Поставщик: Jinan,GoodCut,CNC,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.47 $*	0.30 $*
Aug-16-2025	0.9 $*	0.38 $*
Jul-16-2025	0.62 $*	0.11 $*
Jun-16-2025	0.10 $*	0.42 $*
May-16-2025	0.25 $*	0.98 $*
Apr-16-2025	0.63 $*	0.53 $*
Mar-16-2025	0.66 $*	0.23 $*
Feb-16-2025	0.57 $*	0.27 $*
Jan-16-2025	0.67 $*	0.25 $*

Характеристики

4th axis aluminum mold engraving machines foam cnc router for mdf eps

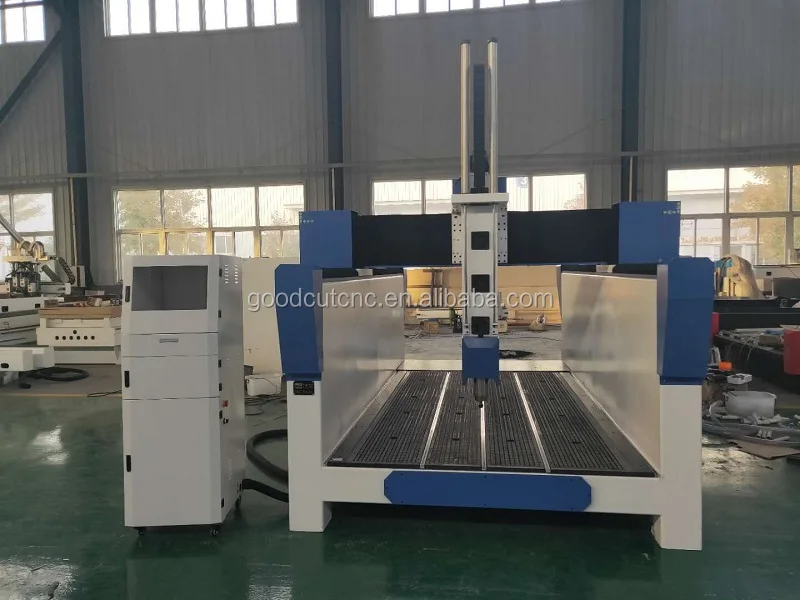

foam cnc router (7)

Features of 4th axis aluminum mold engraving machines foam cnc router for mdf eps:

1)We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.

2)The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material.

3)The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.

4)The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.

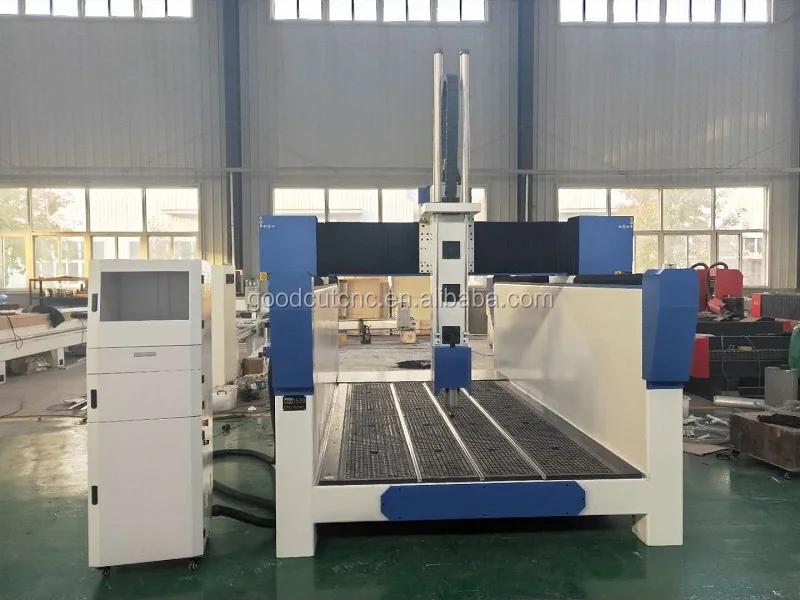

foam cnc router (3)

Main Features of4th axis aluminum mold engraving machines foam cnc router for mdf eps:

1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.

2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.

3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.

4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press

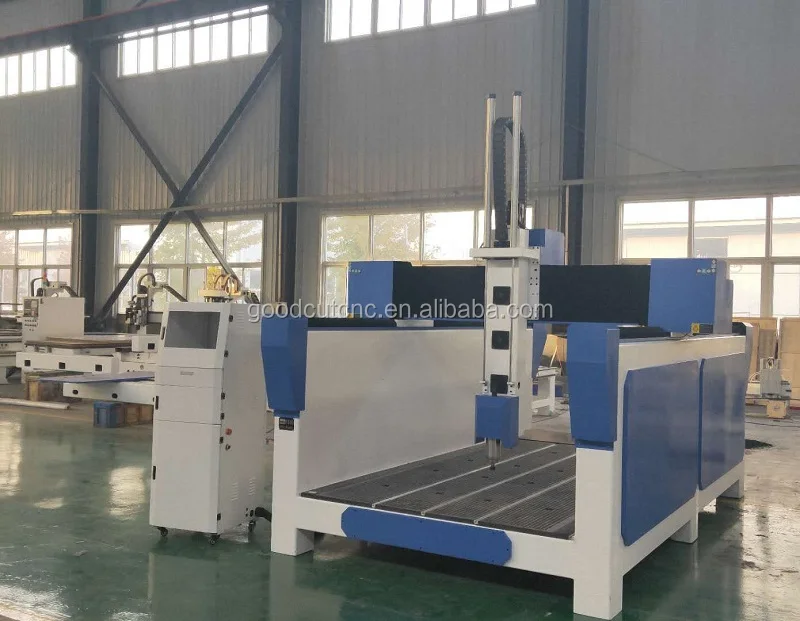

foam cnc router (6)

Machine Main specifications:
1-spindle: 6kw air cooled spindle ,china HQD or Italy HSD brand,
2-inverter: 7.5kw Delta brand
3-guide rails: 20mm taiwan hiwin or PDF brand
4-rack:Germany helical racks
5-motor and driver: china stepper motor ,japan yaskawa servo for option
6-controller system: Syntec Mach3 or ncstudio or DSP controller
7-table structure: Aluminun table with T slot
8-Dust collector:Yes
9-tool senior:Yes
10-lubrication:Yes
11-Accessores: tools, spindle collets,software

Optional Parts:

Linear automatic tools change

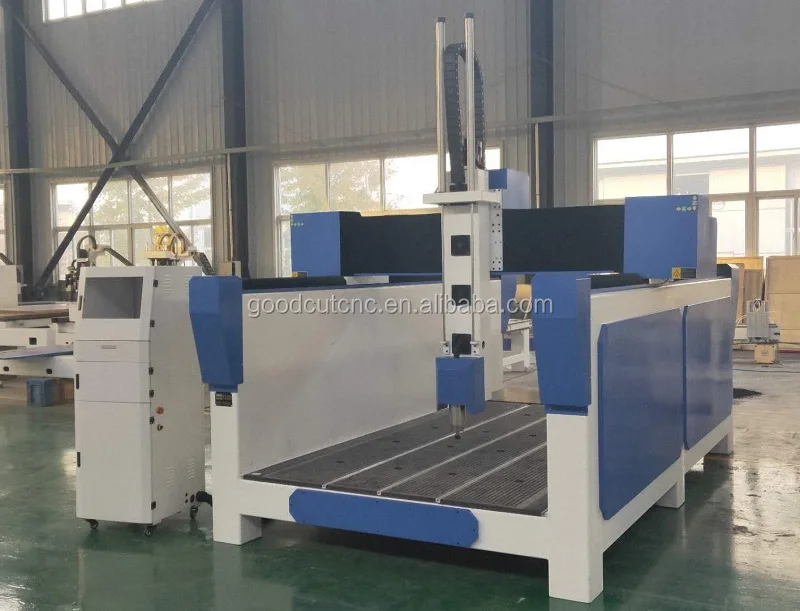

foam cnc router (2)

Parameters of 4th axis aluminum mold engraving machines foam cnc router for mdf eps:

Description	Parameter
X,Y,Z Working Area	2000x3000x1000mm*180°
X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
X,Y,Z repositioning Accuracy	±0.01mm
Table Surface	Milling steel table (T-slot)
Frame	Welded structure (cast iron)
X, Y Structure	Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings: X axis, Y axis, 30mm
Z Structure	Ball Screw, Hiwin Rail Linear Bearings : Z axis, 25mm
Max. Power Consumption	(Without spindle) 6.5Kw
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9KW Italy HSD ATC air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Yaskawa servo system : 1.3kw Z axis is with band brake
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
Command Language	G code
Operating System	Syntec control System : EZ3M (Osai)
Computer Interface	Ethernet
Flash Memory	256 M(with CF card)
Collet	BT40
X,Y Resolution	<0.01mm
Software Compatibility	Type3, UcancameV9, Art cam software
Running Environment Temperature	0degree - 45 degree
Relative Humidity	30% - 75%

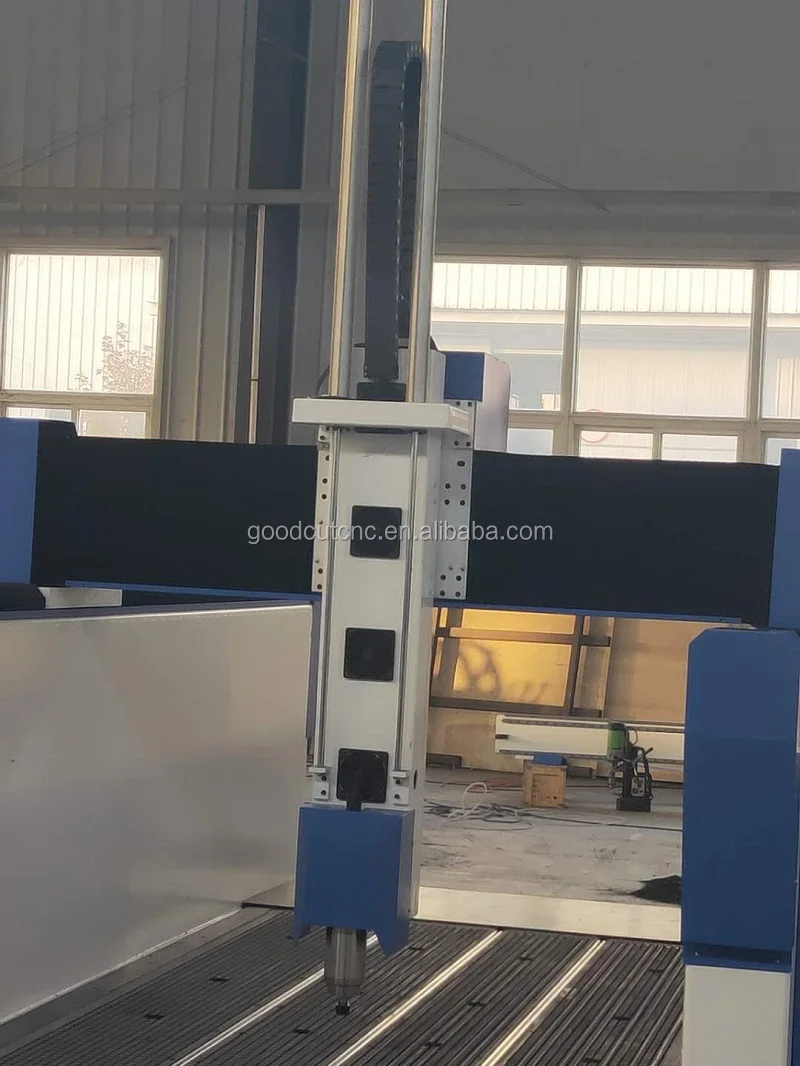

foam cnc router (5)

Parts images

Japan Yaskawa servo motor, high torque and speed.

SYNTEC control system from Taiwan, with high performance and competitive price. Professional famous brand in 4 axis 5 axis machine line.

Applications of 4th axis aluminum mold engraving machines foam cnc router for mdf eps:

Sculpture wood carving cnc router machine can work on wood, EPS and non-metallic carbon material, making automotive foam mold, wooden ship model aviation, trains and other wooden mold, carving 3D musica instrument, bumper, bonnet interior trim mold and aviation etc.
