Характеристики
Factory Price Aluminum Foil Die Cutting Punching Machine
Whats App/Wechat:+86 180 3921 7692 Email:sherrycui@ superelec.cn
Product Description
80-250g paper , aluminum foil, multi-layer composite material, etc
Factory Price Aluminum Foil Die Cutting Punching Machine
| Model | ZM-C1100 |
| Maximum uncoiling diameter | 1300mm |
| Max Material Width | 1100mm |
| Effective Material Width | 1080mm |
| Applicable material | 80-250g paper or composite materials |
| Max Punching Width | 170mm |
| Min Punching Width | 90mm |
| Punchining Speed | 250 times/min |
| Punching precision | ±0.5mm |
| Rate of quality products | 98% (start-up loss < 20m; changing coil loss< 1m) |
| Method for tension control | intelligent constant tension control of magnetic powder brake |
| Min distance between finished products | ≥3mm |
| Edge width | ≥8mm |
| Main motor power | 4Kw |
| Power for complete machine | 13KW |
| Punching Machine Weight | 6.2T |

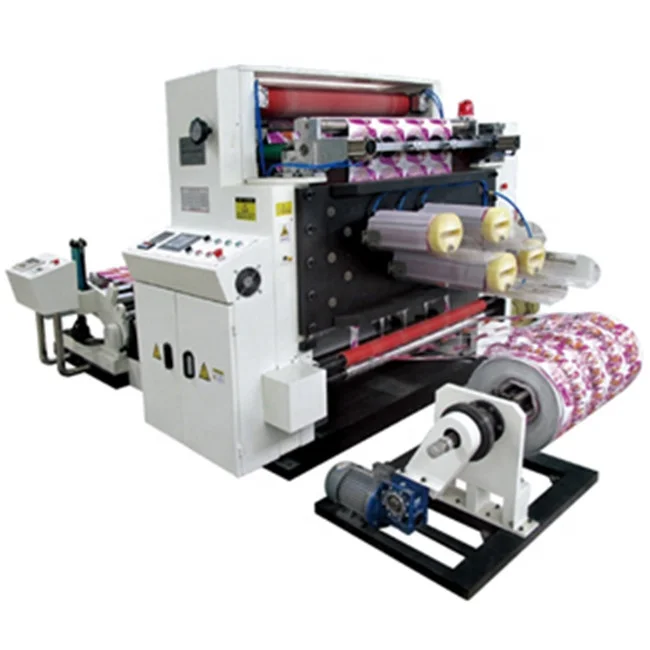

Factory Price Aluminum Foil Die Cutting Punching Machine
1.1100 film punching machine is a high efficient processing machine.
2.Offline punching manner of printing scroll paper is adopted by this machine, with simple
processing procedures and 5%-8% materials saved in layout compared to the traditional
piece-production technology; mechanical mode is adopted for feeding and positioning, with
compact machine structure, high operation speed, high reliability, easy collection and long
cutter service life.
Packaging & Shipping
| Packing detials | Wooden case |
| Delivery time | within 30 working days |
| Shipping Port | Main China port |
