Product Description

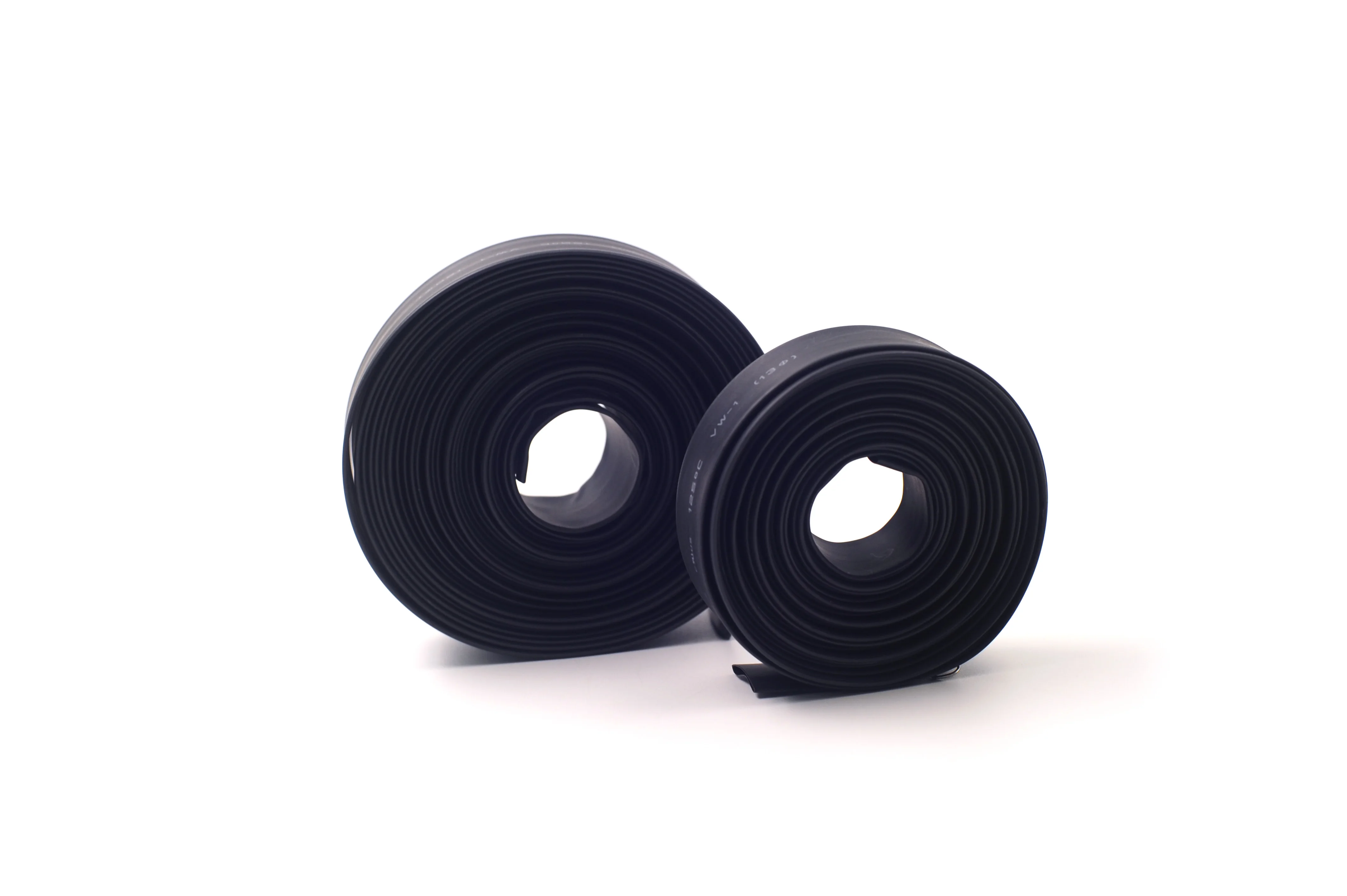

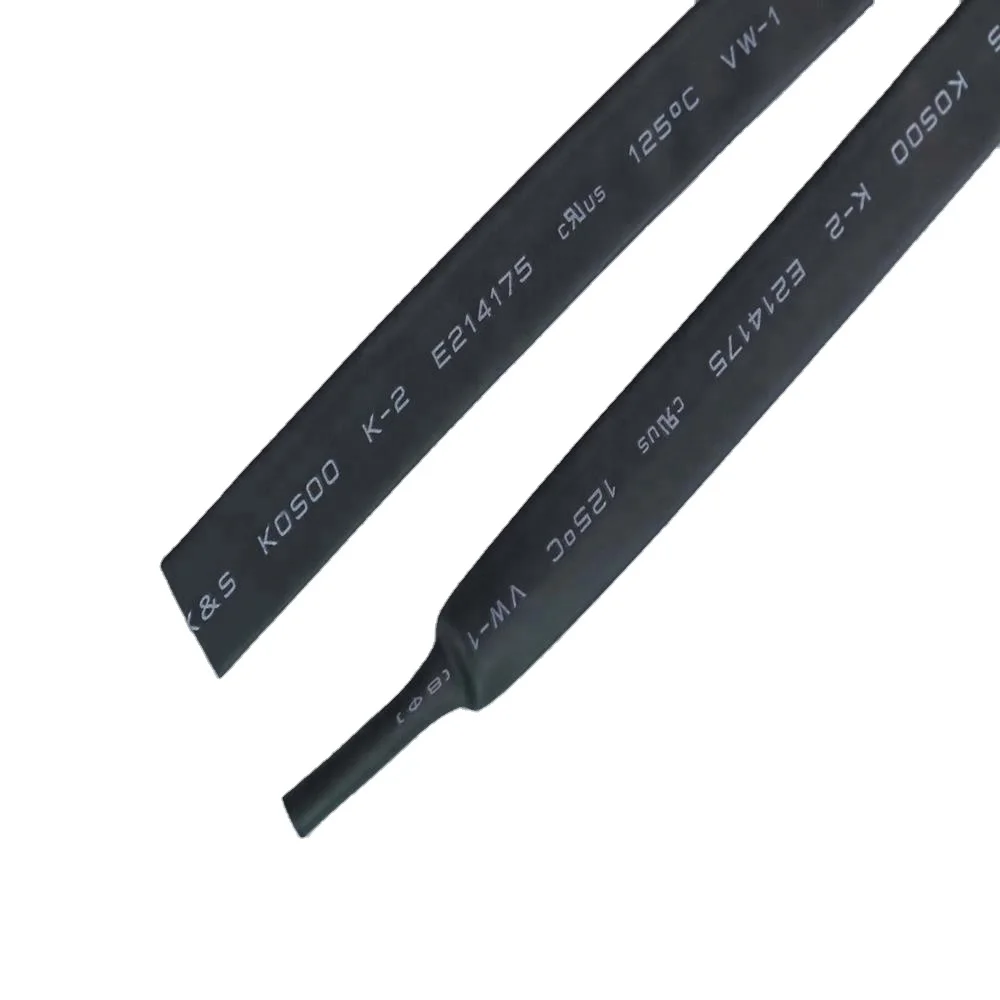

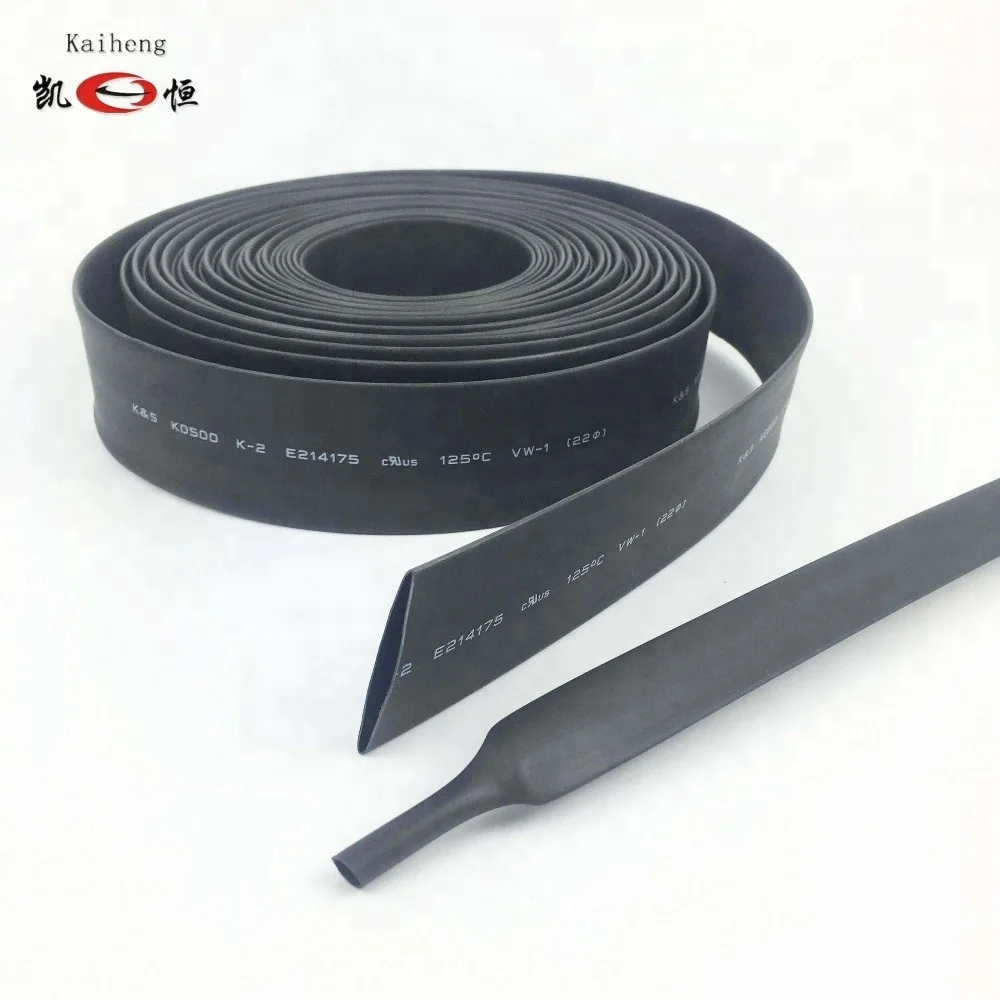

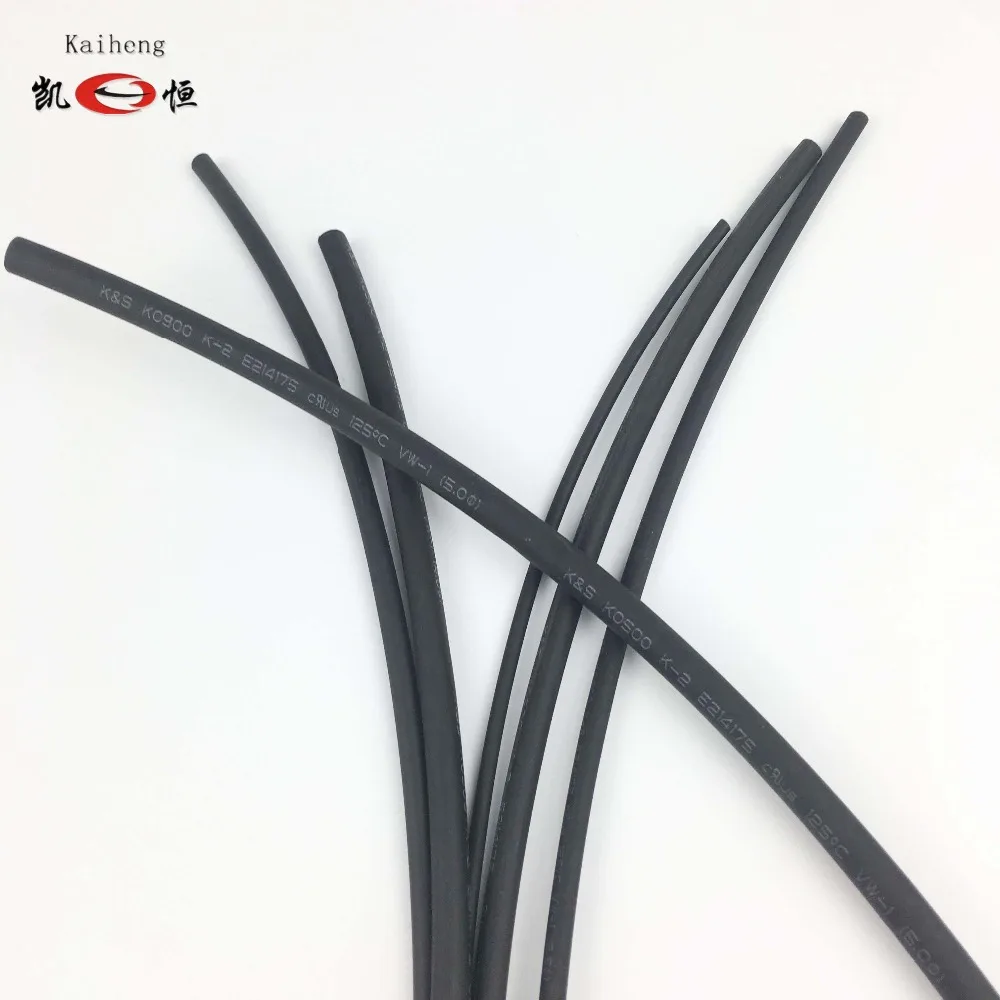

Factory price 6mm Black heat shrinkable tubes

KOSOO K-2(HF) is halogen free, low smoking, flame-retardant irradiated crosslinking polyolefin heat-shrinkable tubing suitable for environmentally friendly application. It contains no added halogens, and exhibits excellent fire safety characteristics combined with low evolution of acid gases, while retaining good mechanical and fluid resistance properties.



Detailed Images




Features/Benefits

·Shrink ratio: 2:1.
·Flexible, flame-retardant.
·Low smoking, no added halogens.
·Low evolution of acid gases.
·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.



Operating Temperature Range

Operating temperature range: -55℃~125℃
Minimum shrink temperature: 70℃
Minimum full recovery temperature: 100℃



Standards/Approvals

UL224 E214175 125℃ 600V VW-1



Property
Requirement
Test method
Typical data
Physical:
Concentricity
70% min.
ASTM D 2671
≥70%
Tensile strength
10.4MPa min.
ASTM D 638
≥14.0MPa
Elongation
200% min.
ASTM D 638
≥400%
Heat shock
No cracking, dripping or flowing
ASTM D 2671
Pass
Low temperature flexibility
No cracking
ASTM D 2671
Pass
Tensile strength after aging
70% of original min.
ASTM D 638
≥90%
Elongation after aging
100% min.
ASTM D 638
≥300%
Electrical:
Dielectric voltage withstand
2500V, 60sec
no breakdown
UL224
Pass
 Dielectric strength
19.7kV/mm min
ASTM D 2671
25kV/mm
Volume resistivity
1014Ω·cm min.
ASTM D 876
≥1014Ω·cm
Chemical:
Corrosion
No corrosion
ASTM D 2671
Pass
Flammability
VW-1
UL224
Pass


Size(mm)
As supplied(mm)
After recovery(mm)
Standard length(m/spool)
Inside diameter
Wall thickness
Inside diameter
(max.)
Wall thickness
(min.)
Φ1.0
1.5±0.3
0.20±0.05
0.60
0.33
200
Φ1.5
2.0±0.3
0.20±0.05
0.75
0.36
200
Φ2.0
2.5±0.3
0.20±0.05
1.00
0.44
200
Φ2.5
3.0±0.3
0.25±0.05
1.25
0.44
200
Φ3.0
3.5±0.3
0.25±0.05
1.50
0.44
200
Φ3.5
4.0±0.3
0.25±0.05
1.75
0.44
200
Φ4.0
4.5±0.3
0.25±0.05
2.00
0.44
200
Φ4.5
5.0±0.3
0.25±0.05
2.25
0.44
200
Φ5.0
5.5±0.3
0.28±0.05
2.50
0.56
100
Φ6.0
6.5±0.3
0.28±0.05
3.00
0.56
100
Φ7.0
7.6±0.3
0.30±0.07
3.50
0.56
100
Φ8.0
8.6±0.3
0.30±0.07
4.00
0.56
100
Φ9.0
9.6±0.3
0.30±0.07
4.50
0.56
100
Φ10.0
10.7±0.4
0.30±0.07
5.00
0.56
100
Φ11.0
11.7±0.4
0.30±0.07
5.50
0.56
100
Φ12.0
12.7±0.4
0.30±0.07
6.00
0.56
100
Φ13.0
13.7±0.4
0.35±0.08
6.50
0.69
100
Φ14.0
14.7±0.4
0.35±0.08
7.00
0.69
100
Φ15.0
15.7±0.5
0.35±0.08
7.50
0.69
100
Φ16.0
16.7±0.5
0.35±0.08
8.00
0.69
100
Φ18.0
19.0±0.5
0.40±0.10
9.00
0.77
100
Φ20.0
21.0±0.5
0.40±0.10
10.00
0.77
50
Φ22.0
23.0±0.5
0.40±0.10
11.00
0.77
50


More detailed information for large sizes please contact us in time.
