China made wholesale high quality customization 500w solar cell panel

Model	SN-M400W	SN-M420W	SN-M440W	SN-M450W	SN-M450W	SN-M480W	SN-M500W
Rated Maximum Power at STC	400W	420W	440W	450W	460W	480W	500W
Maximum Power Voltage (Vmp)	47.22V	47.45V	47.71V	47.87V	48.01V	48.35V	48.60V
Maximum Power Current (Imp)	8.47A	8.85A	9.22A	9.40A	9.59A	9.93A	10.29A
Open Circuit Voltage ( Voc)	58.05V	58.28V	58.42V	58.57V	58.75V	58.90V	59.12V
Short Circuit Current (Isc)	9.18A	9.40A	9.66A	9.73A	9.78A	10.04A	10.44A
Module Efficiency	15.61%	16.39%	17.17%	17.56%	17.95%	18.73%	19.46%
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5

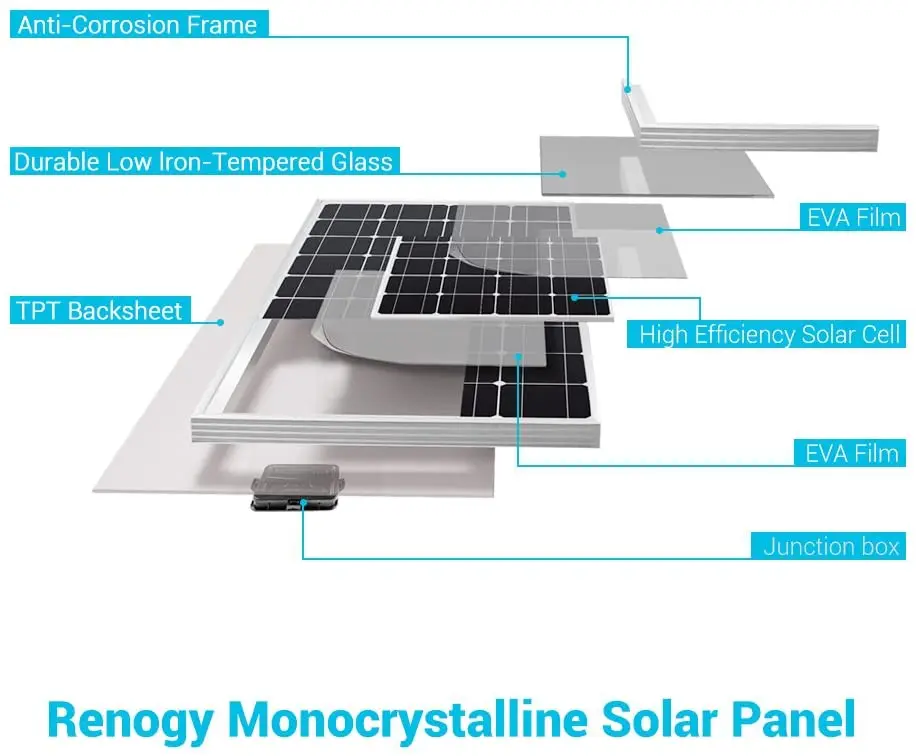

Mechanical Parameters
Cell Type		Mono-crystalline 156x156mm (6inch)
No. of Cells		96 (8x12)
Dimension		1956x1310x45mm
Glass		3.2mm, High Transmission, Low Iron, Tempered Glass

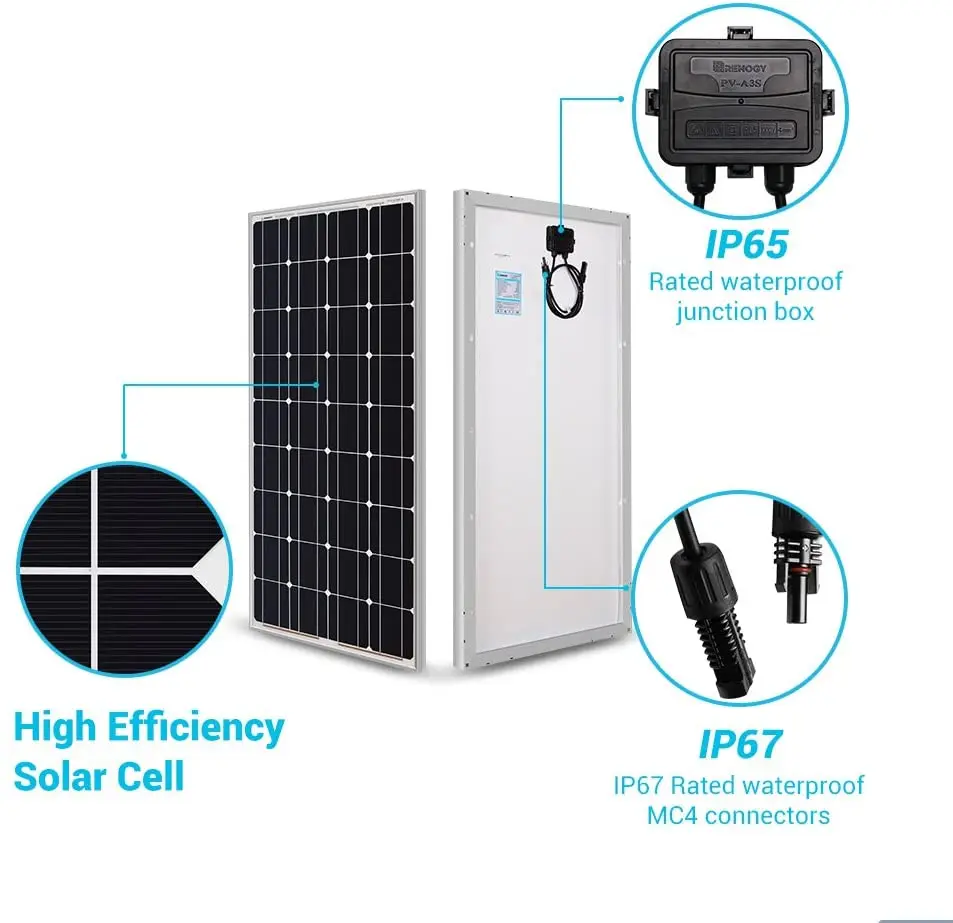

Junction Box		IP65&IP67 Rated
Output Cable		Section Size: 4mm² , Length: 900mm

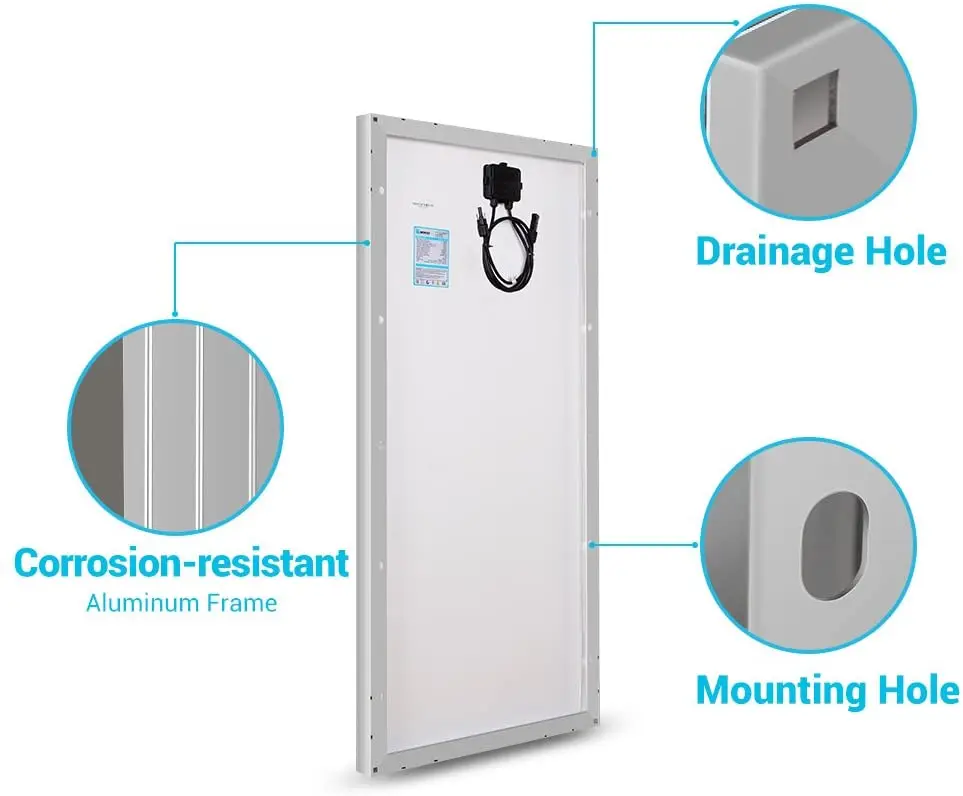

Frame		Anodized Aluminum Alloy
No. of Bypass Diodes		6
Connector		MC4 Compatible
Working Conditions
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC) / 1000V(UL)
Operating Temperature		-40°c~+85°c
Maximum Series Fuse		15A
NOCT		45±2°c
Application Class		Class A
